Ø375mm x 36.0mm Ventilated Brake Disc - 12 x 241.3mm PCD - Bolted

Ø375mm x 36.0mm Ventilated Brake Disc - 12 x 241.3mm PCD - Bolted

CP5772-6076P

€484.61 €596.07
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 375mm
Thickness 36.0mm
Mounting P.C.D 241.3mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 257.0mm
Inside Flange Diameter 225.0mm
Mounting Flange Thickness 6.6mm
Max Pad Depth 54.0mm
No. of Vanes 72
Air Gap 19.5mm
View full details

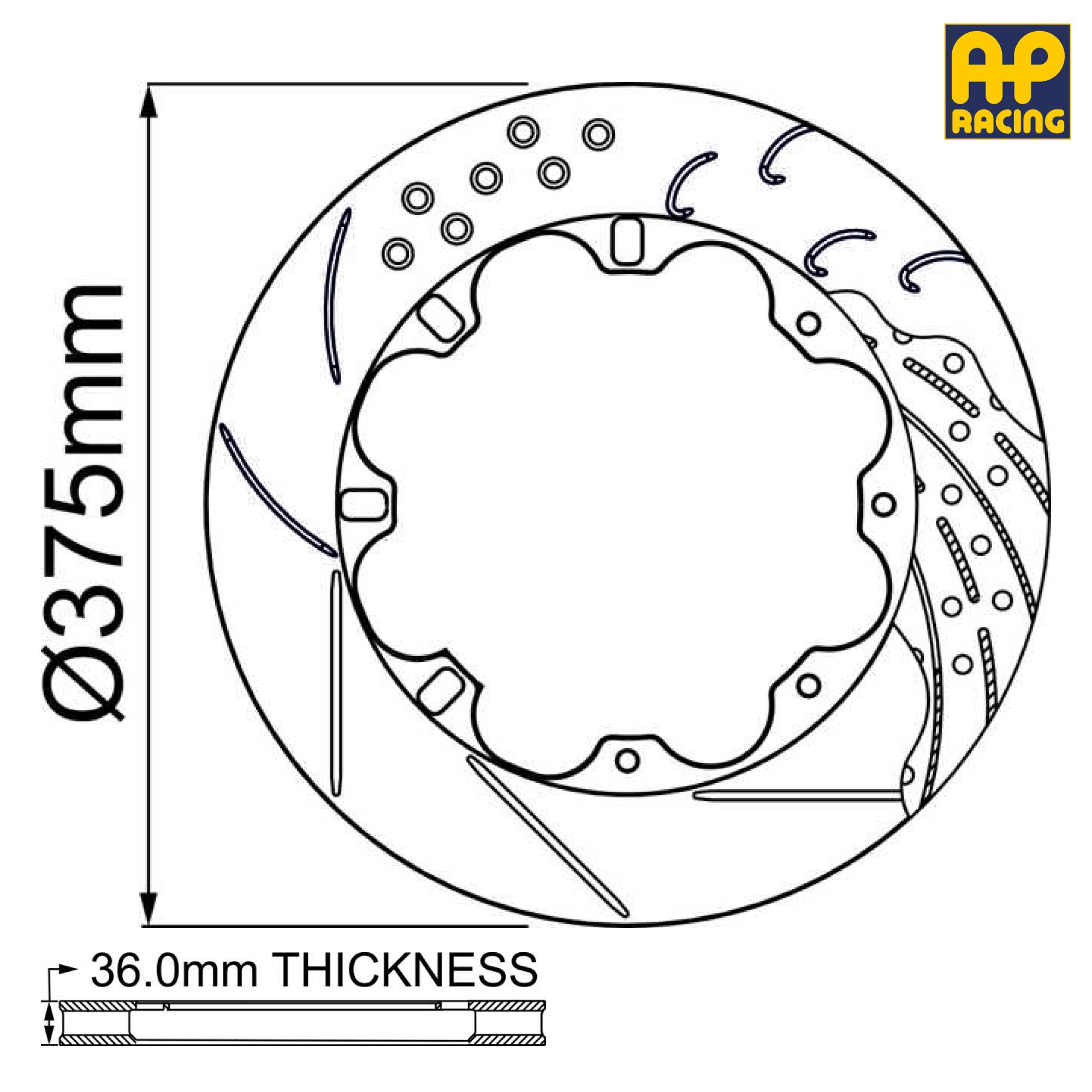

375mm x 36.0mm Brake Disc Dimensions

Outside Diameter 375mm
Thickness 36.0mm
Mounting P.C.D 241.3mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 257.0mm
Inside Flange Diameter 225.0mm
Mounting Flange Thickness 6.6mm
Max Pad Depth 54.0mm
No. of Vanes 72
Air Gap 19.5mm
Face Types Available P - Plain Face
RA - 'J' Hook Design (along outer diameter)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
P - Plain Face / Right-Hand Side CP5772-6076P
P - Plain Face / Left-Hand Side CP5772-6077P
RA - 'J' Hook Design (along outer diameter) / Right-Hand Side CP5772-6076RA
RA - 'J' Hook Design (along outer diameter) / Left-Hand Side CP5772-6077RA

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
