Ø376mm x 28.0mm Ventilated Brake Disc - 12 x 260.0mm PCD - Floating

Ø376mm x 28.0mm Ventilated Brake Disc - 12 x 260.0mm PCD - Floating

CP3718-1000G8

€590.54 €726.36
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 376mm
Thickness 28.0mm
Mounting P.C.D 260.0mm
Mounting Type Floating - 12 Bobbins
Eye Diameter 277.6mm
Inside Flange Diameter 235.4mm
Mounting Flange Thickness 5.6mm
Max Pad Depth 48.0mm
No. of Vanes 48
Air Gap 17.5mm
View full details

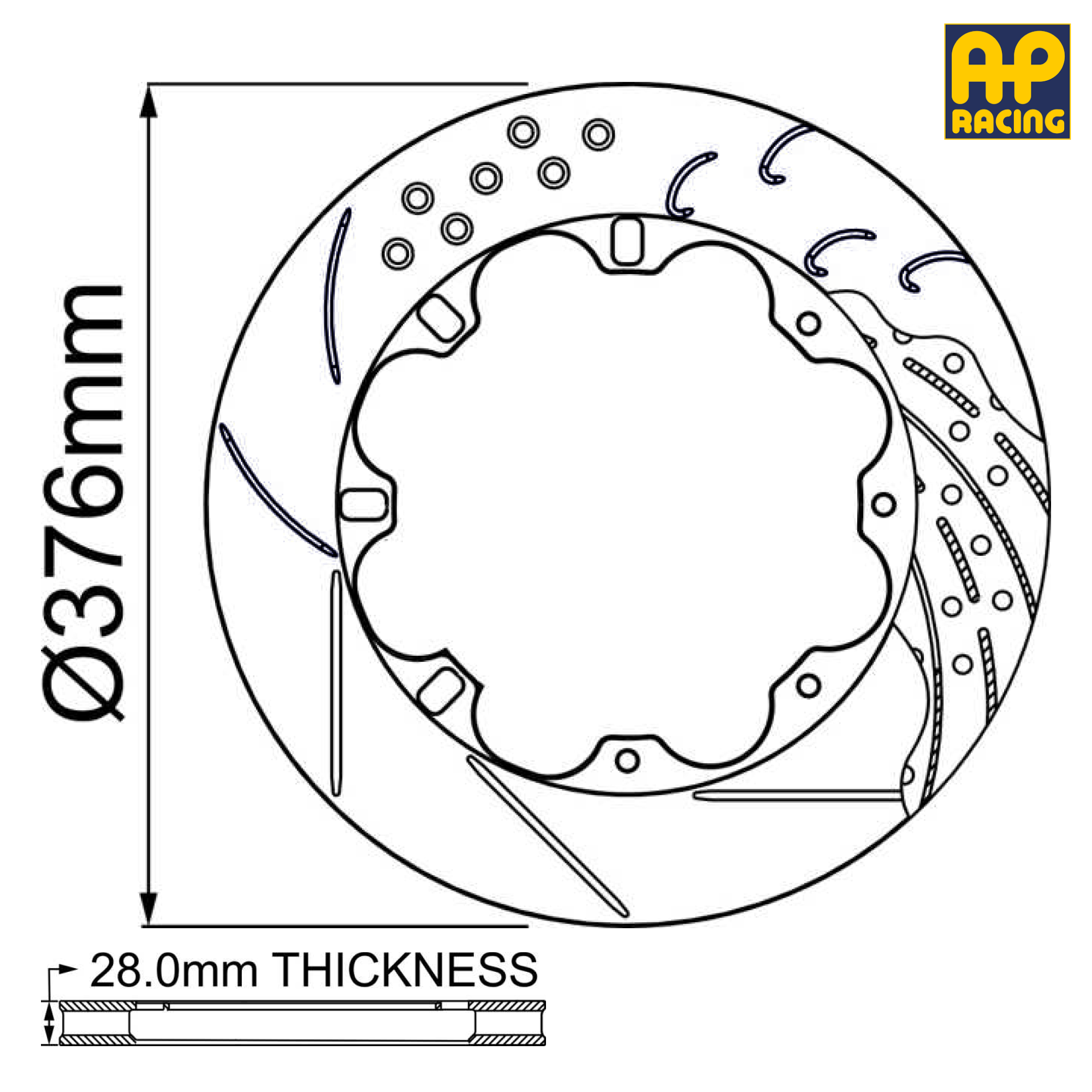

376mm x 28.0mm Brake Disc Dimensions

Outside Diameter 376mm
Thickness 28.0mm
Mounting P.C.D 260.0mm
Mounting Type Floating - 12 Bobbins
Eye Diameter 277.6mm
Inside Flange Diameter 235.4mm
Mounting Flange Thickness 5.6mm
Max Pad Depth 48.0mm
No. of Vanes 48
Air Gap 17.5mm
Face Types Available G8 - Grooved (Straight Forward)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
G8 - Grooved (Straight Forward) / Right-Hand Side CP3718-1000G8
G8 - Grooved (Straight Forward) / Left-Hand Side CP3718-1001G8

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
