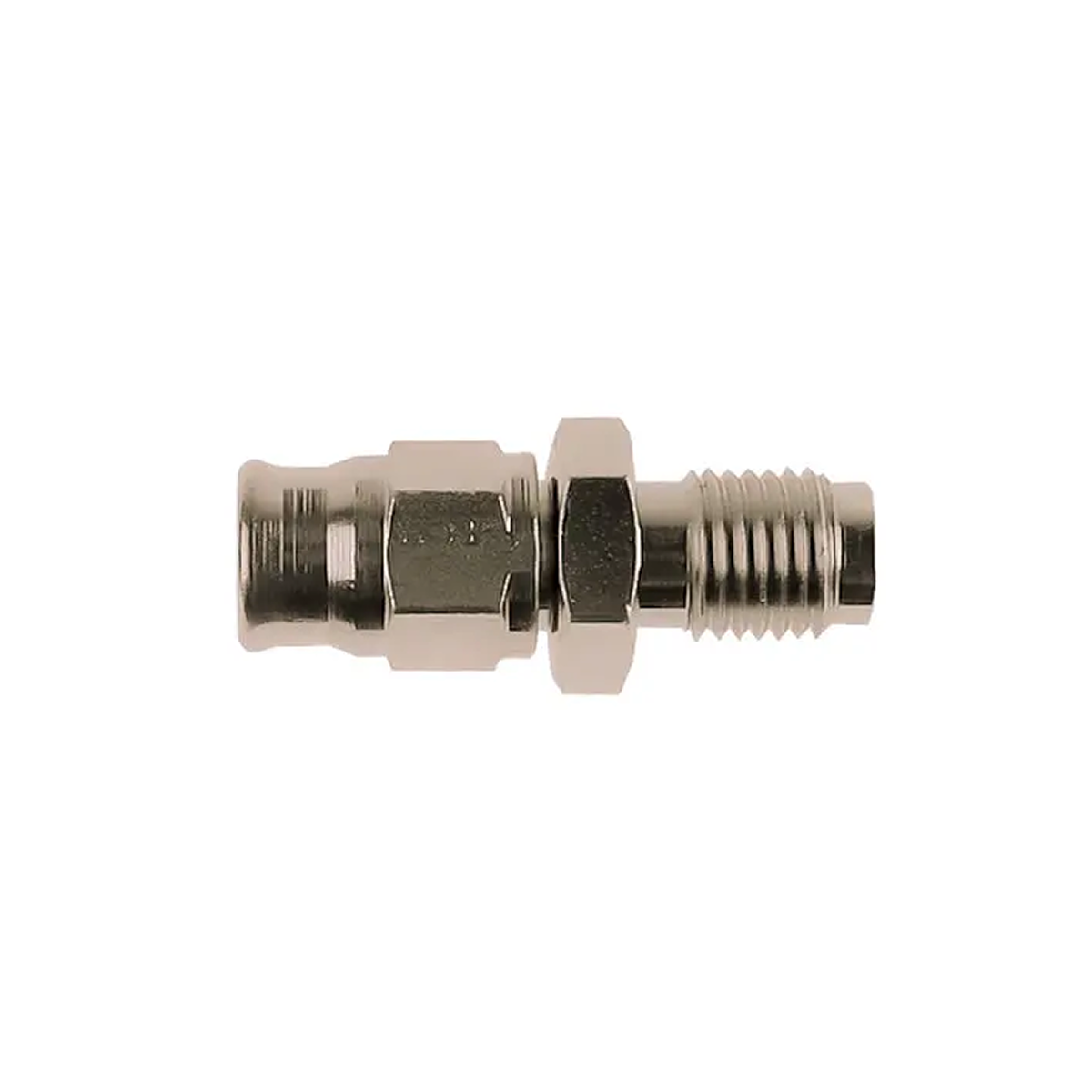

Goodridge Brake/Clutch JIC/UNF Fittings to suit Goodridge -03/-04 sized 600 Series brake hose. Each fitting is supplied with the necessary olive and socket to aide fitment to the Goodridge Brake Hose.

CONSTRUCTION

• Suitable for -03/-04 Smoothbore Teflon (PTFE) Hosing Only**
• They are available in various material types (See part numbers below)
• 600 Series Hose Ends allow for all time alignment with their 360-degree swivel ends, with some fittings fitted with Double Swivels
• Each fiting contains an Olive which must be fitted between the Steel Braid and the Teflon Lining so it can be compressed by the socket:

REPLACEMENT SOCKETS & OLIVES

• 1205 - Replacement Olive
• 1206 - Replacement Socket

APPLICATIONS

• Brake
• Clutch

COMPATIABLE HOSING

• 600 Series Hosing
• 600 Series Colour-Flexed Hosing

440 - PART NUMBERS

GOODRIDGE MATERIAL KEY:

• B: Brass
• C: Stainless steel
• CH: Crome plated
• D: Anodised Aluminium
• P: Zinc plated carbon steel
• Z1: Silver plated carbon steel
