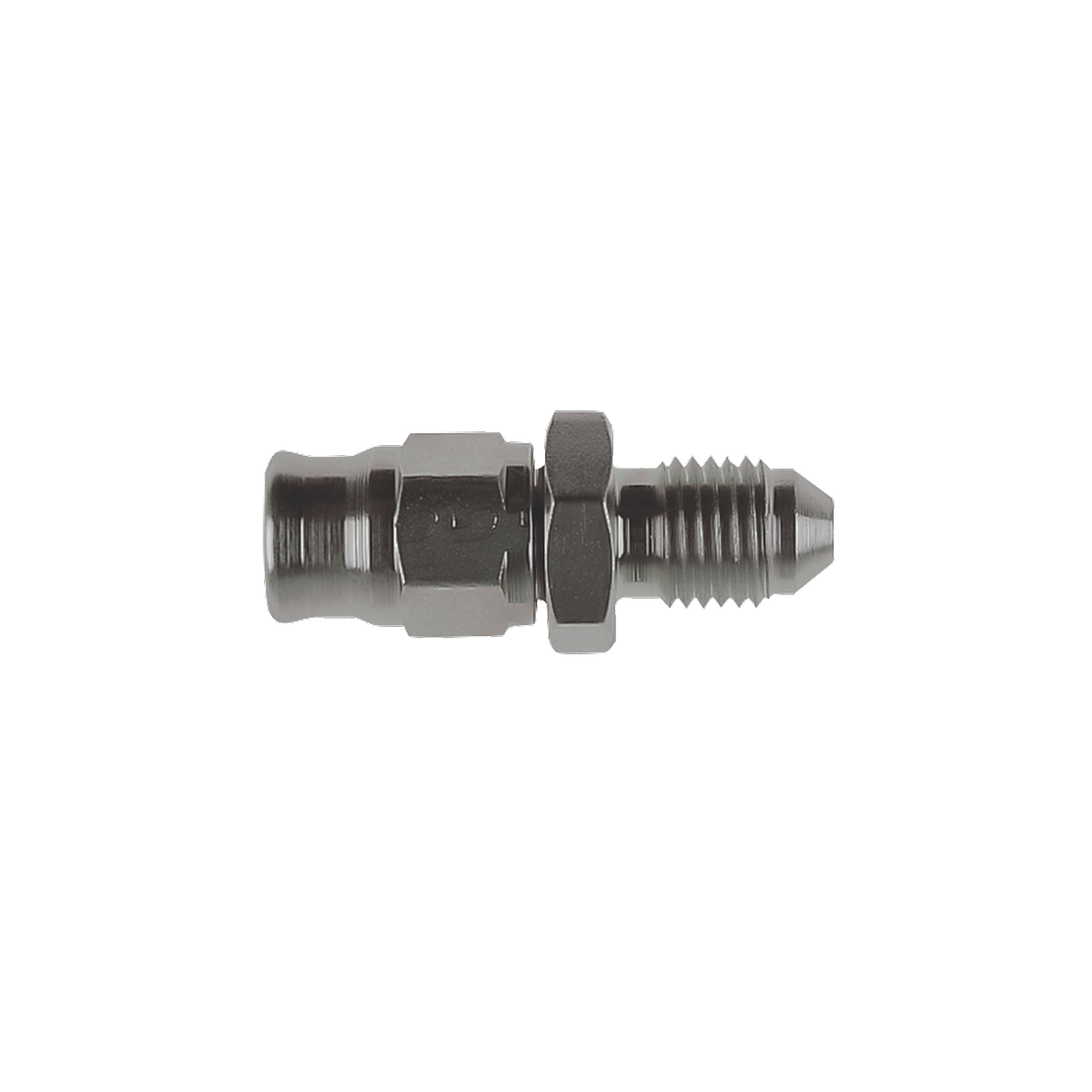

Straight Male Convex Seat

Straight Male Convex Seat

441-03C

€24.16 €29.72
Sale Sold out
Hose Dash Size
JIC/UNF Thread
Material: Stainless Steel

View full details

Goodridge Brake/Clutch JIC/UNF Fittings to suit Goodridge -03/-04 sized 600 Series brake hose. Each fitting is supplied with the necessary olive and socket to aide fitment to the Goodridge Brake Hose.

CONSTRUCTION

  • Suitable for -03/-04 Smoothbore Teflon (PTFE) Hosing Only**
  • They are available in various material types (See part numbers below)
  • 600 Series Hose Ends allow for all time alignment with their 360-degree swivel ends, with some fittings fitted with Double Swivels
  • Each fiting contains an Olive which must be fitted between the Steel Braid and the Teflon Lining so it can be compressed by the socket:

Assembly

REPLACEMENT SOCKETS & OLIVES

APPLICATIONS

  • Brake
  • Clutch

COMPATIABLE HOSING

441 - PART NUMBERS

441

GOODRIDGE MATERIAL KEY:

  • B: Brass
  • C: Stainless steel
  • CH: Crome plated
  • D: Anodised Aluminium
  • P: Zinc plated carbon steel
  • Z1: Silver plated carbon steel

SMOOTHBORE PTFE HOSE ASSEBMLIES:
A PTFE Compatiable fitting can be indetifed by a Flared Socket which also contains an Olive. Quite simply, the fitter must  place the olive between the PTFE lining and the outer stainless steel braid, so when the socket is tightened, the olive compresses the hose to create a very effective seal suitable for high pressure fluids. The compressed olive ensures that the assmebly is vapour free making it suitable for the interior cockpit of a car.
These fittings are reusable so that they can be used time and time again but will require replacement olives. If the hose itself is damaged, just disassemble, clean, lubricate and reassemble with a new olive and a new piece of hose.

Brand:

Goodridge

Manufacturer Part Number:

441-03C, 441-03P, 441-04C
