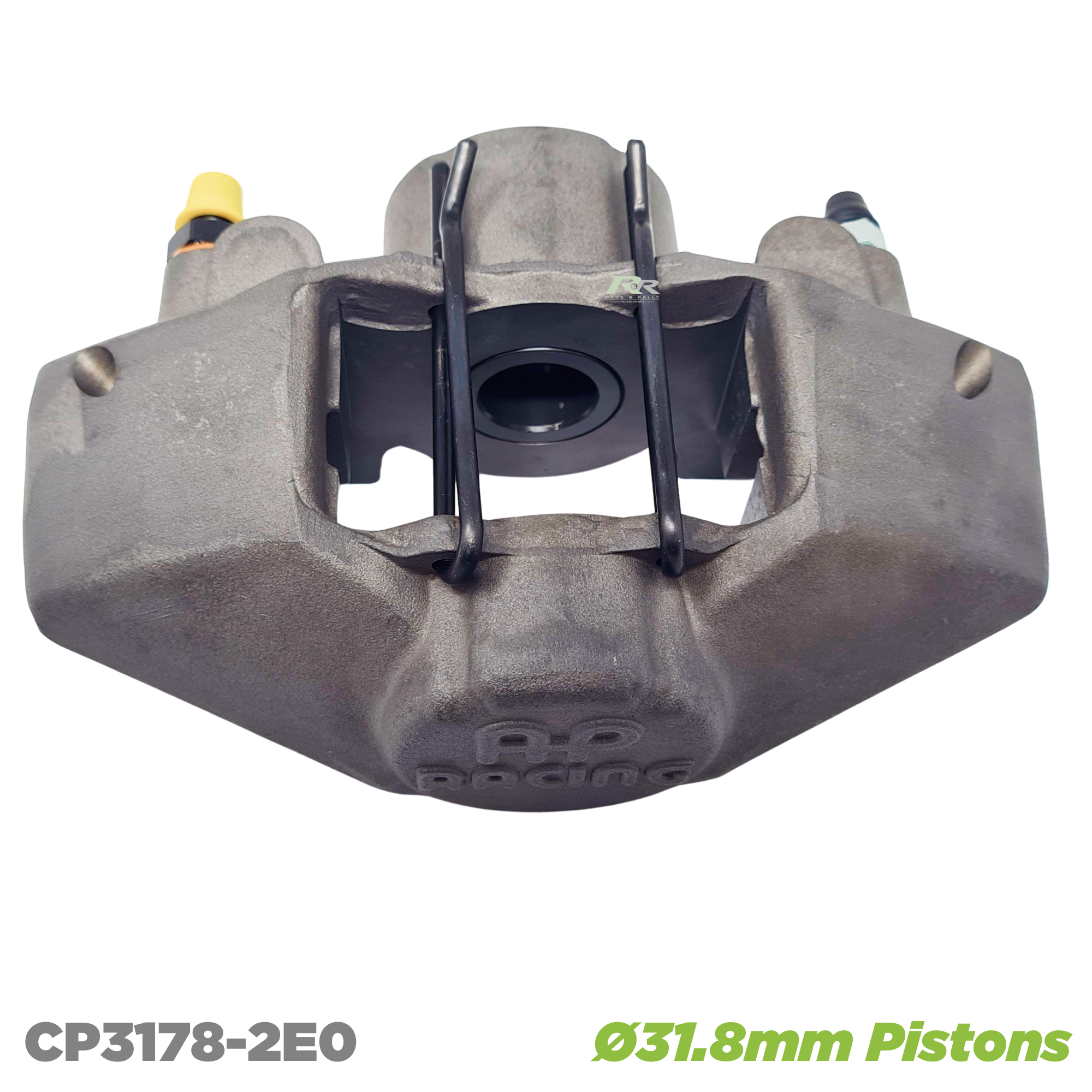

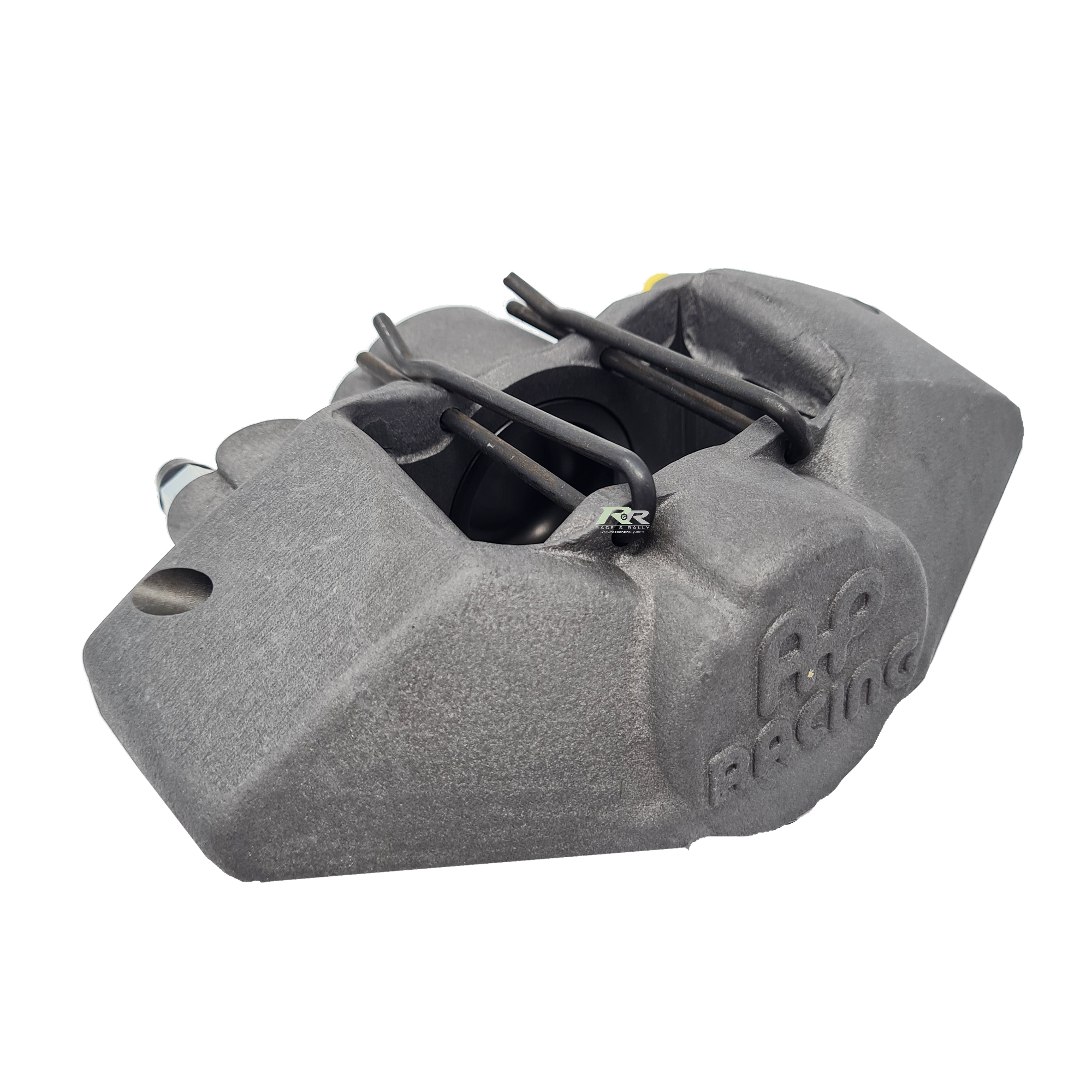

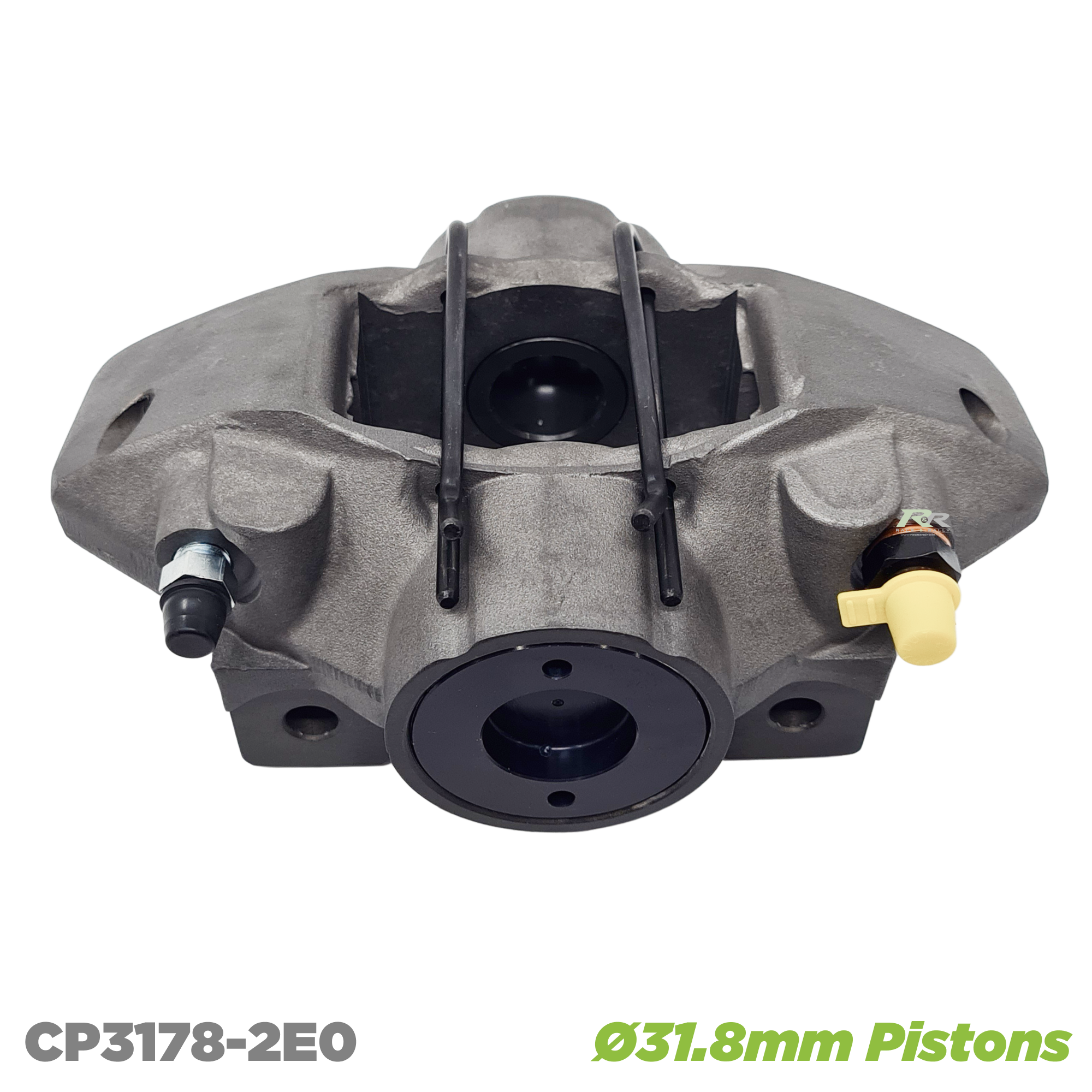

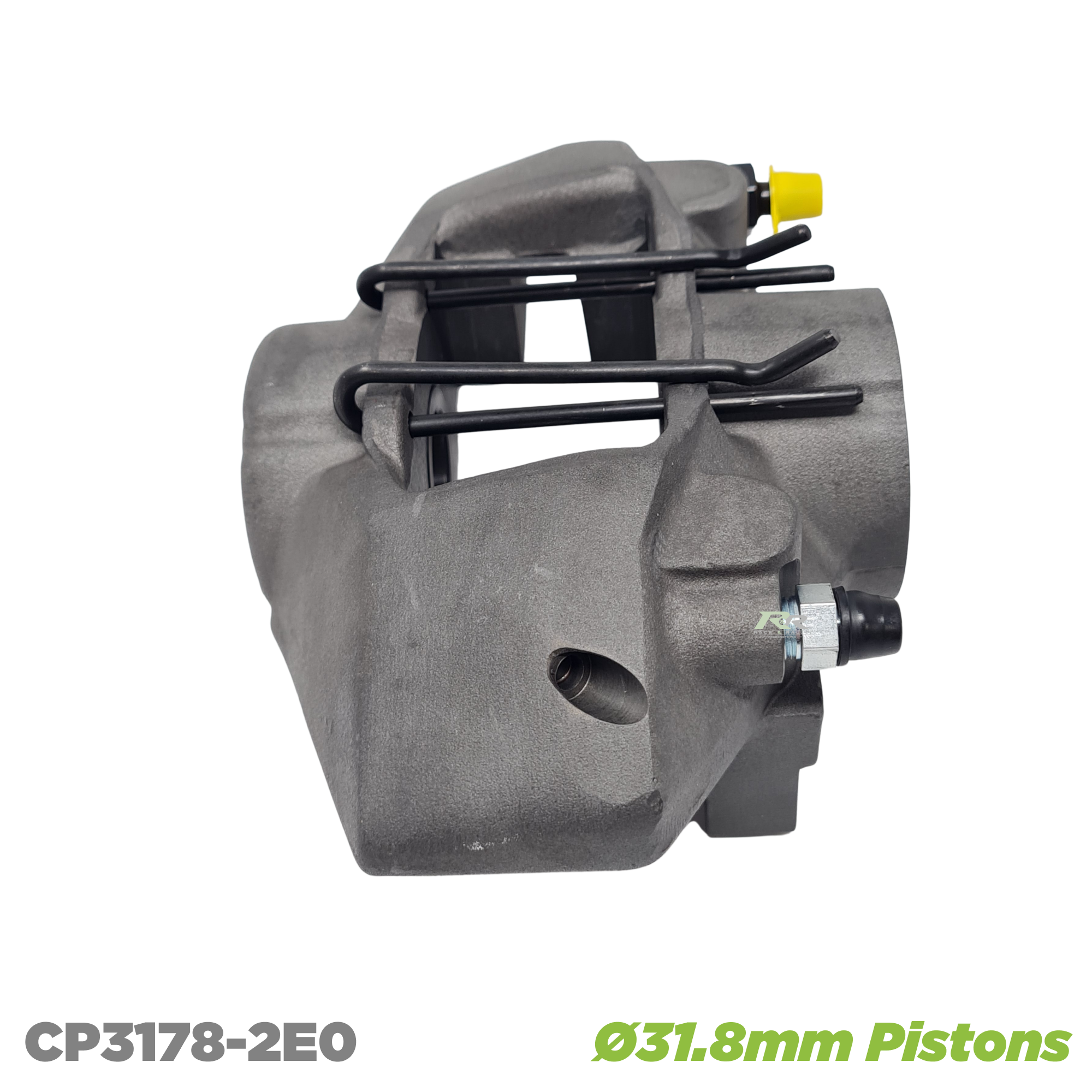

CP2576 / CP2577 / CP3176 / CP3177 & CP3178 - 2 Piston Lug Mounted Caliper

SKU:CP3178-2E0

€610.65 €751.10

Sale Sold out

Rally (Rear)
Circuit (Rear)
Formula Ford
Suits up to Ø267mm x 9.7mm Solid Disc

Piston Diameter Ø31.8mm Ø36.0mm Ø38.1mm Ø41.3mm Ø44.5mm

Caliper Hand Non-Handed

Quantity

Out of stock, contact for leadtime

View full details

CP2576 / CP2577 / CP3176 / CP3177 & CP3178
- 2 Piston Lug Mounted Caliper

Rally / Circuit Rear.
CP2577-14E0 Formula Ford Front & Rear. (Interchangeable with CP2485-8/9S0).

Features:

Lug Mount, 89mm centres
Aluminium alloy body
Non handed
Suits Ø267mm x 9.7mm solid disc
Aluminium Pistons
Piston dirt seals fitted
High temperature seals

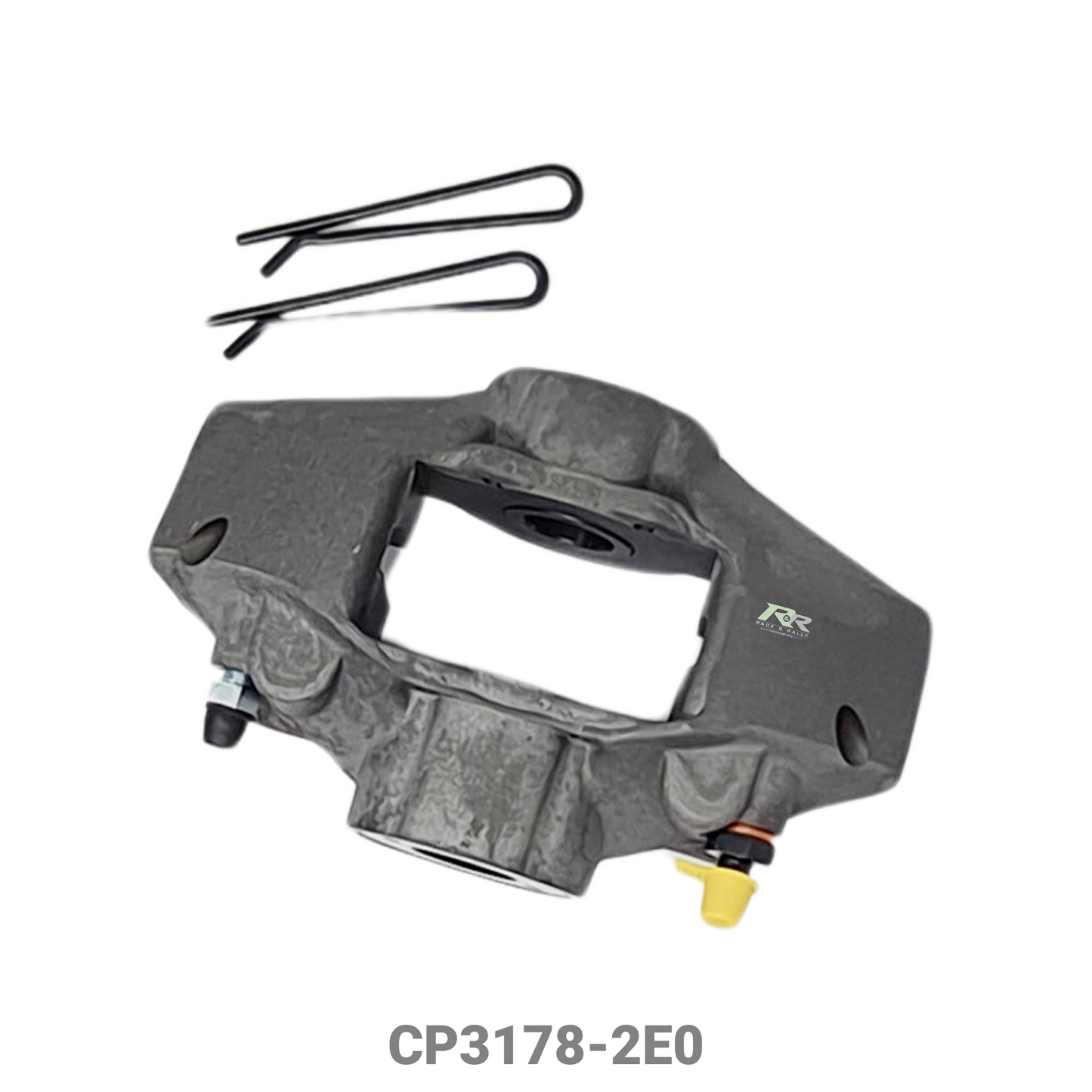

Quick release 'R' Clip pad retainer

Part Numbers:

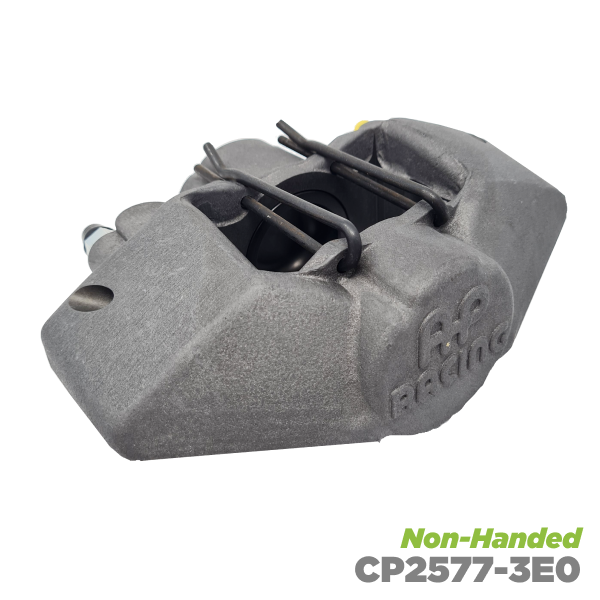

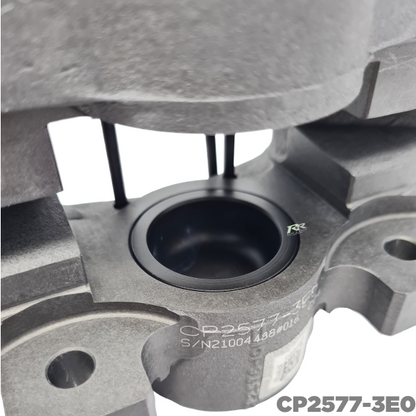

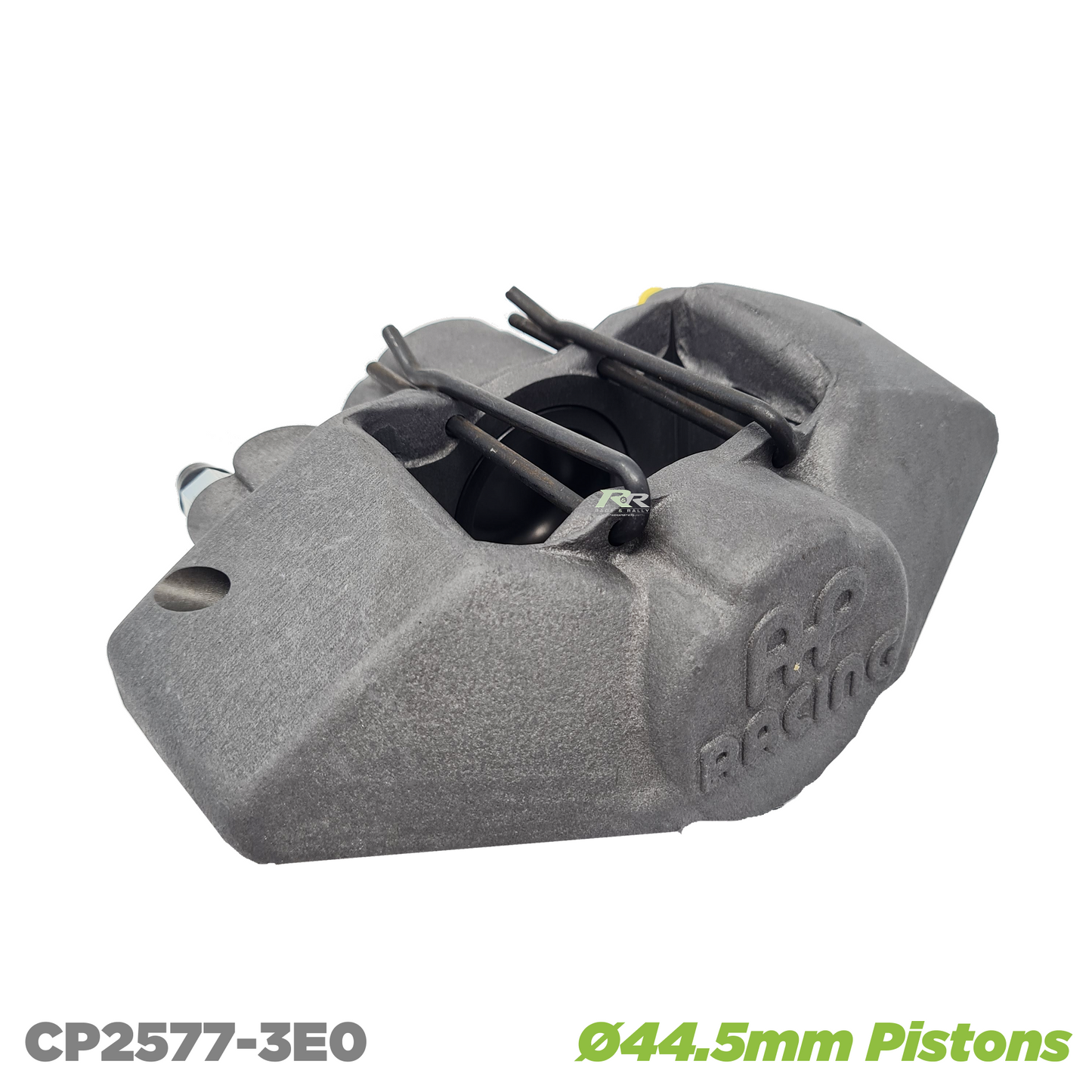

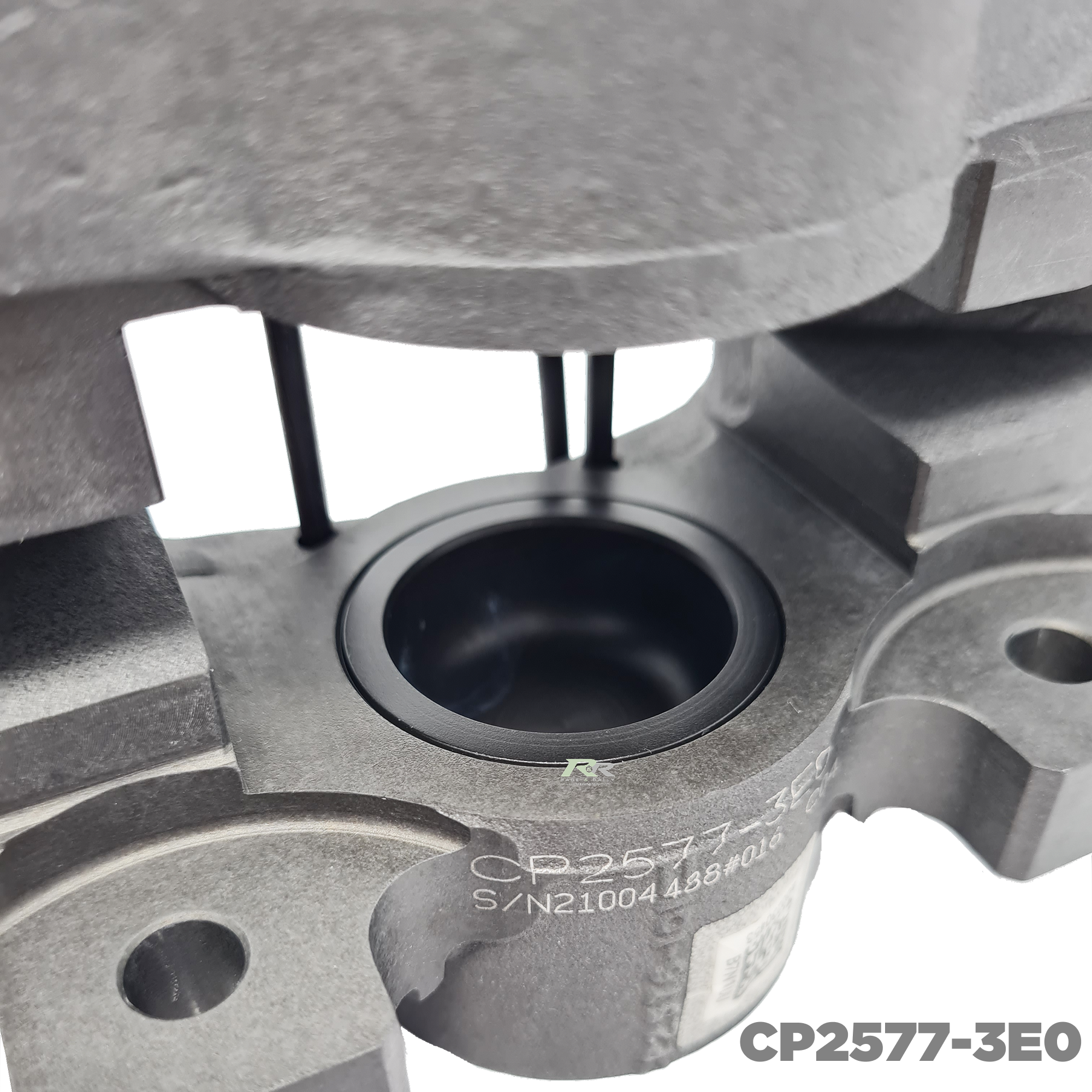

Ø44.5mm Bore - CP2577-3E0
Ø44.5mm Bore - CP2577-14E0
Ø41.3mm Bore - CP2576-3E0
Ø38.1mm Bore - CP3176-2E0

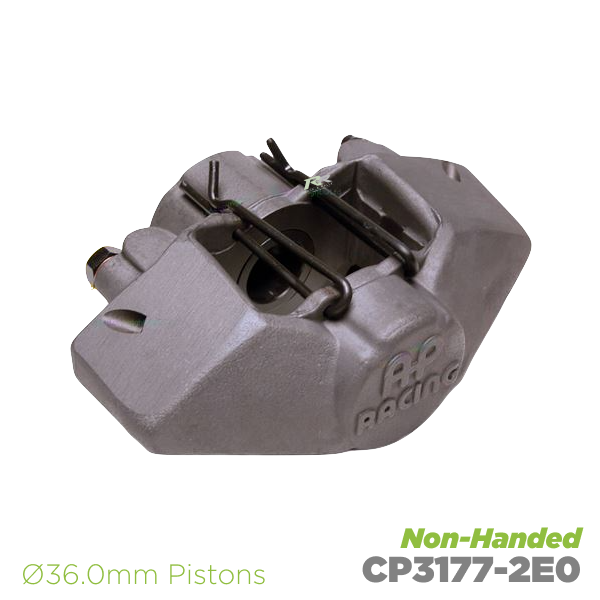

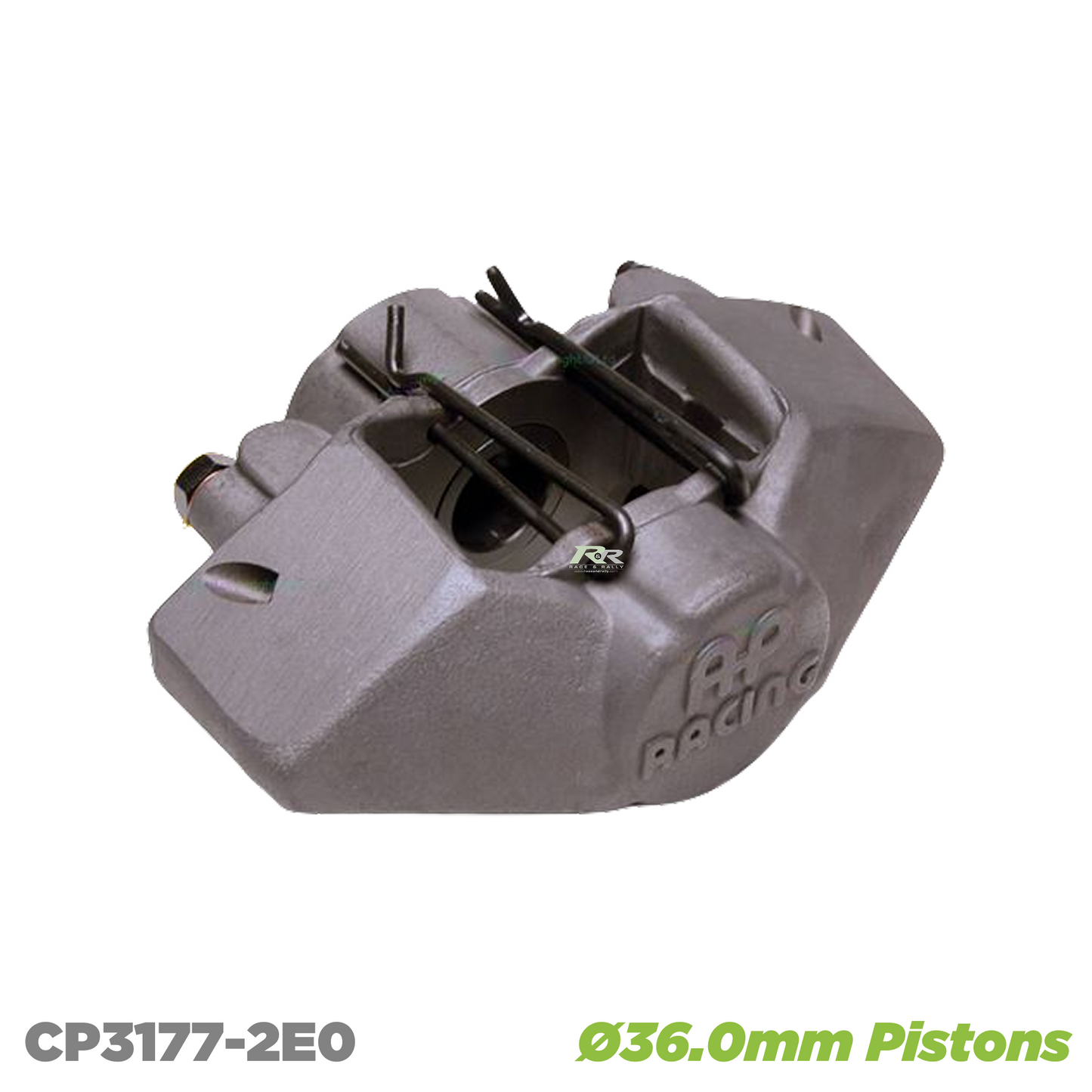

Ø36.0mm Bore - CP3177-2E0

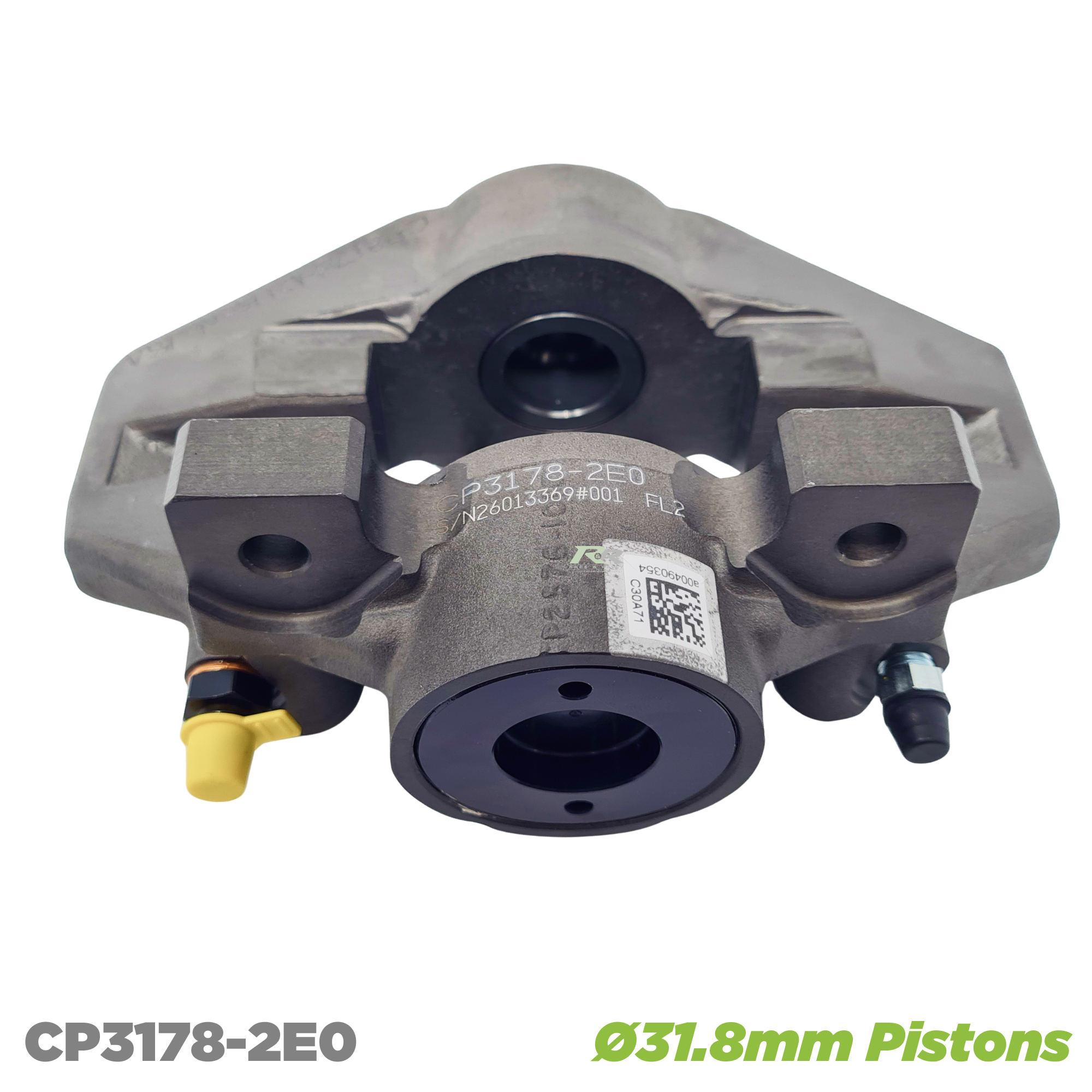

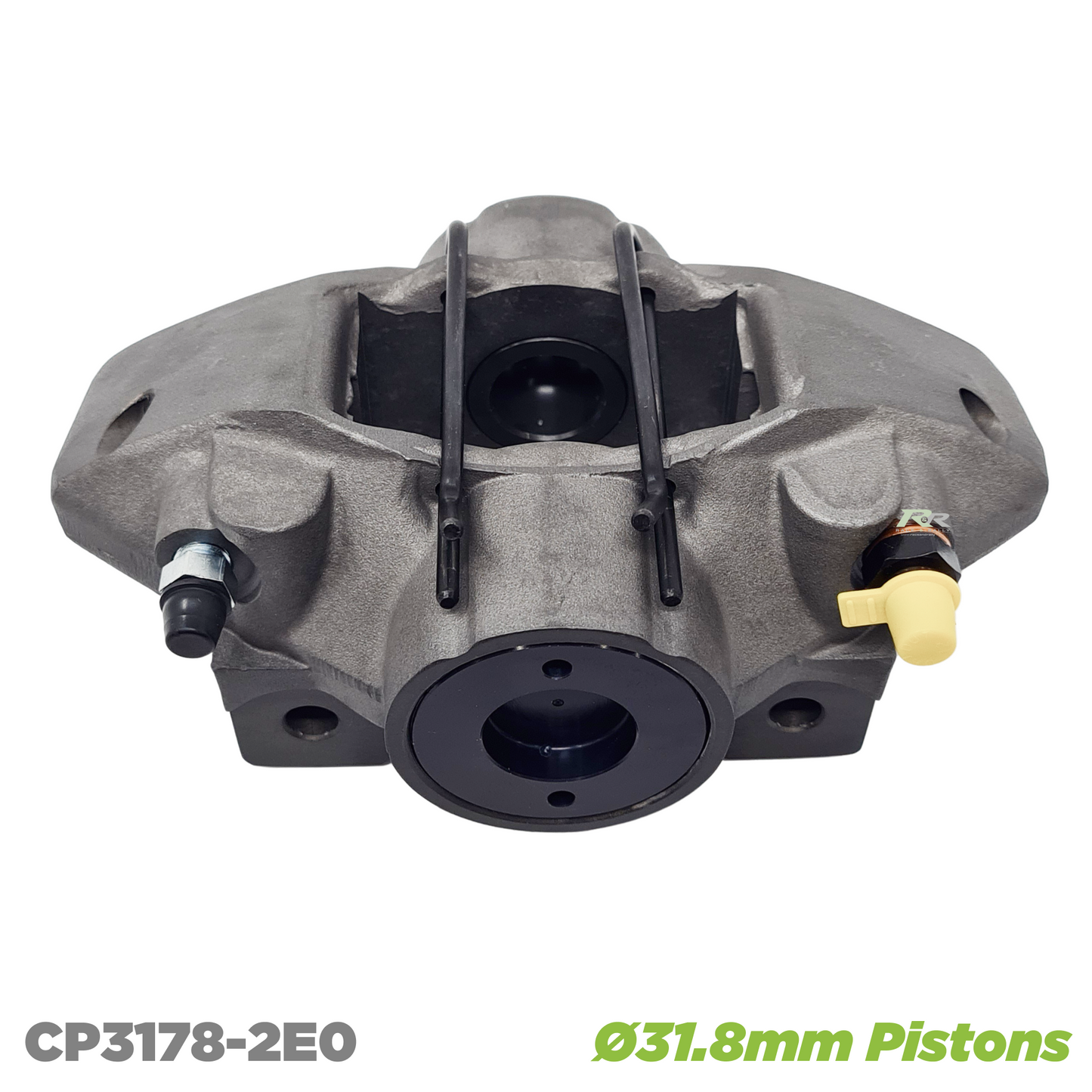

Ø31.8mm Bore - CP3178-2E0

Technical Specifications:

Piston Sizes	CP2576 - Ø41.3mm CP2577 - Ø44.5mm CP3176 - Ø38.1mm CP3177 - Ø36.0mm CP3178 - Ø31.8mm
Disc Diameter	Max - Ø267mm
Disc Thickness	Max - 9.70mm
Weight (no pads)	1.10 Kg
Hydraulic Threads	3/8" x 24 UNF
Mounting Type	Lug
Mounting Centres	89.00mm
Mounting Offset	CP2576 - 24.6mm CP2577-3E0 - 24.6mm CP2577-14E0 - 20.6mm CP3176 - 24.6mm CP3177 - 24.6mm CP3178 - 24.6mm
Mounting Hole	Ø9.6mm
'PL' Dimension	CP2576 - 46.9mm CP2577-3E0 - 46.9mm CP2577-14E0 - 48.5mm CP3176 - 46.9mm CP3177 - 46.9mm CP3178 - 46.9mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

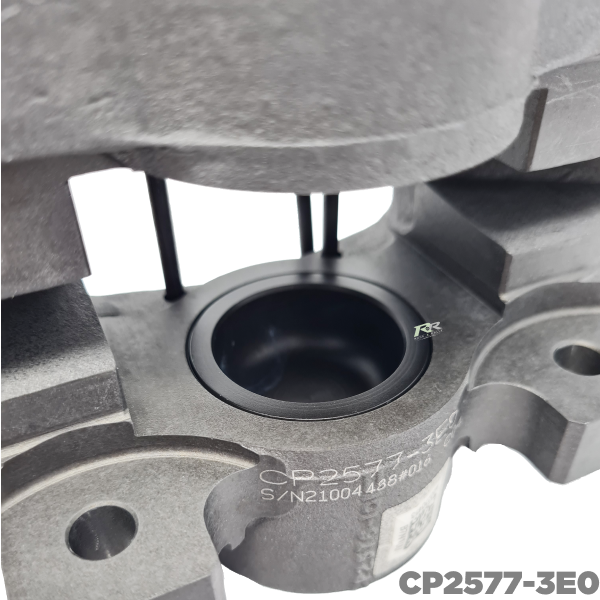

Pistons	Ø41.3mm - CP2576-105 Ø44.5mm - CP2577-102 Ø38.1mm - CP3176-102 Ø36.0mm - CP3177-102 Ø31.8mm - CP3178-102
Seal Repair Kit	CP2576 - CP4518-K CP2577 - CP4518-L CP3176 - CP4518-J CP3177 - CP4518-H CP3178 - CP4518-E
Pad Retainer	CP2576 - CP2213-17 CP2577-3E0 - CP2213-17 CP2577-14E0 - CP3658-518 CP3176 - CP2213-17 CP3177 - CP2213-17 CP3178 - CP2213-17
Bleed Screw	CP3720-182
Bleed Screw Cap	CP2494-177

Brake Pads

Pad Shape	CP2399D43
Pad Area	27.4cm²
Pad Depth	42.9mm
Thickness	14.4mm

Option	SKU	Barcode
Brand	AP Racing
Ø31.8mm / Non-Handed	CP3178-2E0
Ø36.0mm / Non-Handed	CP3177-2E0
Ø38.1mm / Non-Handed	CP3176-2E0
Ø41.3mm / Non-Handed	CP2576-3E0
Ø44.5mm / Non-Handed	CP2577-3E0
