CP6120 / CP6121 - 2 Piston Radial Caliper - Solid Disc

Name: CP6120 / CP6121 - 2 Piston Radial Caliper - Solid Disc
Brand: AP Racing
SKU: CP6121-2S0
Price: 318.15 GBP
Availability: InStock

SKU:CP6121-2S0

€318.15 €391.32

Sale Sold out

2 Piston
Solid Disc
Cast Aluminium Alloy Body
[Pad Shape: CP2399D43]

Piston Diameter Ø38.1mm Ø44.5mm

Caliper Hand RHS Trailing / LHS Leading LHS Trailing / RHS Leading

Quantity

Out of stock, contact for leadtime

View full details

CP6120 / CP6121 - 2 Piston Radial Caliper
- Solid Disc

Applications

Formula Ford
Rally Rear

Features:

Radial Mount, 130mm x 20.9mm centres
Two piece cast Aluminium alloy body
Suits Ø282mm x 12.7mm solid disc.
Aluminium Pistons
Pin pad retainer
Note: Version with pipe protection for Rally applications available.
Please contact us for more information

Part Numbers:

Calipers with Ø44.5mm Pistons

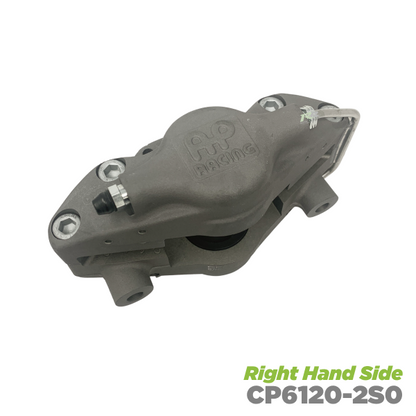

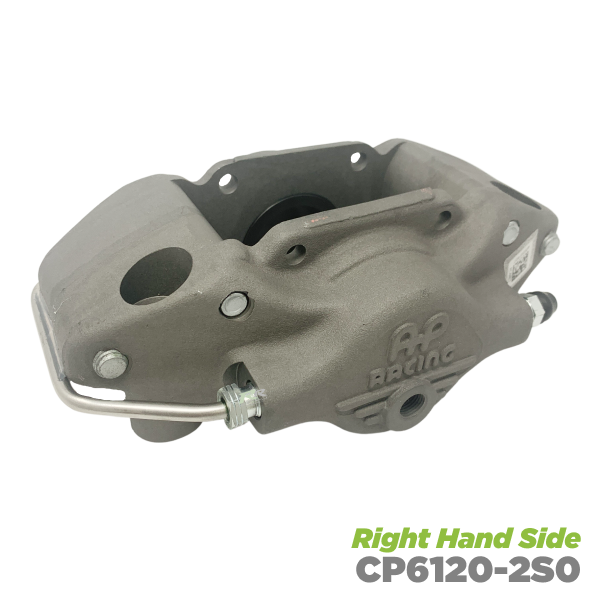

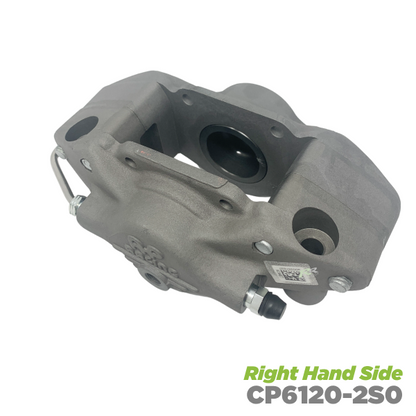

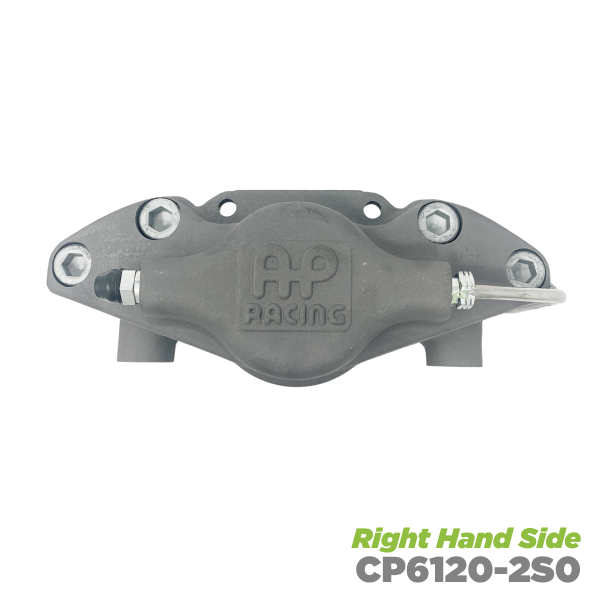

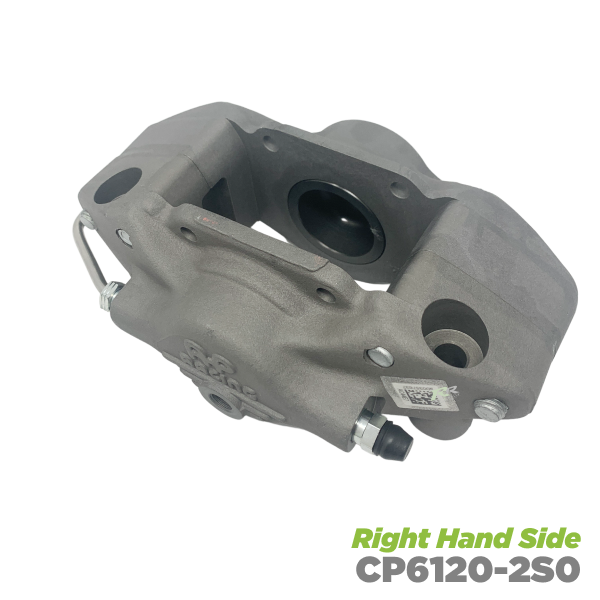

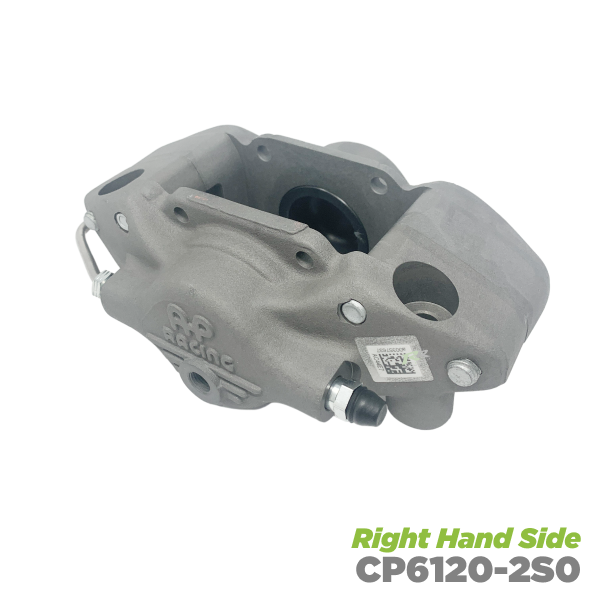

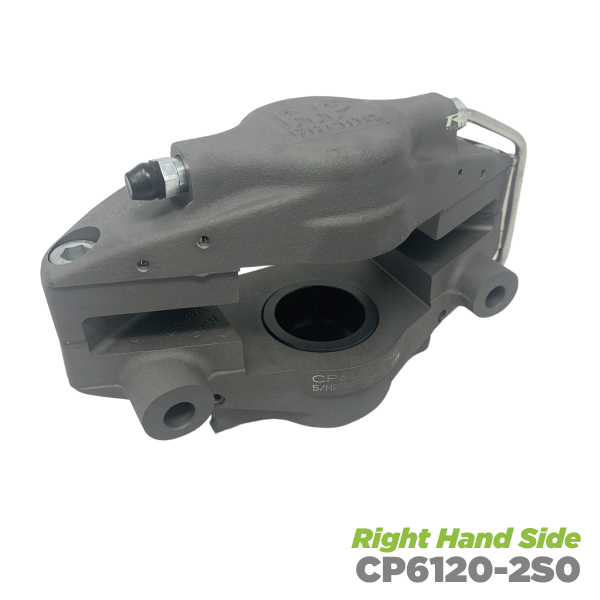

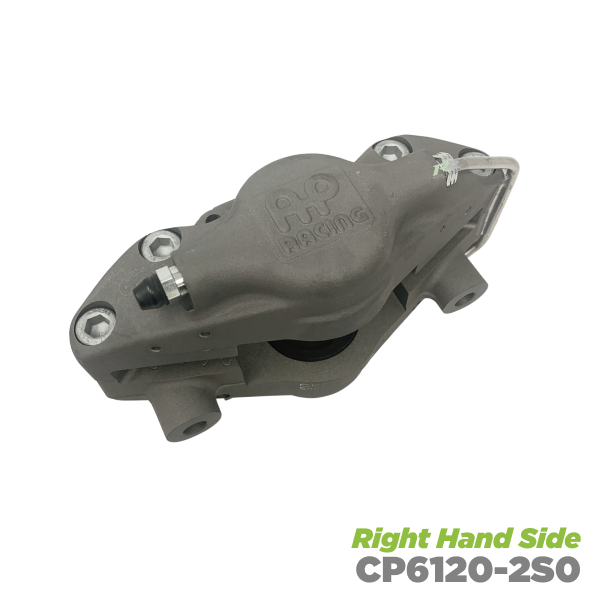

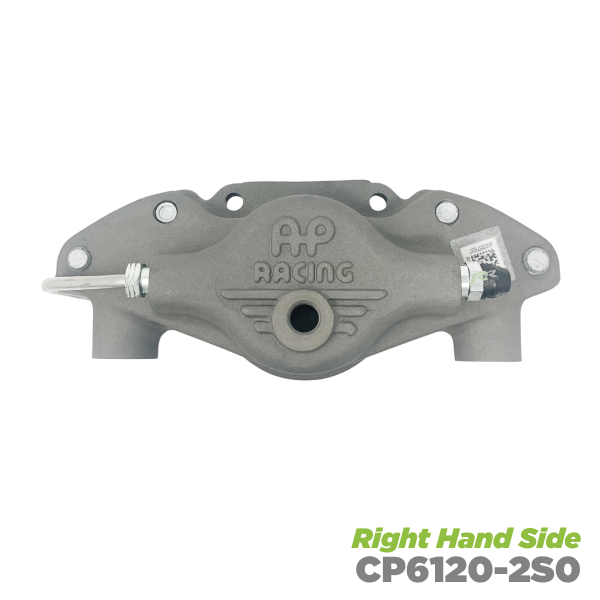

- Right-Hand Trailing - CP6120-2S0

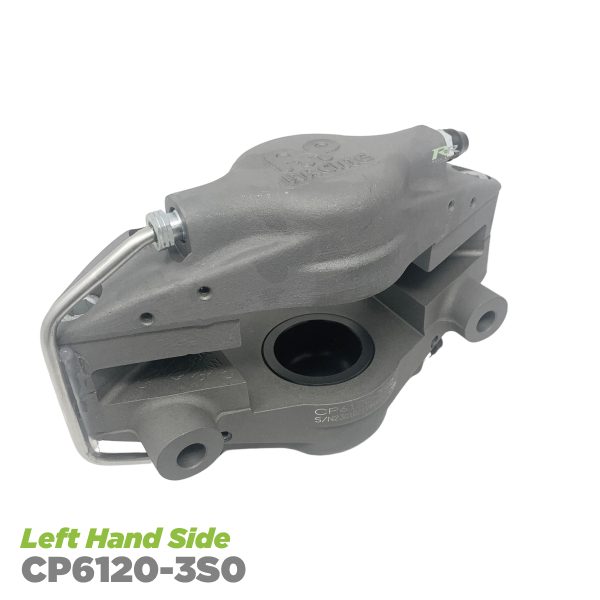

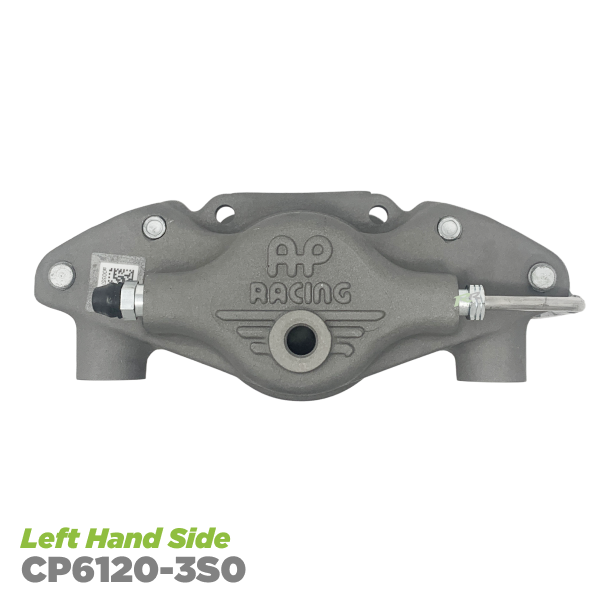

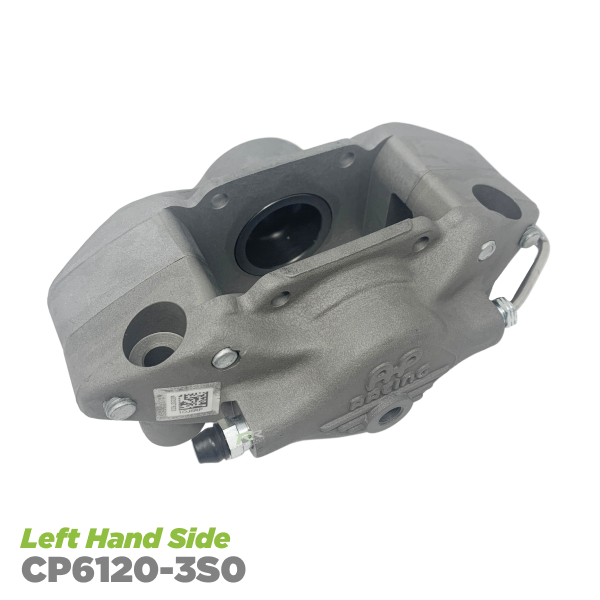

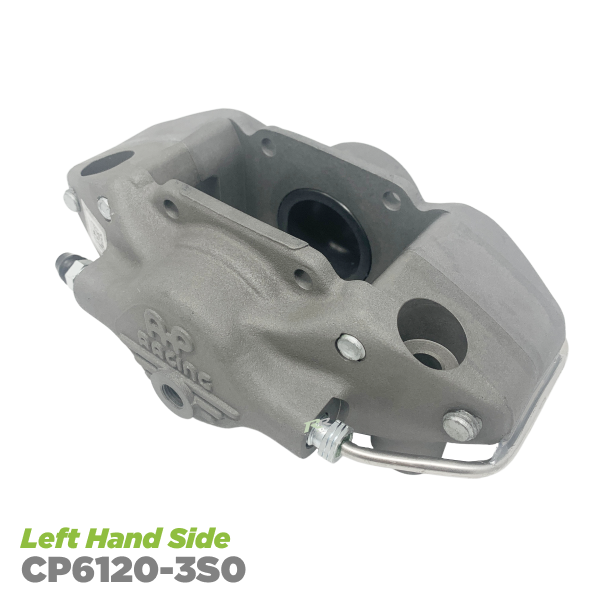

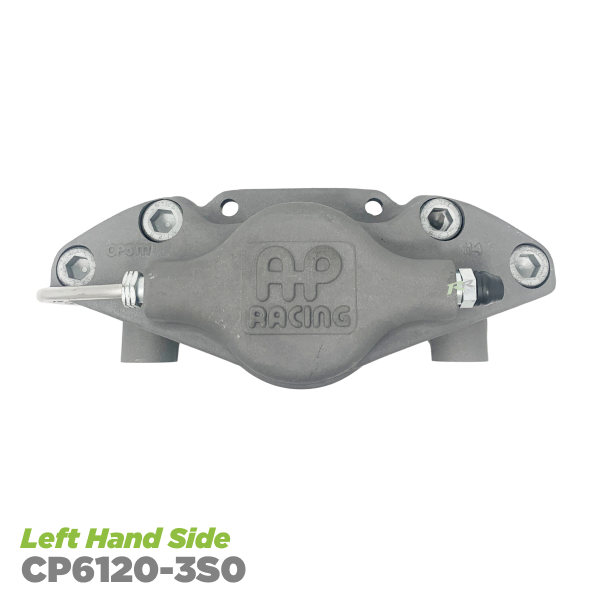

- Right-Hand Leading - CP6120-3S0
- Left-Hand Trailing - CP6120-3S0
- Left-Hand Leading - CP6120-2S0
Calipers with Ø38.1mm Pistons
- Right-Hand Trailing - CP6121-2S0
- Right-Hand Leading - CP6121-3S0
- Left-Hand Trailing - CP6121-3S0
- Left-Hand Leading - CP6121-2S0

Technical Specifications:

Piston Sizes	CP6120 - Ø44.5mm CP6121 - Ø38.1mm
Piston Area	CP6120 - 31.04cm³ CP6121 - 22.8 cm³
Disc Diameter	Max - Ø282.00mm
Disc Thickness	Max - 12.7mm
Weight (no pads)	1.50 Kg
Hydraulic Threads	M10 x 1.0
Mounting Type	Radial
Mounting Centres	130.0mm
Mounting Offset	20.9mm
Mounting Hole	Ø10.1mm
'PL' Dimension	50.5mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	CP6120 - CP5235-108 CP6121 - CP6121-104
Seal Repair Kit	CP6120 - CP4518-L CP6121 - CP4518-J
Pad Retainer	CP6120-103
Bleed Screw Kit	CP3880-1
Bleed Screw Cap	CP2494-177
Fluid Pipe	CP6120-6

Brake Pads

Pad Shape	CP2399D43
Pad Area	27.4cm²
Pad Depth	42.9mm
Thickness	14.4mm

Option	SKU	Barcode
Brand	AP Racing
Ø38.1mm / RHS Trailing / LHS Leading	CP6121-2S0
Ø38.1mm / LHS Trailing / RHS Leading	CP6121-3S0
Ø44.5mm / RHS Trailing / LHS Leading	CP6120-2S0
Ø44.5mm / LHS Trailing / RHS Leading	CP6120-3S0

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
