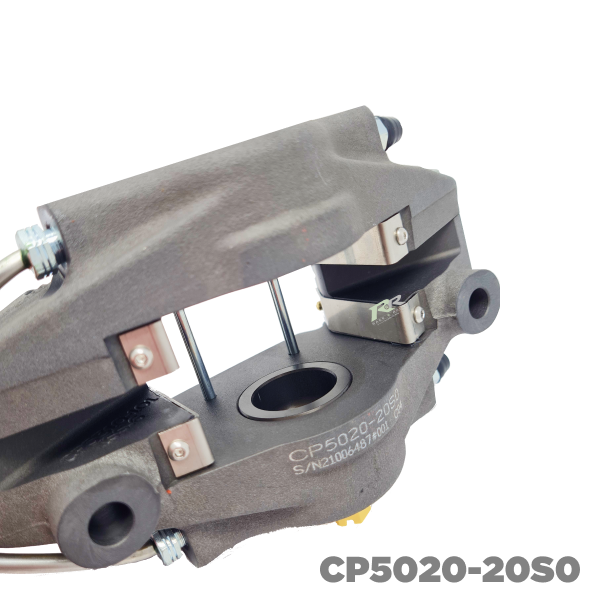

• CP5020-20S0

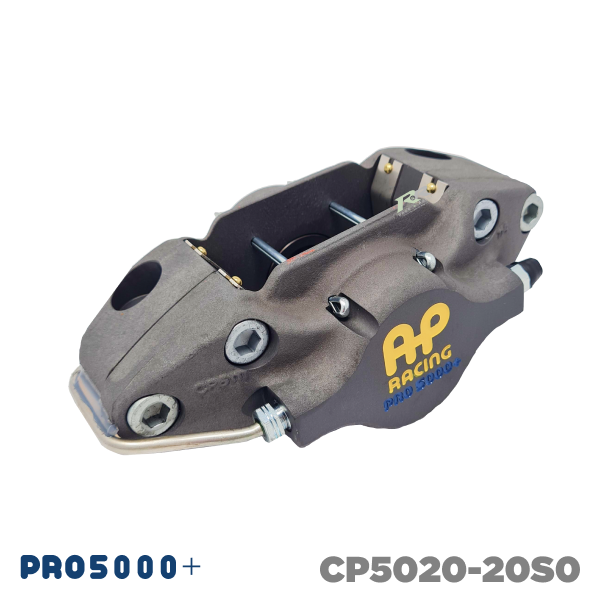

  • CP5020-20S0

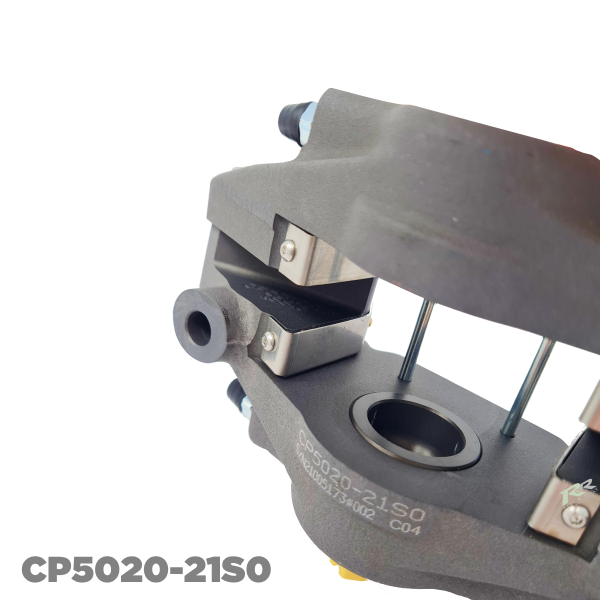

  • CP5020-21S0

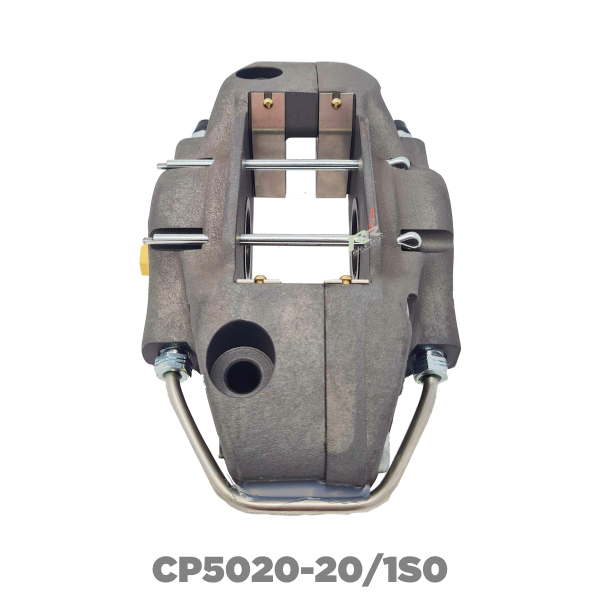

  • CP5020-20/1S0
1 4

CP5020 - 2 Piston PRO 5000+ Caliper - 130mm Centres

CP5020 - 2 Piston PRO 5000+ Caliper - 130mm Centres

CP5020-20S0

€461.05 €567.09
Sale Sold out
  • Feature Icon PRO 5000+
  • Feature Icon Ø36.00mm x 2 Pistons
  • Feature Icon Radial Mounted
  • Feature Icon Cast Aluminium Alloy Body
  • Feature Icon Alloy Pistons
Piston Size
Caliper Hand
View Docs

In stock
View full details

CP5020-20S0 (RH) / -21S0 (LH)

  • Lightweight Single Seater.
  • F2 Rally Rear.
  • Race Rear.

Features:

  • Radial Mount, 130.0mm x 17.5mm centres.
  • Cast Aluminium alloy body.
  • Suits Ø280.0mm x 9.6mm solid disc.
  • Aluminium alloy Pistons.
  • High temperature seals.
  • Split pin pad retainer.
  • Stainless Steel wear plates.

Part Numbers:

  • Right-Hand = CP5020-20S0.

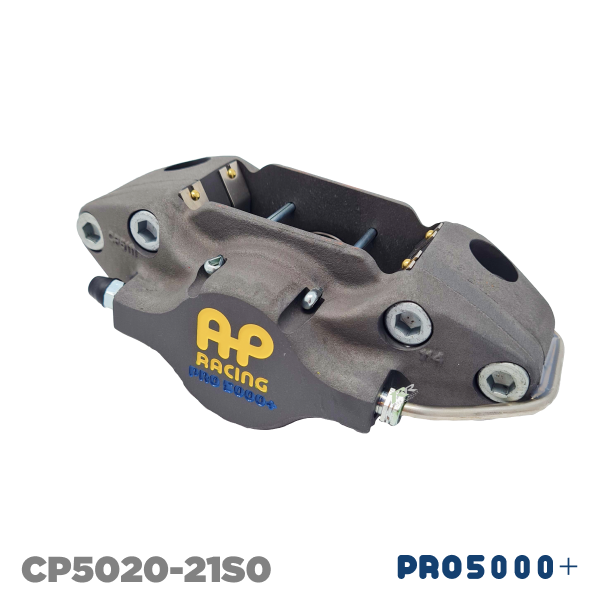

  • Left-Hand = CP5020-21S0.

Technical Specifications:

 Piston Sizes Ø36.0mm x 2
Piston Area 20.4cm³
Disc Diameter

Max = Ø280.00mm
Disc Thickness

Max = 9.60mm
Weight (no pads) 1.50 Kg
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres 130.0mm
Mounting Offset 17.5mm
Mounting Hole Ø 10.1mm
'PL' Dimension 41.5mm
Bleed Screw Tightening Torque 17Nm



Spare Parts

Pistons

 CP3177-102
Seal Repair Kit CP4518-H
Pad Retainer

Split Pin - CP4100-120
Wear Plates CP5310-103
Bleed Screw CP3720-173
Fluid Pipe CP5310-21



Brake Pads

Pad Shape CP2399D43
CP2399D43 Brake Pad Set - APF403 Compound - Race and Rally
Pad Area 27.4cm²
Pad Depth 42.9mm
Thickness 14.4mm



Brand AP Racing
Option SKU Barcode
Ø36.0mm x2 / Right Hand CP5020-20S0
Ø36.0mm x2 / Left Hand CP5020-21S0
