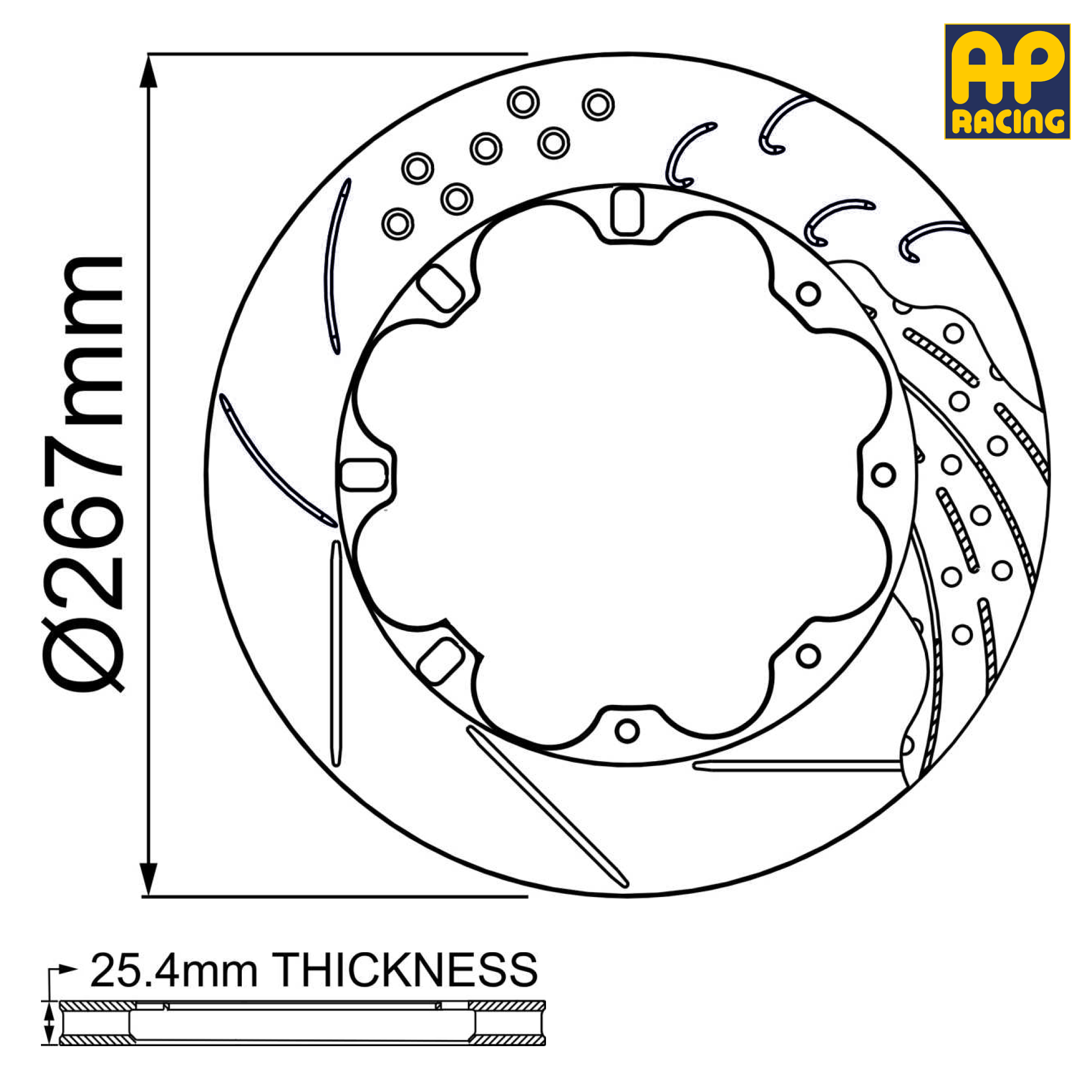

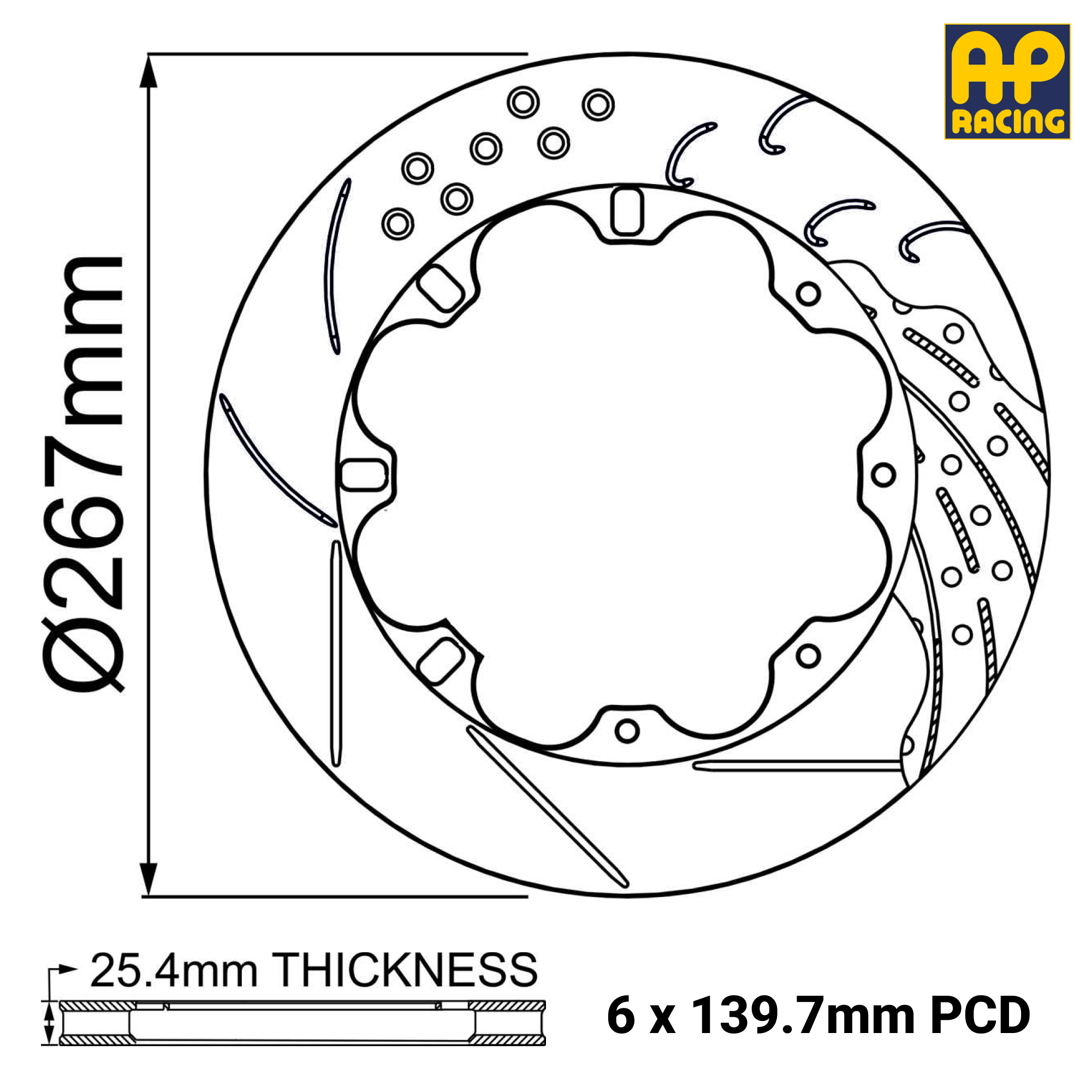

267mm x 25.4mm Brake Disc Dimensions

Outside Diameter	267mm
Thickness	25.4mm
Mounting P.C.D.	139.7mm
Mounting Type	Bolted - 6 Bolt
Eye Diameter	180.2mm
Spigot Diameter	mm
Inside Flange Diameter	123.0mm
Mounting Flange Thickness	5.02mm
Mounting Offset	mm
Max Pad Depth	D42.0
No. of Vanes	48
Air Gap	11.0
Weight	Kg
Face Types Available	G8 - Grooved (Straight Forward)

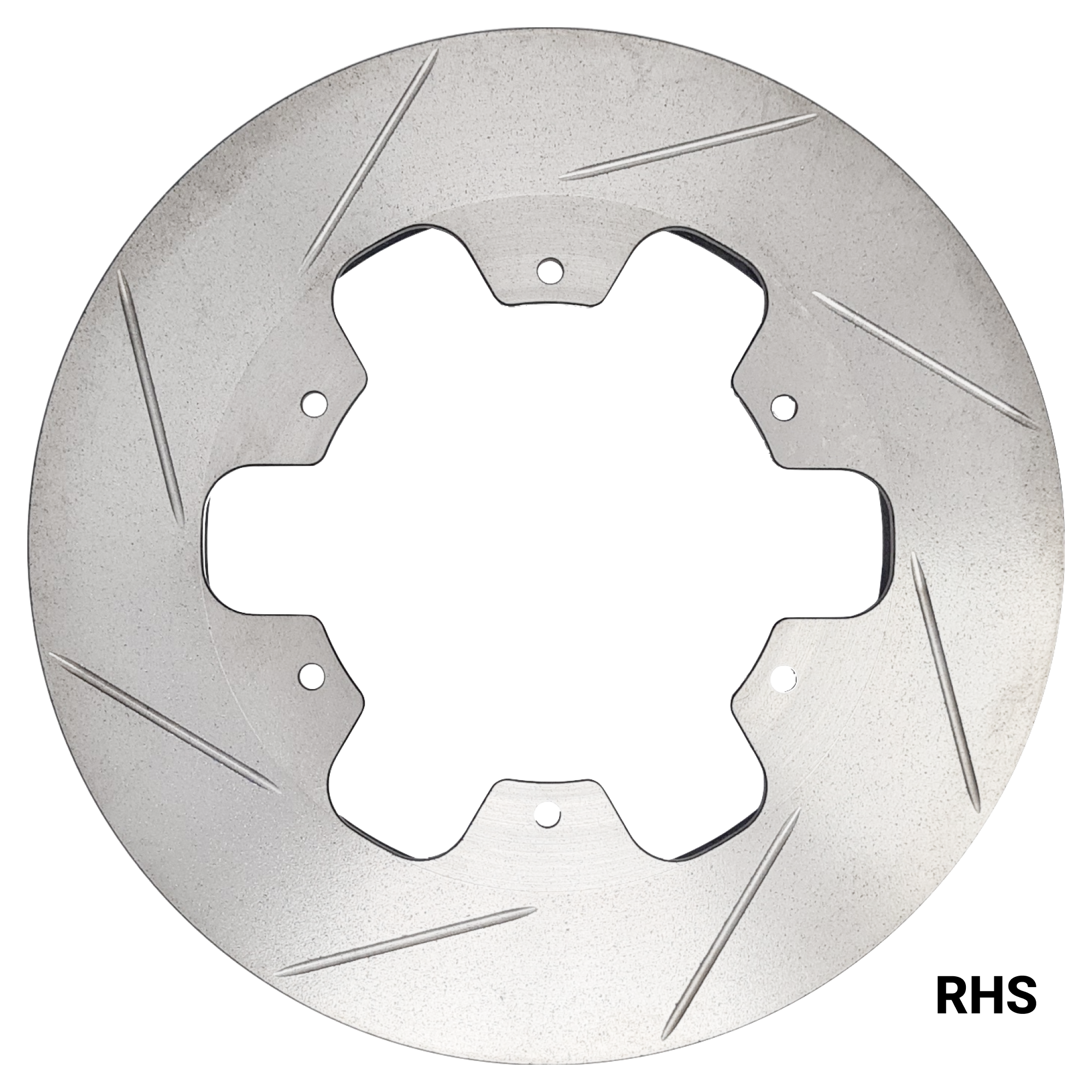

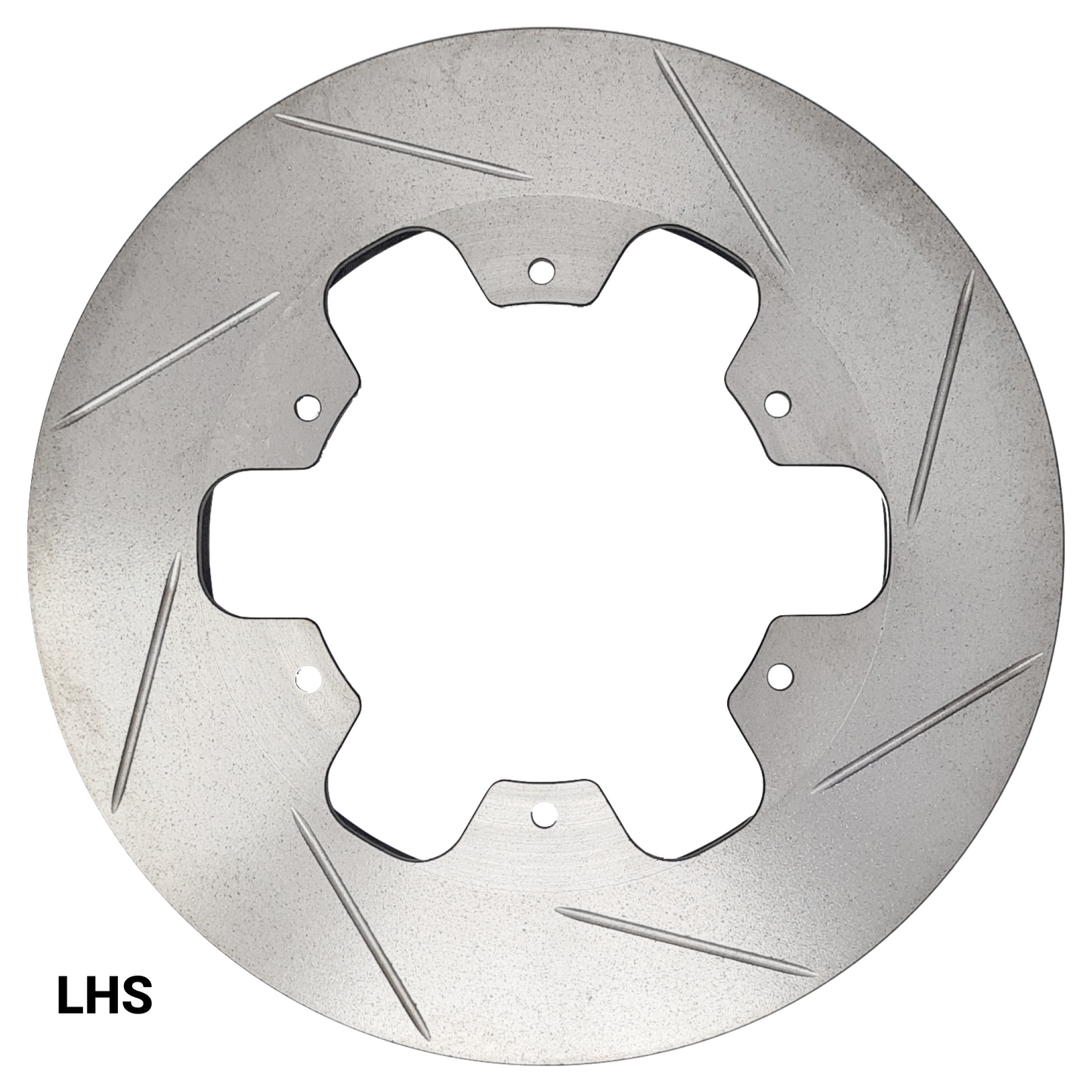

Disc Handing	Right-Hand Side Left-Hand Side
Notes
