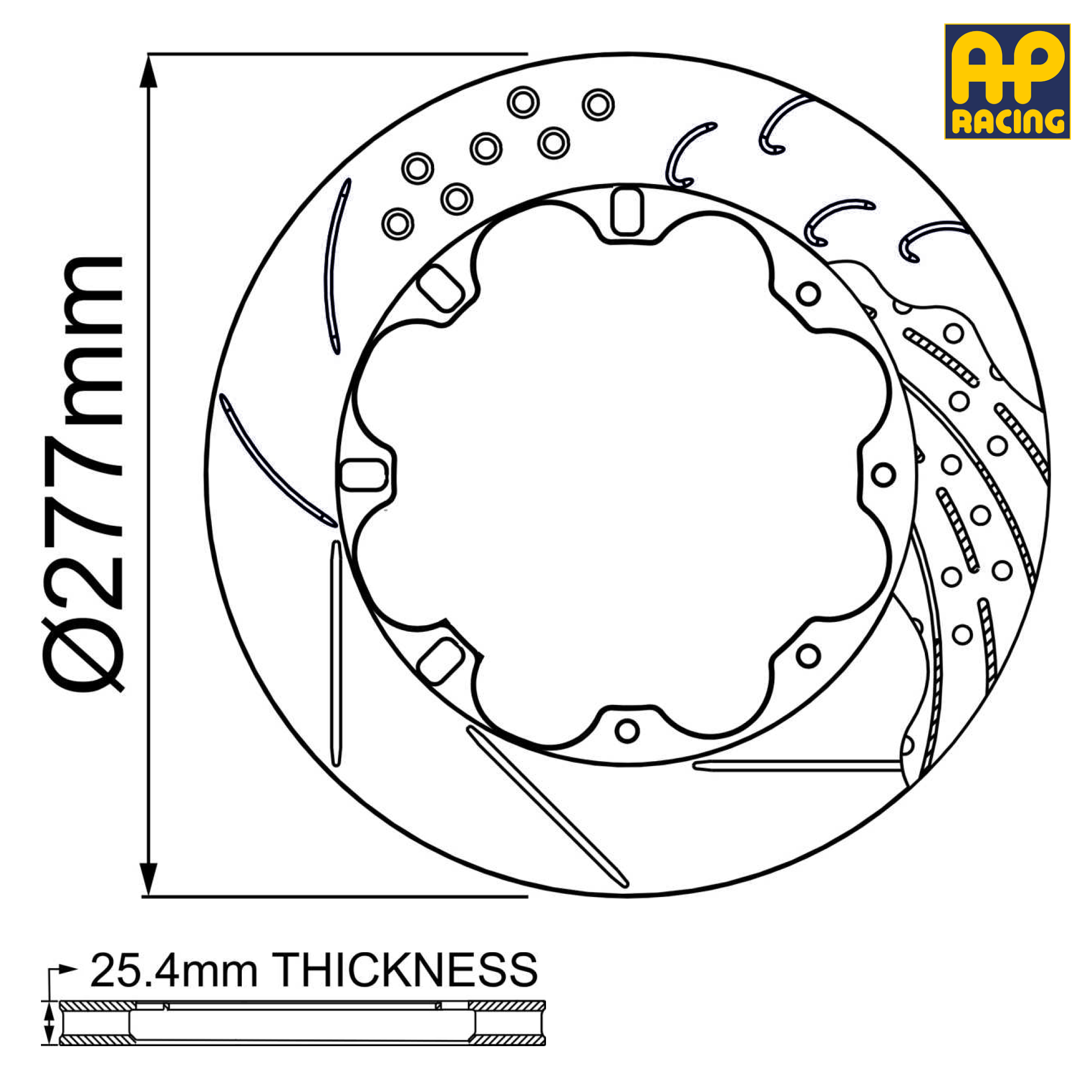

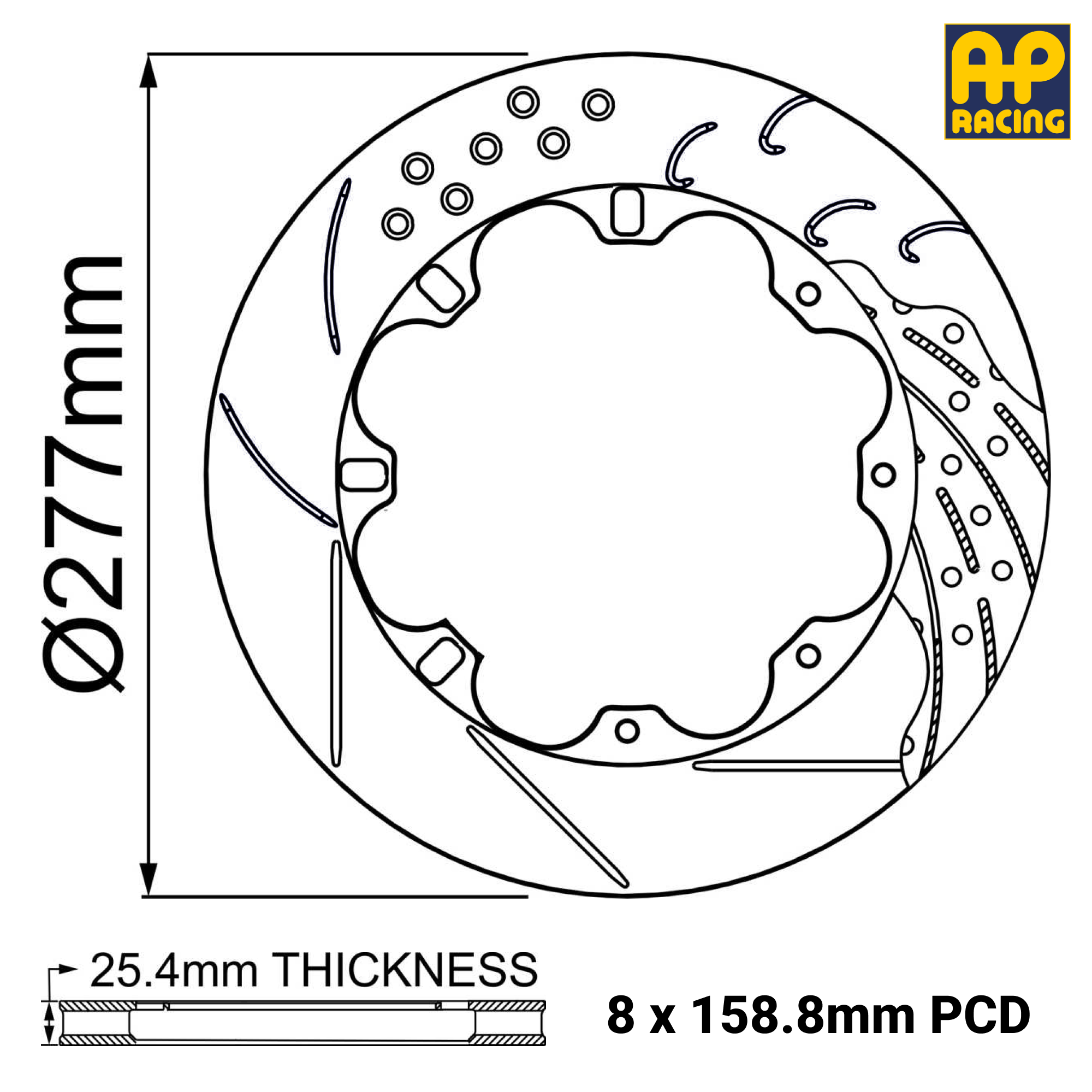

277mm x 25.4mm Brake Disc Dimensions

Outside Diameter	277mm
Thickness	25.4mm
Mounting P.C.D.	158.8mm
Mounting Type	Bolted - 8 Bolt
Eye Diameter	174.1mm
Spigot Diameter	mm
Inside Flange Diameter	141.0mm
Mounting Flange Thickness	4.82mm
Mounting Offset	mm
Max Pad Depth	D50.0
No. of Vanes	48
Air Gap	10.5
Weight	Kg

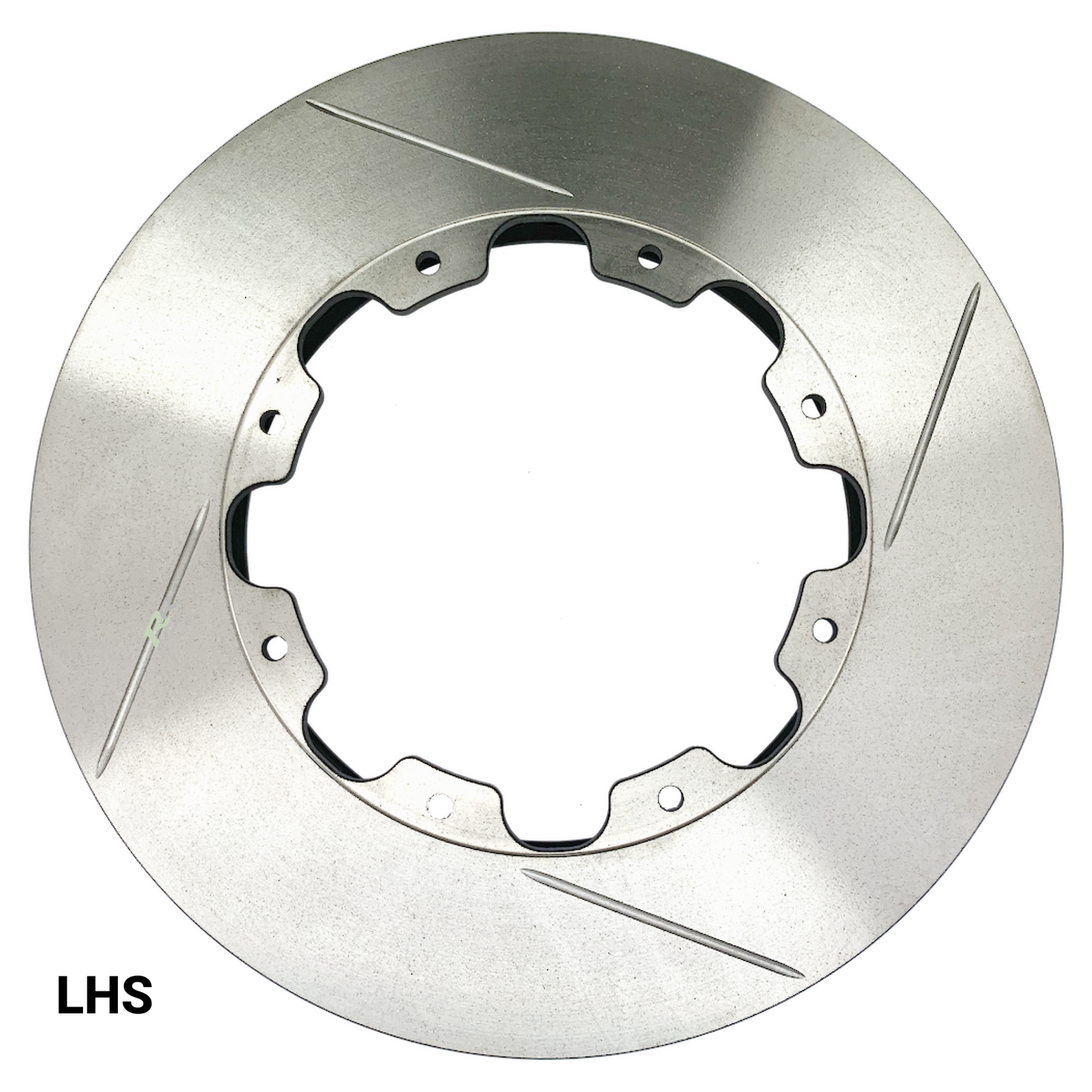

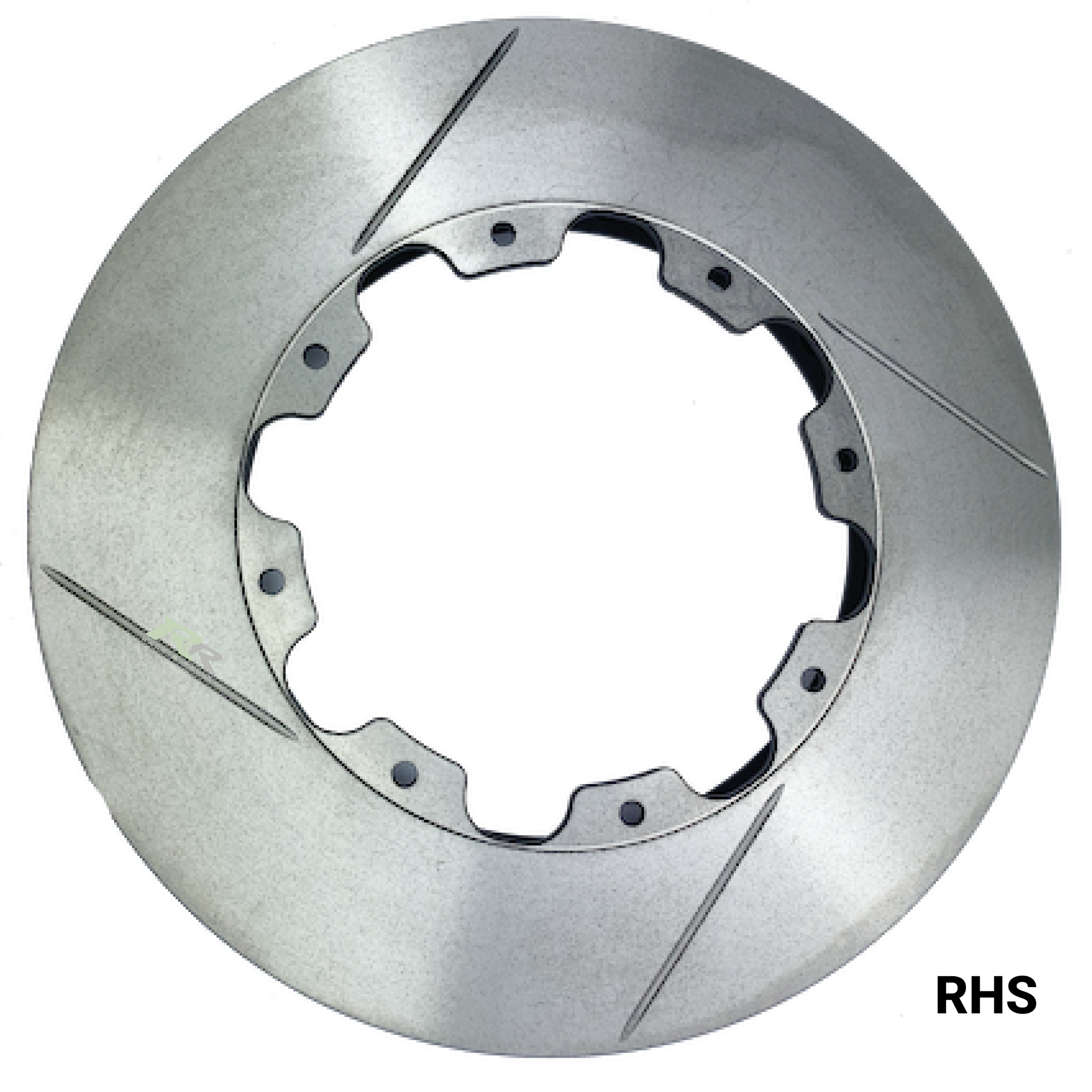

Face Types Available	G4 - Grooved (Straight Forward) GA - 'J' Hook Design

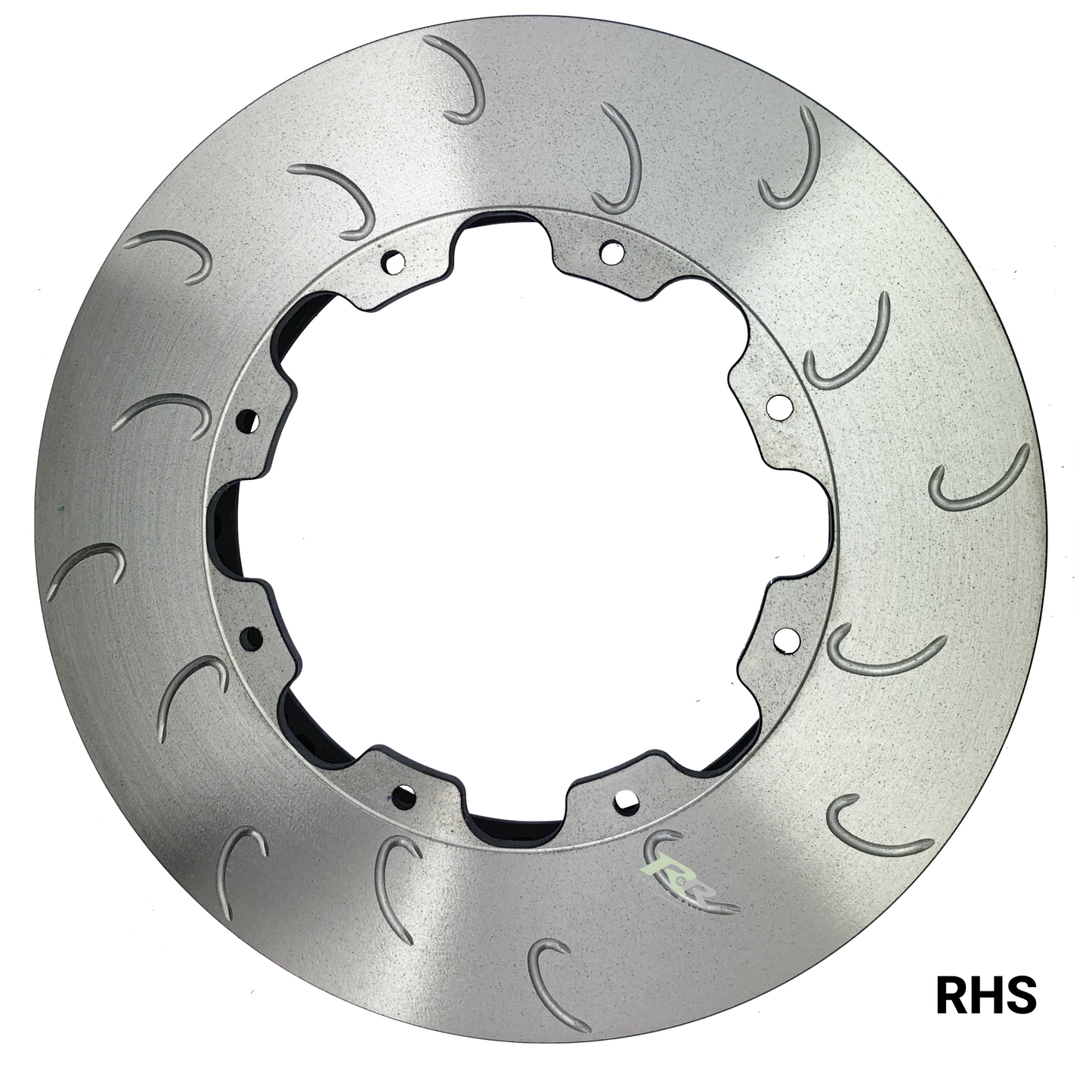

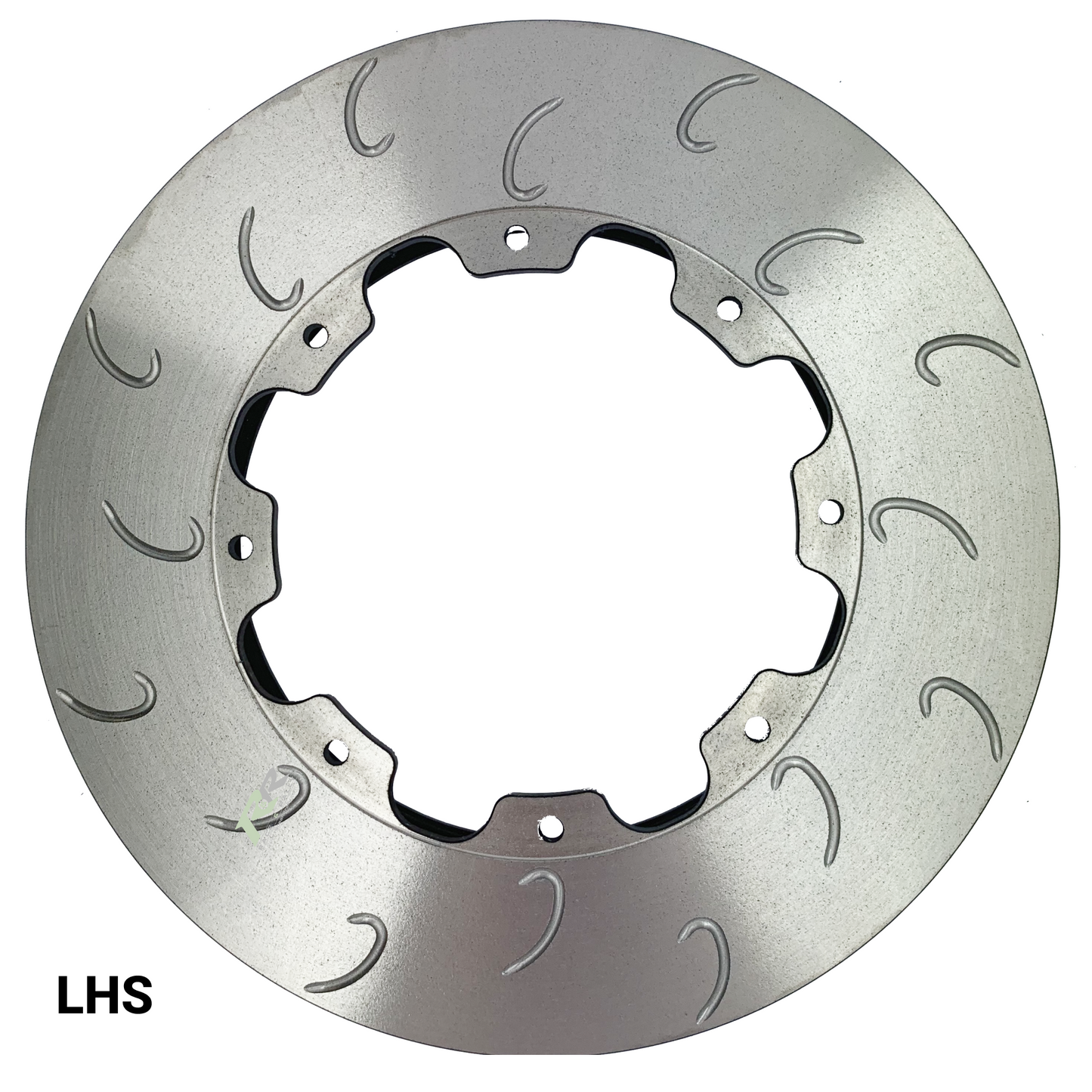

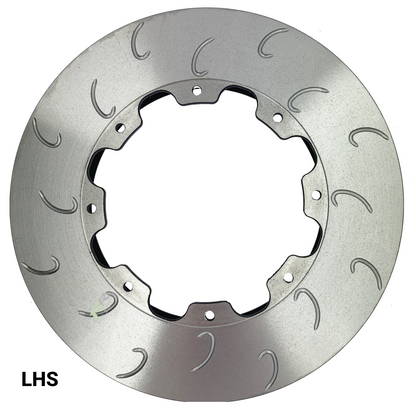

Disc Handing	Right-Hand Side Left-Hand Side
Notes
