Ø290mm x 20.7mm Ventilated Brake Disc - 12 x 177.8mm PCD

Ø290mm x 20.7mm Ventilated Brake Disc - 12 x 177.8mm PCD

CP4348-896G4

€317.60 €390.65
Sale Sold out

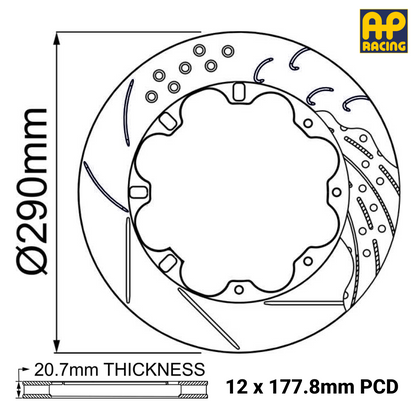

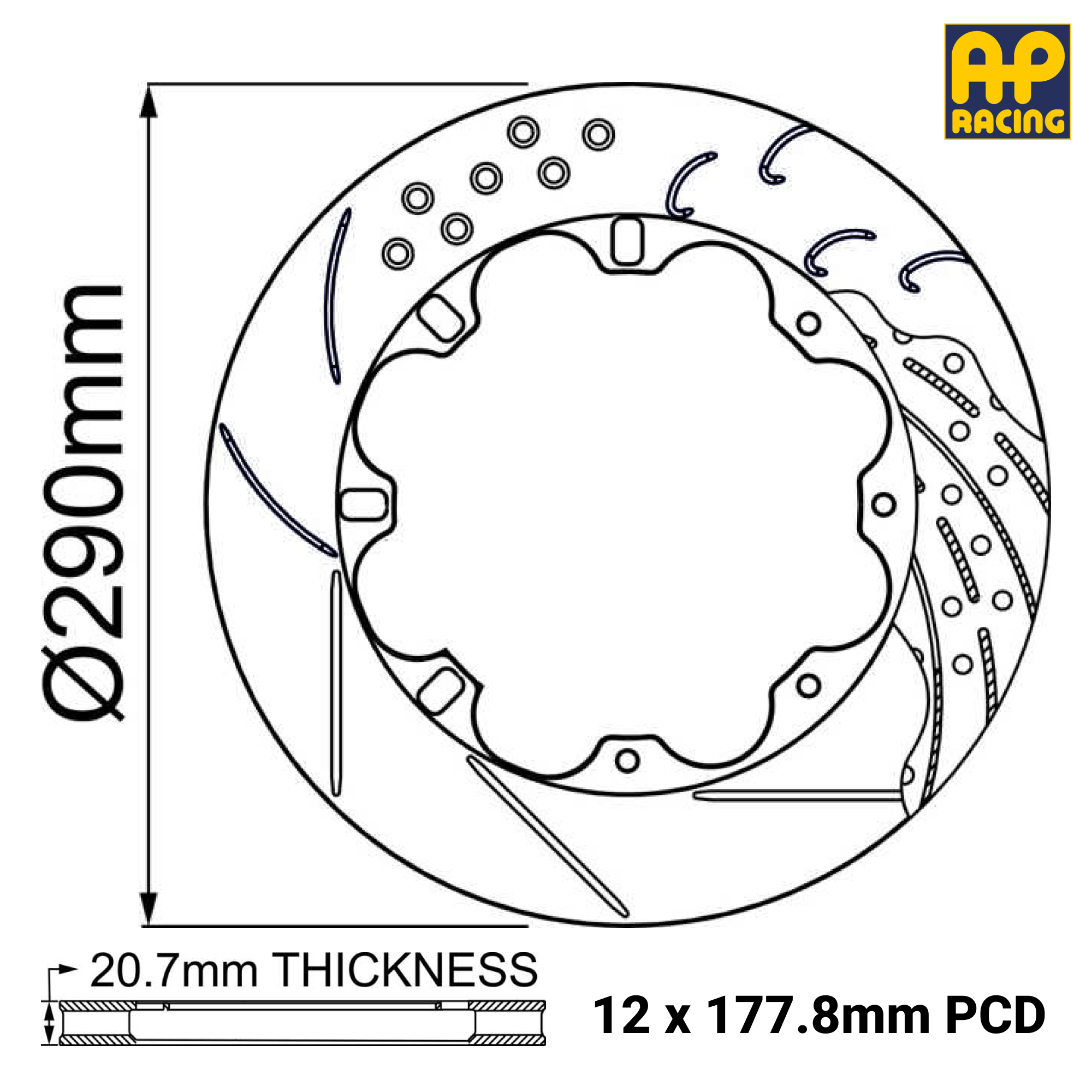

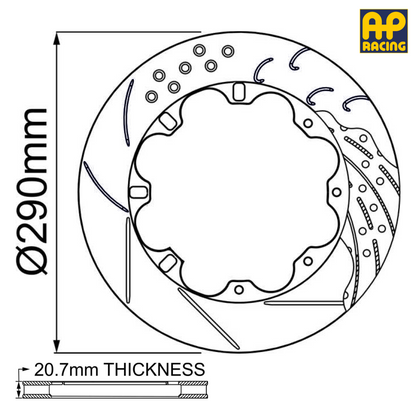

Brake Disc Dimensions

  • Outside Diameter - 290mm
  • Thickness - 20.7mm
  • Mounting P.C.D. - 177.8mm
  • Mounting Type - Bolted - 12 Bolt
  • Spigot Diameter - mm
  • Eye Diameter: - 195.4mm
  • Inside Flange Diameter - 164.3mm
  • Mounting Flange Thickness - 5.47mm
  • Mounting Offset - mm
  • Max Pad Depth - D46.0
  • No. of Vanes - 48
  • Air Gap - 9.0mm
  • Weight - Kg
View full details
290mm x 20.7mm Brake Disc Dimensions

Outside Diameter
 290mm
Thickness
20.7mm
Mounting P.C.D.
177.8mm
Mounting Type
Bolted - 12 Bolt
Eye Diameter
195.4mm
Spigot Diameter
mm
Inside Flange Diameter
164.3mm
Mounting Flange Thickness
5.47mm
Mounting Offset
mm
Max Pad Depth
D46.0
No. of Vanes
48
Air Gap
9.0
Weight
Kg
Face Types Available
G4 - Grooved (Straight Forward)
G4 - Grooved (Straight Forward)
Disc Handing

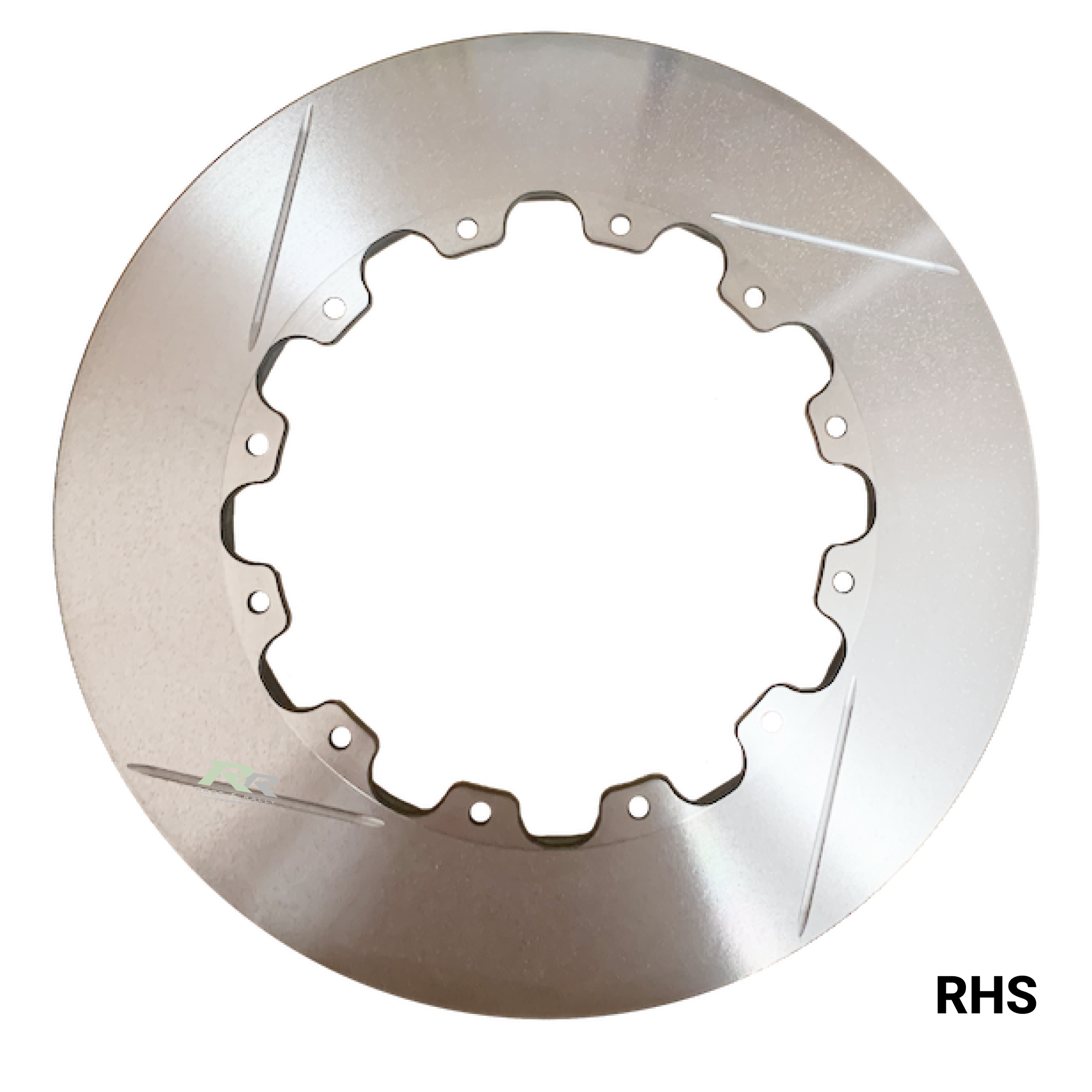

Right-Hand Side

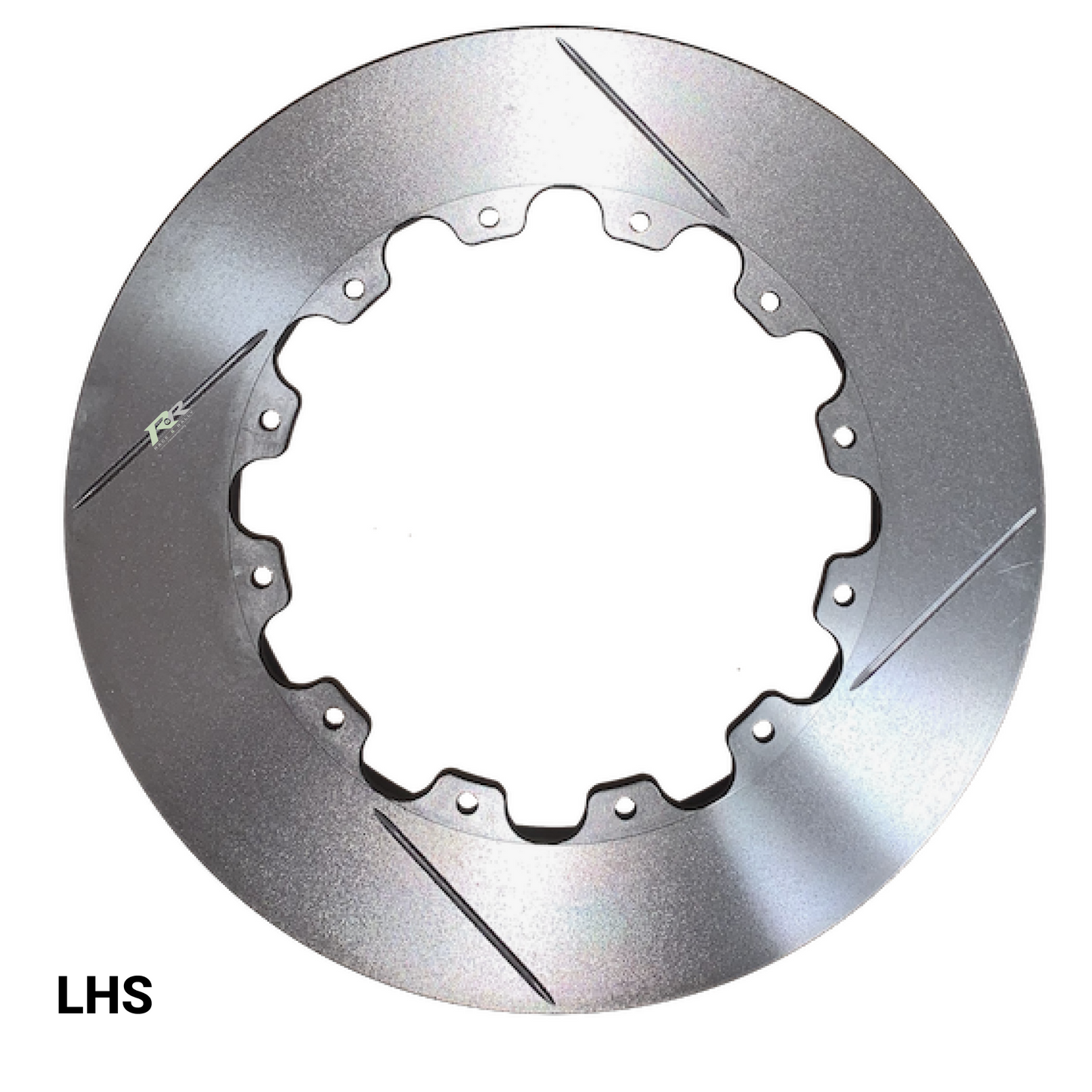

Left-Hand Side
Notes

Brand:

AP Racing

Manufacturer Part Number:

CP4348-896G4, CP4348-897G4
