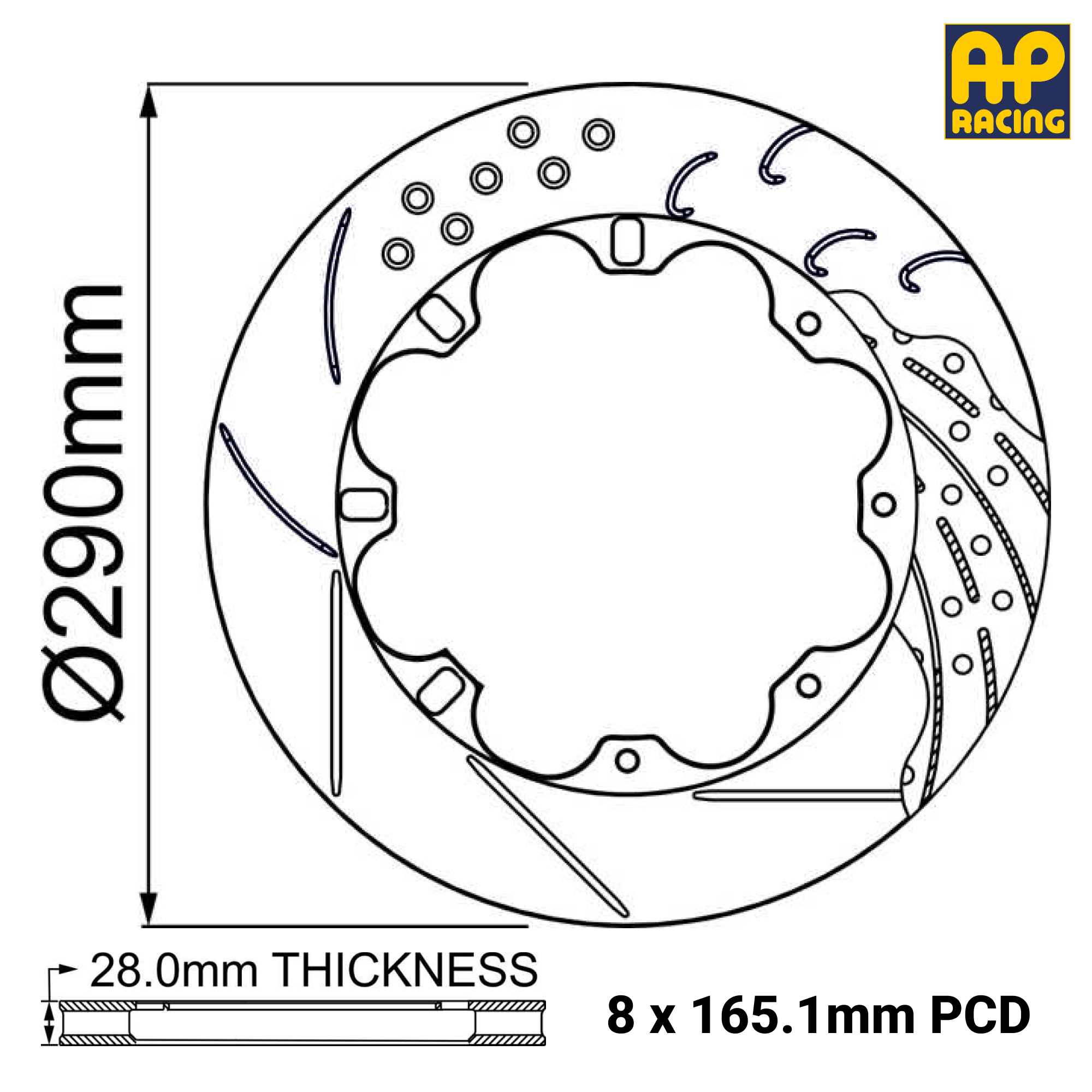

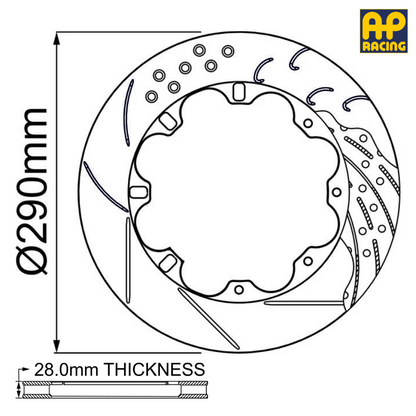

290mm x 28.0mm Brake Disc Dimensions

Outside Diameter	290mm
Thickness	28.0mm
Mounting P.C.D.	165.1mm
Mounting Type	Bolted - 8 Bolt
Eye Diameter	180.0mm
Spigot Diameter	mm
Inside Flange Diameter	153.0mm
Mounting Flange Thickness	5.8mm
Mounting Offset	mm
Max Pad Depth	D54.0
No. of Vanes	30
Air Gap	15.2
Weight	Kg
Face Types Available	G4 - Grooved (Straight Forward)
Disc Handing	Right-Hand Side Left-Hand Side
Notes
