Ø295mm x 25.4mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted - 9.3mm Air Gap

Ø295mm x 25.4mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted - 9.3mm Air Gap

CP5000-510CG8

€298.47 €367.12
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 295mm
Thickness 25.4mm
Mounting P.C.D 177.8mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 204.0mm
Inside Flange Diameter 164.0mm
Mounting Flange Thickness 5.6mm
Max Pad Depth 44.0mm
No. of Vanes 48
Air Gap 9.3mm
Weight 5.4kg
View full details

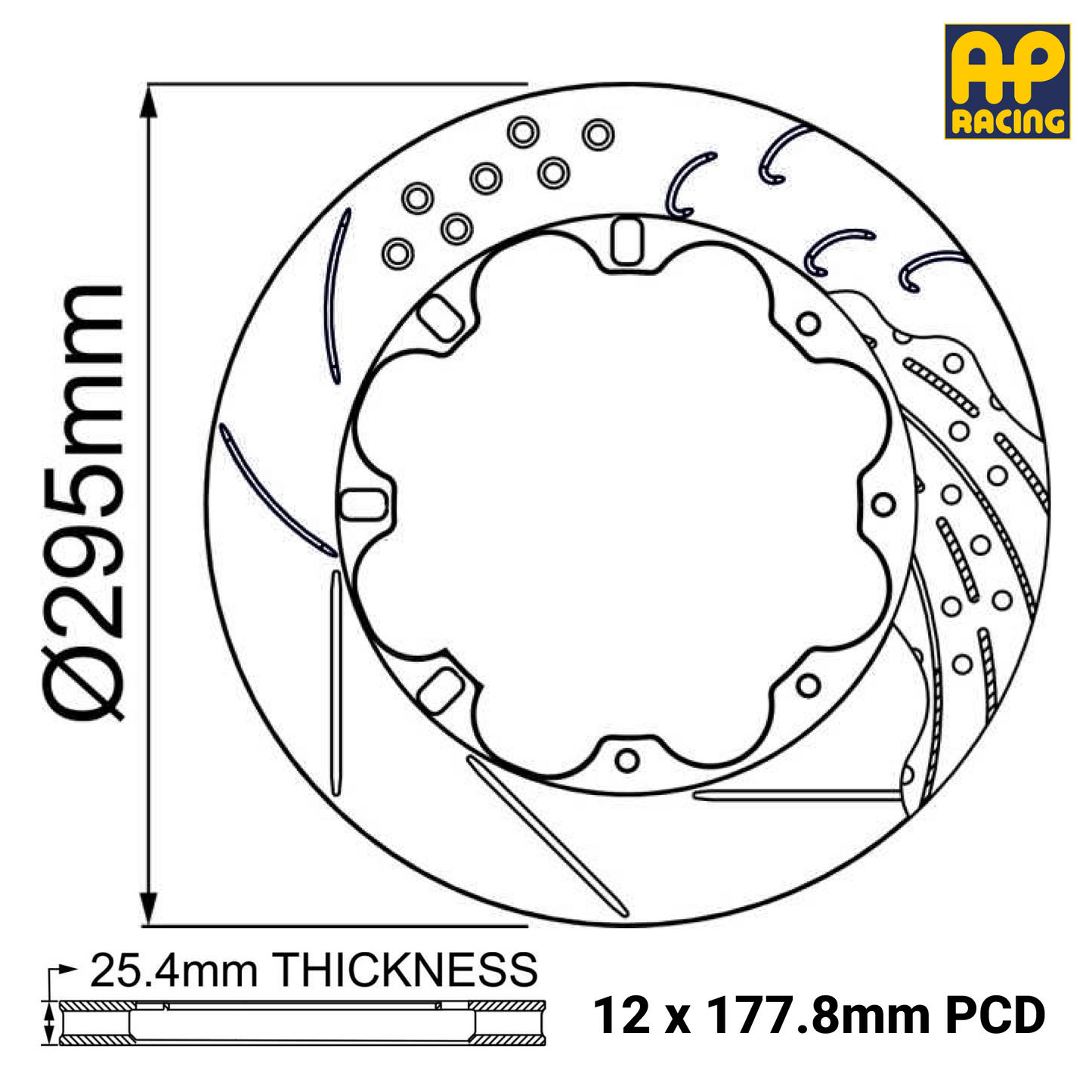

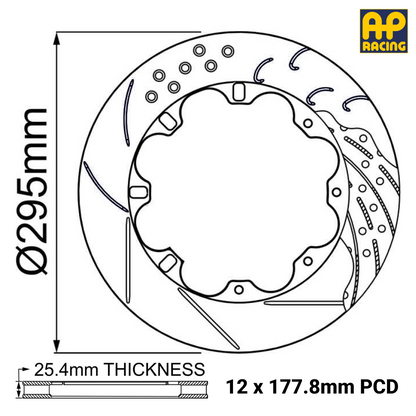

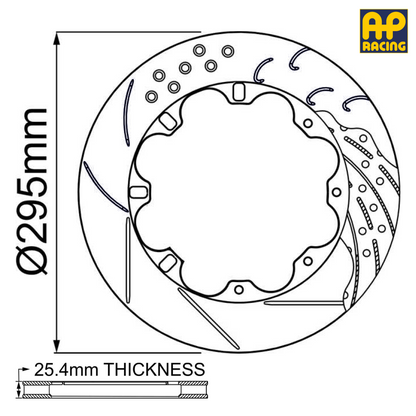

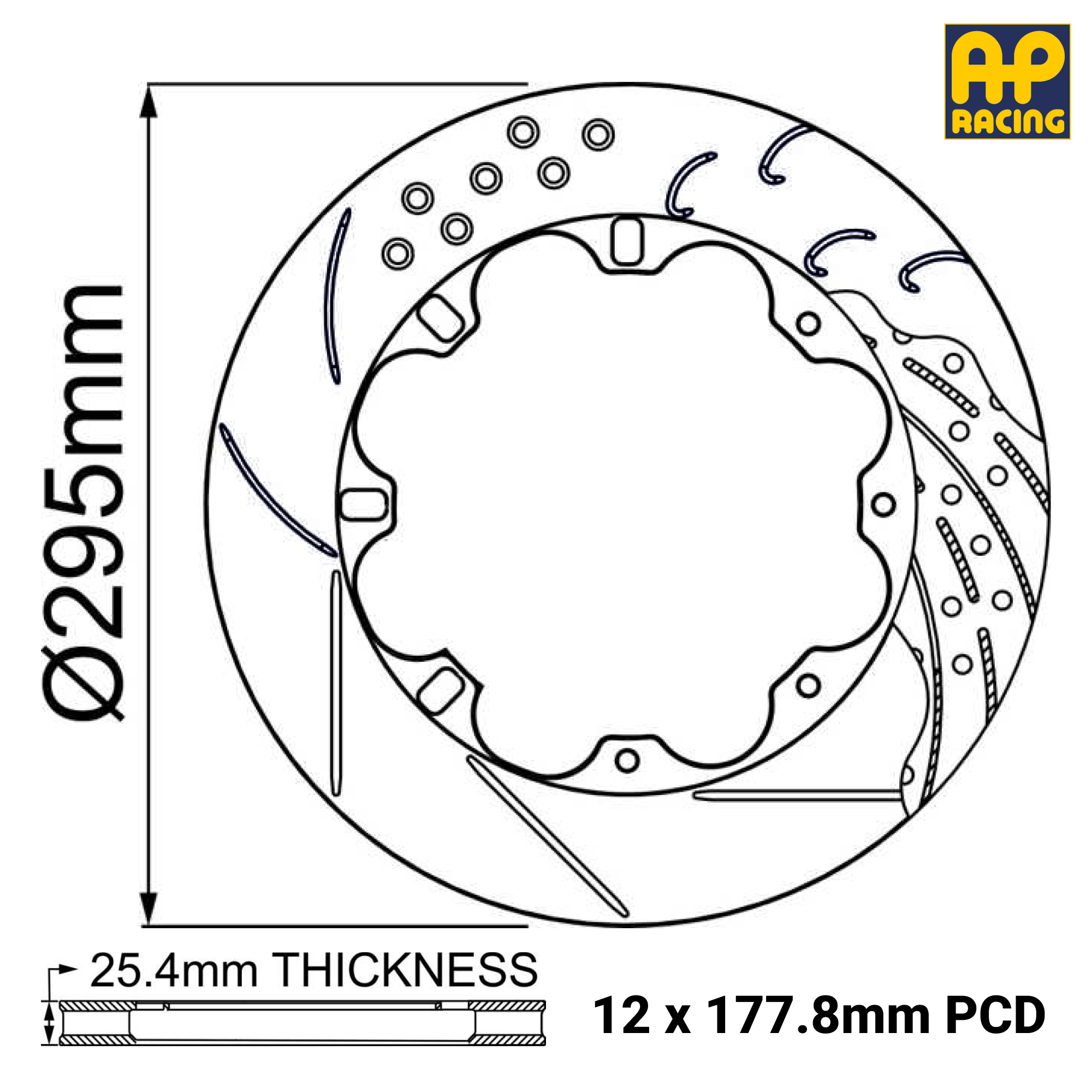

295mm x 25.4mm Brake Disc Dimensions

Outside Diameter 295mm
Thickness 25.4mm
Mounting P.C.D 177.8mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 204.0mm
Inside Flange Diameter 164.0mm
Mounting Flange Thickness 5.6mm
Max Pad Depth 44.0mm
No. of Vanes 48
Air Gap 9.3mm
Weight 5.4kg
Face Types Available CG8 - Curved Grooves (Backward Facing)
Disc Handing Right-Hand Side
Left-Hand Side
Notes Pro 5000+ Disc

Brand AP Racing
Option SKU Barcode

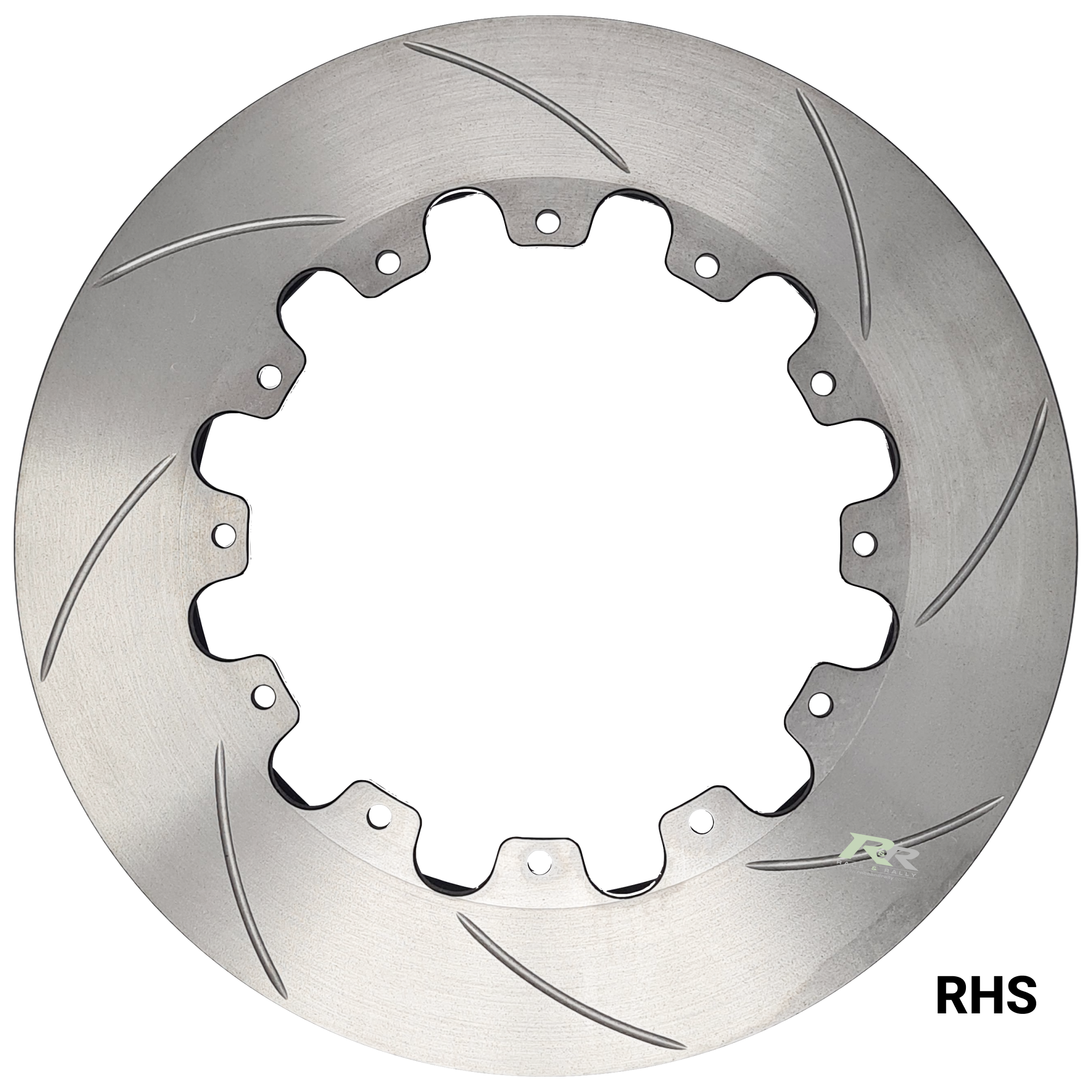

CG8 - Curved Grooves (Backward Facing) / Right-Hand Side CP5000-510CG8

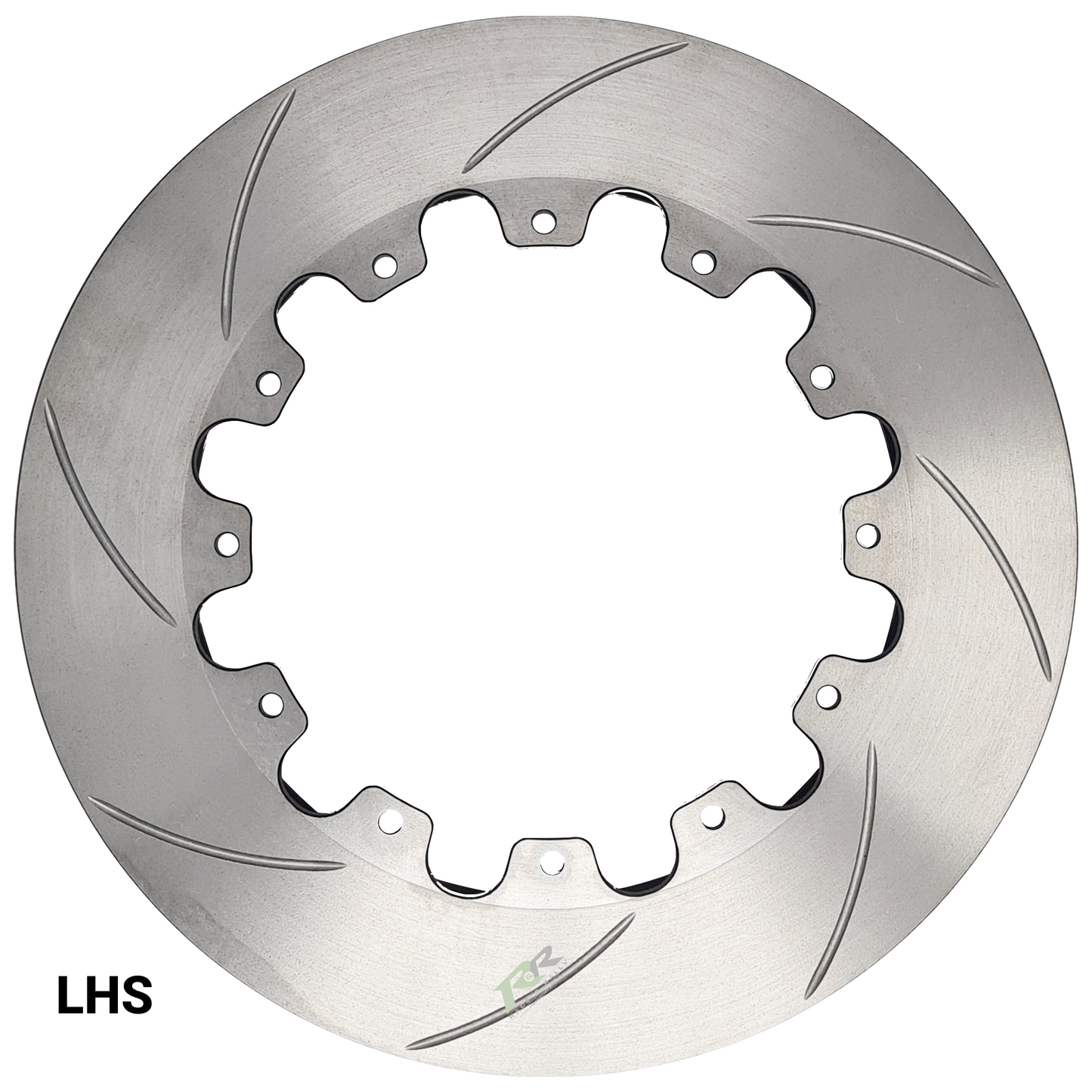

CG8 - Curved Grooves (Backward Facing) / Left-Hand Side CP5000-511CG8

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
