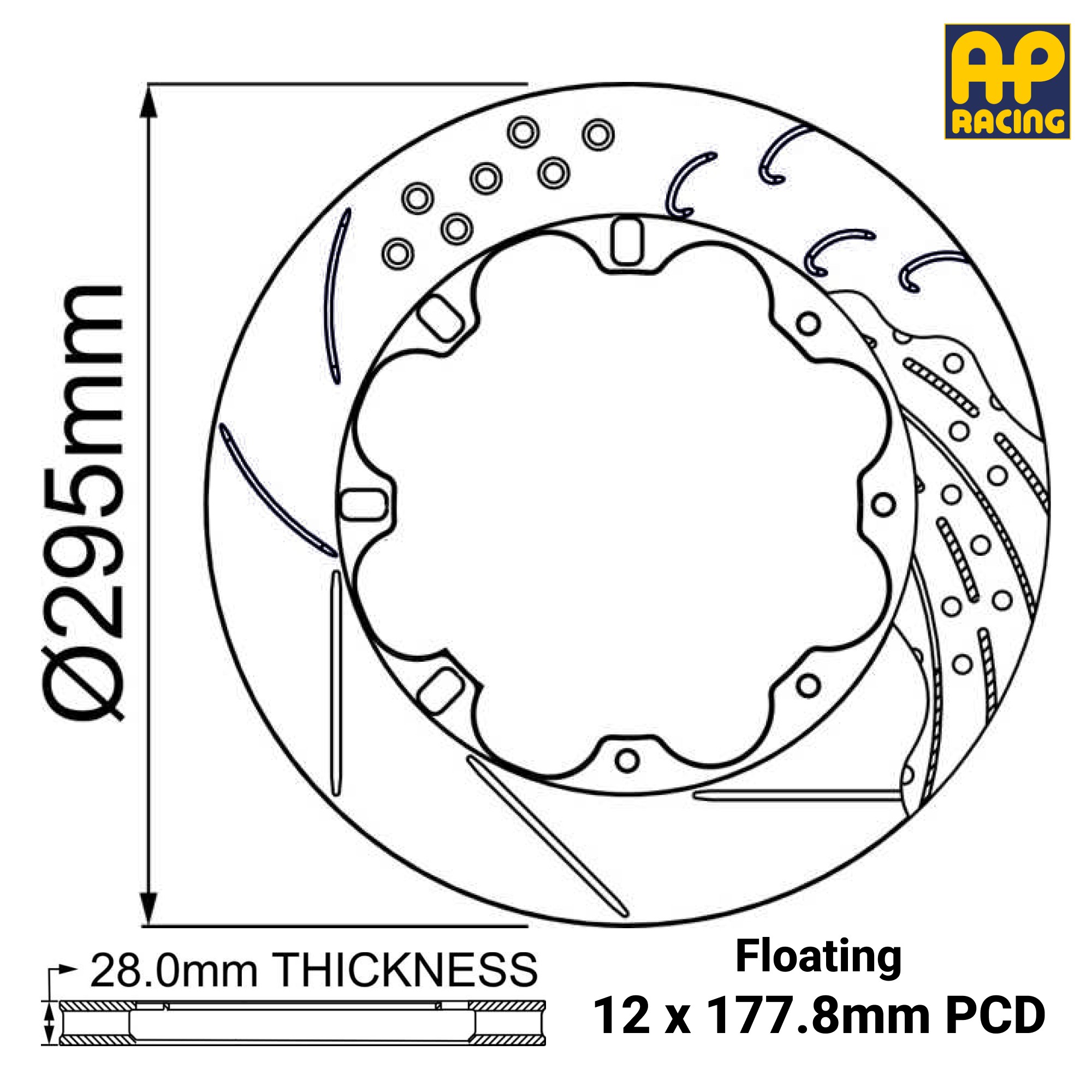

Ø295mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Floating

Ø295mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Floating

CP3580-1134CG8

€451.17 €554.94
Sale Sold out

Brake Disc Dimensions

  • Outside Diameter: 295mm
  • Thickness: 28.0mm
  • Mounting P.C.D.:
  • 177.8mm
  • Mounting Type: S/Bobbin - 12 Bobbins
  • Eye Diameter: 192.4mm
  • Inside Flange Diameter: 154.0mm
  • Mounting Flange Thickness: 5.6mm
  • Max Pad Depth: 51.0mm
  • No. of Vanes: 48
  • Air Gap: 14.0mm
View full details

Brake Disc Specifications:

 Outside Diameter Ø295mm
Thickness 28.0mm
P.C.D. 177.8mm
Fixing Type S/Bobbin - 12 Bobbins
Eye Diameter 192.4mm
Inside Flange Diameter 154mm
Mounting Flange Thickness 5.6mm
Max Pad Depth D51
No. of Vanes 48
Air Gap 14.0mm
Weight (Kg) 5.0
Face Types Available GCG8
Notes Bobbin CP2494-1341MD

Brand:

AP Racing

Manufacturer Part Number:

CP3580-1134CG8, CP3580-1135CG8
