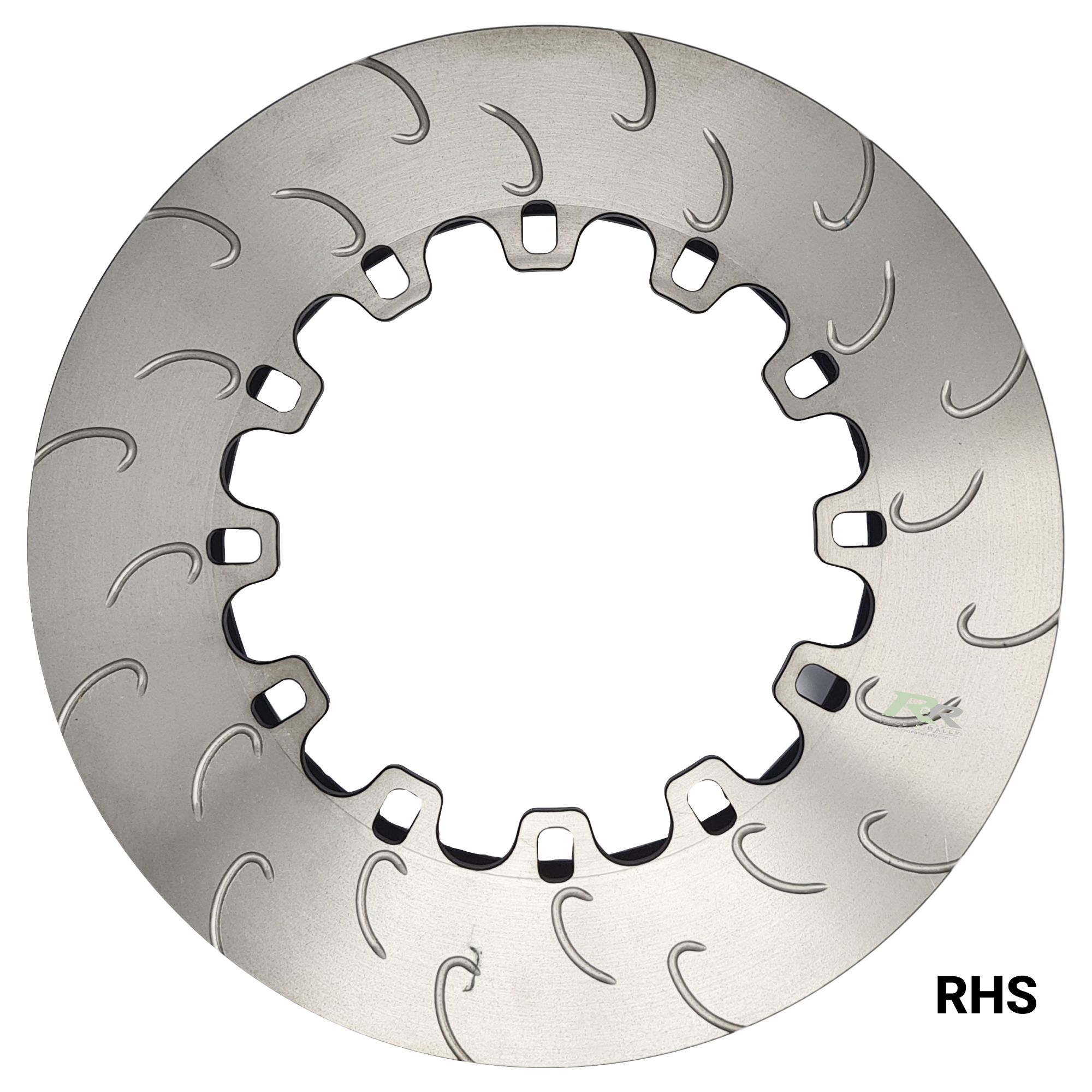

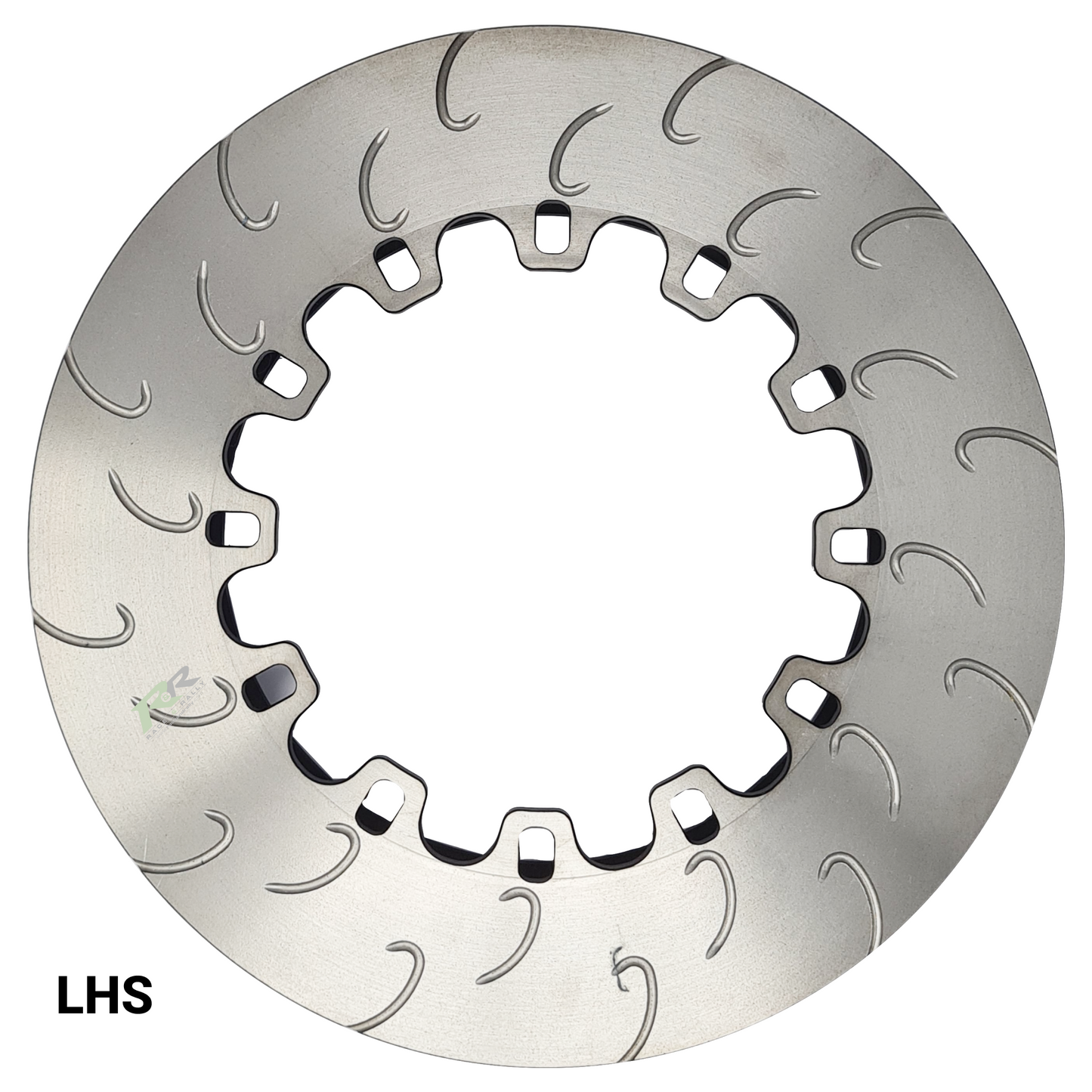

Ø295mm x 32.0mm Ventilated Brake Disc - 12 x 177.8mm PCD

Ø295mm x 32.0mm Ventilated Brake Disc - 12 x 177.8mm PCD

CP3580-394RA

€474.44 €583.56
Sale Sold out

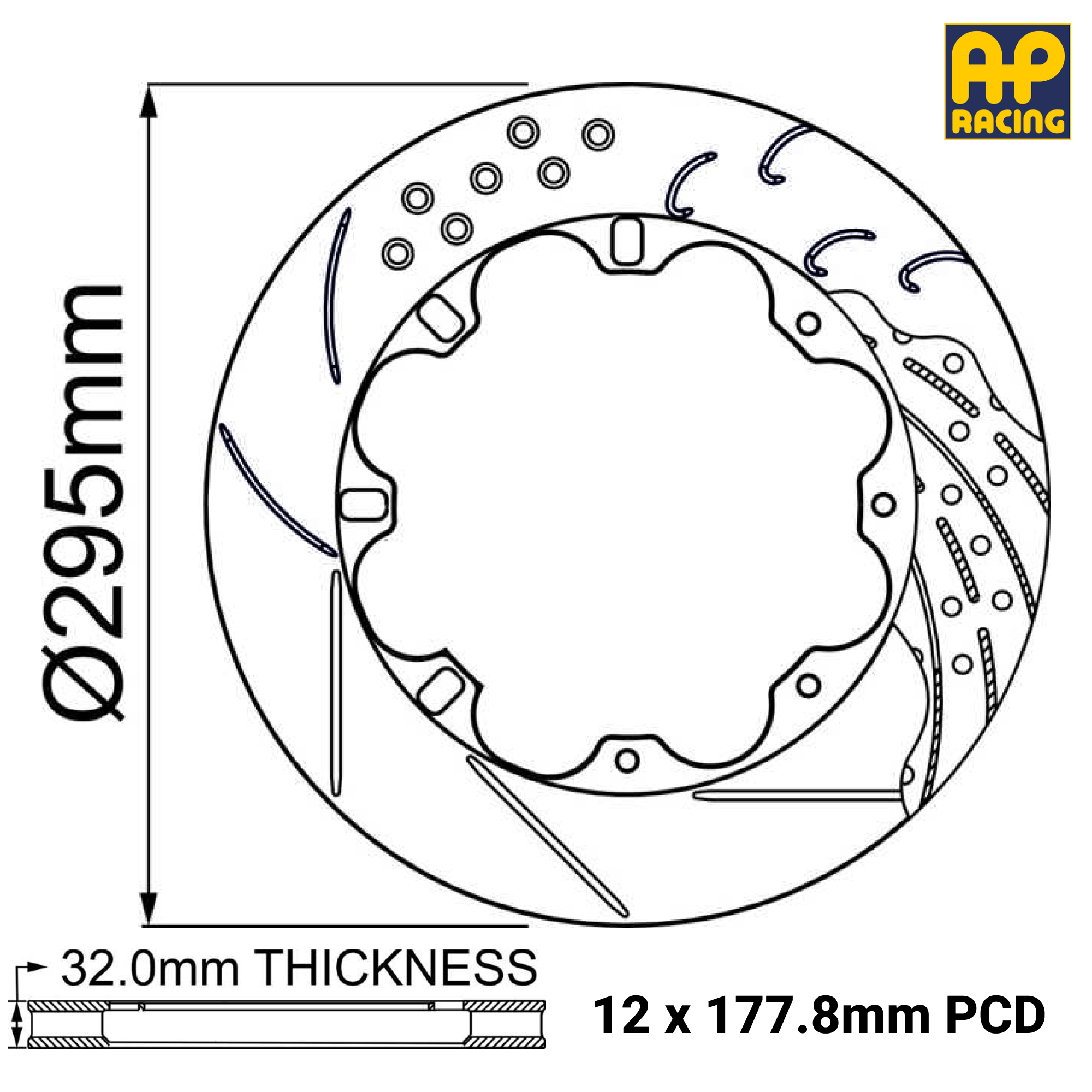

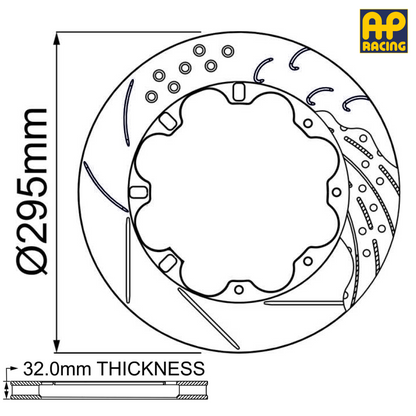

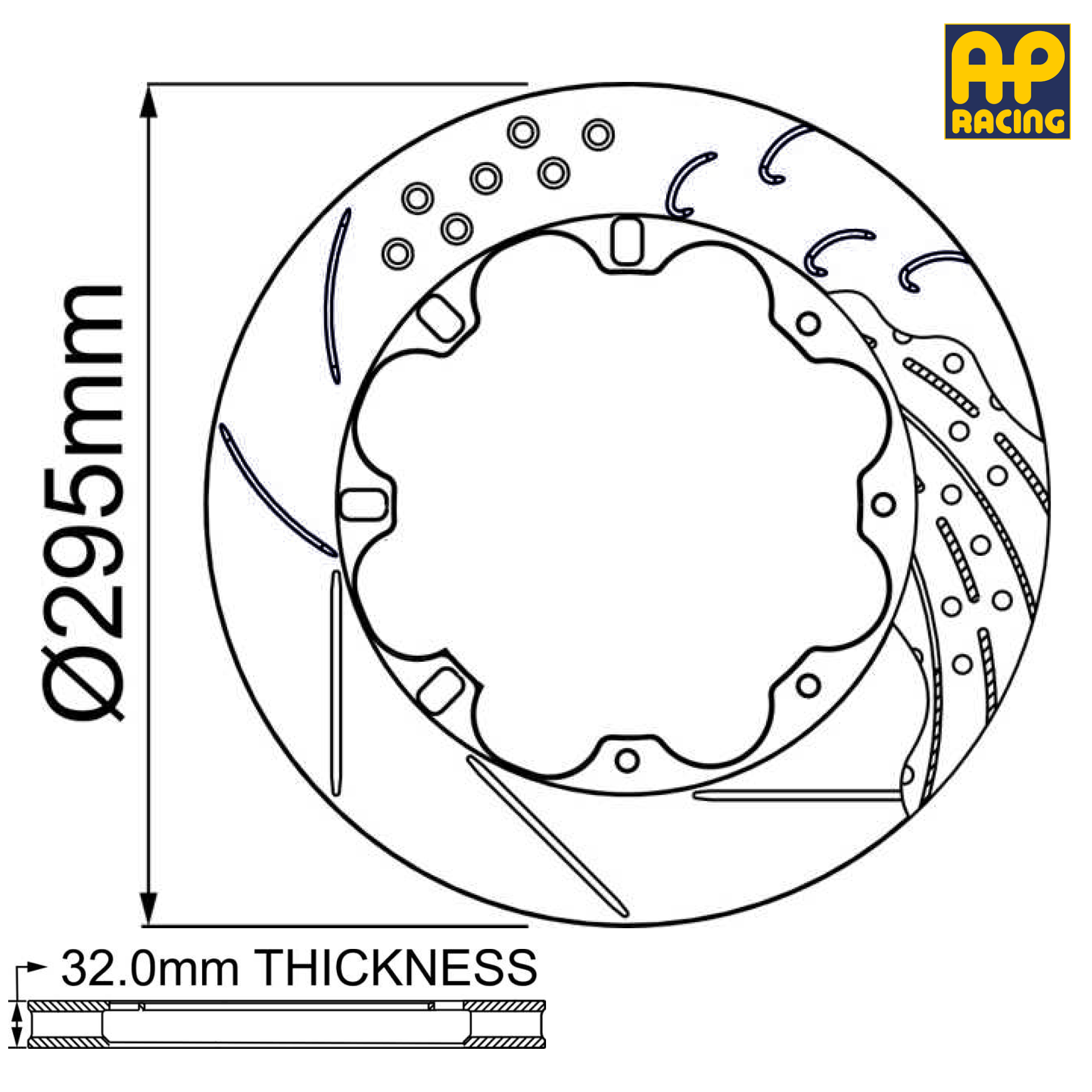

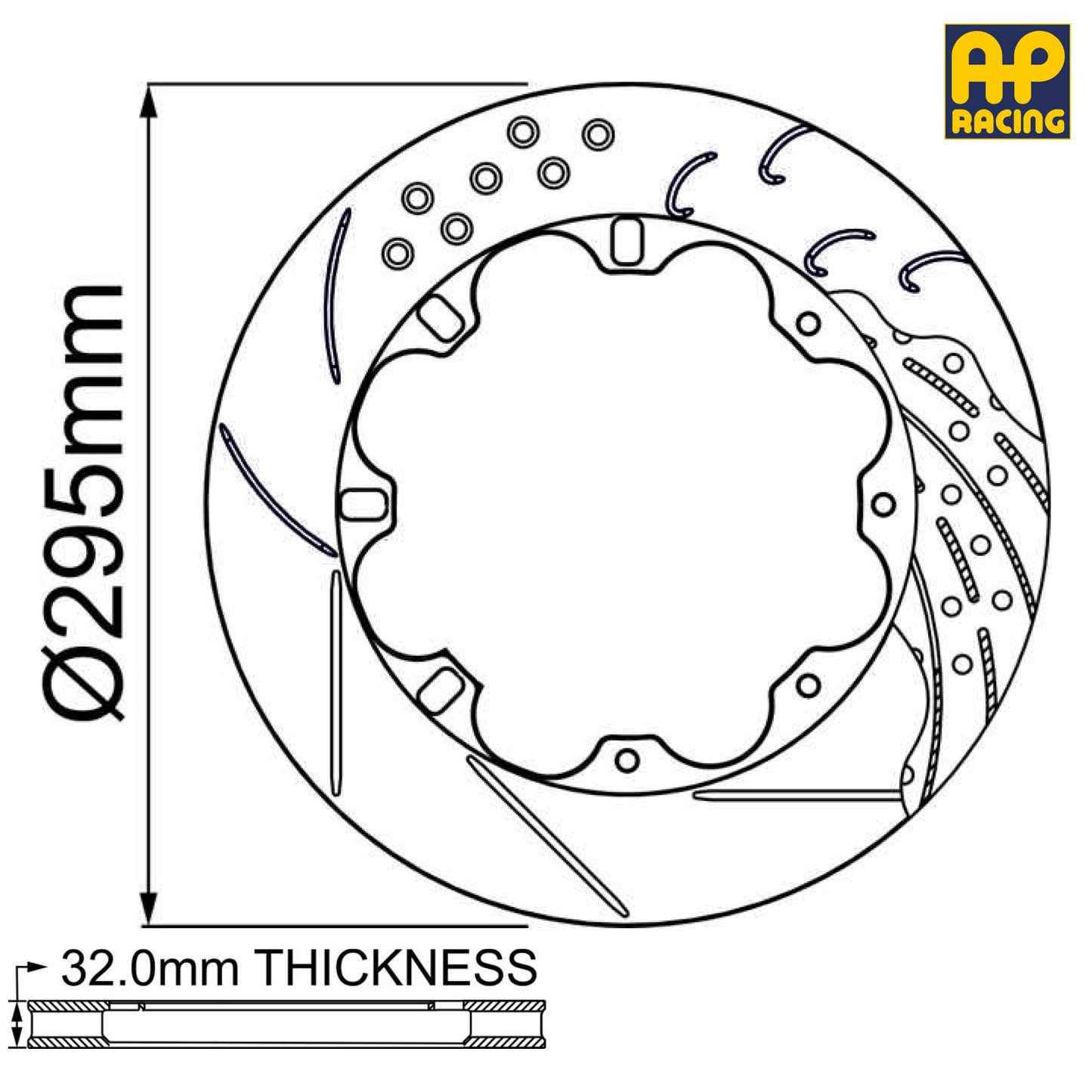

Brake Disc Dimensions

  • Outside Diameter: 295mm
  • Thickness: 32.0mm
  • Mounting P.C.D.:
  • 177.8mm
  • Mounting Type: S/Bobbin - 12 Bobbins
  • Eye Diameter: 193.4mm
  • Inside Flange Diameter: 153.0mm
  • Mounting Flange Thickness: 6.3mm
  • Max Pad Depth: 51.0mm
  • No. of Vanes: 48
  • Air Gap: 14.0mm
View full details

Brake Disc Specifications:


 Outside Diameter Ø295mm
Thickness 32.0mm
P.C.D. 177.8mm
Fixing Type Floating - 12 S/Bobbin
Eye Diameter 193.4mm
Inside Flange Diameter 153.0mm
Mounting Flange Thickness 6.3mm
Max Pad Depth D51
No. of Vanes 48
Air Gap 14.0mm
Weight (Kg) 5.8
Face Types Available CR8, RA
Notes
 Bobbin CP2494-504MP

Brand:

AP Racing

Manufacturer Part Number:

CP3580-394RA, CP3580-395RA
