Ø300mm x 25.4mm Ventilated Brake Disc - 8 x 190mm PCD

Ø300mm x 25.4mm Ventilated Brake Disc - 8 x 190mm PCD

CP3047-398G8

€476.48 €586.07
Sale Sold out

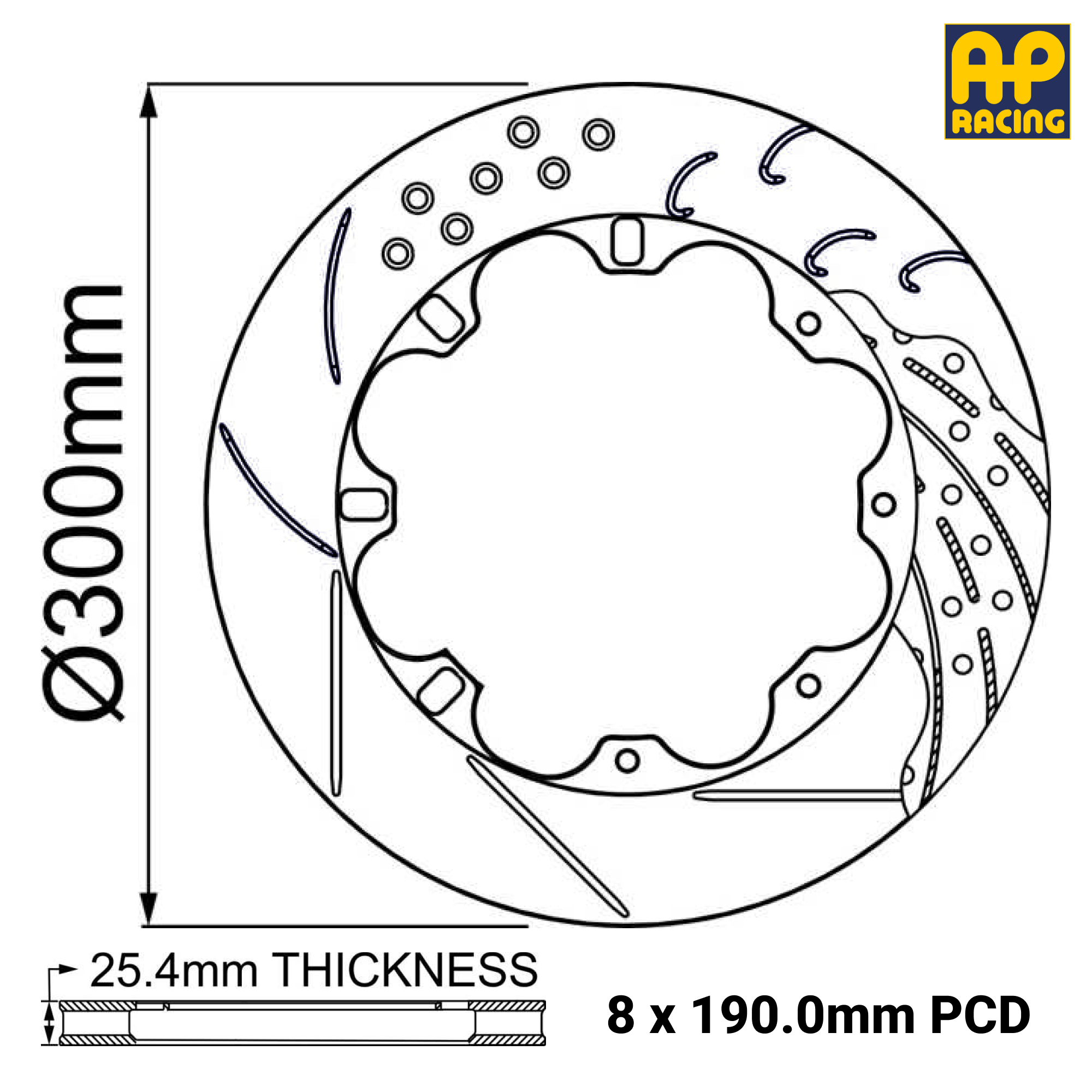

Brake Disc Dimensions

  • Outside Diameter: 300mm
  • Thickness: 25.4mm
  • Mounting P.C.D.:
  • 190.0mm
  • Mounting Type: Bolted - 8 Bolt
  • Eye Diameter: 205.4mm
  • Inside Flange Diameter: 173.5mm
  • Mounting Flange Thickness: 4.6mm
  • Max Pad Depth: 46.0mm
  • No. of Vanes: 24
  • Air Gap: 15.5mm
View full details

Brake Disc Specifications:

 Outside Diameter Ø300mm
Thickness 25.4mm
P.C.D. 190.0mm
Fixing Type Bolted - 8 Bolt
Eye Diameter 205.4mm
Inside Flange Diameter 173.5mm
Mounting Flange Thickness 4.60mm
Max Pad Depth D46
No. of Vanes 24
Air Gap 15.5mm
Weight (Kg) 3.3
Face Types Available G8
Notes

Brand:

AP Racing

Manufacturer Part Number:

CP3047-398G8, CP3047-399G8
