• Ø300mm x 28.0mm Ventilated Brake Disc - 12 x 181.0mm PCD - Race and Rally
1 1

Ø300mm x 28.0mm Ventilated Brake Disc - 12 x 181.0mm PCD - Floating

Ø300mm x 28.0mm Ventilated Brake Disc - 12 x 181.0mm PCD - Floating

CP3580-1200CG5

€463.61 €570.24
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 300mm
Thickness 28.0mm
Mounting P.C.D 181.0mm
Mounting Type Floating - 8 Bobbins
Eye Diameter 195.0mm
Inside Flange Diameter 160.0mm
Mounting Flange Thickness 5.42mm
Max Pad Depth 51.0mm
No. of Vanes 48
Air Gap 14.0mm
View full details

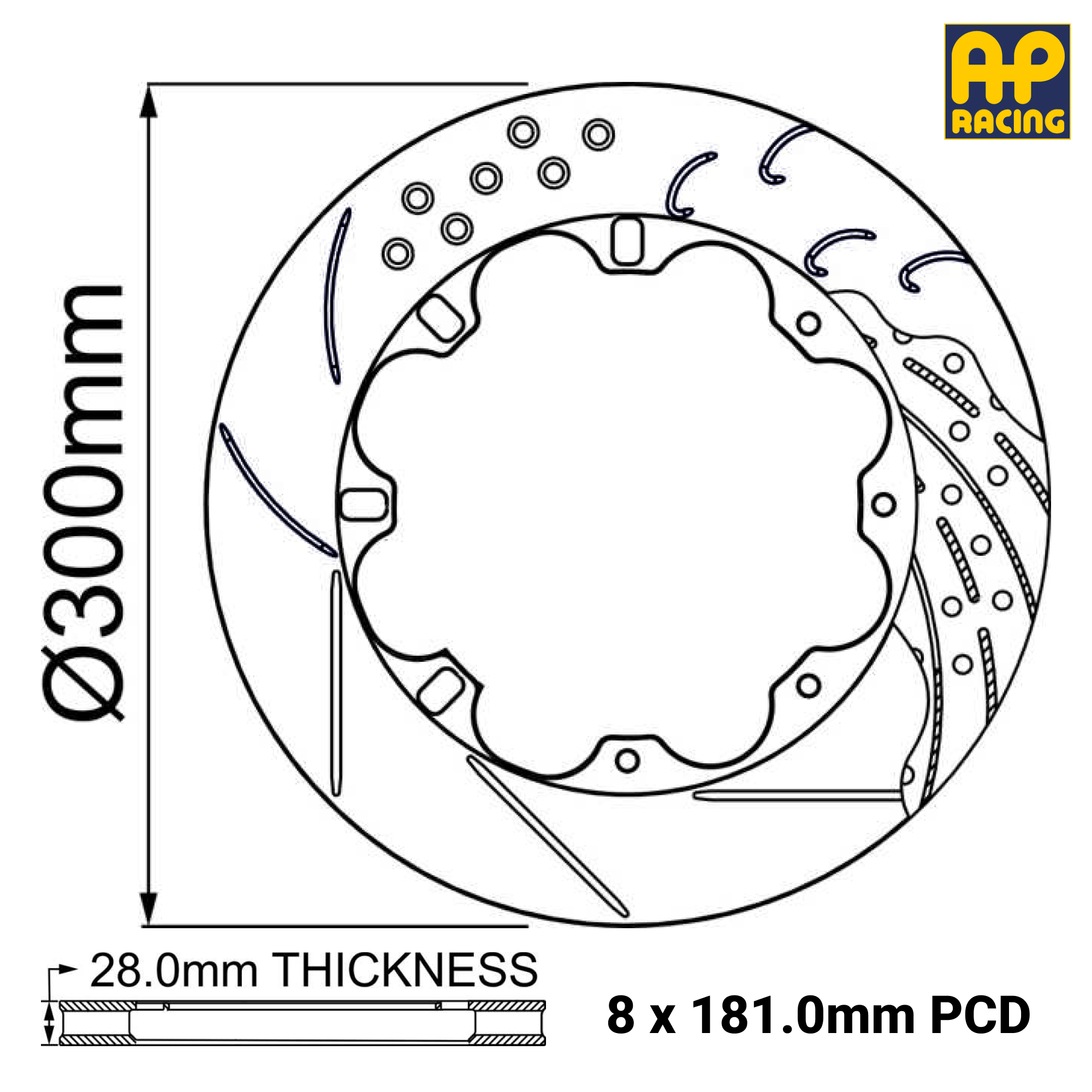

300mm x 28.0mm Brake Disc Dimensions

Outside Diameter 300mm
Thickness 28.0mm
Mounting P.C.D 181.0mm
Mounting Type Floating - 8 Bobbins
Eye Diameter 195.0mm
Inside Flange Diameter 160.0mm
Mounting Flange Thickness 5.42mm
Max Pad Depth 51.0mm
No. of Vanes 48
Air Gap 14.0mm
Face Types Available CG5 - Curved Grooves (Backward Facing)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
CG5 - Curved Grooves (Backward Facing) / Right-Hand Side CP3580-1200CG5
CG5 - Curved Grooves (Backward Facing) / Left-Hand Side CP3580-1201CG5

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
