• CP2696-3E0
1 1

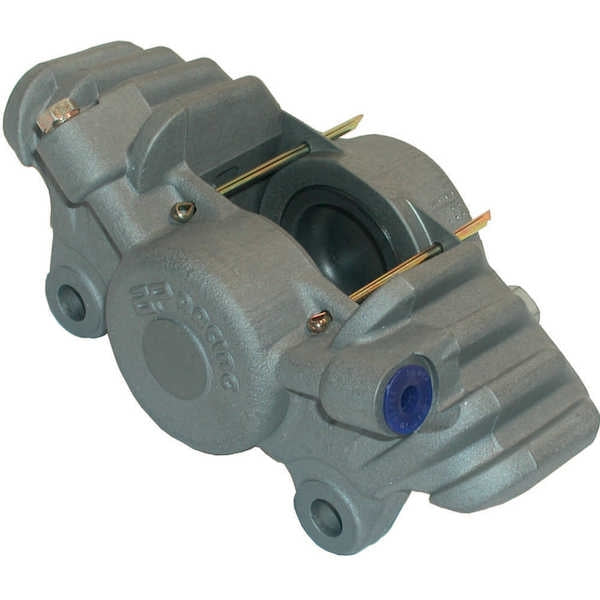

2 Piston Classic Motorcycle Caliper

2 Piston Classic Motorcycle Caliper

CP2696-38E0

€287.63 €353.78
Sale Sold out
  • Feature Icon Classic Design
  • Feature Icon Machined from high quality casting
  • Feature Icon Road Motorcycles

View Docs

Low stock
View full details

CP2696-38E0

  • F2 Side Car.
  • Classic Racing.
  • Road Motorcycles..

Features:

  • Classic Design
  • Aluminium Alloy Body and Pistons
  • High Temperature Seals
  • Machined from high quality casting
  • Hard anodised surface treatment

Part Numbers:

  • CP2696-38E0

Technical Specifications:

 Piston Sizes Ø41.3mm x 2
Piston Area 26.8cm²
Disc Diameter

Max = Ø304.00mm
Disc Thickness

Max = 6.40mm
Weight (no pads) 0.90 Kg
Hydraulic Threads 3/8 x 24UNF
Mounting Type Lug
Mounting Centres 89.0mm
Mounting Offset mm
Mounting Hole Ø 10.2mm
Bleed Screw Tightening Torque 17Nm



Spare Parts

Pistons

 CP2055 x 1 / CP2195-9 x 1
Pad Retainer

Split Pin - CP2696-160 x 2
Bleed Screw CP3720-182



Brake Pads

Pad Shape CP2195D38
CP2195D38 Brake Pad Set - APF403 Compound - Race and Rally
Pad Area 22.4cm²
Pad Depth 38.4mm
Thickness 10.5mm
Brand AP Racing
SKU Barcode
CP2696-38E0
