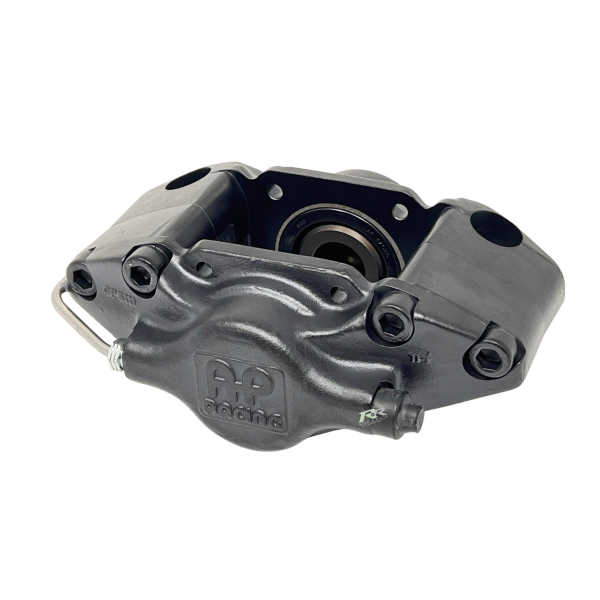

CP5316 & CP5317 - 2 Piston Cast Body Caliper - Ventilated Discs

SKU:CP5317-2ABK2

€374.92 €461.15

Sale Sold out

Lightweight Front or Rear
2 Piston
Aluminium alloy body
Advanced Black Anti-Corrosion paint finish

Piston Size Ø41.3mm x2

Caliper Hand RHS Trailing / LHS Leading LHS Trailing / RHS Leading

Quantity

Out of stock, contact for leadtime

View full details

CP5316 & CP5317 - Suits Ø332.0mm Discs

Lightweight Front or Rear

Features:

Radial Mount, 130mm x 27.5mm centres.
Suits Ø332 x 26mm Disc.
Aluminium alloy body.
Aluminium alloy pistons.
Boot type dirt seals fitted.
Advanced Black Anti-Corrosion paint finish.
Pin pad retainer with 'R' Clip.

Part Numbers:

Black Caliper with Ø38.1mm Pistons.
- Right-Hand Trailing- CP5316-2ABK2
- Left-Hand Trailing- CP5316-3ABK2
- Right-Hand Leading- CP5316-3ABK2
- Left-Hand Leading- CP5316-2ABK2

Black Caliper with Ø41.3mm Pistons.

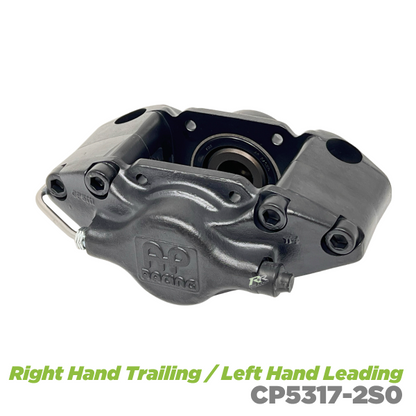

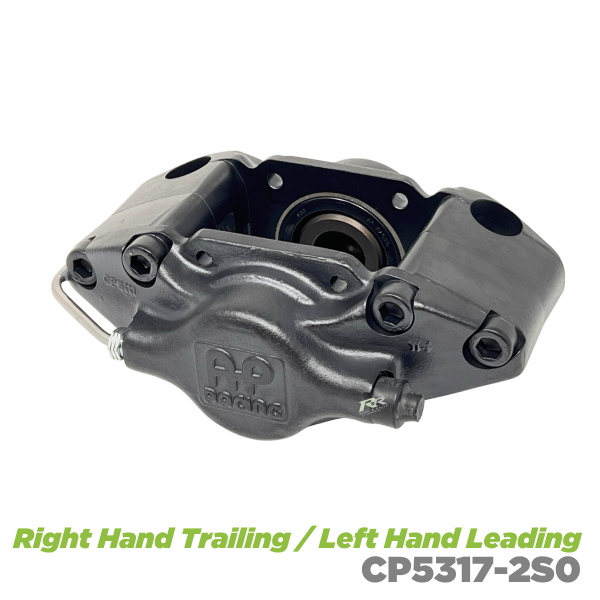

- Right-Hand Trailing- CP5317-2ABK2

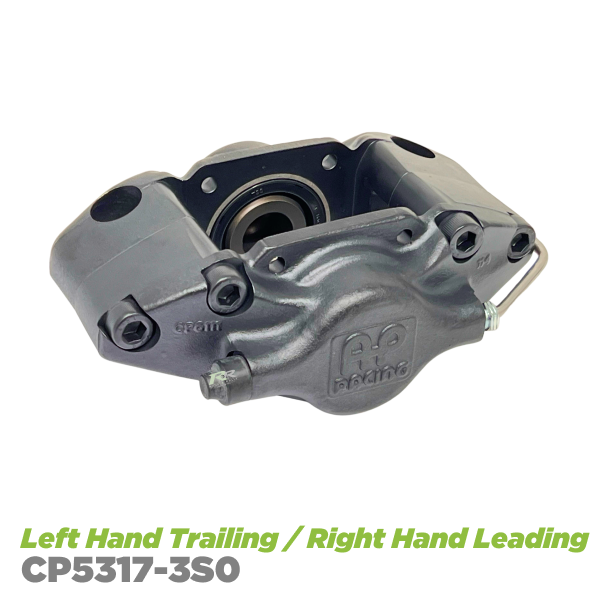

- Left-Hand Trailing- CP5317-3ABK2
- Right-Hand Leading- CP5317-3ABK2
- Left-Hand Leading- CP5317-2ABK2

Technical Specifications:

Piston Sizes	CP5316 = Ø38.1mm x 2 CP5317 = Ø41.3mm x 2
Piston Area	CP5316 = 22.8 cm³ CP5317 = 26.8 cm³
Disc Diameter	Max = Ø332.0mm
Disc Thickness	Max = 26.00mm
Weight (no pads)	1.50 Kg
Hydraulic Threads	M10x1.0
Mounting Type	Radial
Mounting Centres	130.00mm
Mounting Offset	27.50mm
Mounting Hole	Ø10.1mm
'PL' Dimension	50.50mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	CP5316 = CP5128-104 CP5317 = CP5317-103
Seal Repair Kit	CP5316 = CP4525-J CP5317 = CP4525-K
Pad Retainer	Pin = CP5119-144 x 2
Pad Retainer R Clip	CP5119-134CR3 x 2
Bleed Screw	CP3720-173
Pad Anti Rattle Clip	CP5119-151

Brake Pads

Pad Shape	CP5119D50
Pad Area	33.7cm²
Pad Depth	50.0mm
Thickness	14.3mm

Option	SKU	Barcode
Brand	AP Racing
Ø41.3mm x2 / RHS Trailing / LHS Leading	CP5317-2ABK2
Ø41.3mm x2 / LHS Trailing / RHS Leading	CP5317-3ABK2

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
