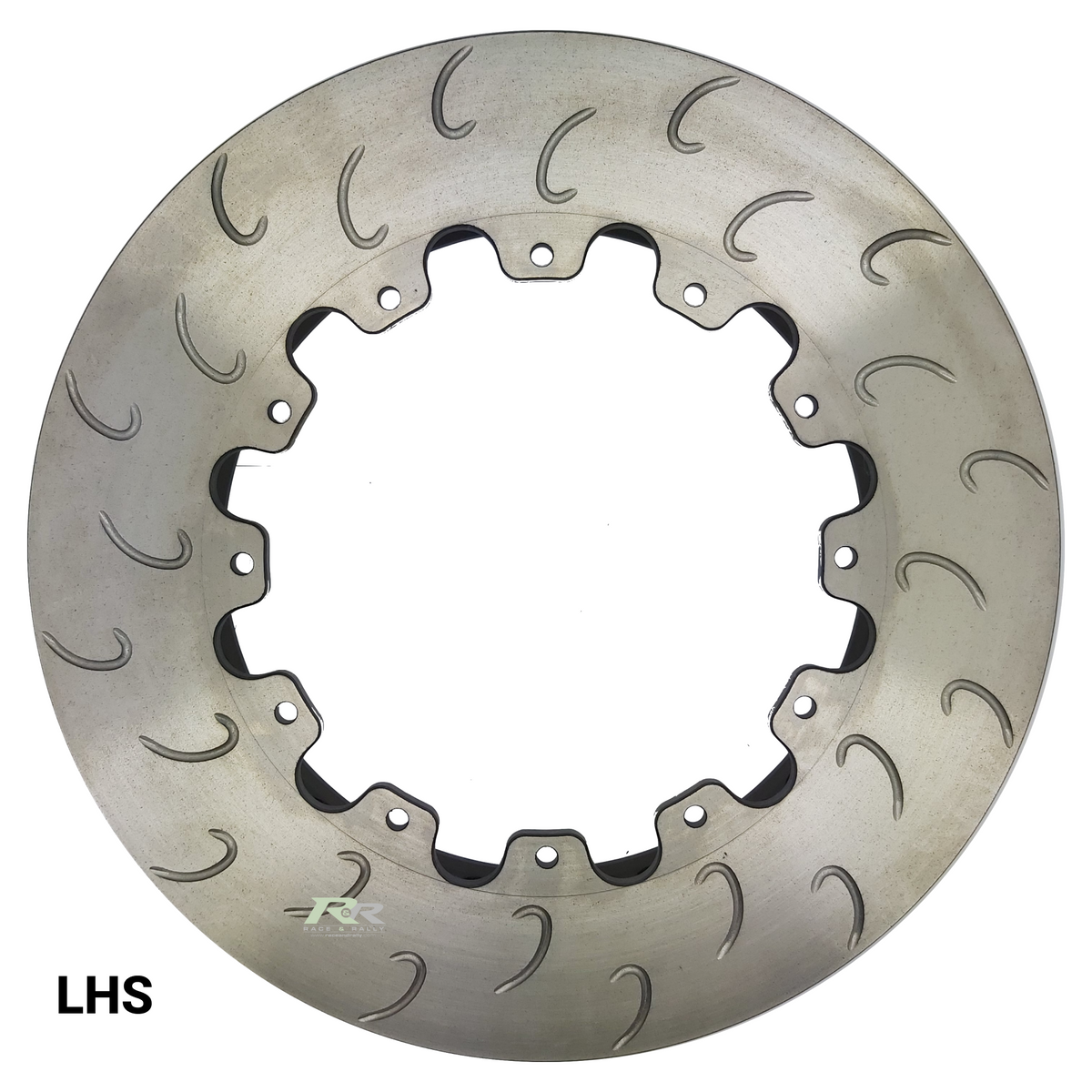

  • Ø304mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - 14.0mm Air Gap - 203.2mm Eye Diameter - Race and Rally
  • Ø304mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - 14.0mm Air Gap - 203.2mm Eye Diameter - Race and Rally
1 6

AP 15" Front Brake Kit - CP9440 Caliper - Ø304x28mm Discs

AP 15" Front Brake Kit - CP9440 Caliper - Ø304x28mm Discs

AP9440-304-28-SGA

€2506.78 €3083.34
Sale Sold out
  • Feature Icon 15" Brake Kit
  • Feature Icon CP9440 Pro 5000 R Calipers
  • Feature Icon Ø304mm x 28mm Brake Discs
  • Feature Icon Brake Pads Sold Separetely
Disc Face Type

Out of stock, contact for leadtime

View full details

Ford Escort MK1 and MK2 modern spec 15" brake kit. Kit is complete with AP Racing CP9440 4-pot Calipers, Ø304 x 28mm AP Racing brake discs and all required hardware for mounting to Ford Escort Bilstein Struts.

Kit Contents:

 Description

Specifications

Part Number

QTY
Brake Caliper 4-Piston Pro 5000 R Caliper CP9440-2S4L
CP9440-3S4L 		1
1
Brake Caliper Mounting Bracket Bilstein Strut (pair) RCR-5040-304-28 1
Brake Disc
Ø304 x 28mm		 'J' Hooked - RHS
'J' Hooked - LHS		 CP3580-2572GA
CP3580-2573GA 		1
1
Brake Disc Bell Bilstein Strut RBR-304-12B-177 2
Brake Disc Bolt Mounting Kit Pack of 12 CP3845-101K12 1
Caliper Mounting Bolts 7/16" UNF x 1.25"
M12 x 1.75 - 60mm		 RNR1030-716-125
RNR1030-M1260		 4
4
Caliper Mounting Washers 7/16" Schnorr Washer
M12 Schnorr Washer		 RNR1016-716
RNR1016-M12		 4
4


Brake Pads (sold separetely)

Pad Shape CP3215D50
CP3215D50 Brake Pad Set - APF404 Compound - Race and Rally
Pad Area 57.4cm²
Pad Depth 50.3mm
Thickness 16.8mm

Applications:


Make Model Year
Ford Escort
Brand AP Racing
Option SKU Barcode
GA - 'J' Hook Design AP9440-304-28-SGA


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
