AP 15" Front Brake Kit - CP5040 Caliper - Ø304x28mm Discs

AP 15" Front Brake Kit - CP5040 Caliper - Ø304x28mm Discs

AP5040-304-28-SGA

€2404.71 €2957.79
Sale Sold out
  • Feature Icon 15" Brake Kit
  • Feature Icon CP5040 Pro 5000 Calipers
  • Feature Icon Ø304mm x 28mm Brake Discs
  • Feature Icon Brake Pads Sold Separetely
Disc Face Type

Out of stock, contact for leadtime

View full details

Ford Escort MK1 and MK2 modern spec 15" brake kit. Kit is complete with AP Racing CP5040 4-pot Calipers, Ø304 x 28mm AP Racing brake discs and all required hardware for mounting to Ford Escort Bilstein Struts.

Applications:

  • 15" Wheels
  • Ford Bilstein Strut
  • Ford Escort MKI
  • Ford Escort MKII

Kit Contents:

 Description

Specifications

Part Number

QTY

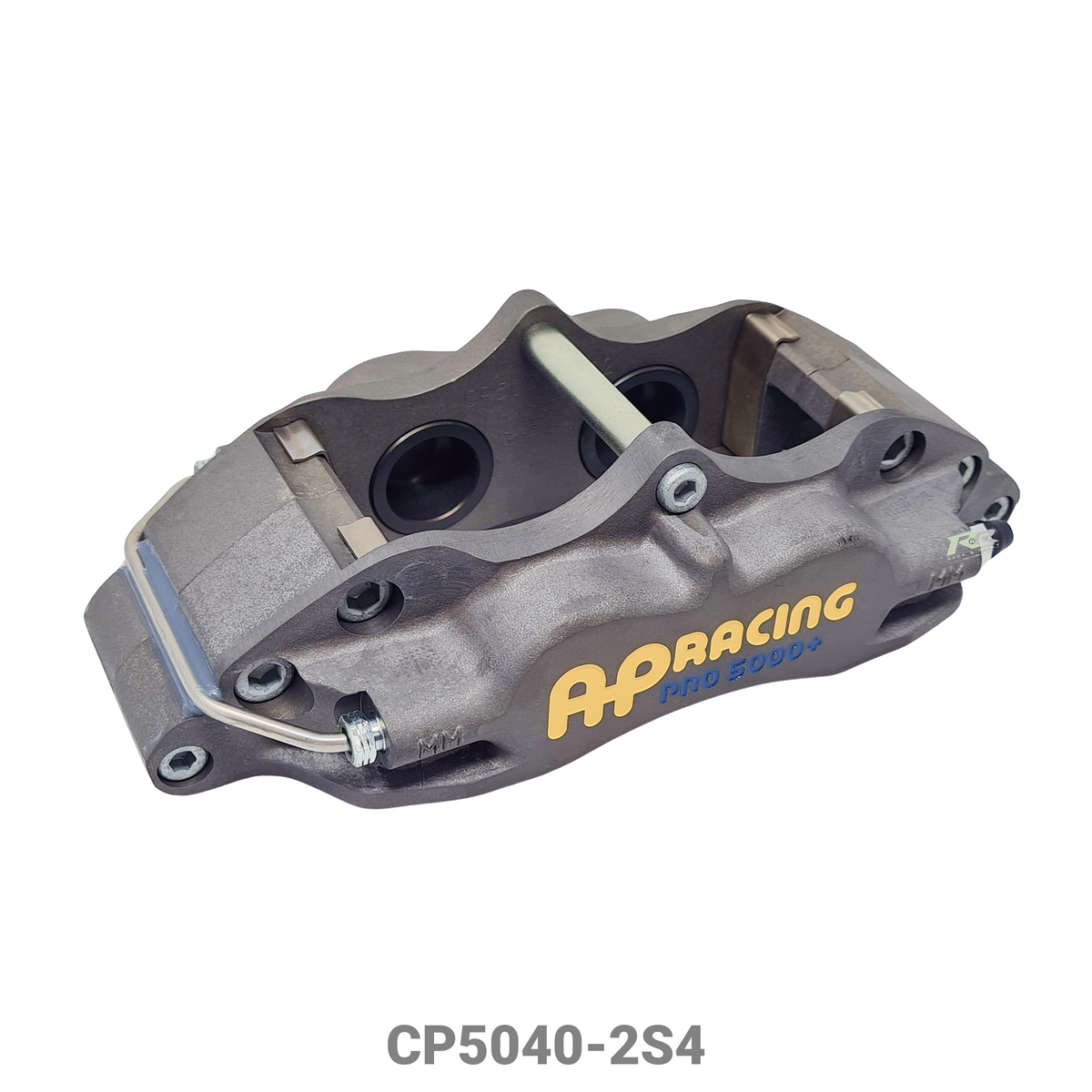

Brake Caliper 4-Piston Pro 5000+ Caliper CP5040-2S4
CP5040-3S4 		1
1
Brake Caliper Mounting Bracket Bilstein Strut (pair) RCR-5040-304-28 1

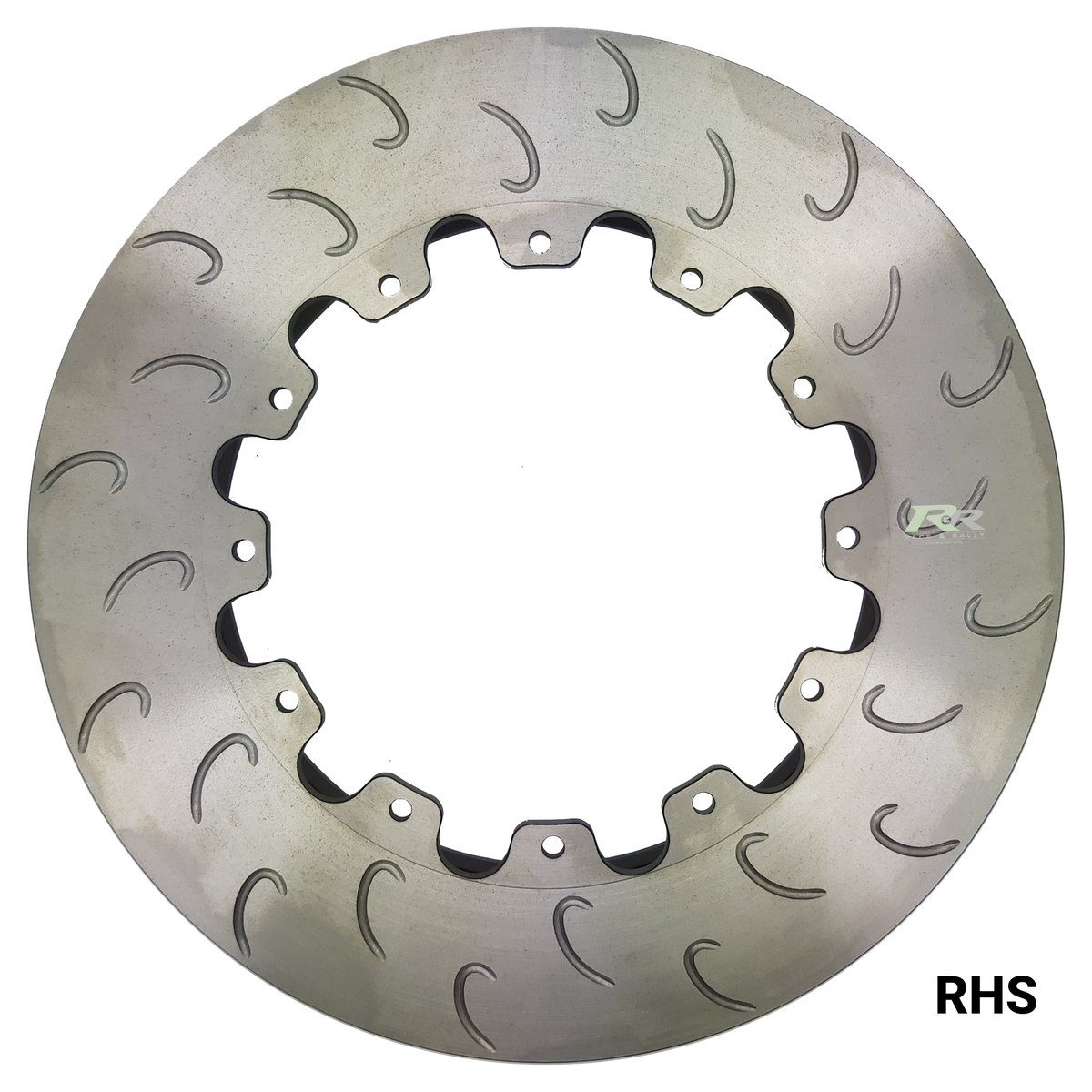

Brake Disc
Ø304 x 28mm		 'J' Hooked - RHS
'J' Hooked - LHS		 CP3580-2572GA
CP3580-2573GA 		1
1
Brake Disc Bell Bilstein Strut RBR-304-12B-177 2
Brake Disc Bolt Mounting Kit Pack of 12 CP3845-101K12 1
Caliper Mounting Bolts 7/16" UNF x 1.25"
M12 x 1.75 - 60mm		 RNR1030-716-125
RNR1030-M1260		 4
4
Caliper Mounting Washers 7/16" Schnorr Washer
M12 Schnorr Washer		 RNR1016-716
RNR1016-M12		 4
4


Brake Pads (sold separetely)

Pad Shape CP3215D50
CP3215D50 Brake Pad Set - APF404 Compound - Race and Rally
Pad Area 57.4cm²
Pad Depth 50.3mm
Thickness 16.8mm



Applications:


Make Model Year
Ford Escort
Brand AP Racing
Option SKU Barcode
GA - 'J' Hook Design AP5040-304-28-SGA


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
