Ø310mm x 32.0mm Ventilated Brake Disc - 12 x 188.0mm PCD

Ø310mm x 32.0mm Ventilated Brake Disc - 12 x 188.0mm PCD

SKU:CP3047-426GA

Regular price €364.49 €448.32
Sale Sold out

Brake Disc Dimensions

  • Outside Diameter - 310mm
  • Thickness - 32.0mm
  • Mounting P.C.D. - 188.0mm
  • Mounting Type - Bolted - 12 Bolt
  • Spigot Diameter - mm
  • Eye Diameter: - 206.9mm
  • Inside Flange Diameter - 163.1mm
  • Mounting Flange Thickness - 6.3mm
  • Mounting Offset - mm
  • Max Pad Depth - D48.0
  • No. of Vanes - 48
  • Air Gap - 16.5mm
  • Weight - Kg
View full details

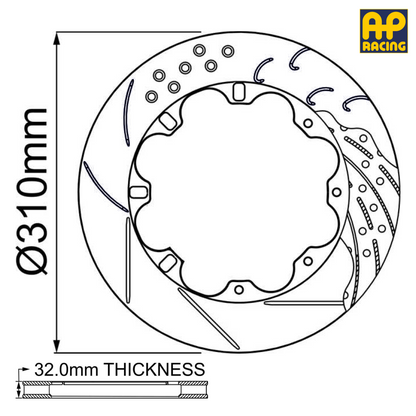

310mm x 32.0mm Brake Disc Dimensions

Outside Diameter
310mm
Thickness
32.0mm
Mounting P.C.D.
188.0mm
Mounting Type
Bolted - 12 Bolt
Eye Diameter
206.9mm
Spigot Diameter
mm
Inside Flange Diameter
163.1mm
Mounting Flange Thickness
6.3mm
Mounting Offset
mm
Max Pad Depth
D48.0
No. of Vanes
48
Air Gap
16.5
Weight
Kg
Face Types Available
GA - 'J' Hook Design
GA - 'J' Hook Design
Disc Handing

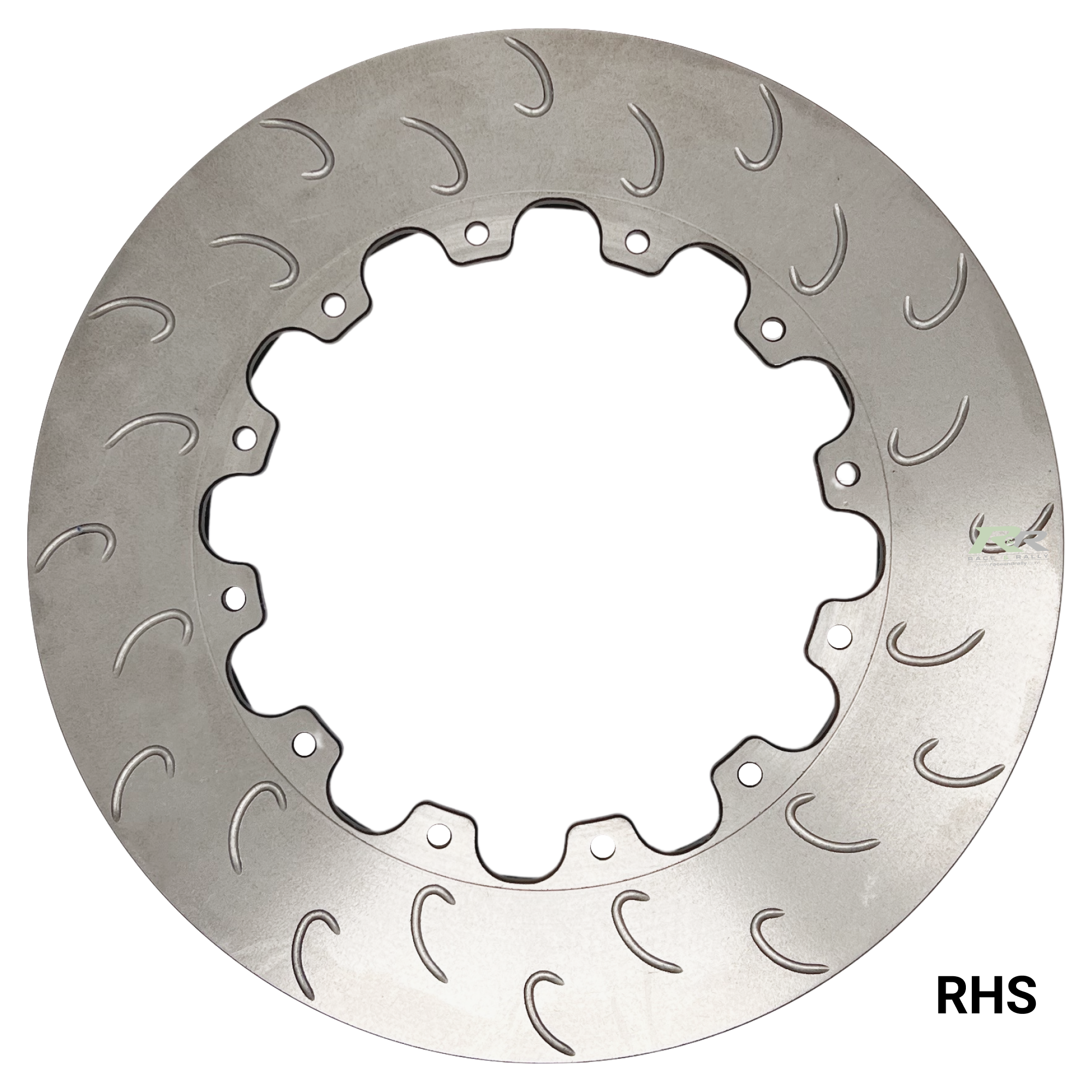

Right-Hand Side

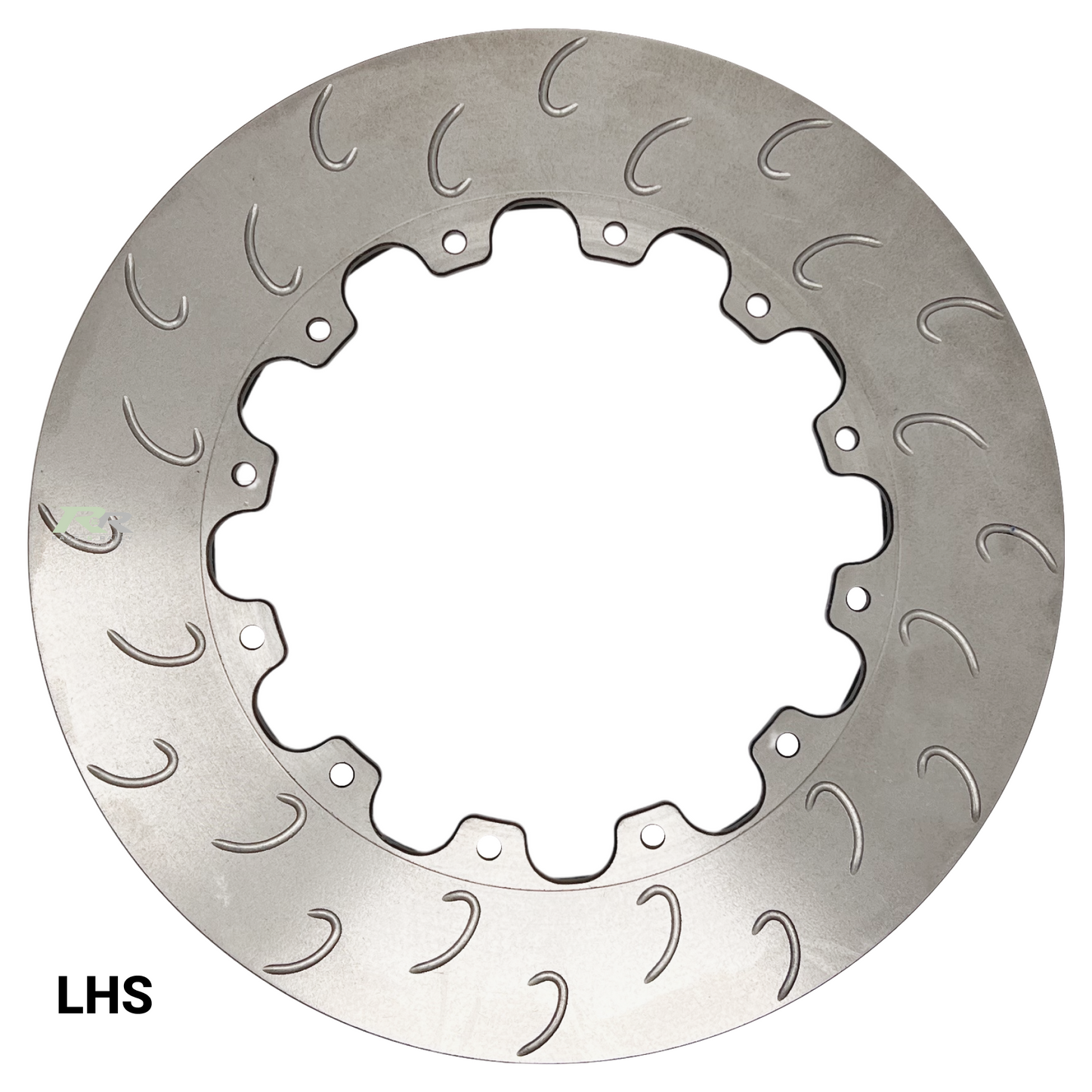

Left-Hand Side
Notes

Brand:

AP Racing

Manufacturer Part Number:

CP3047-426GA, CP3047-427GA
