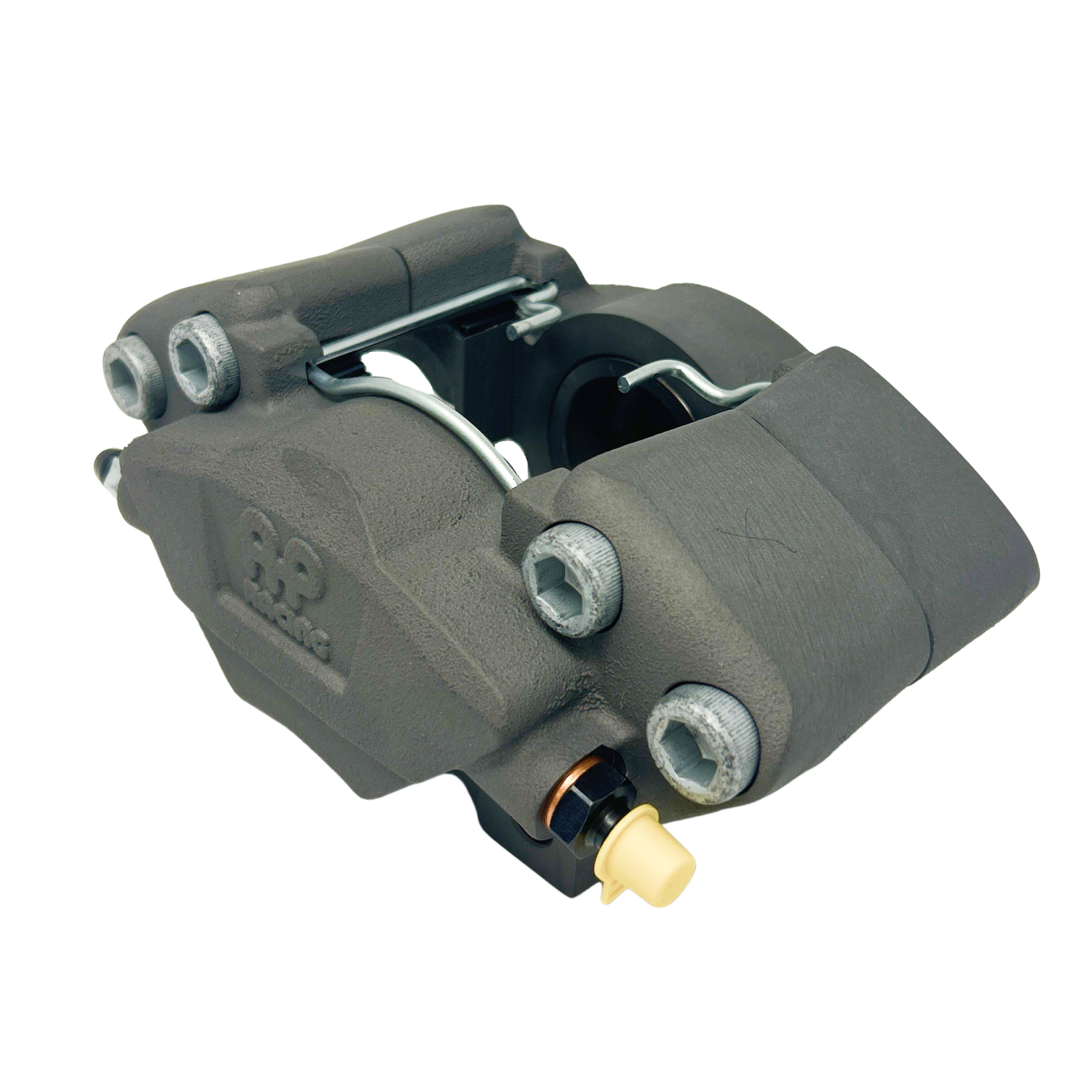

CP2382 - 2 Piston Historic Caliper - Ventilated Disc

Name: CP2382 - 2 Piston Historic Caliper - Ventilated Disc
Brand: AP Racing
SKU: CP2382-12E4
Price: 819.35 GBP
Availability: InStock

SKU:CP2382-12E4

€819.35 €1007.80

Sale Sold out

Escort GRP 4 Rear Caliper
For Vented Disc
[Pad Shape: CP2372D52]

Piston Diameter Ø50.8mm

Caliper Hand Right Hand Left Hand

Quantity

In stock

View full details

CP2382 - Escort Grp 4 Rear Caliper
- Vented Disc

Applications

Escort Grp 4 Rally Rear for Ventilated Disc

Features:

Lug Mount, 88.9mm x 29.7mm centres
Cast Aluminium alloy body
Hard anodised surface treatment
Suits Ø267 to Ø254mm x 20.7mm disc
Aluminium alloy Pistons
High temperature seals

Part Numbers:

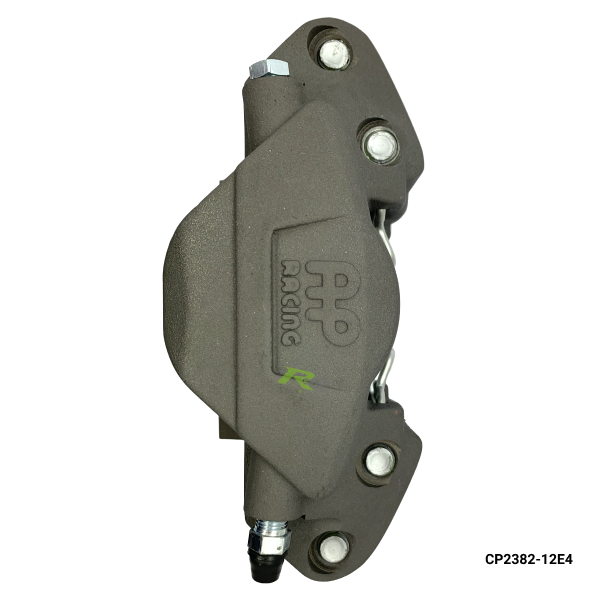

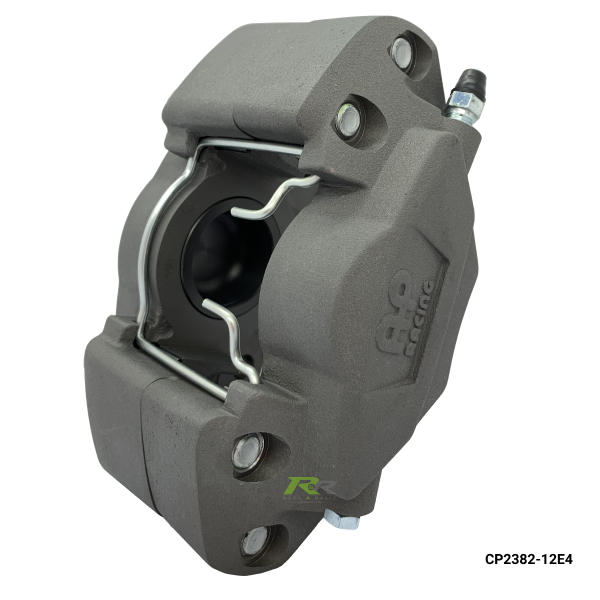

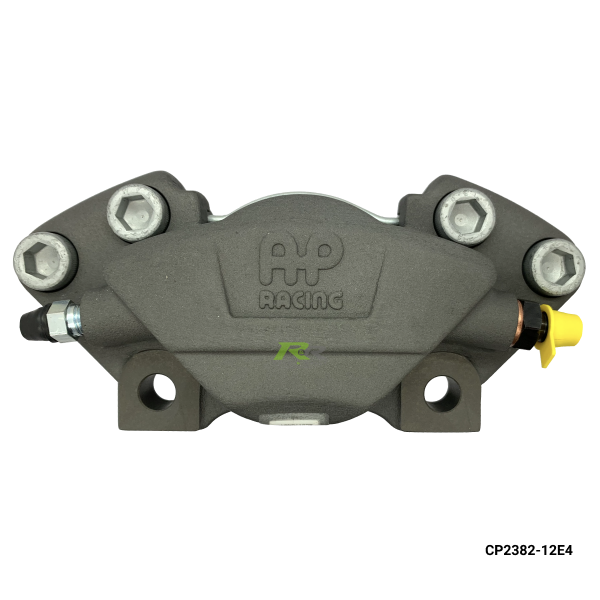

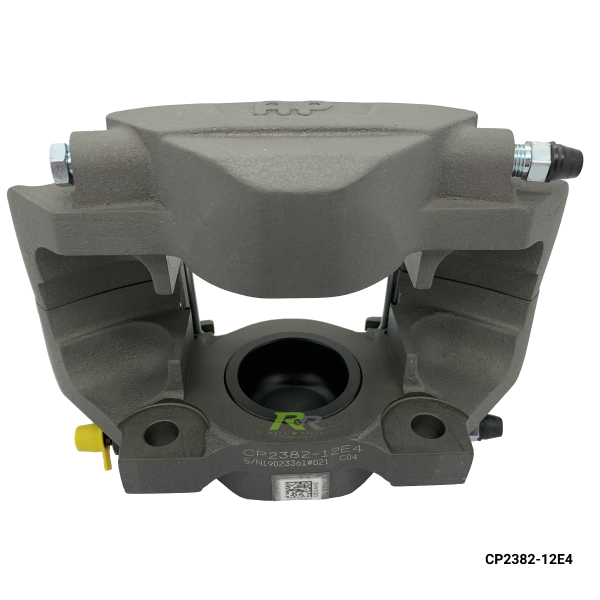

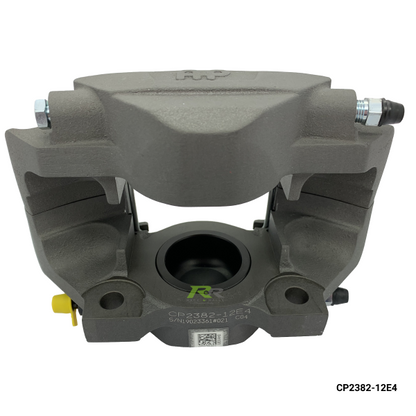

Right-Hand - CP2382-12E4

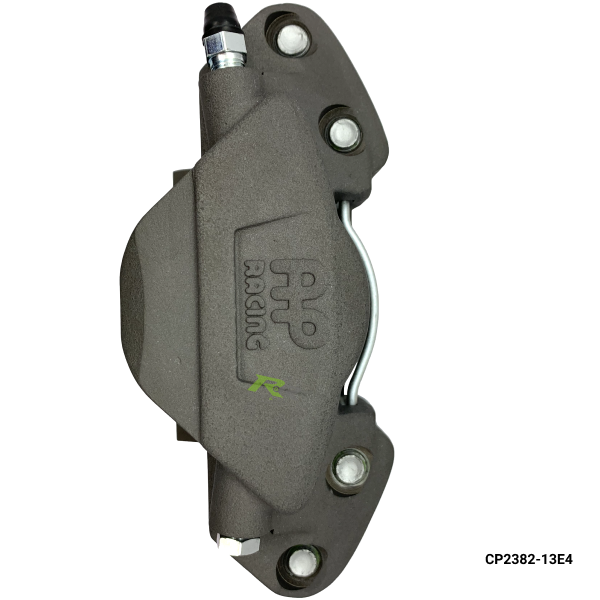

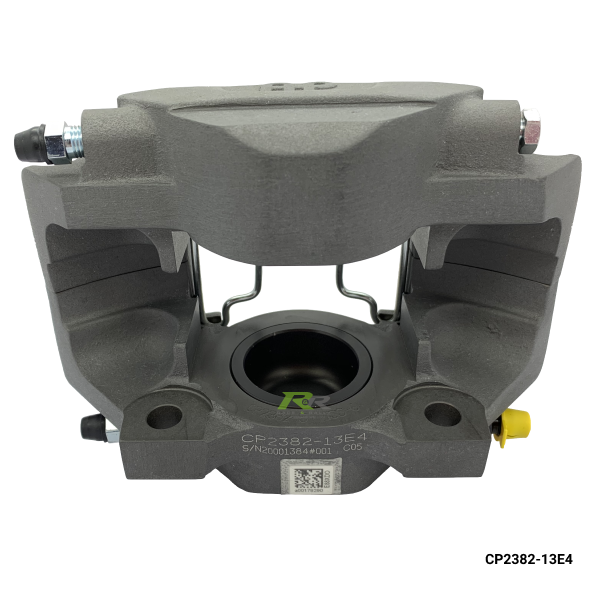

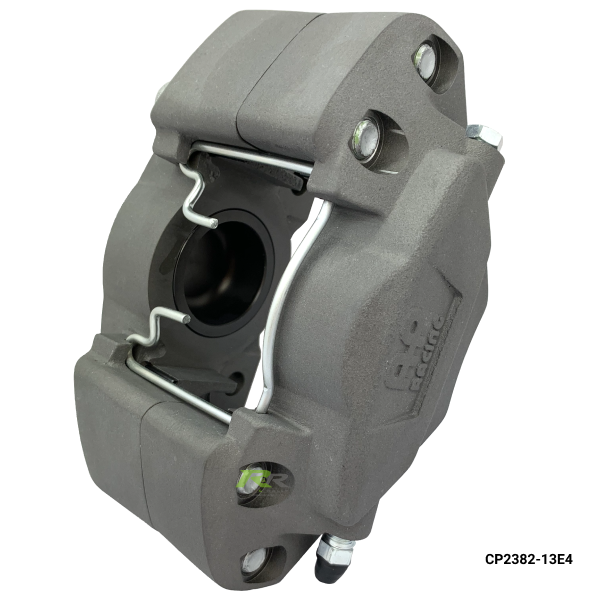

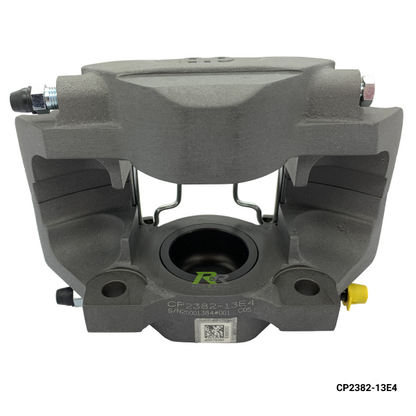

Left-Hand - CP2382-13E4

Technical Specifications:

Piston Sizes	Ø50.8mm
Piston Area	40.53cm³
Disc Diameter	Max - Ø266.70mm Min - Ø254.00mm
Disc Thickness	Max - 20.70mm
Weight (no pads)	1.80 Kg
Hydraulic Threads	3/8" x 24UNF
Mounting Type	Lug
Mounting Centres	88.9mm
Mounting Offset	29.7mm
Mounting Hole	Ø11.27mm
'PL' Dimension	54.1mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	CP2383-52
Seal Repair Kit	CP4518-N
Pad Retaining Clip	CP2372-18
Bleed Screw	CP3720-182
Bleed Screw Cap	CP2494-177
Anti-Knockback Spring	CP2667-105 x2 OR CP6518-4LBLL (enough for 2 calipers)
Weld-on Caliper Brackets for Atlas Axle	RWR2382-3
Skid Protector	AA670

Brake Pads

Pad Shape	CP2372D52
Pad Area	34.61cm²
Pad Depth	52.3mm
Thickness	15.9mm

CP2382 - Customer Drawing.pdf

Option	SKU	Barcode
Brand	AP Racing
Ø50.8mm / Right Hand	CP2382-12E4
Ø50.8mm / Left Hand	CP2382-13E4
