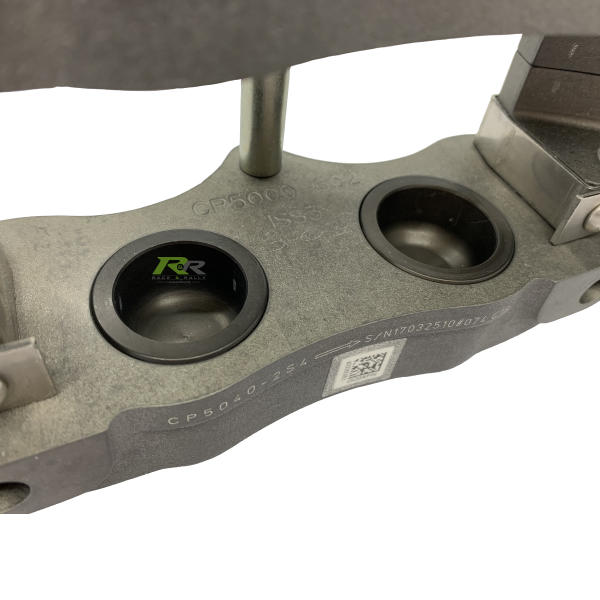

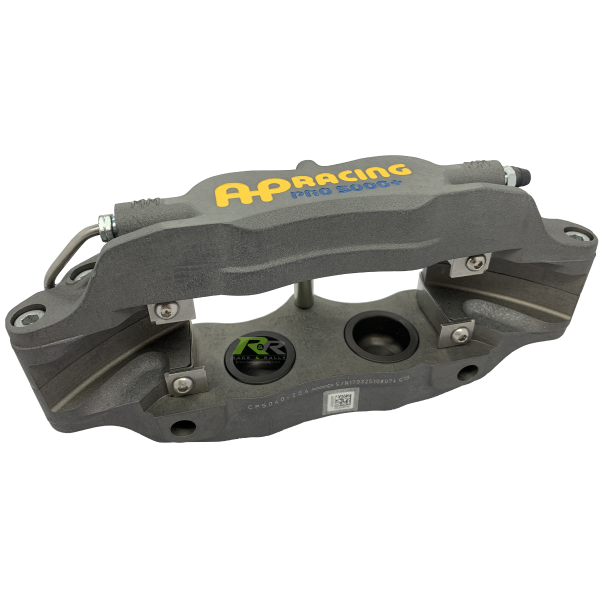

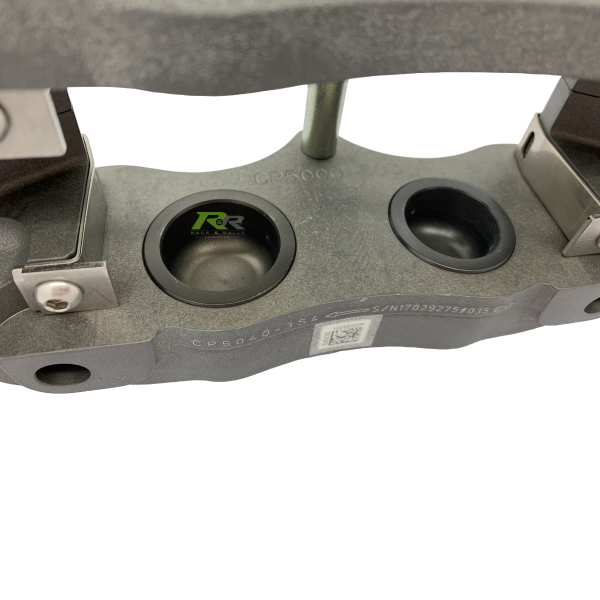

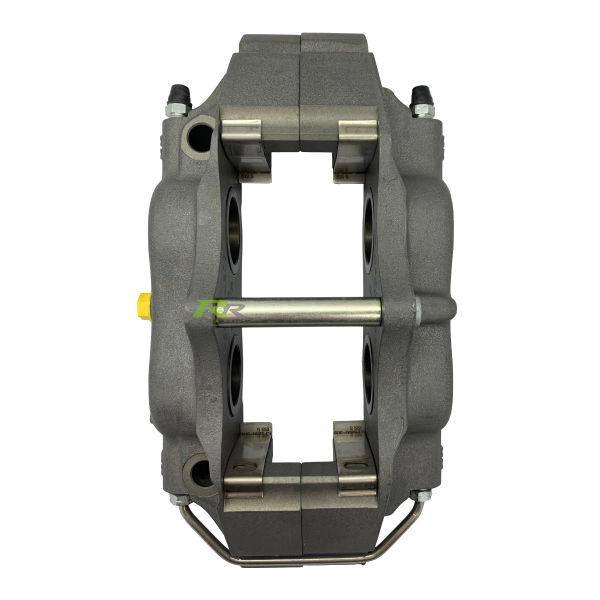

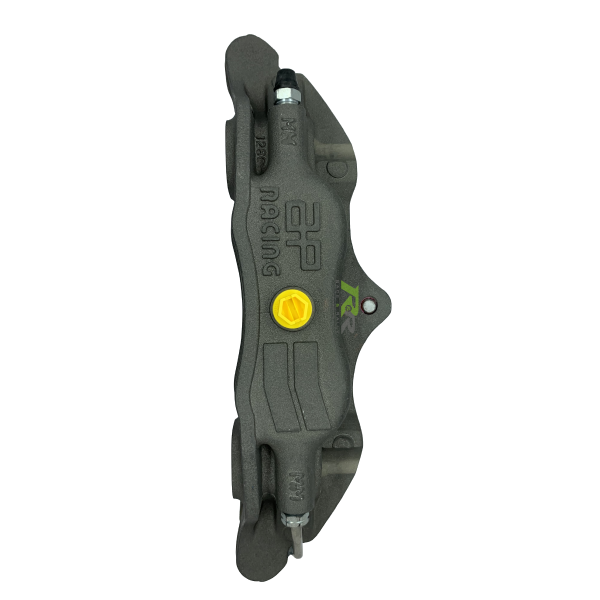

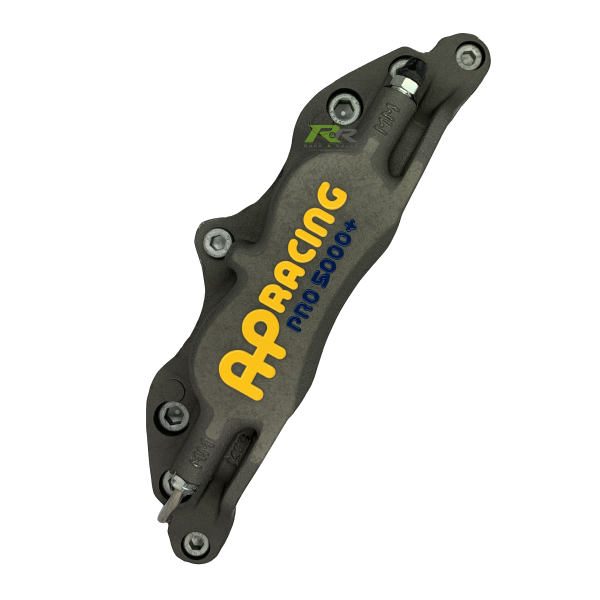

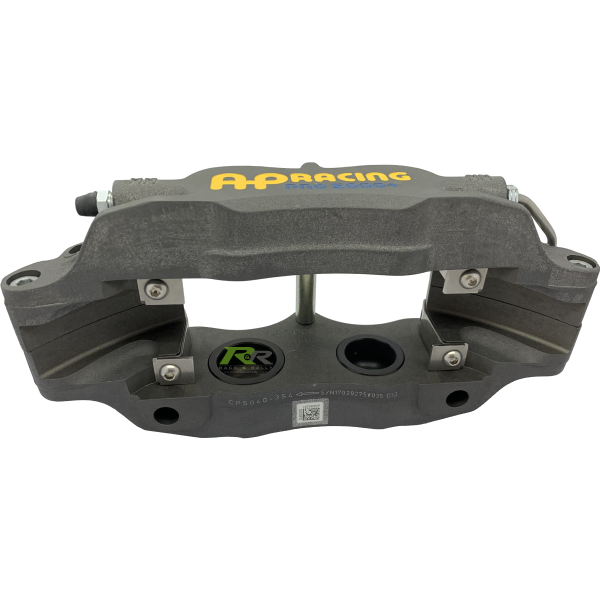

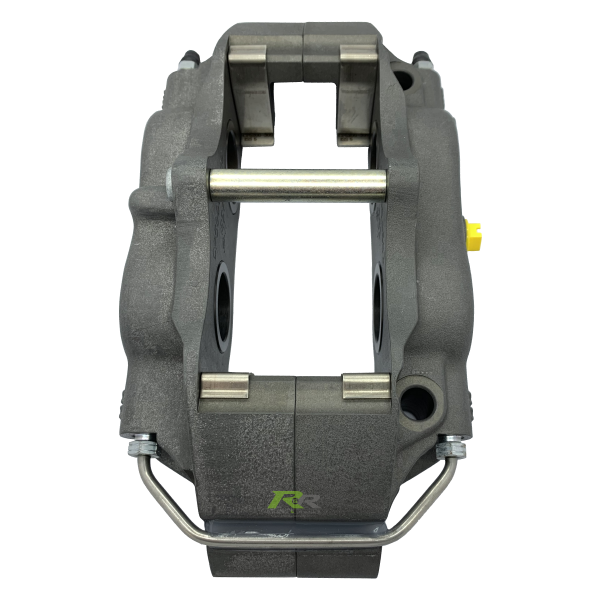

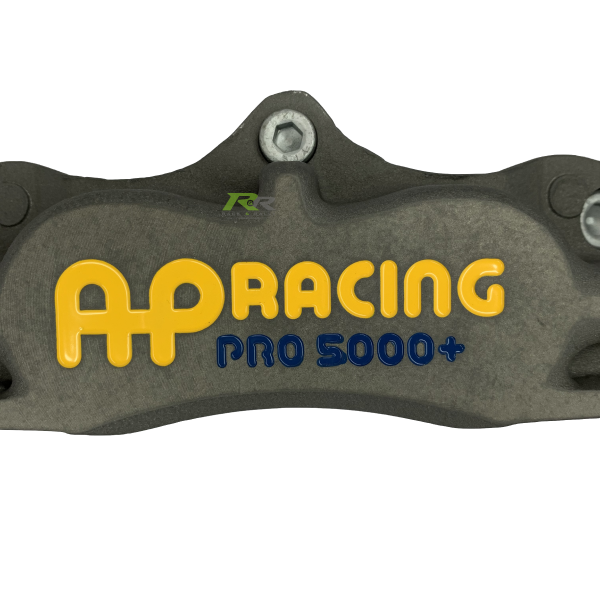

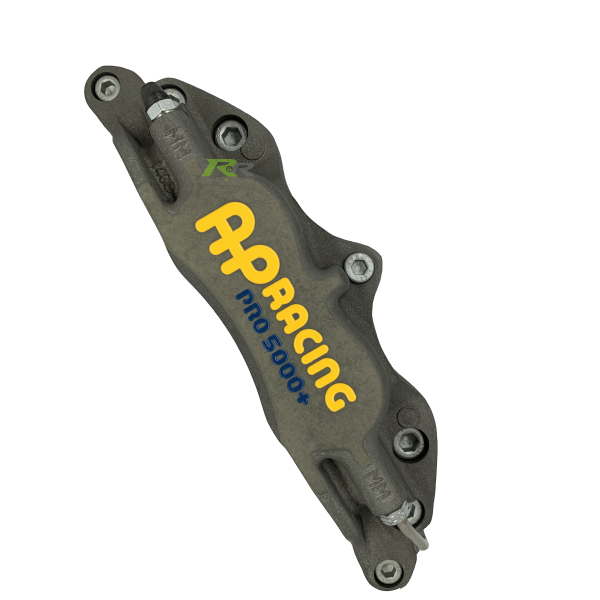

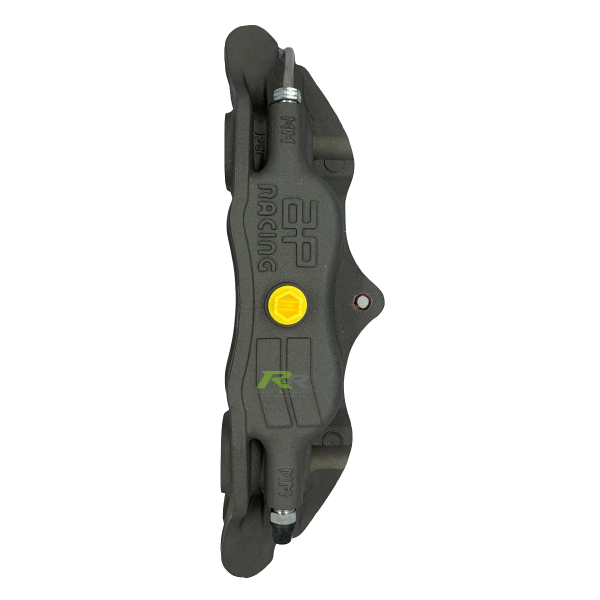

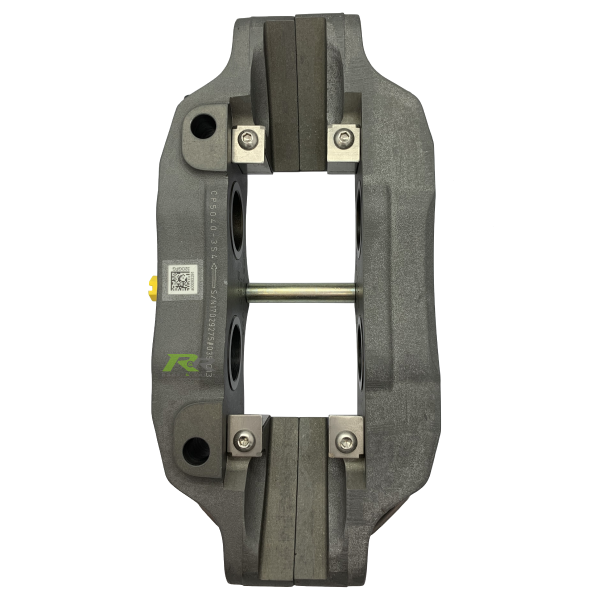

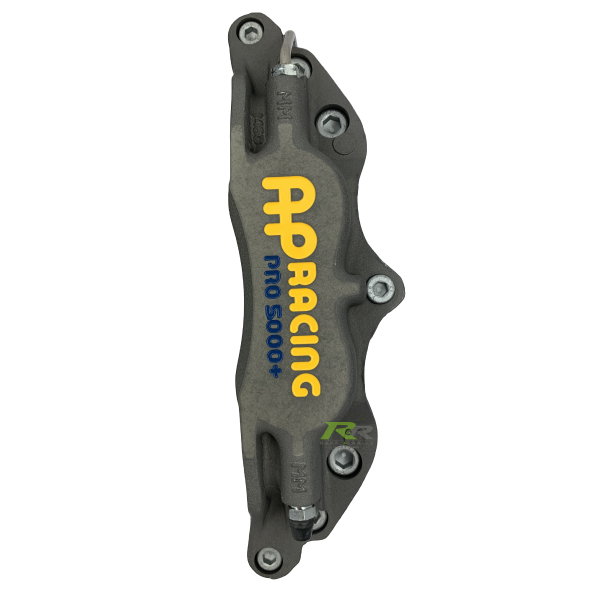

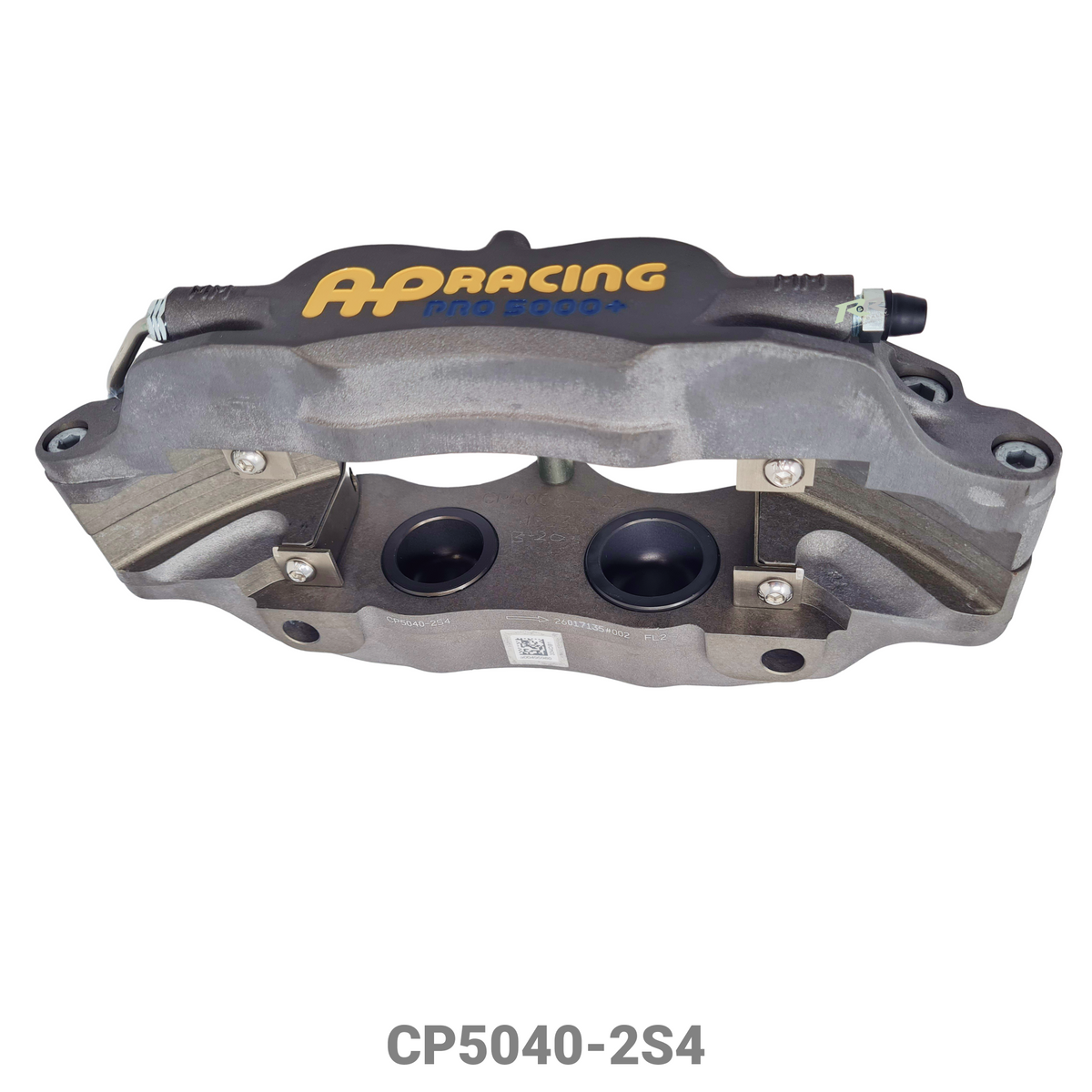

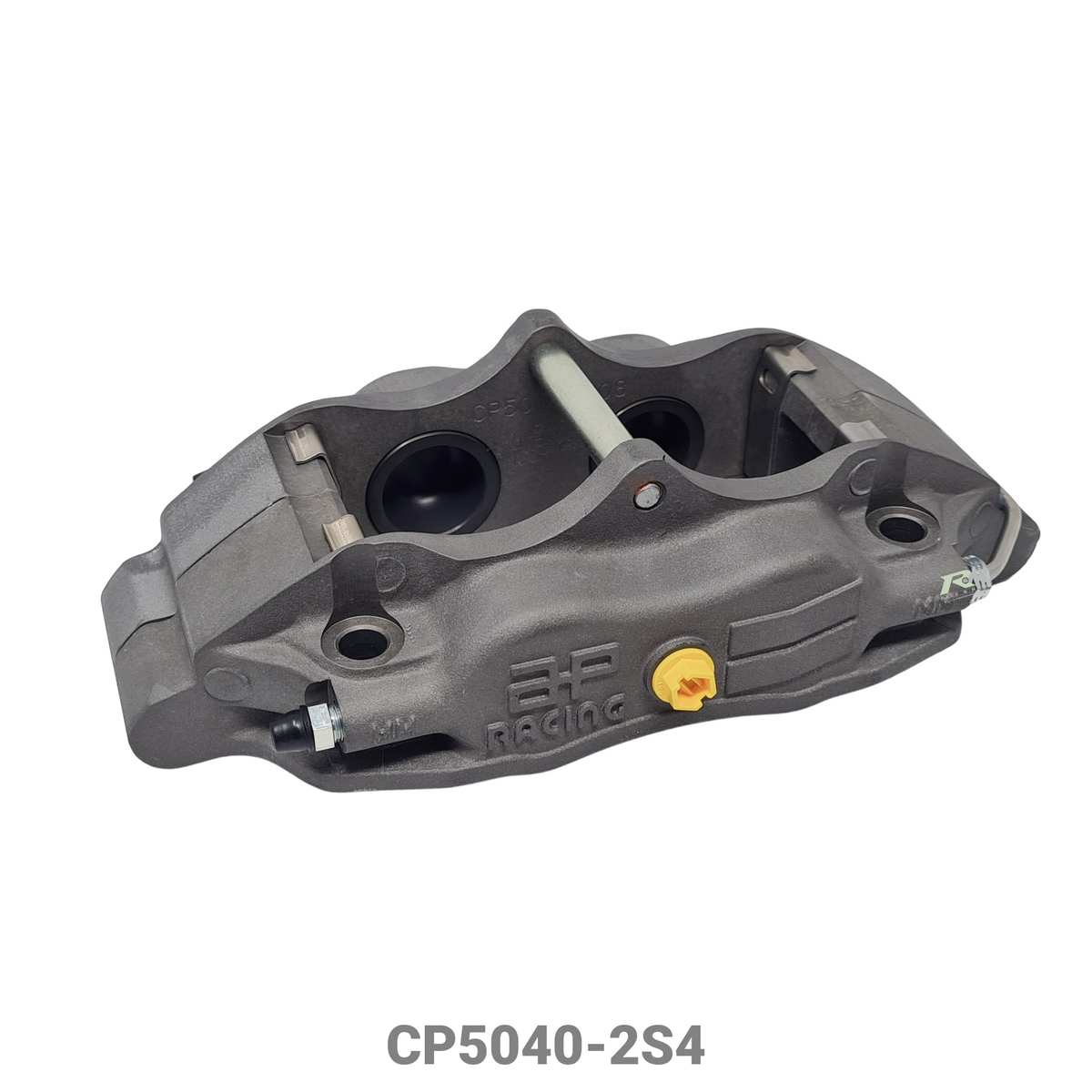

CP5040 - PRO 5000+ 4 Piston Caliper - 152mm Centres

SKU:CP5040-2S4

€702.40 €863.95

Sale Sold out

4 Piston
Pro 5000+
[Pad Shape: CP3215D50]

Piston Diameter Ø38.1mm x2 | Ø41.3mm x2

Piston Material Aluminium

Caliper Hand Right Hand Left Hand

Quantity

Out of stock, contact for leadtime

View full details

CP5040 - PRO 5000+ 4 Piston Caliper
- 152mm Centres

Applications:

Single make race series
Rally

Features:

Radial mount, 152.0mm x 44.0mm centres
Cast Aluminium alloy body
Suits Ø330.0 or 315.0mm x 28mm disc
Available with Aluminium alloy or Stainless Steel Pistons
High temperature seals
4lb Anti-knockback springs fitted
Stainless Steel wear plates
17mm thick pad

Part Numbers:

For calipers with Aluminium Pistons
- Right-hand Trailing - CP5040-2S4
- Left-hand Trailing - CP5040-3S4
- Right-hand Leading - CP5040-4S4
- Left-hand Leading - CP5040-5S4
For calipers with Stainless Steel Pistons
- Right-hand Trailing - CP5040-2S4L
- Left-hand Trailing - CP5040-3S4L
- Right-hand Leading - CP5040-4S4L
- Left-hand Leading - CP5040-5S4L

Technical Specifications:

Piston Sizes	Ø38.1mm x2 Ø41.3mm x2
Piston Area	49.5 cm²
Disc Diameter	Max - Ø330mm Min - Ø 315mm
Disc Thickness	28.0mm
Weight (no pads)	2.6 Kg
Hydraulic Threads	M10 x 1.0
Mounting Type	Radial
Mounting Centres	152.00mm
Mounting Offset	44.10mm
Mounting Hole	Ø12.20mm
'PL' Dimension	57.80mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	Ø38.1mm Aluminium - CP3584-101 Stainless Steel - CP5040-113 Ø41.3mm Aluminium - CP3434-116 Stainless Steel - CP5040-114
Stainless Steel Piston Kit	CP5040-43
Seal Repair Kits	CP4518-JK
Pad Retainer Tube	CP5200-124
Pad Retainer Bolt	CP5100-120
Wear Plates	CP5200-306 x2 CP5200-307 x2
Anti-knockback Springs	CP6518-4LBLL
Bleed Screw	CP3720-173
Bleed Screw Cap	CP2494-177
Fluid Pipe	CP5000-44
Brake Caliper Bracket - Grp4 Bilstein Upright	RCR-5040-304-28
Brake Caliper Bracket - Grp4 Modular Upright	Rix - RCMR-5040-304-28-RIX GRP4 - RCMR-5040-304-28-GRP4

Brake Pads

Pad Shape	CP3215D50
Pad Area	57.4cm²
Pad Depth	50.3mm
Thickness	16.8mm

CP5040 - Customer Drawing -2 3 4 5.pdf

Option	SKU	Barcode
Brand	AP Racing
Ø38.1mm x2 \| Ø41.3mm x2 / Aluminium / Right Hand	CP5040-2S4
Ø38.1mm x2 \| Ø41.3mm x2 / Aluminium / Left Hand	CP5040-3S4
