CP5040 - PRO 5000+ 4 Piston Caliper - 180mm Centres

Name: CP5040 - PRO 5000+ 4 Piston Caliper - 180mm Centres
Brand: AP Racing
SKU: CP5040-30S4
Price: 596.38 GBP
Availability: InStock

SKU:CP5040-30S4

€596.38 €733.55

Sale Sold out

4-Piston
Pro 5000+
Suits 32mm Brake Disc
180mm Mounting Centres
[Pad Shape: CP2279D50]

Piston Diameter Ø38.1mm x2 | Ø44.5mm x2

Piston Material Aluminium Stainless Steel

Caliper Hand Right Hand Trailing Left Hand Trailing Right Hand Leading Left Hand Leading

Quantity

Out of stock, contact for leadtime

View full details

CP5040 - PRO 5000+ 4 Piston Caliper - 180mm Centres

Applications:

Budget general use caliper
Single make race series

Features:

Radial mount, 180.0mm x 42.0mm centres
Cast Aluminium alloy body
Suits Ø356.0 or 330.0mm x 32.0mm disc
Available with Aluminium alloy or Stainless Steel Pistons
High temperature seals
4lb Anti-knockback springs fitted
Stainless Steel wear plates
20.5mm thick pad

Part Numbers:

For calipers with Aluminium pistons

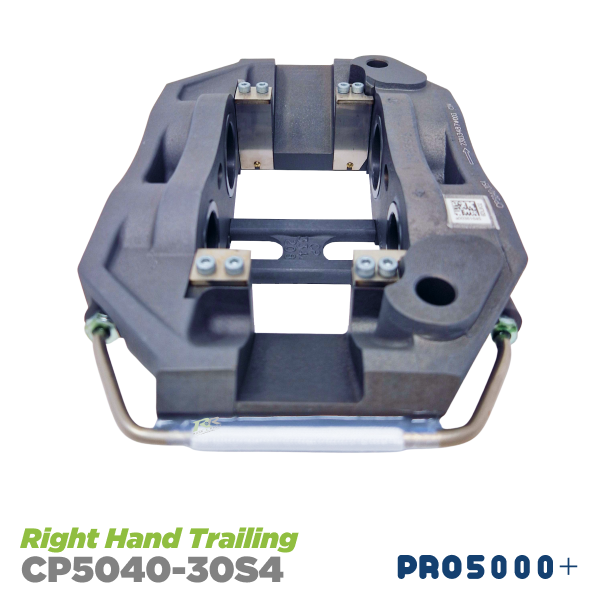

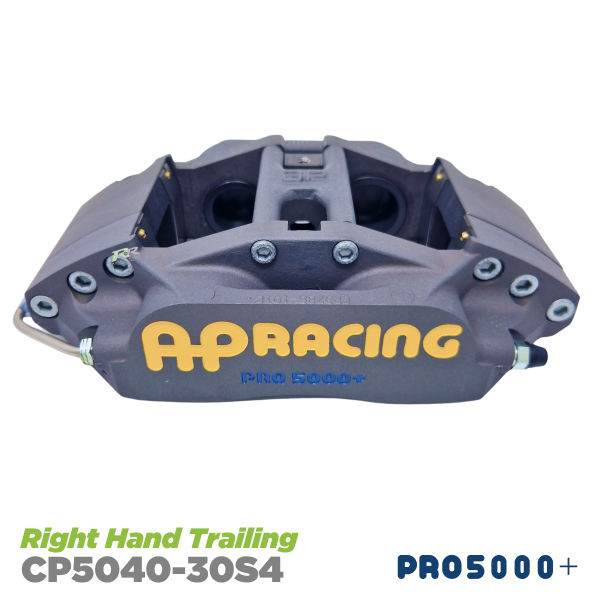

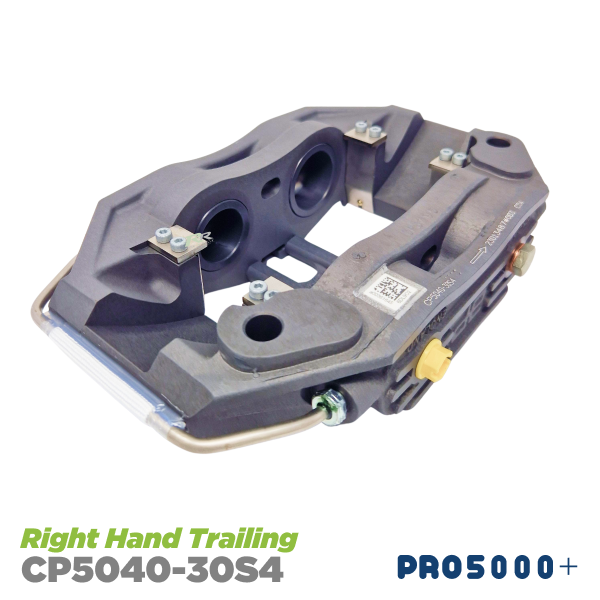

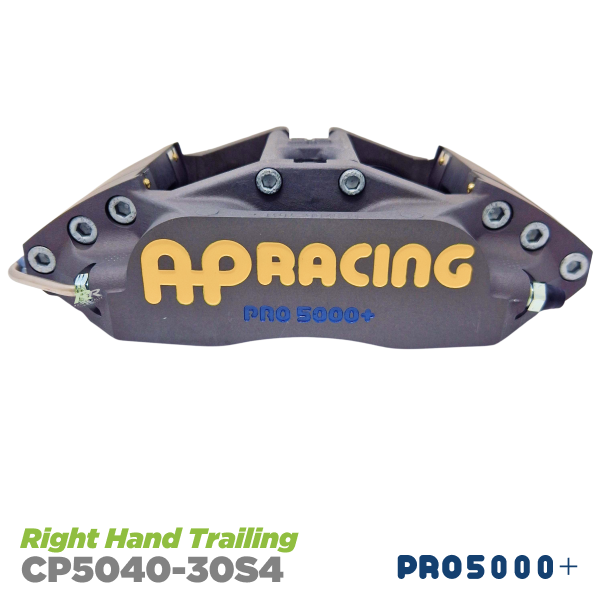

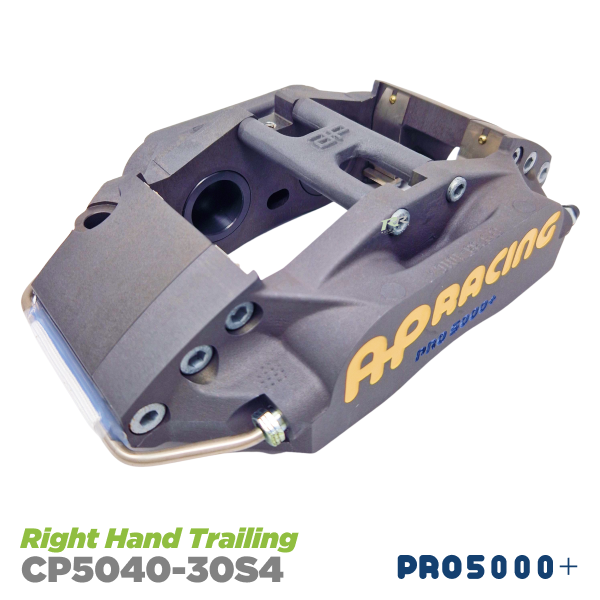

- Right-hand Trailing - CP5040-30S4

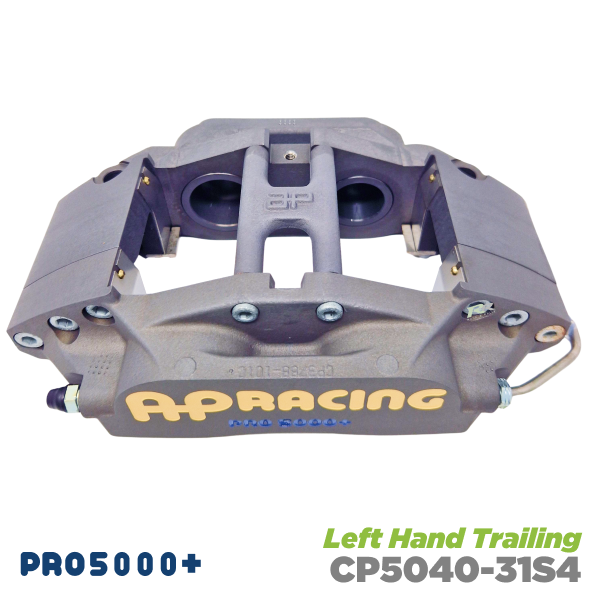

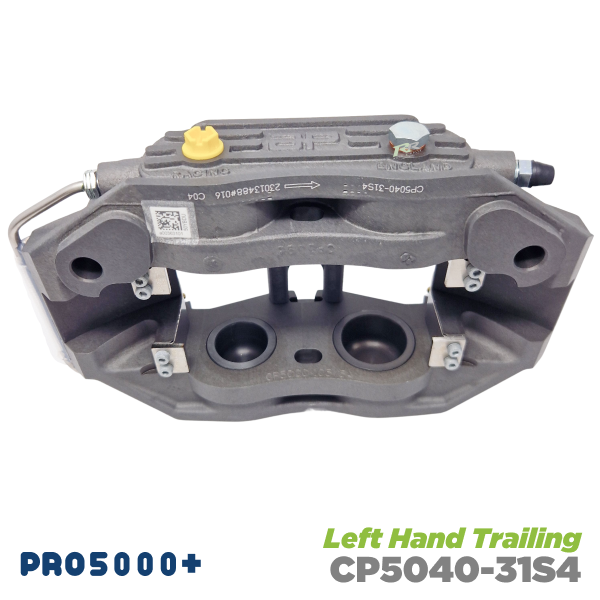

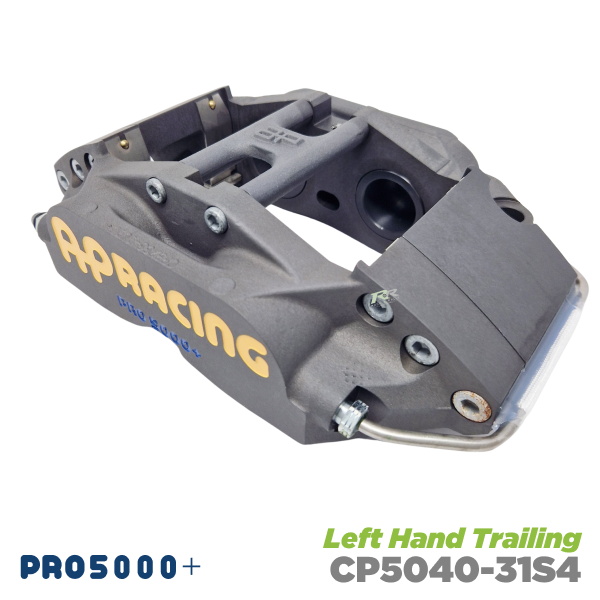

- Left-hand Trailing - CP5040-31S4
- Right-hand Leading - CP5040-32S4
- Left-hand Leading - CP5040-33S4
For calipers with Stainless Steel pistons
- Right-hand Trailing - CP5040-30S4L
- Left-hand Trailing - CP5040-31S4L
- Right-hand Leading - CP5040-32S4L
- Left-hand Leading - CP5040-33S4L

Technical Specifications:

Piston Sizes	Ø38.1mm x2 Ø44.5mm x2
Piston Area	53.8 cm²
Disc Diameter	Max - Ø356mm Min - Ø330mm
Disc Thickness	32.00mm
Weight (no pads)	2.4 Kg
Hydraulic Threads	M10 x 1.0
Mounting Type	Radial
Mounting Centres	180.00mm
Mounting Offset	42.00mm
Mounting Hole	Ø12.15mm
'PL' Dimension	57.74mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	Ø38.1 - Aluminium - CP3636-107 - Stainless Steel - CP5040-112 Ø44.5 - Aluminium - CP3394-110 - Stainless Steel - CP5040-111
Stainless Steel Piston Kit	CP5040-44
Seal Repair Kit	CP4518-JL
Pad Retainer H-Piece	CP3795-101
Pad Retainer Bolt	CP3439-111
Wear Plates	CP3799-110 x1 CP3799-111 x1 CP3846-101 x2
Wear Plate Supports
Wear Plate Bolts
Anti-knockback Springs	CP6518-4LBLL
Bleed Screw	CP3720-173
Bleed Screw Cap	CP2494-177
Fluid Pipe	CP5040-7
Blanking Cap	CP3760-106
Copper Gasket	KL44517

Brake Pads

Pad Shape	CP2279D50
Pad Area	57.4cm²
Pad Depth	50.3mm
Thickness	20.4mm

CP5040-30 31 32 33 - Customer Drawing.pdf

Option	SKU	Barcode
Brand	AP Racing
Ø38.1mm x2 \| Ø44.5mm x2 / Aluminium / Right Hand Trailing	CP5040-30S4
Ø38.1mm x2 \| Ø44.5mm x2 / Aluminium / Left Hand Trailing	CP5040-31S4
Ø38.1mm x2 \| Ø44.5mm x2 / Aluminium / Right Hand Leading	CP5040-32S4
Ø38.1mm x2 \| Ø44.5mm x2 / Aluminium / Left Hand Leading	CP5040-33S4
Ø38.1mm x2 \| Ø44.5mm x2 / Stainless Steel / Right Hand Trailing	CP5040-30S4L
Ø38.1mm x2 \| Ø44.5mm x2 / Stainless Steel / Left Hand Trailing	CP5040-31S4L
Ø38.1mm x2 \| Ø44.5mm x2 / Stainless Steel / Right Hand Leading	CP5040-32S4L
Ø38.1mm x2 \| Ø44.5mm x2 / Stainless Steel / Left Hand Leading	CP5040-33S4L
