CP6720 - 4 Piston S2000 Caliper - 180mm Centres

CP6720 - 4 Piston S2000 Caliper - 180mm Centres

CP6720-8S4

€866.10 €1065.30
Sale Sold out
  • Feature Icon S2000
  • Feature Icon Front or Rear Type
  • Feature Icon 4 Piston
  • Feature Icon Cast Aluminium Body
Piston Size
Caliper Hand
View Docs
View full details

CP6720 - S2000 Two Piece Front or Rear Caliper

Applications:

  • Suitable Front Caliper for S2000 and Rally Raid.
  • NB: CP6720 can be used as a rear caliper also

Features:

  • CP6720 has differential bores
  • Radial mount, 180 x 35.0mm.
  • Suits Ø356 / Ø285 x 28mm discs.
  • Two piece Aluminium alloy body.
  • Internally ported.
  • No external bridge pipes.
  • Protected bleed screw.
  • Aluminium piston standard
    • Stainless Steel - optional

Part Numbers:

CP6720 Front and (or) Rear Type

  • Right-hand Trailing - CP6720-6S4
  • Left-hand Trailing - CP6720-7S4

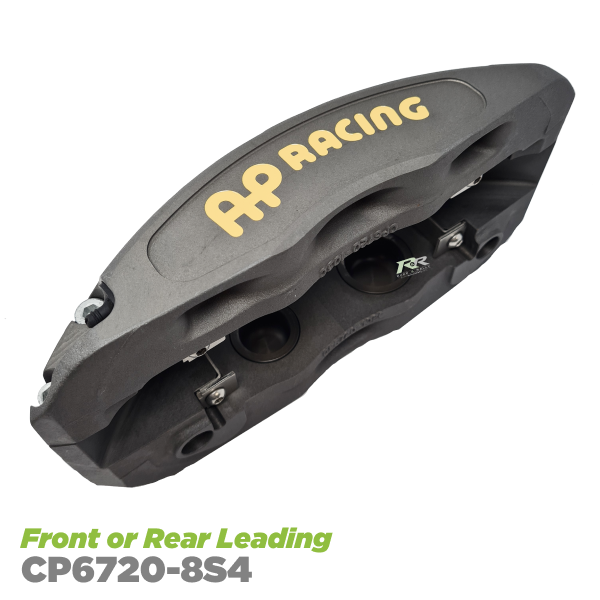

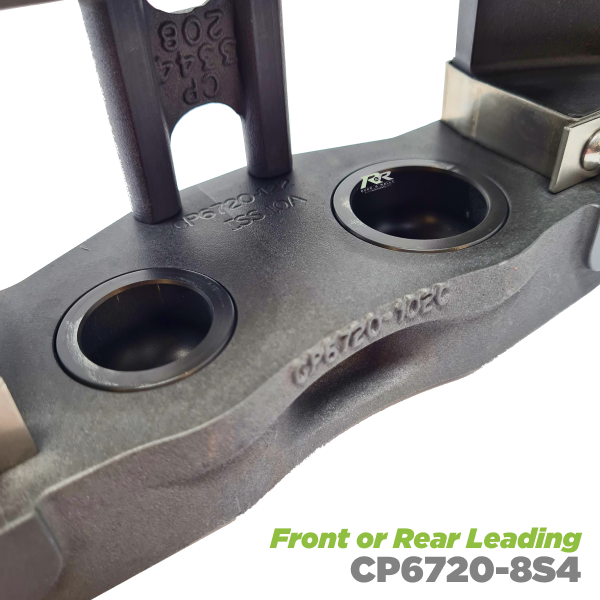

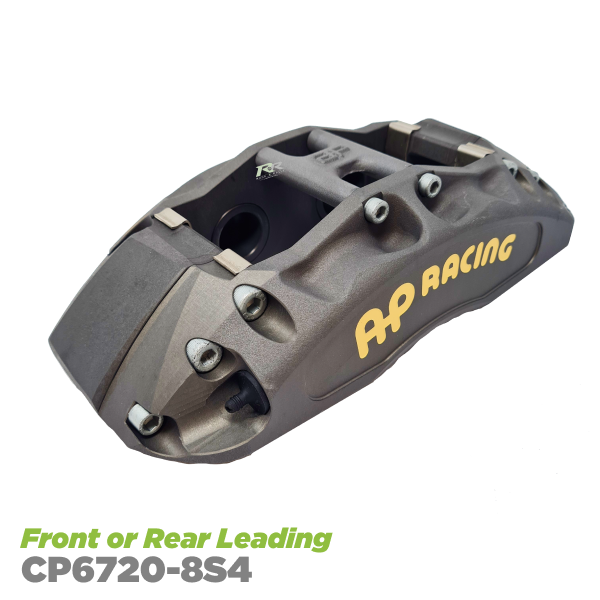

  • Right-hand Leading - CP6720-8S4

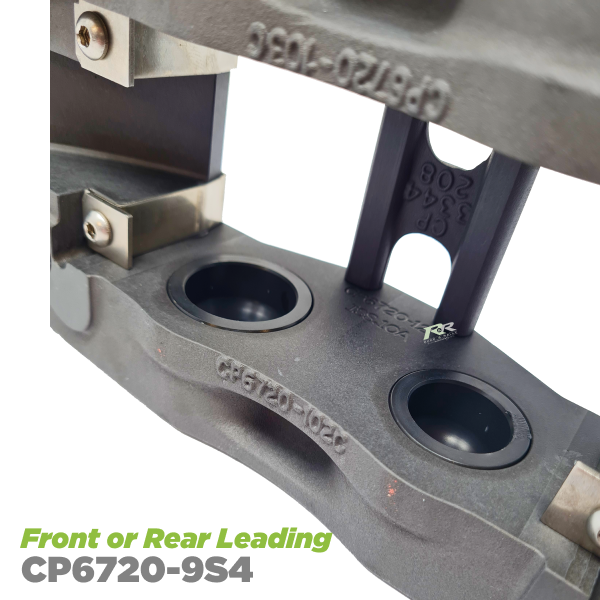

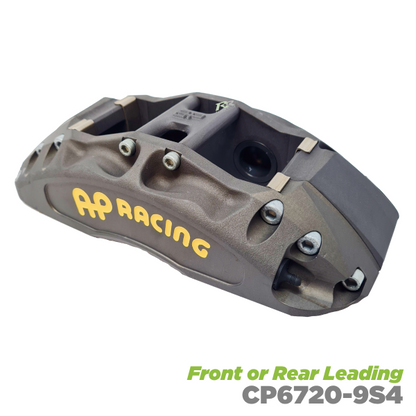

  • Left-hand Leading - CP6720-9S4

Technical Specifications:

 Piston Sizes Ø34.9mm x2
Ø41.3mm x2
Piston Area 45.93 cm³
Disc Diameter

Max - Ø355mm
Min - Ø285mm
Disc Thickness

28.00mm
Weight (no pads) 2.5 Kg
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres 180.00mm
Mounting Offset 35.00mm
Mounting Hole Ø12.15mm
'PL' Dimension 57.80mm
Bleed Screw Tightening Torque 17Nm



Spare Parts

 Pistons

Ø34.9mm - CP3567-108
Ø41.3mm - CP3344-109
Seal Repair Kit CP4518-GK
Pad Retainer H-Piece - CP6720-101
Pad Retainer Bolt CP6720-110 x2
Wear Plates CP5200-306 x4
Anti-knockback Springs CP6518-4LBLL
Bleed Screw CP3880-1
Bleed Screw Cap CP6720-129



Brake Pads

Pad Shape

CP3215D46

CP3215D46 Brake Pad Set - (H) DS2500 Compound - Race and Rally
Pad Area 54.6cm²
Pad Depth 45.6mm
Thickness 16.8mm



 Pad Shape

CP3215D50

CP3215D50 Brake Pad Set - (R) DS3000 Compound - Race and Rally
Pad Area 57.4cm²
Pad Depth 50.3mm
Thickness 16.8mm



Brand AP Racing
Option SKU Barcode
Ø34.9mm x2 & Ø41.3mm x2 / Right Hand Leading CP6720-8S4
Ø34.9mm x2 & Ø41.3mm x2 / Left Hand Leading CP6720-9S4
