CP6760 - 4 Piston Rear Cast Caliper - 180mm Centres

Name: CP6760 - 4 Piston Rear Cast Caliper - 180mm Centres
Brand: AP Racing
SKU: CP6760-4S4L
Price: 748.84 GBP
Availability: InStock

SKU:CP6760-4S4L

€748.84 €921.07

Sale Sold out

4 Piston
S2000 Rear Caliper
[Pad Shape: CP3345D44]

Piston Size Ø27.0mm x2 | Ø34.0mm x2

Caliper Hand Right Hand Leading Left Hand Leading

Quantity

Out of stock, contact for leadtime

View full details

CP6720 - S2000 Two Piece Rear Caliper

Applications:

S2000 Rear
Grp N Rear

Features:

Radial mount, 180 x 35.0mm
Suits Ø300 x 28mm discs
Two piece Aluminium alloy body
Internally ported
No external bridge pipes
Protected bleed screw
Stainless steel piston

Part Numbers:

Right-hand Trailing - CP6760-2S4L
Left-hand Trailing - CP6760-3S4L

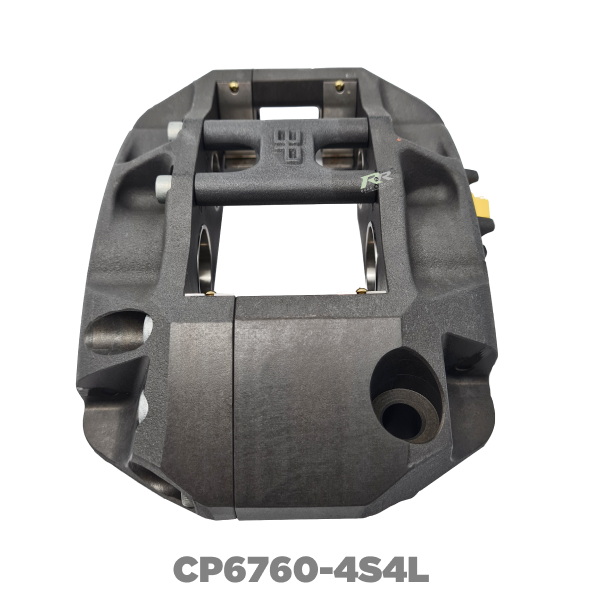

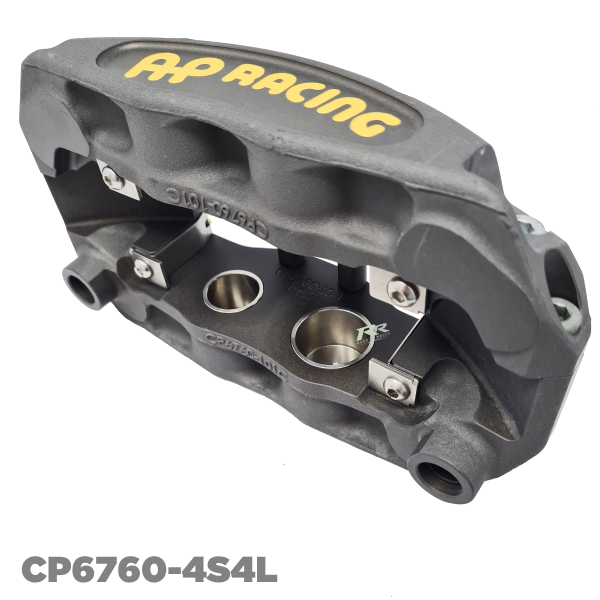

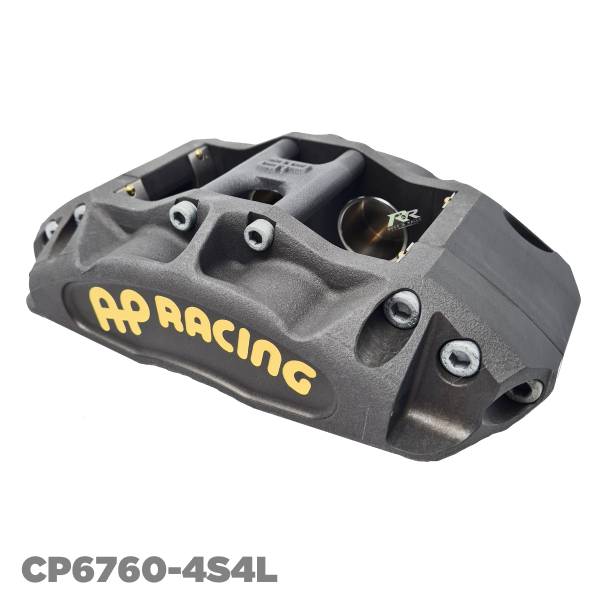

Right-hand Leading - CP6760-4S4L

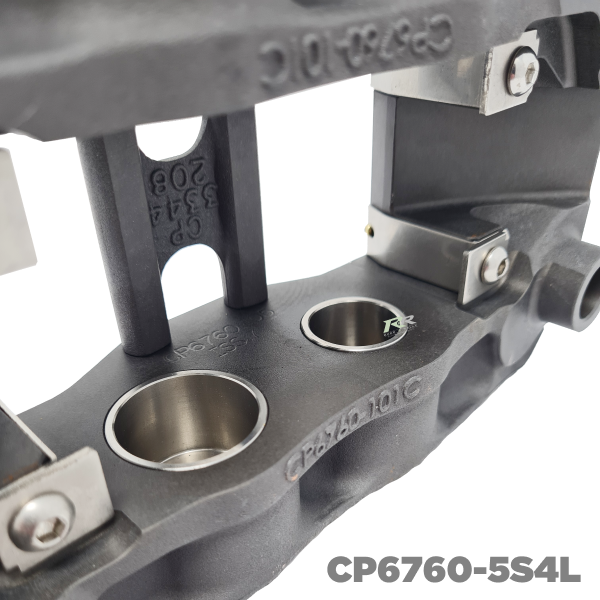

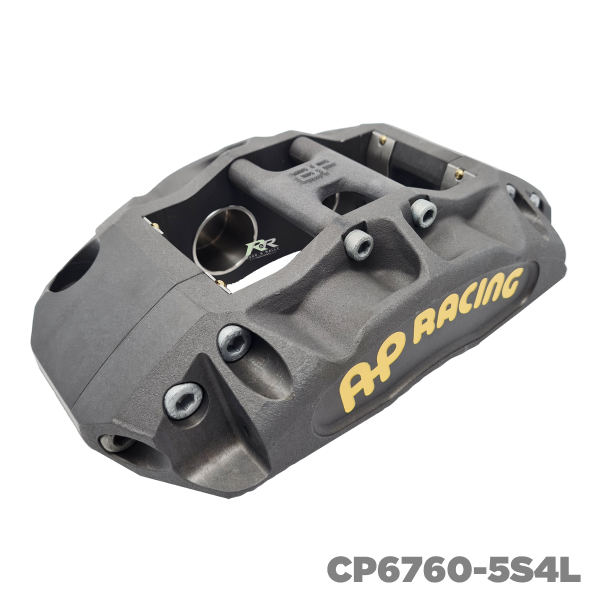

Left-hand Leading - CP6760-5S4L

Technical Specifications:

Piston Sizes	Ø27.0mm x 2 Ø34.0mm x 2
Piston Area	29.6 cm³
Disc Diameter	Max - 300mm
Disc Thickness	28.0mm
Weight (no pads)	2.1 Kg
Hydraulic Threads	M10 x 1.0
Mounting Type	Radial
Mounting Centres	180.00mm
Mounting Offset	35.00mm
Mounting Hole	Ø10.15mm
'PL' Dimension	57.80mm
Bleed Screw Tightening Torque	17Nm

Spare Parts

Pistons	Ø27mm - CP4907-106 Ø34mm - CP6760-118
Seal Repair Kit	CP4518-CF
Pad Retainer H-Piece	CP4144-101
Pad Retainer Bolt	CP3344-165 x2
Wear Plates	CP6561-106 x4
Wear Plates Bolt
Anti-knockback Springs	CP6518-4LBLL
Bleed Screw	CP3880-1
Bleed Screw Cap	CP6720-129
Bleeding Tool 'Box Spanner'	CP6720-128

Brake Pads

Pad Shape	CP3345D44
Pad Area	43.4cm²
Pad Depth	44.1mm
Thickness	16.0mm

CP6760 - Customer Drawing.pdf

Option	SKU	Barcode
Brand	AP Racing
Ø27.0mm x2 \| Ø34.0mm x2 / Right Hand Leading	CP6760-4S4L
Ø27.0mm x2 \| Ø34.0mm x2 / Left Hand Leading	CP6760-5S4L
