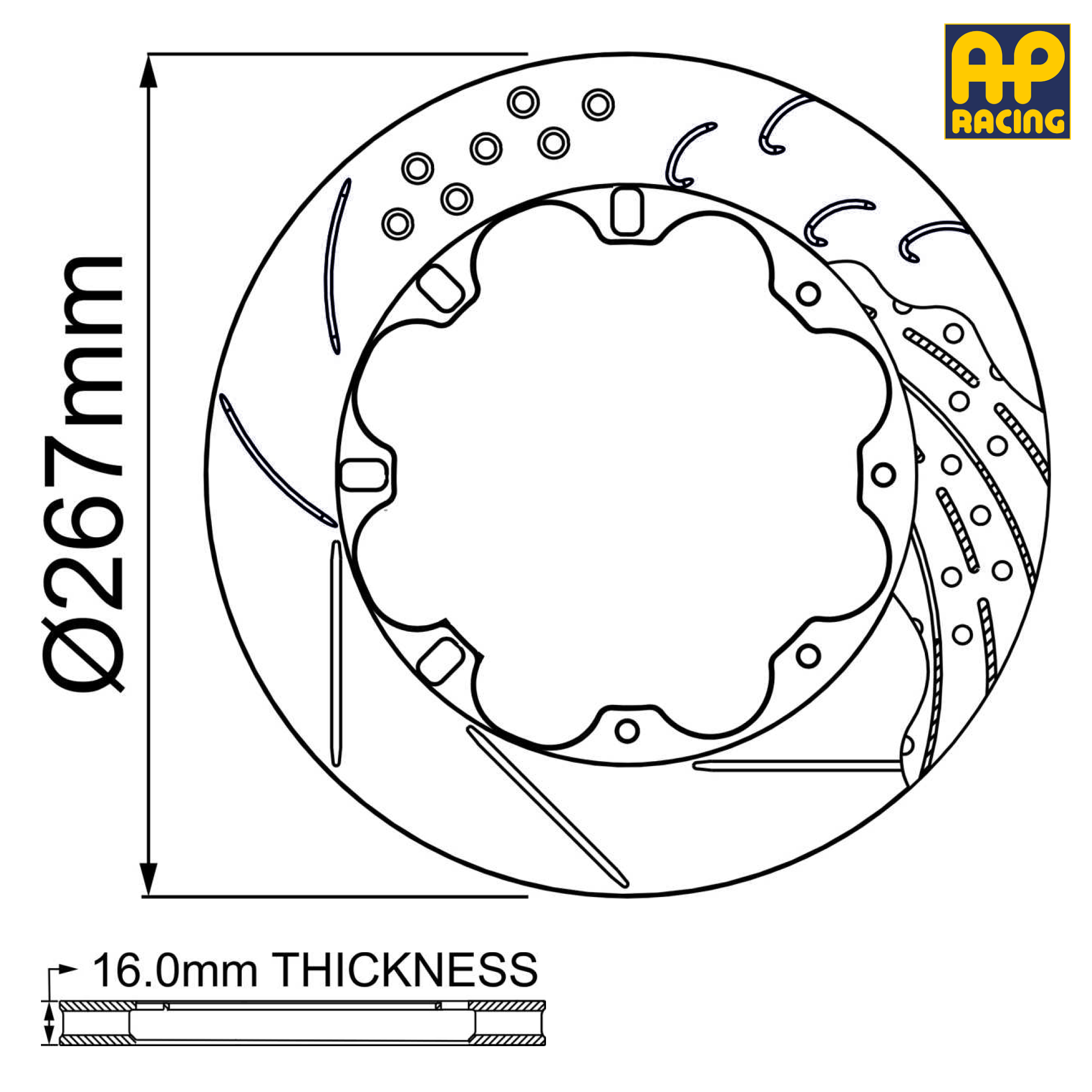

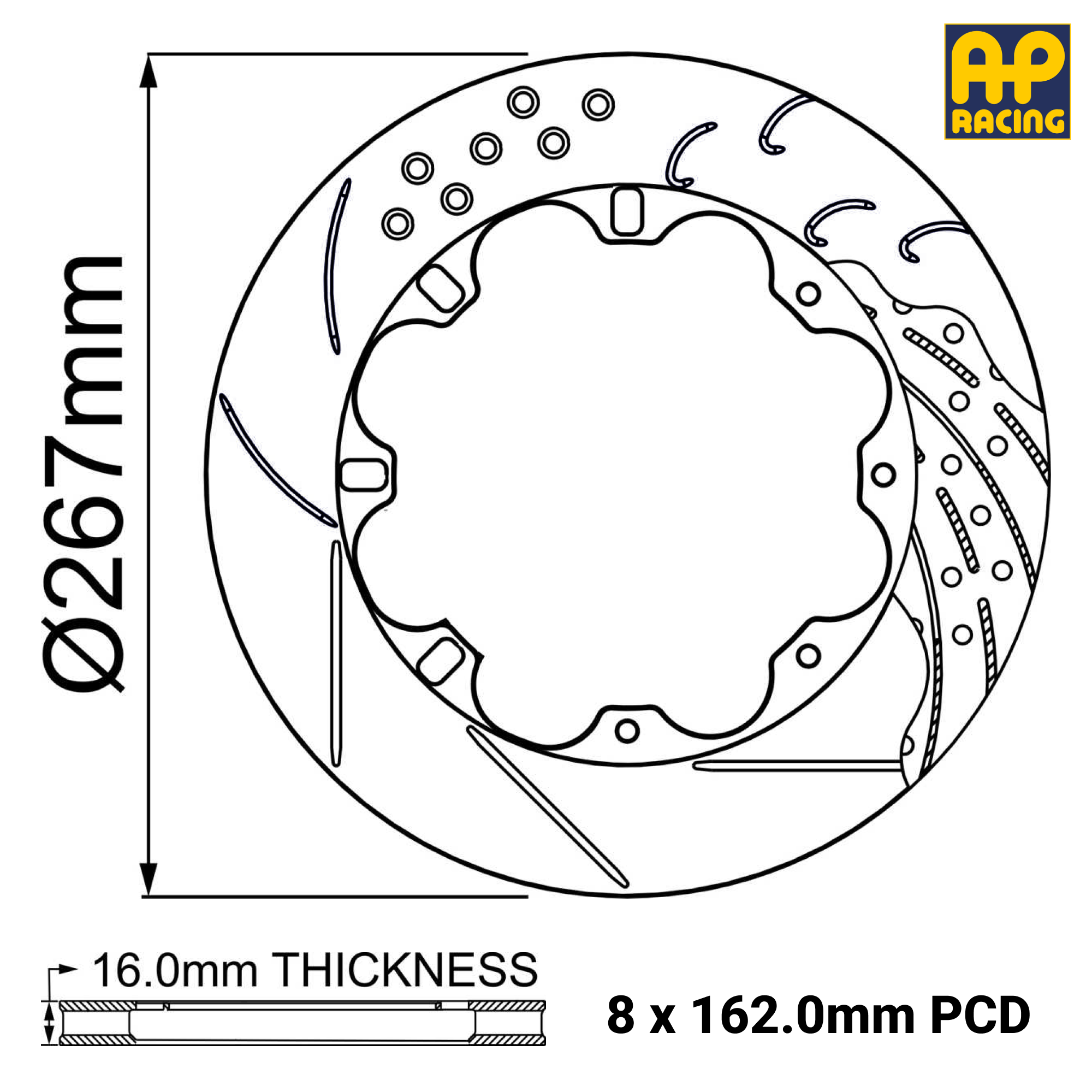

267mm x 16.0mm Brake Disc Dimensions

Outside Diameter	267mm
Thickness	16.0mm
Mounting P.C.D.	162.0mm
Mounting Type	Bolted - 8 Bolt
Eye Diameter	180.7mm
Spigot Diameter	mm
Inside Flange Diameter	145.0mm
Mounting Flange Thickness	4.35mm
Mounting Offset	mm
Max Pad Depth	D43.0
No. of Vanes	24
Air Gap	6.5
Weight	Kg
Face Types Available	CG4 - Curved Grooves (Backward Facing)

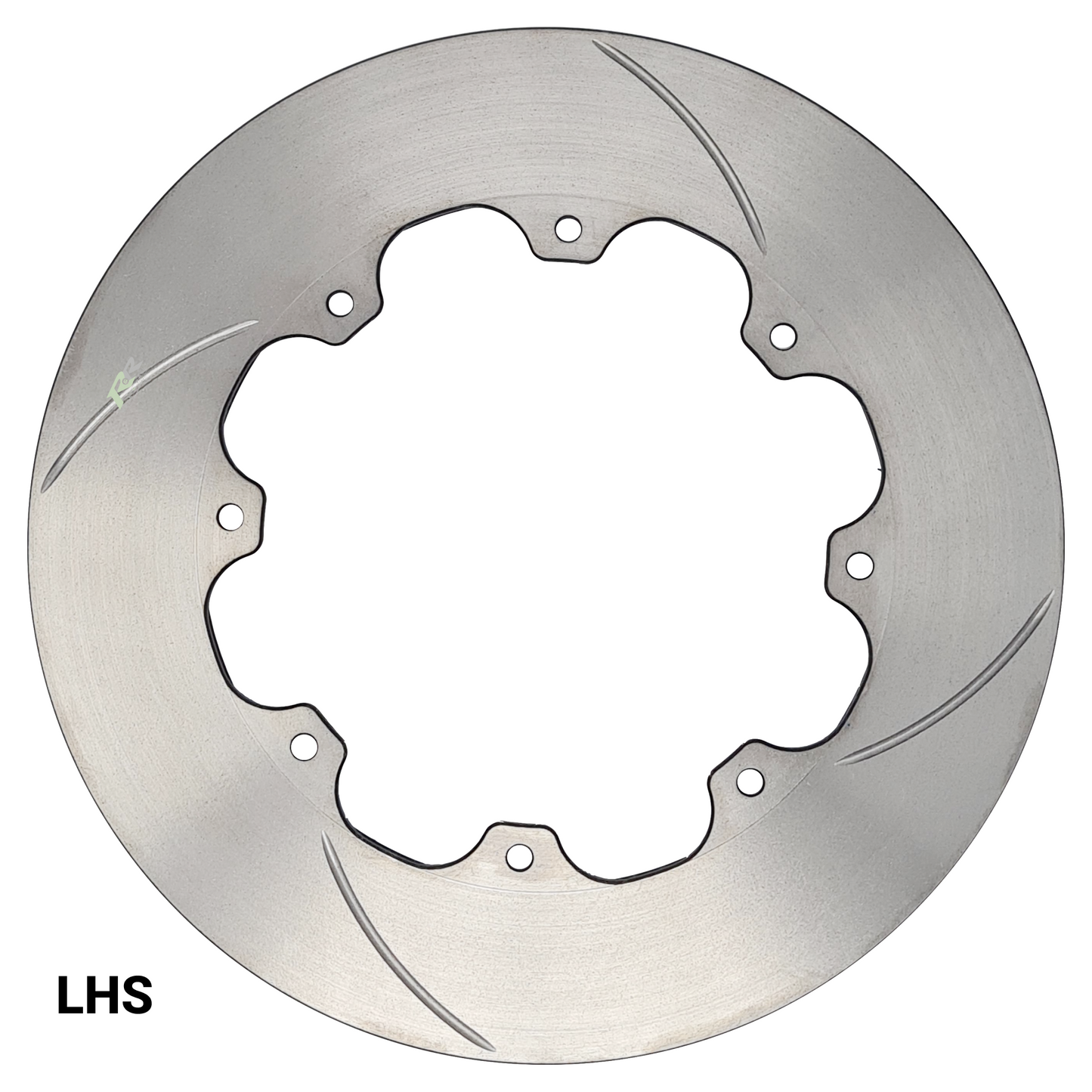

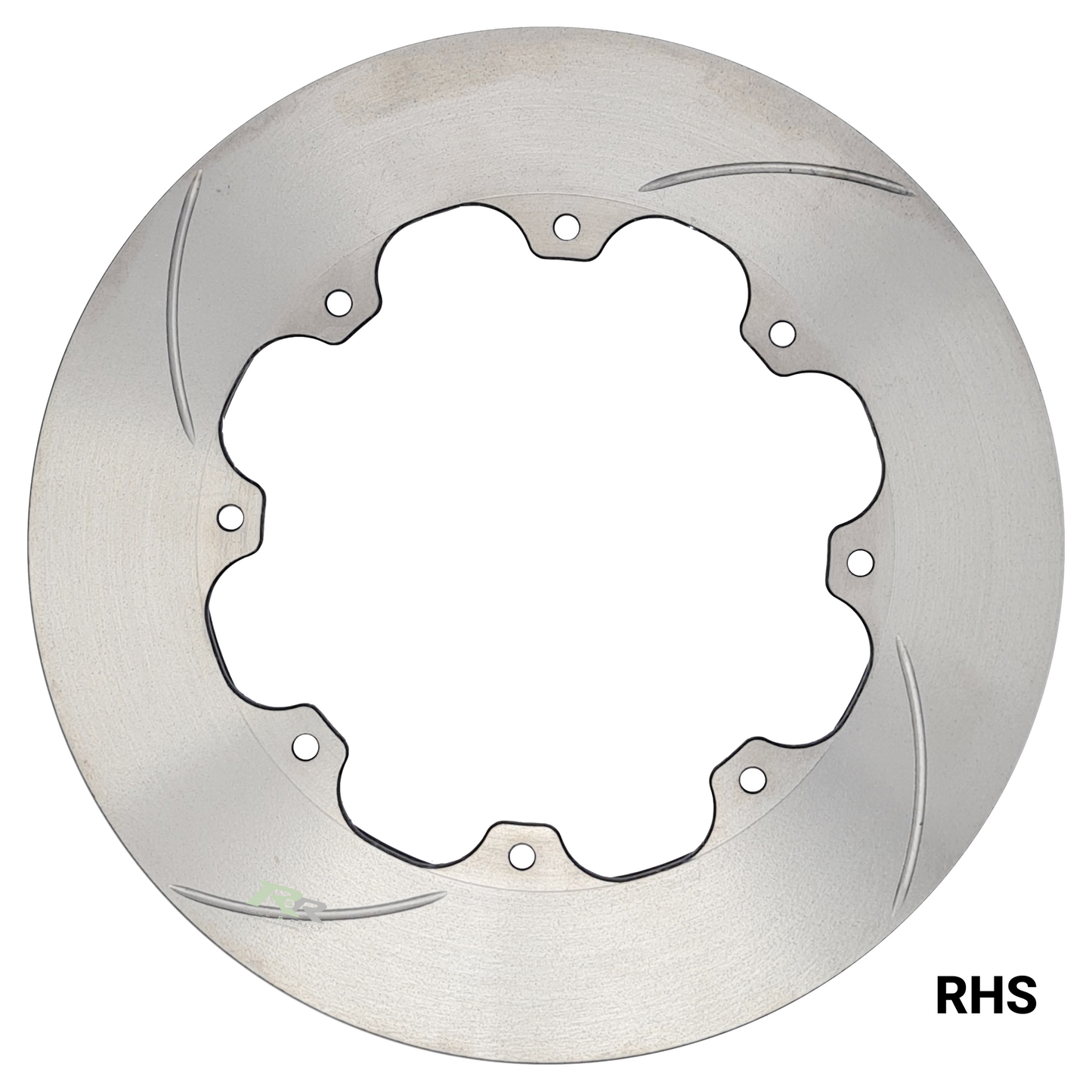

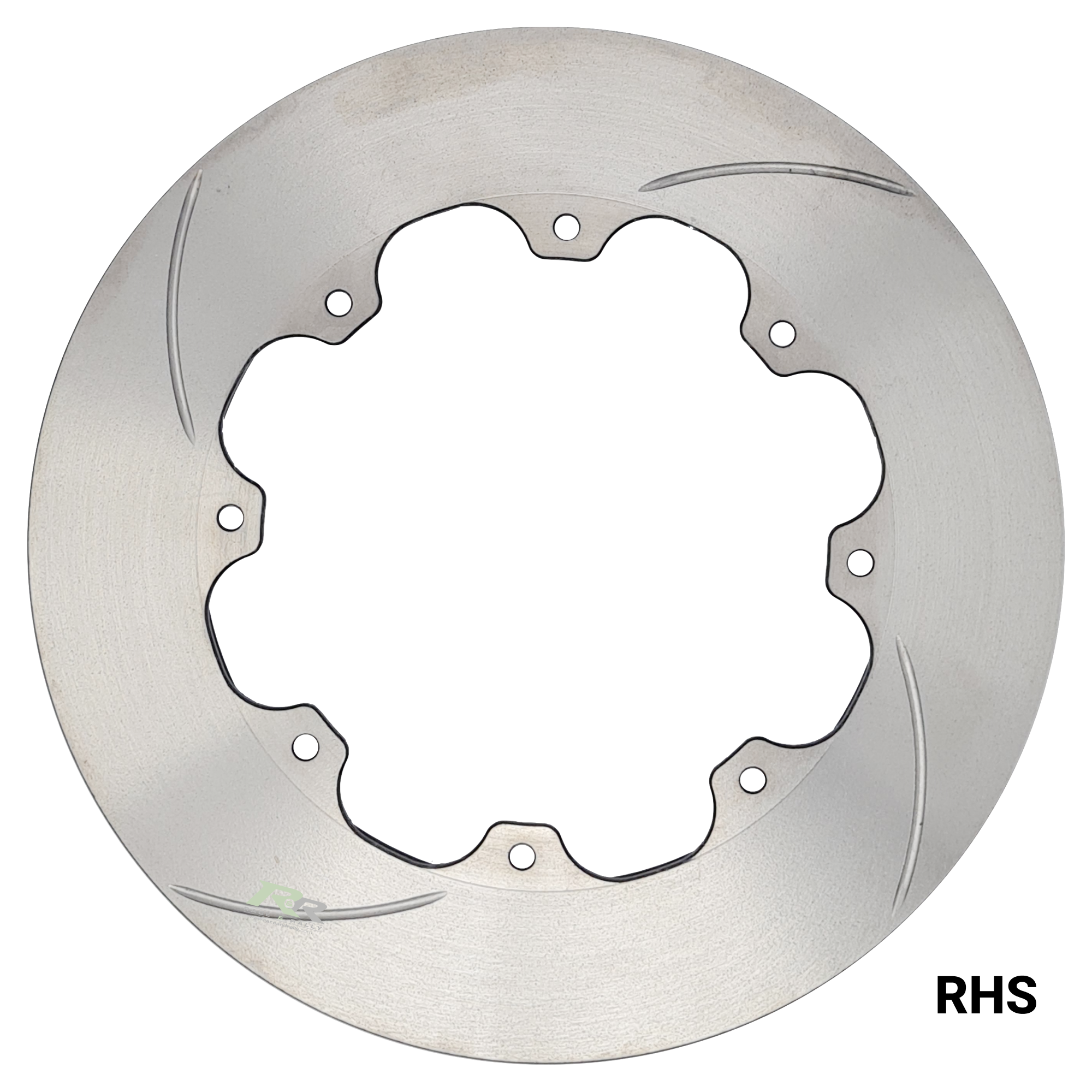

Disc Handing	Right-Hand Side Left-Hand Side
Notes
