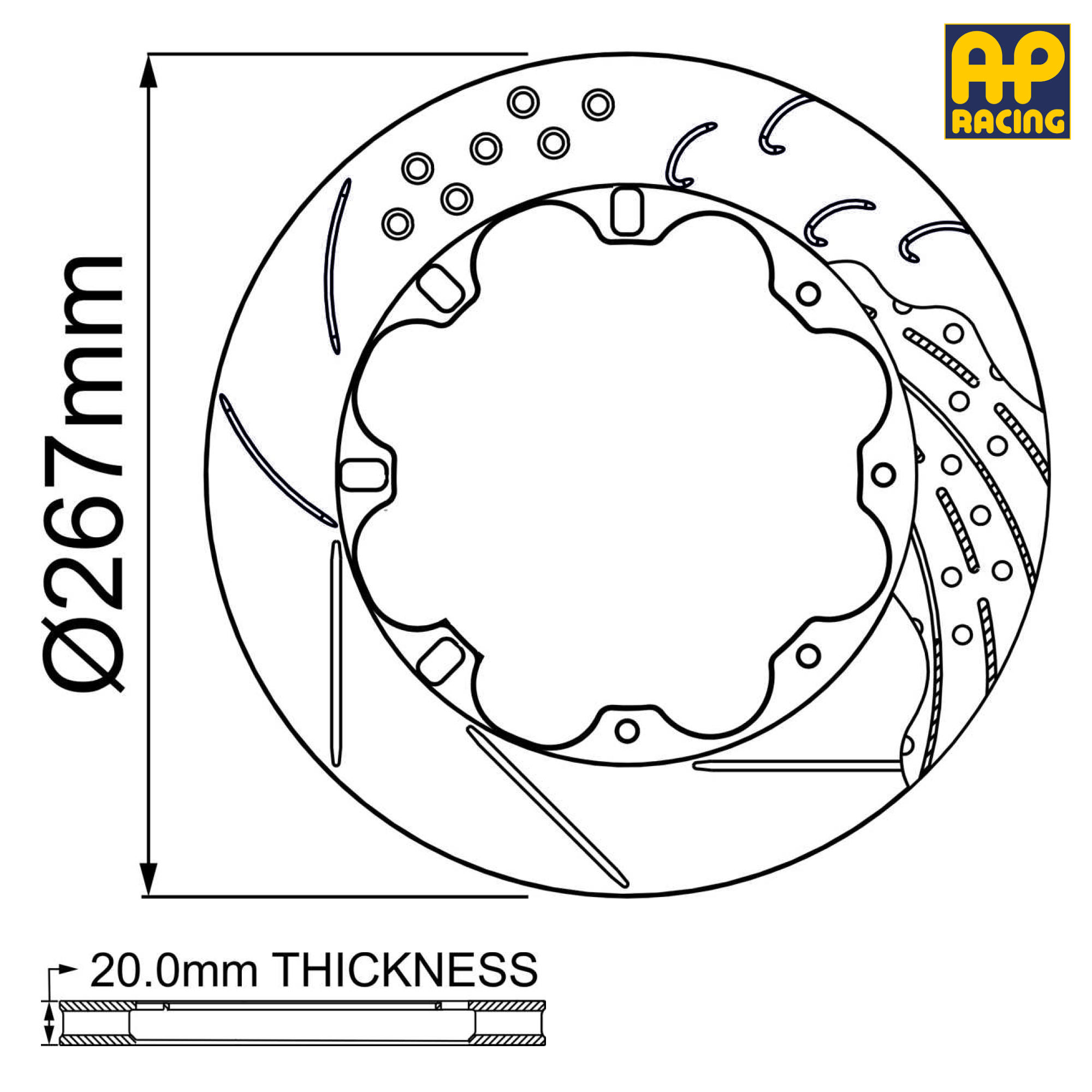

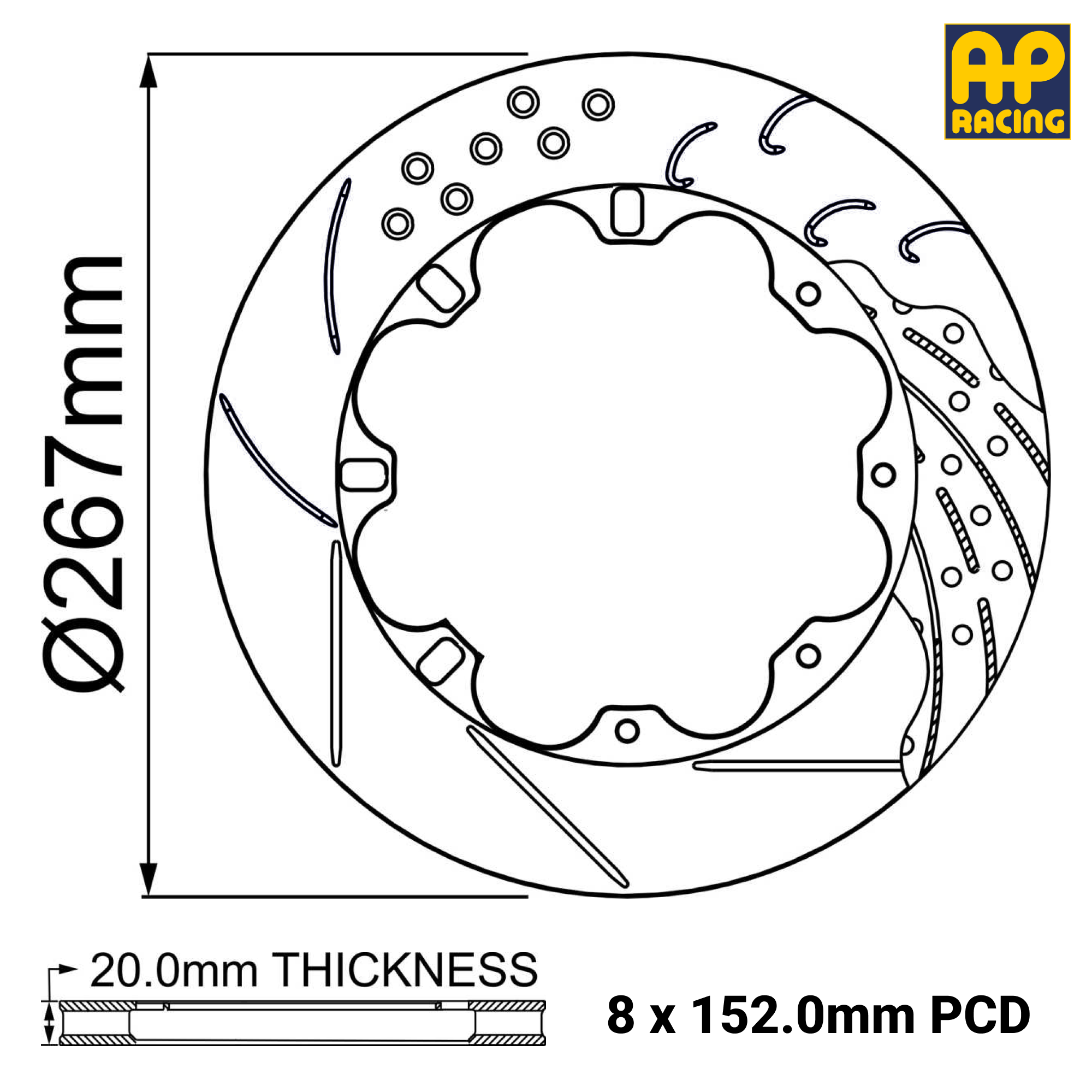

267mm x 20.0mm Brake Disc Dimensions

Outside Diameter	267mm
Thickness	20.0mm
Mounting P.C.D.	152.0mm
Mounting Type	Bolted - 8 Bolt
Eye Diameter	172.6mm
Spigot Diameter	mm
Inside Flange Diameter	138.0mm
Mounting Flange Thickness	4.82mm
Mounting Offset	mm
Max Pad Depth	D46.0
No. of Vanes	36
Air Gap	9.3
Weight	Kg
Face Types Available	G4 - Grooved (Straight Forward)
Disc Handing	Universal
Notes
