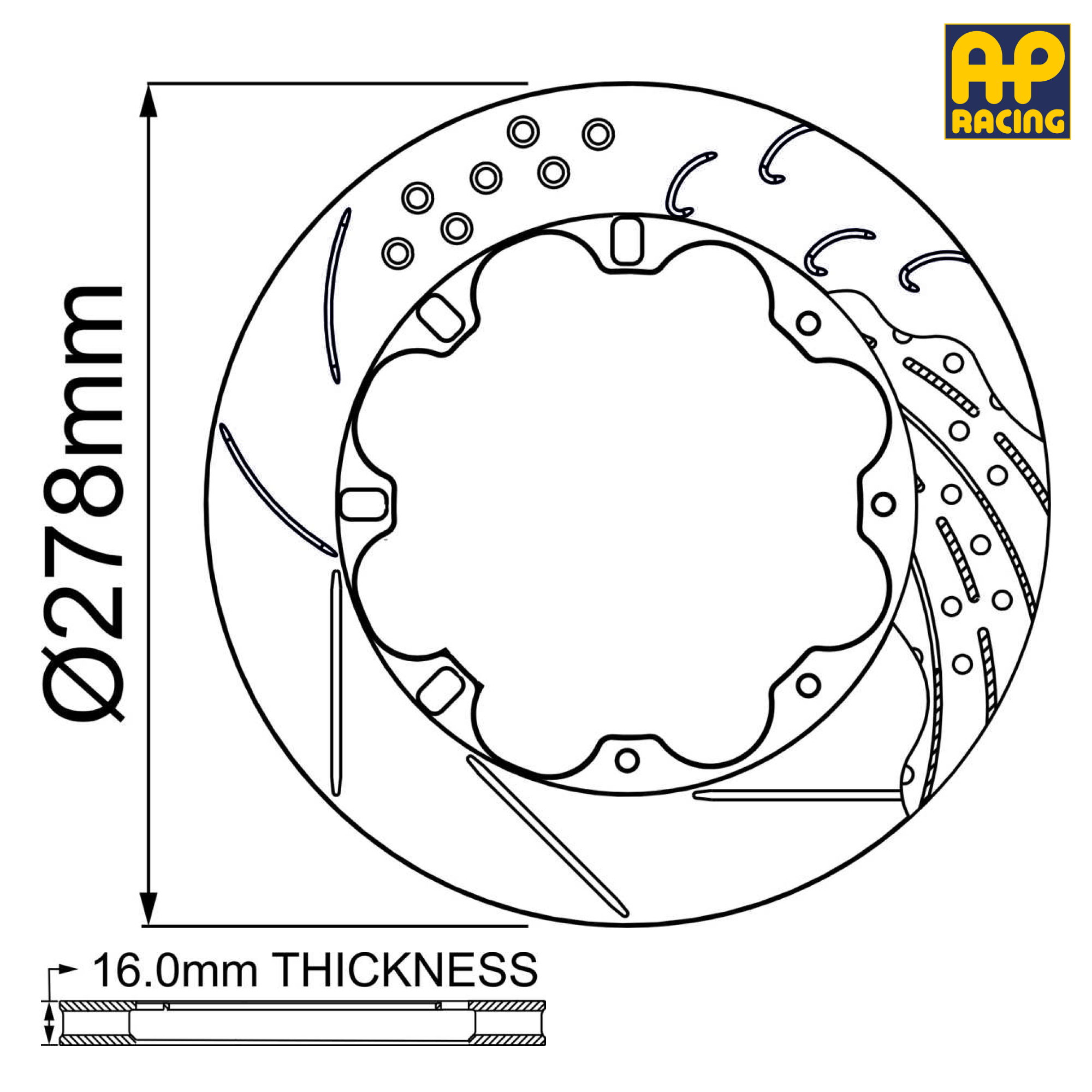

Ø278mm x 16.0mm Ventilated Brake Disc - 8 x 176.1mm PCD

Ø278mm x 16.0mm Ventilated Brake Disc - 8 x 176.1mm PCD

SKU:CP3770-1002G4

Regular price €334.74 €411.73
Sale Sold out

Brake Disc Dimensions

  • Outside Diameter - 278mm
  • Thickness - 16.0mm
  • Mounting P.C.D. - 176.1mm
  • Mounting Type - Bolted - 8 Bolt
  • Spigot Diameter - mm
  • Eye Diameter: - 187.4mm
  • Inside Flange Diameter - 156.0mm
  • Mounting Flange Thickness - 4.5mm
  • Mounting Offset - mm
  • Max Pad Depth - D44.0
  • No. of Vanes - 24
  • Air Gap - 6.5mm
  • Weight - Kg
View full details
278mm x 16.0mm Brake Disc Dimensions

Outside Diameter
278mm
Thickness
16.0mm
Mounting P.C.D.
176.1mm
Mounting Type
Bolted - 8 Bolt
Eye Diameter
187.4mm
Spigot Diameter
mm
Inside Flange Diameter
156.0mm
Mounting Flange Thickness
4.5mm
Mounting Offset
mm
Max Pad Depth
D44.0
No. of Vanes
24
Air Gap
6.5
Weight
Kg
Face Types Available
G4 - Grooved (Straight Forward)
G4 - Grooved (Straight Forward)
P - Plain Face
P - Plain Face
Disc Handing
Right-Hand Side
Left-Hand Side
Right-Hand Side
Left-Hand Side
Notes

Brand:

AP Racing

Manufacturer Part Number:

CP3770-1002G4, CP3770-1003G4, CP3770-1002P, CP3770-1003P
