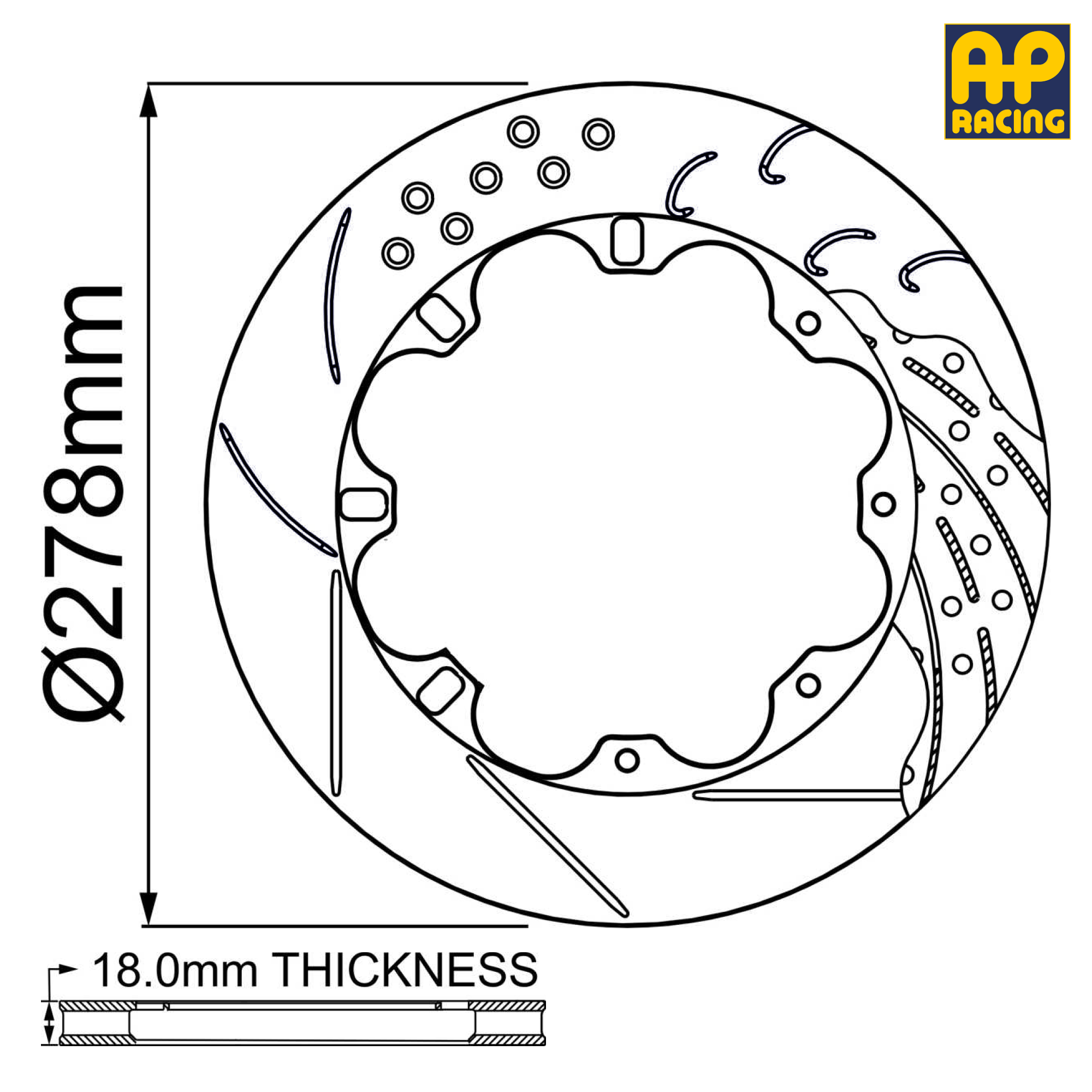

278mm x 18.0mm Brake Disc Dimensions

Outside Diameter	278mm
Thickness	18.0mm
Mounting P.C.D.	193.5mm
Mounting Type	Floating - 8 Bobbins
Eye Diameter	210.9mm
Spigot Diameter	mm
Inside Flange Diameter	170.0mm
Mounting Flange Thickness	4.42mm
Mounting Offset	mm
Max Pad Depth	D32.0
No. of Vanes	47
Air Gap	8.0
Weight	Kg
Face Types Available	CG4 - Curved Grooves (Backward Facing)
Disc Handing	Right-Hand Side Left-Hand Side
Notes
