280mm x 17.0mm Brake Disc Dimensions

Outside Diameter	280mm
Thickness	17.0mm
Mounting P.C.D.	176.8mm
Mounting Type	Bolted - 8 Bolt
Eye Diameter	193.5mm
Spigot Diameter	mm
Inside Flange Diameter	159.0mm
Mounting Flange Thickness	4.7mm
Mounting Offset	mm
Max Pad Depth	D43.0
No. of Vanes	24
Air Gap	6.5
Weight	Kg
Face Types Available	G8 - Grooved (Straight Forward)

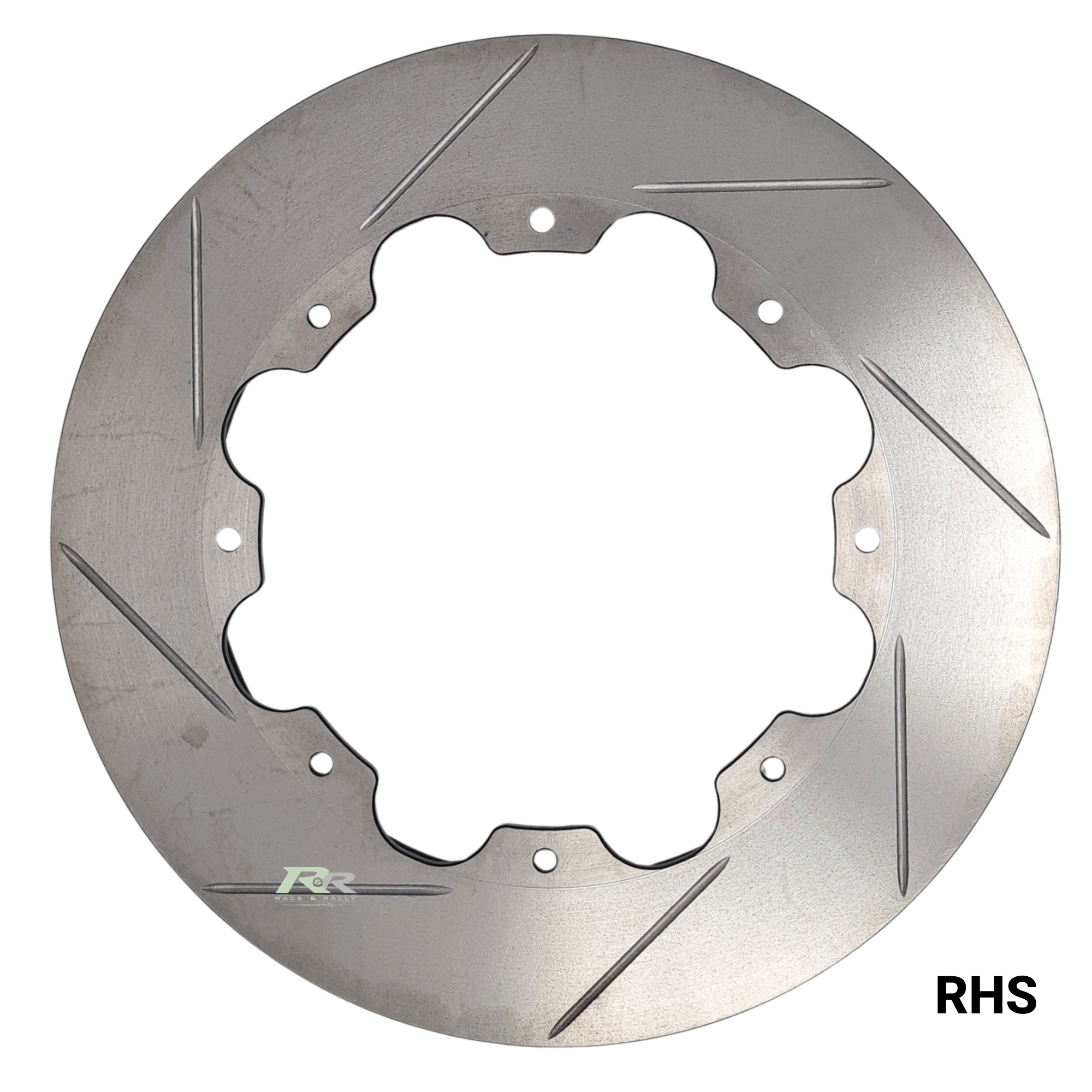

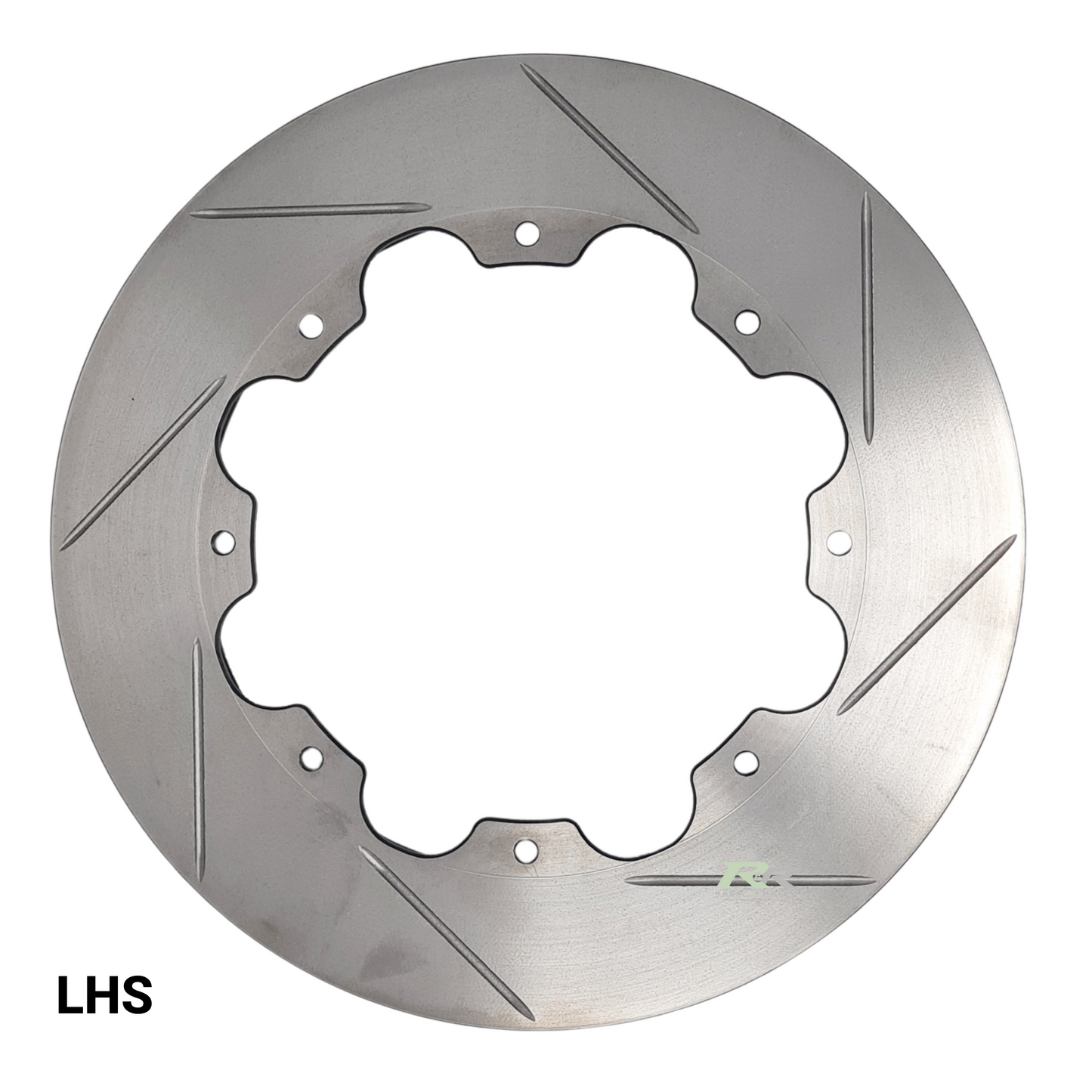

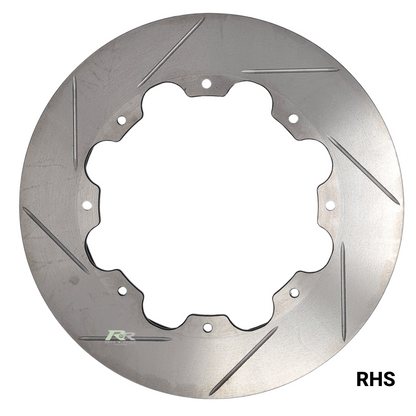

Disc Handing	Right-Hand Side Left-Hand Side
Notes
