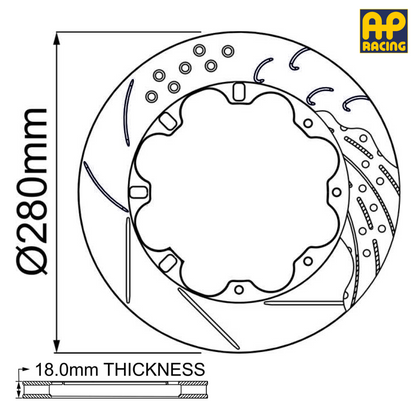

280mm x 18.0mm Brake Disc Dimensions

Outside Diameter	280mm
Thickness	18.0mm
Mounting P.C.D.	175.0mm
Mounting Type	Floating - 8 Bobbins
Eye Diameter	193.44mm
Spigot Diameter	mm
Inside Flange Diameter	151.0mm
Mounting Flange Thickness	4.33mm
Mounting Offset	mm
Max Pad Depth	D42.0
No. of Vanes	47
Air Gap	8.0
Weight	Kg
Face Types Available	CG4 - Curved Grooves (Backward Facing)
Disc Handing	Right-Hand Side Left-Hand Side
Notes
