Ø280mm x 20.0mm Ventilated Brake Disc - 8 x 176.8mm PCD

Ø280mm x 20.0mm Ventilated Brake Disc - 8 x 176.8mm PCD

CP4348-862G4

€370.26 €455.42
Sale Sold out

Brake Disc Dimensions

  • Outside Diameter - 280mm
  • Thickness - 20.0mm
  • Mounting P.C.D. - 176.8mm
  • Mounting Type - Floating - 8 Bobbins
  • Spigot Diameter - mm
  • Eye Diameter: - 192.0mm
  • Inside Flange Diameter - 154.0mm
  • Mounting Flange Thickness - 5.0mm
  • Mounting Offset - mm
  • Max Pad Depth - D44.0
  • No. of Vanes - 48
  • Air Gap - 9.0mm
  • Weight - Kg
View full details

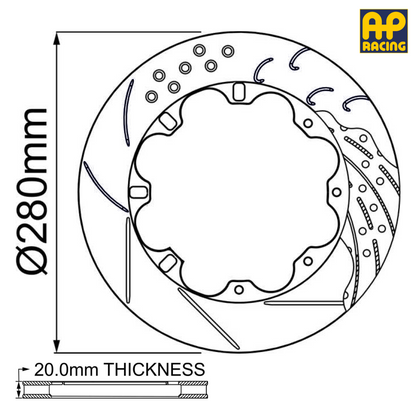

280mm x 20.0mm Brake Disc Dimensions

Outside Diameter
 280mm
Thickness
20.0mm
Mounting P.C.D.
176.8mm
Mounting Type
Floating - 8 Bobbins
Eye Diameter
192.0mm
Spigot Diameter
mm
Inside Flange Diameter
154.0mm
Mounting Flange Thickness
5.0mm
Mounting Offset
mm
Max Pad Depth
D44.0
No. of Vanes
48
Air Gap
9.0
Weight
Kg
Face Types Available
G4 - Grooved (Straight Forward)
G4 - Grooved (Straight Forward)
G8 - Grooved (Straight Forward)
G8 - Grooved (Straight Forward)
Disc Handing

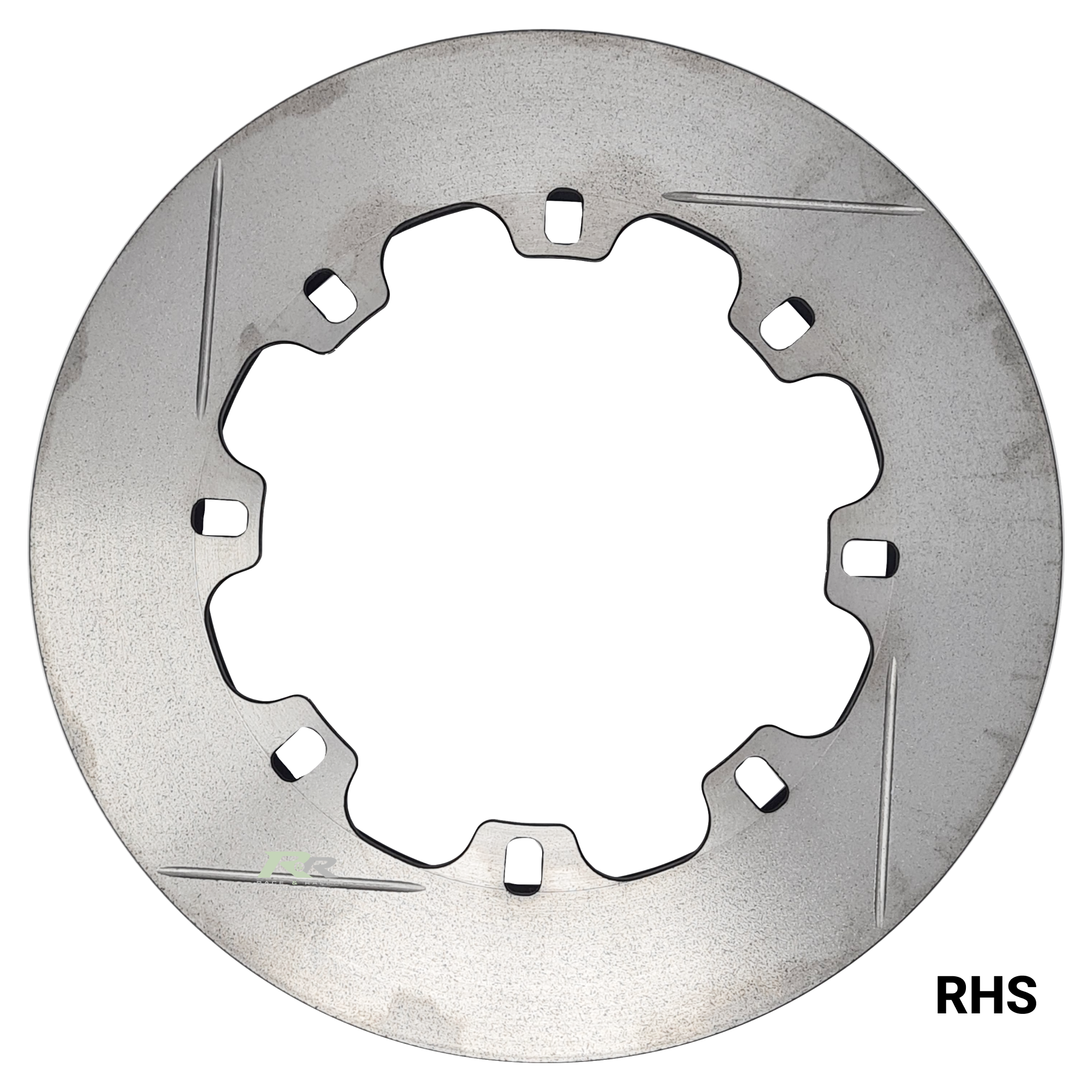

Right-Hand Side

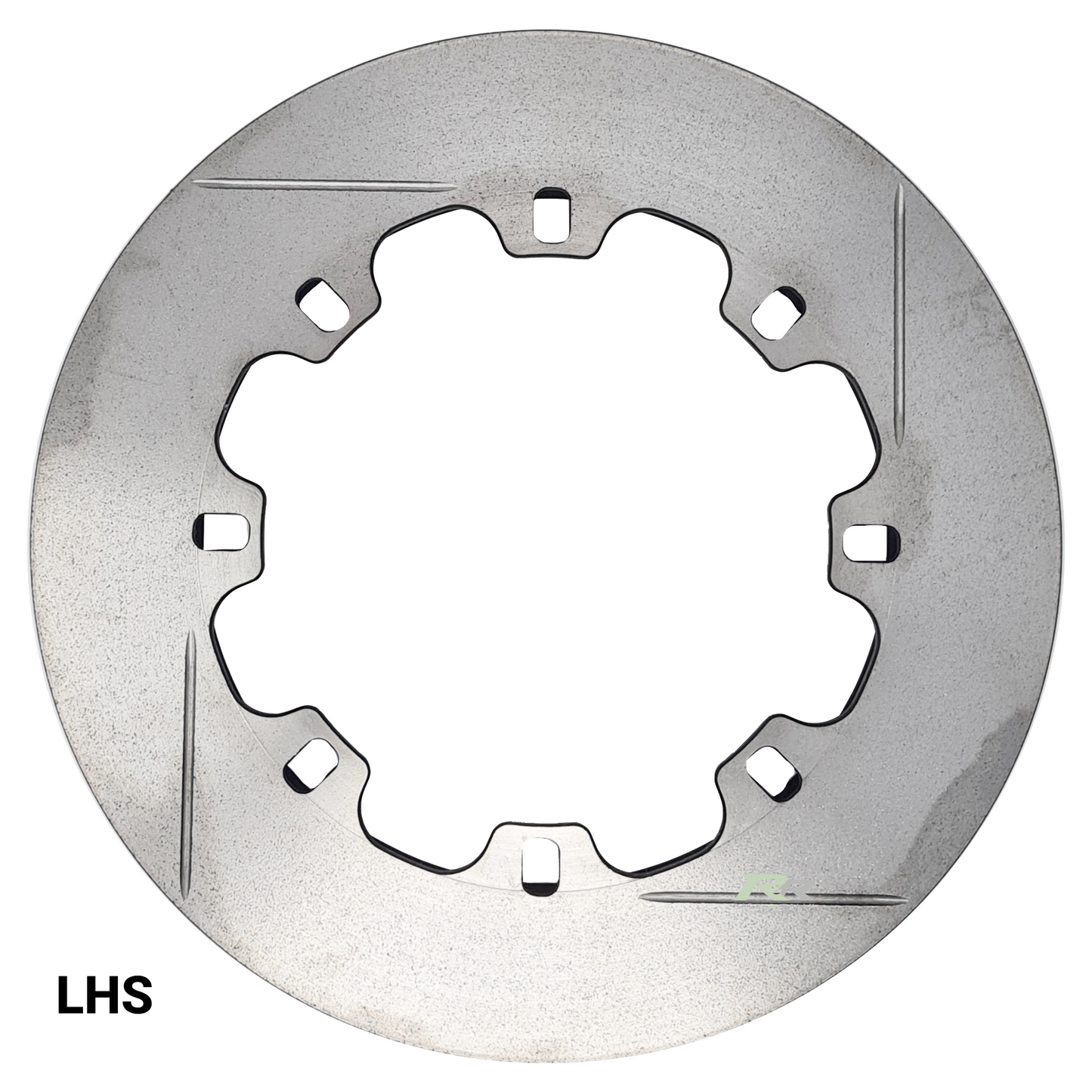

Left-Hand Side
Right-Hand Side
Left-Hand Side
Notes

Brand:

AP Racing

Manufacturer Part Number:

CP4348-862G4, CP4348-863G4, CP4348-862G8, CP4348-863G8
