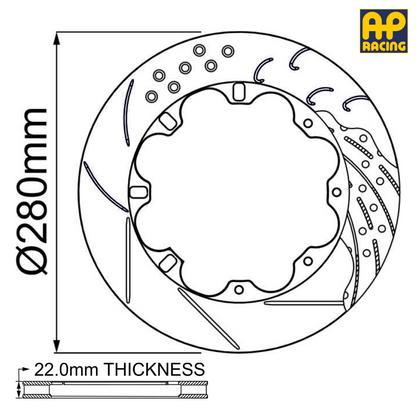

280mm x 22.0mm Brake Disc Dimensions

Outside Diameter	280mm
Thickness	22.0mm
Mounting P.C.D.	175.0mm
Mounting Type	Floating - 8 Bobbins
Eye Diameter	193.44mm
Spigot Diameter	mm
Inside Flange Diameter	161.64mm
Mounting Flange Thickness	5.25mm
Mounting Offset	mm
Max Pad Depth	D42.0
No. of Vanes	48
Air Gap	10.5
Weight	Kg
Face Types Available	CG4 - Curved Grooves (Backward Facing)
Disc Handing	Right-Hand Side Left-Hand Side
Notes
