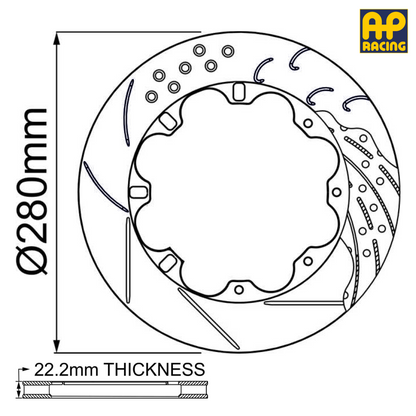

280mm x 22.2mm Brake Disc Dimensions

Outside Diameter	280mm
Thickness	22.2mm
Mounting P.C.D.	165.1mm
Mounting Type	Bolted - 8 Bolt
Eye Diameter	180.3mm
Spigot Diameter	mm
Inside Flange Diameter	152.0mm
Mounting Flange Thickness	4.6mm
Mounting Offset	mm
Max Pad Depth	D51.0
No. of Vanes	48
Air Gap	10.5
Weight	Kg
Face Types Available	G4 - Grooved (Straight Forward)

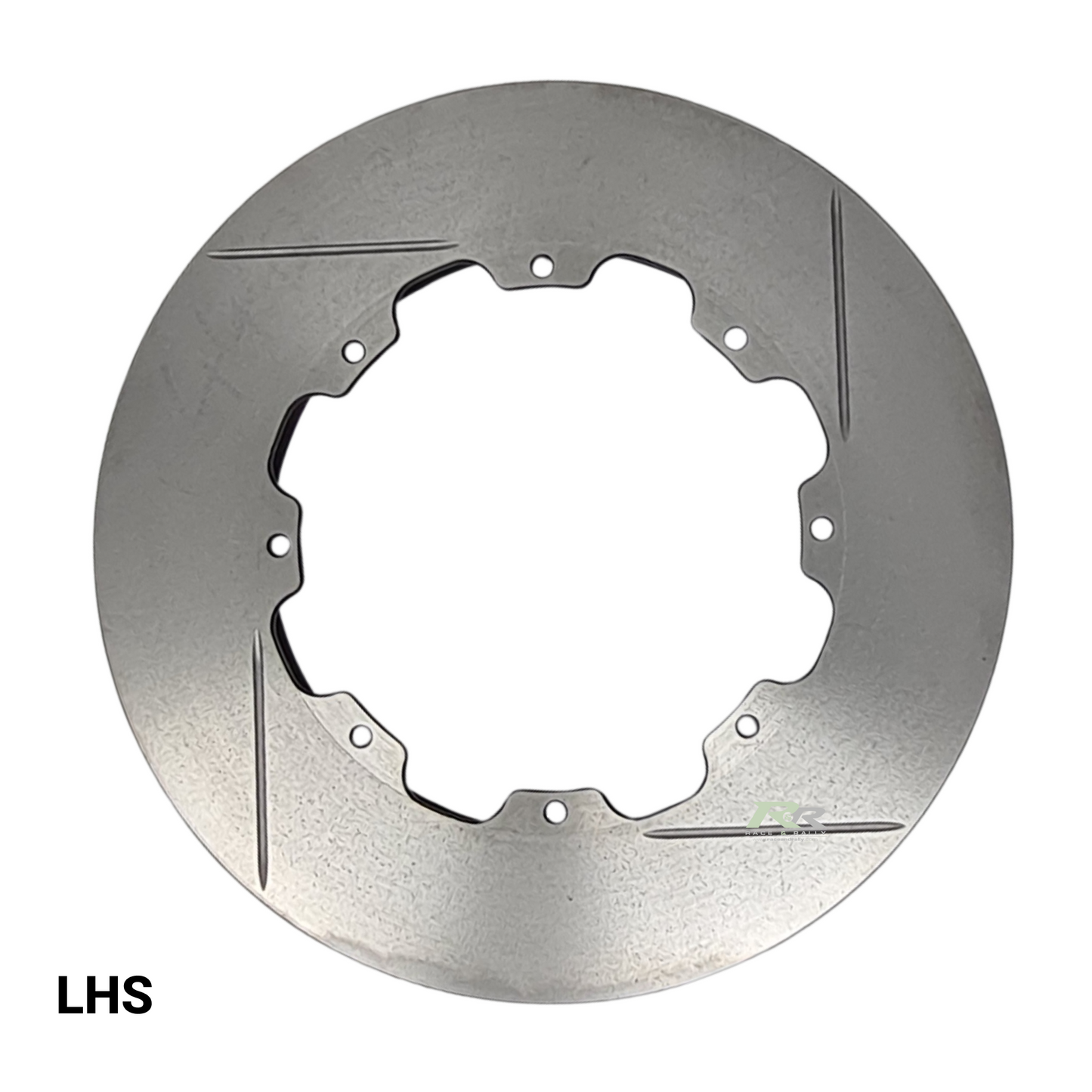

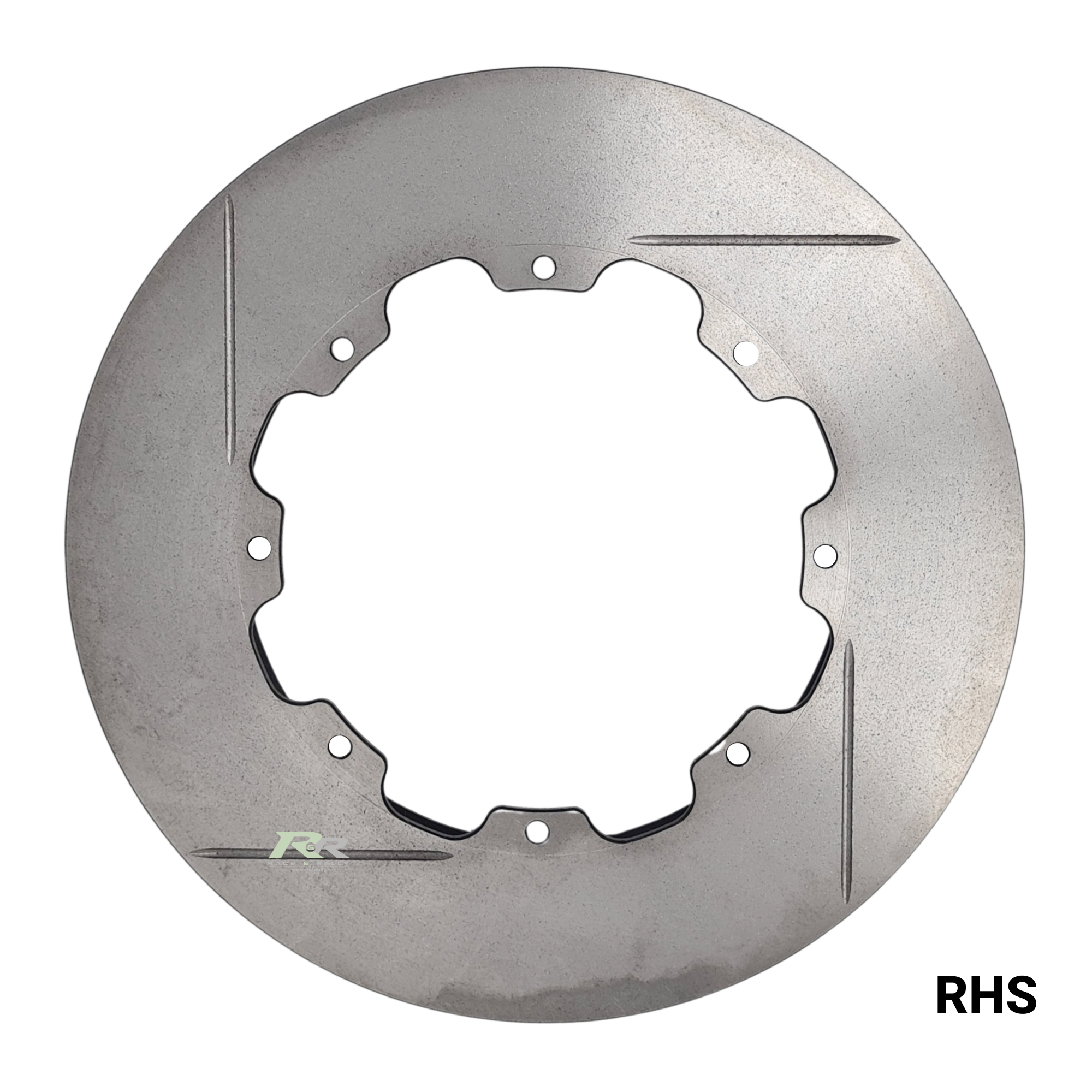

Disc Handing	Right-Hand Side Left-Hand Side
Notes
