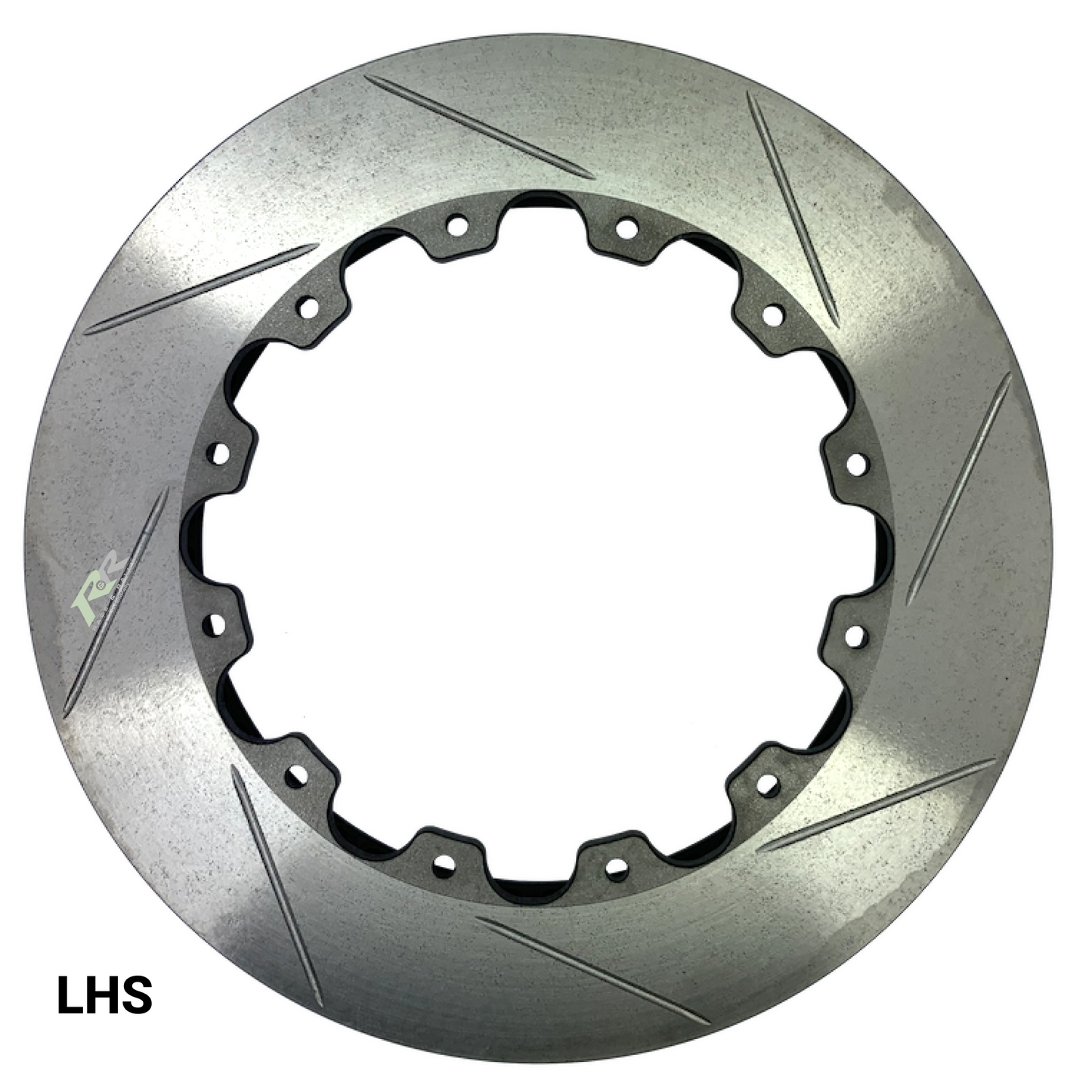

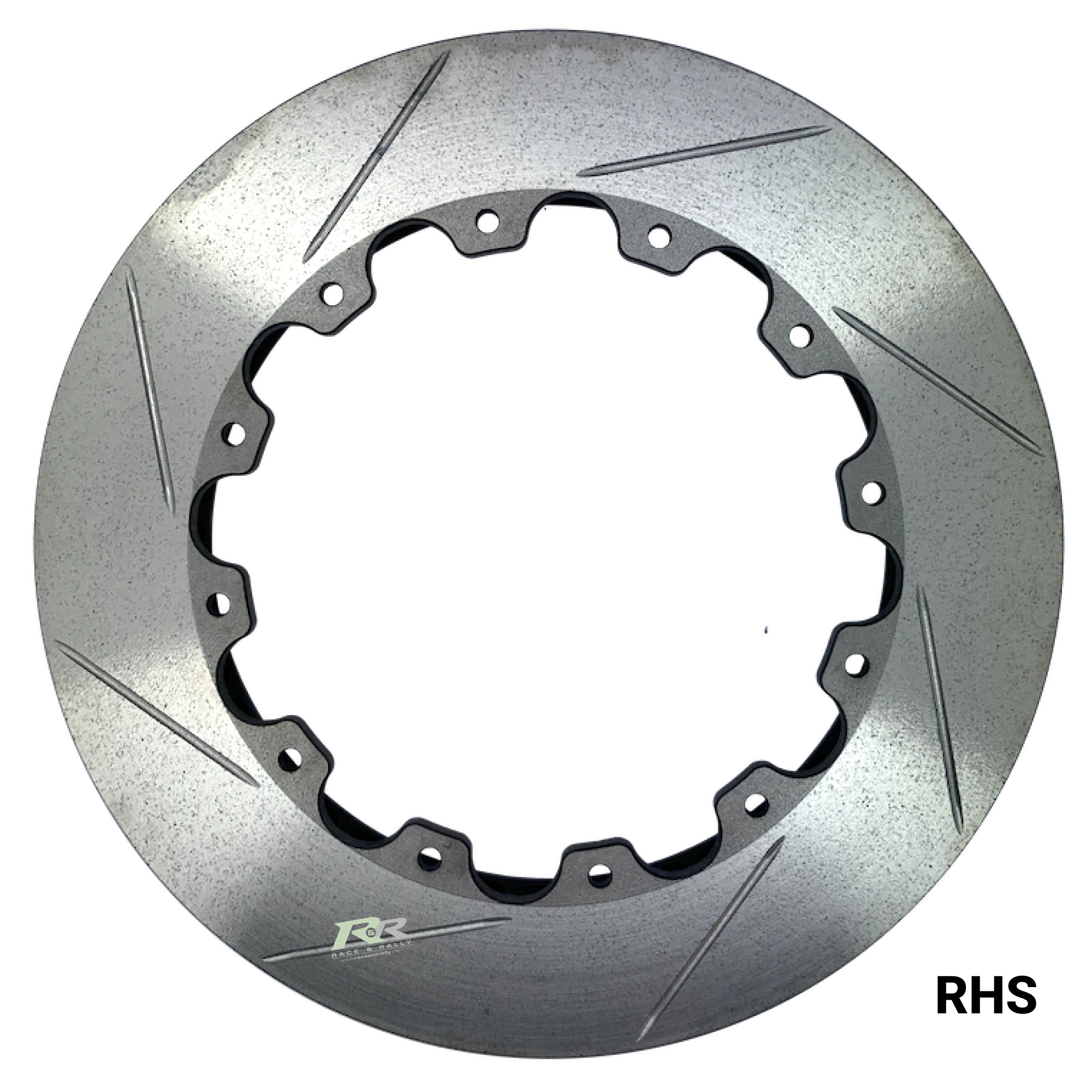

295mm x 25.4mm Brake Disc Dimensions

Outside Diameter	295mm
Thickness	25.4mm
Mounting P.C.D.	190.5mm
Mounting Type	Bolted - 12 Bolt
Eye Diameter	193.0mm
Spigot Diameter	mm
Inside Flange Diameter	164.0mm
Mounting Flange Thickness	5.8mm
Mounting Offset	mm
Max Pad Depth	D44.0
No. of Vanes	48
Air Gap	14.0
Weight	Kg
Face Types Available	G8 - Grooved (Straight Forward)
Disc Handing	Right-Hand Side Left-Hand Side
Notes
