Ø300mm x 32.0mm Ventilated Brake Disc - 10 x 187.0mm PCD - Bolted

Ø300mm x 32.0mm Ventilated Brake Disc - 10 x 187.0mm PCD - Bolted

CP5154-122CG8

€462.88 €569.34
Sale Sold out
▶ Brake Disc Dimensions
'A' - Outside Diameter 300mm
'B' - Thickness 32.0mm
'M' - Mounting P.C.D 187.0mm
Mounting Type Floating - 10 Bobbins
'C' - Eye Diameter 203.1mm
'D' - Inside Flange Diameter 161.5mm
'H' - Mounting Flange Thickness 5.45mm
Max Pad Depth 46.0mm
No. of Vanes 54
Air Gap 20.5mm
Weight 4.42kg

Out of stock, contact for leadtime

View full details

300mm x 32.0mm Brake Disc Dimensions

'A' - Outside Diameter 300mm
'B' - Thickness 32.0mm
'M' - Mounting P.C.D 187.0mm
Mounting Type Floating - 10 Bobbins
'C' - Eye Diameter 203.1mm
'H' - Inside Flange Diameter 161.5mm
Mounting Flange Thickness 5.45mm
Max Pad Depth 46.0mm
No. of Vanes 54
Air Gap 20.5mm
Weight 4.42kg
Face Types Available CG8 - Curved Grooves (Backward Facing)

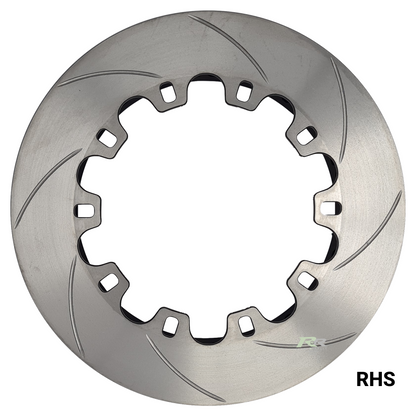

Disc Handing Right-Hand Side

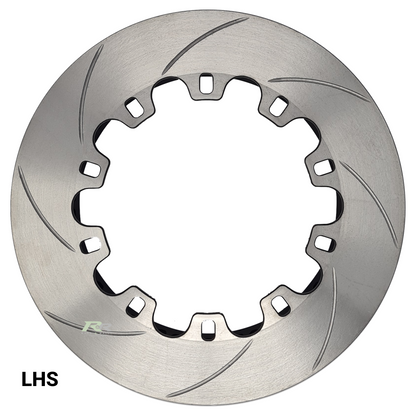

Left-Hand Side
Notes Ford Fiesta R5 MKI EVO - Gravel
BV18110004A & BV18110003A
Use CP2494-1341MD Bobbins

Brand AP Racing
Option SKU Barcode
CG8 - Curved Grooves (Backward Facing) / Right-Hand Side CP5154-122CG8
CG8 - Curved Grooves (Backward Facing) / Left-Hand Side CP5154-123CG8


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
