Ø315mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted - D52

Ø315mm x 28.0mm Ventilated Brake Disc - 12 x 177.8mm PCD - Bolted - D52

CP5000-220CG8

€422.21 €519.32
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 315mm
Thickness 28.0mm
Mounting P.C.D 177.8mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 210.3mm
Inside Flange Diameter 164.3mm
Mounting Flange Thickness 5.9mm
Max Pad Depth 52.0mm
No. of Vanes 48
Air Gap 14.0mm
View full details

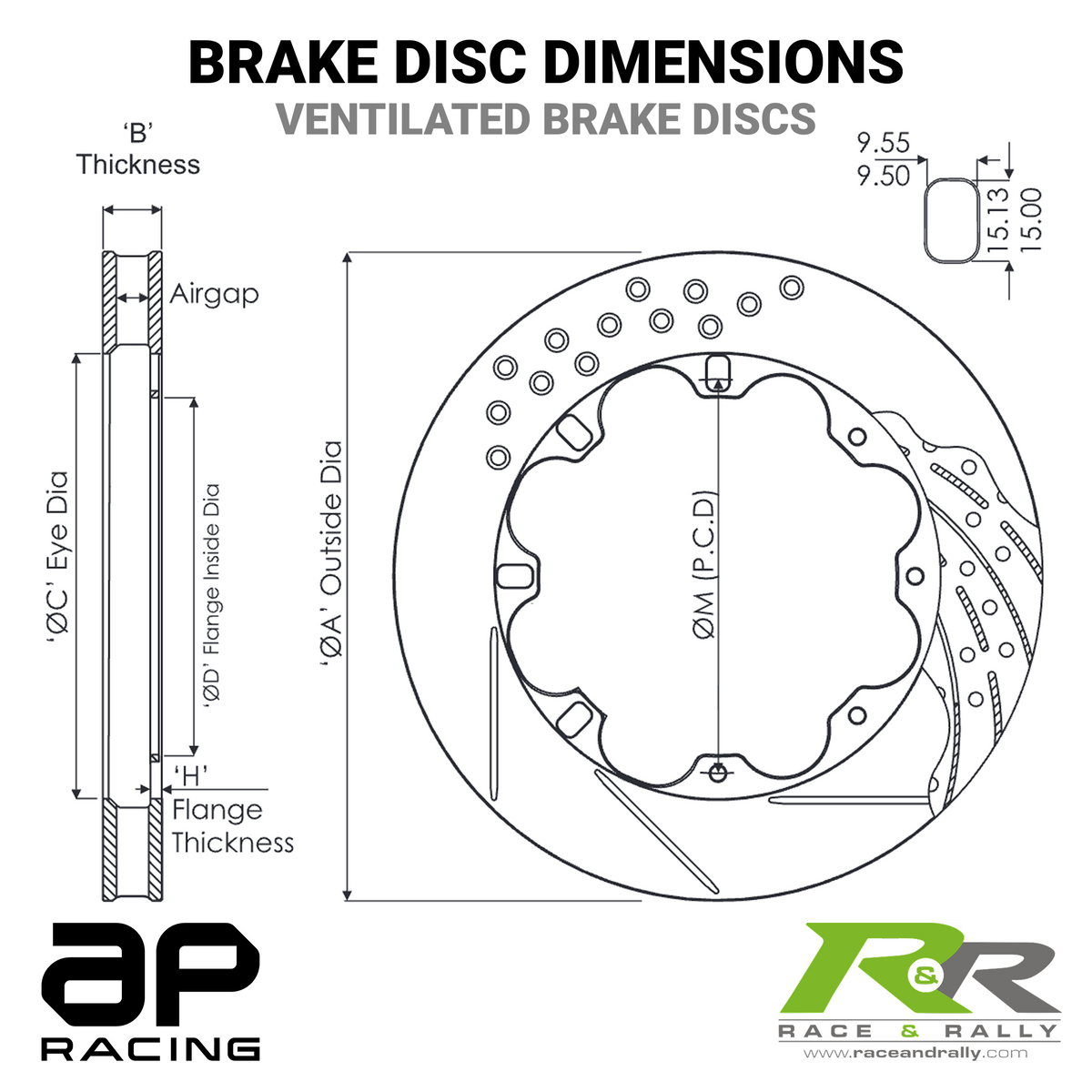

315mm x 28.0mm Brake Disc Dimensions

Outside Diameter 315mm
Thickness 28.0mm
Mounting P.C.D 177.8mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 210.3mm
Inside Flange Diameter 164.3mm
Mounting Flange Thickness 5.9mm
Max Pad Depth 52.0mm
No. of Vanes 48
Air Gap 14.0mm
Face Types Available CG8 - Curved Grooves (Backward Facing)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode

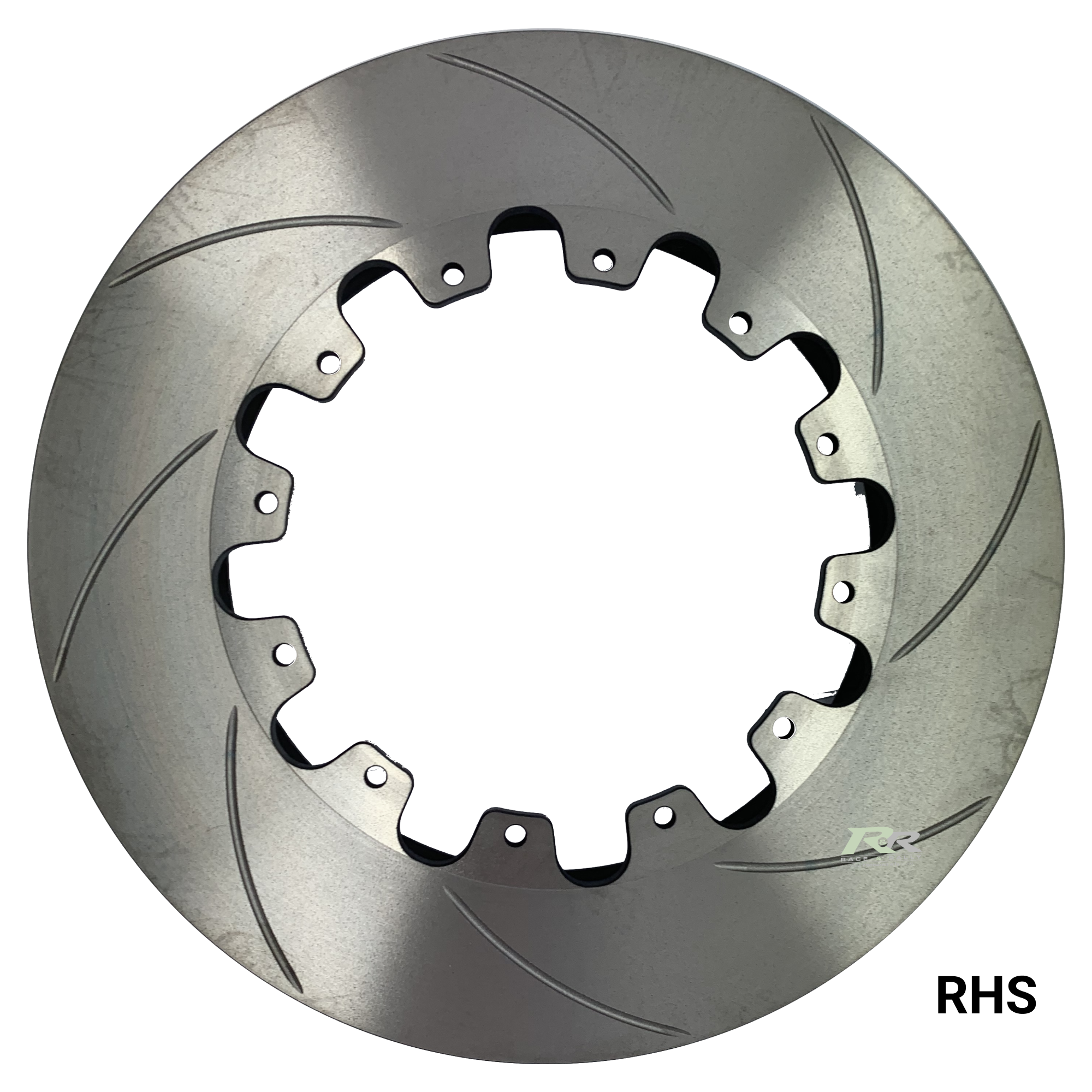

CG8 - Curved Grooves (Backward Facing) / Right-Hand Side CP5000-220CG8

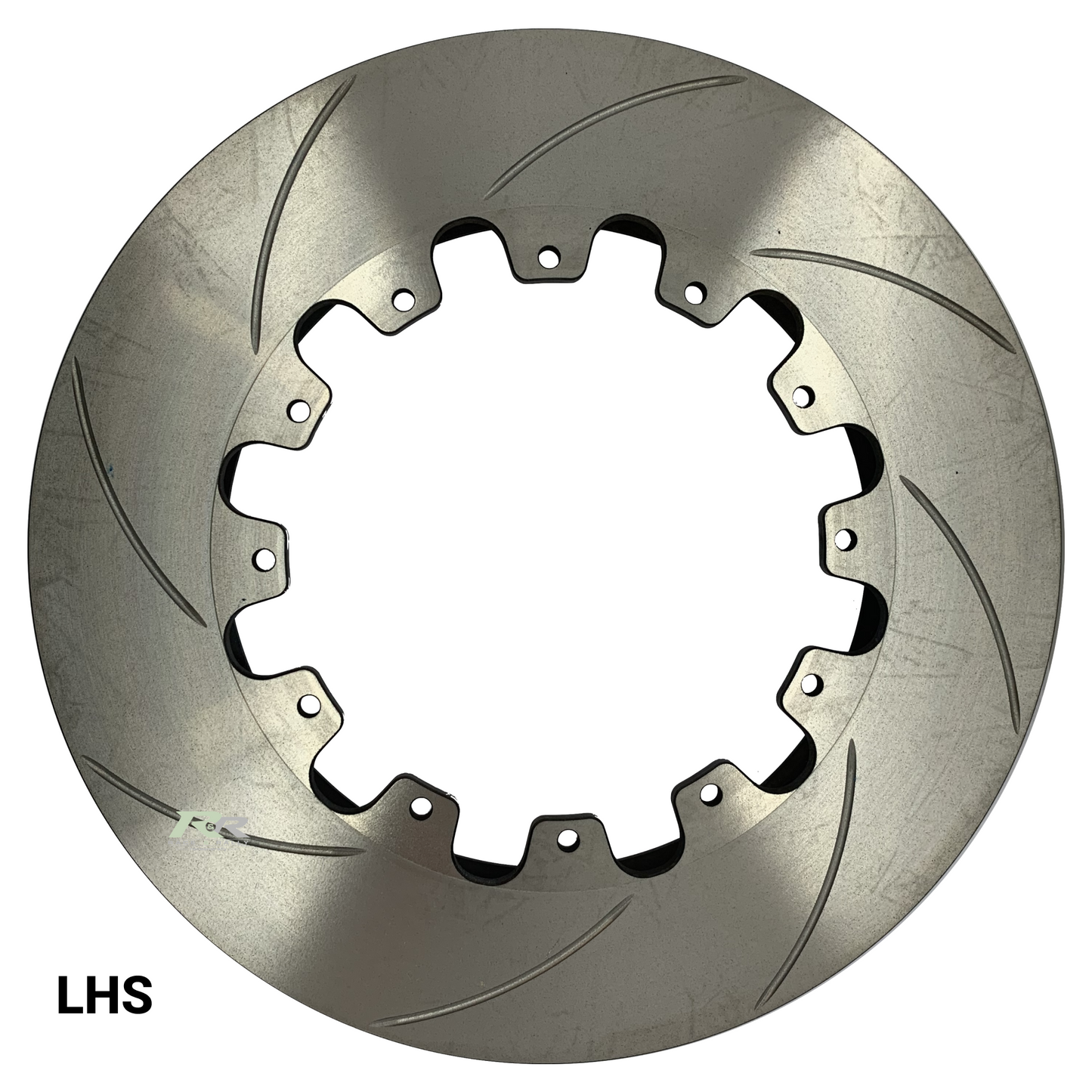

CG8 - Curved Grooves (Backward Facing) / Left-Hand Side CP5000-221CG8

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
