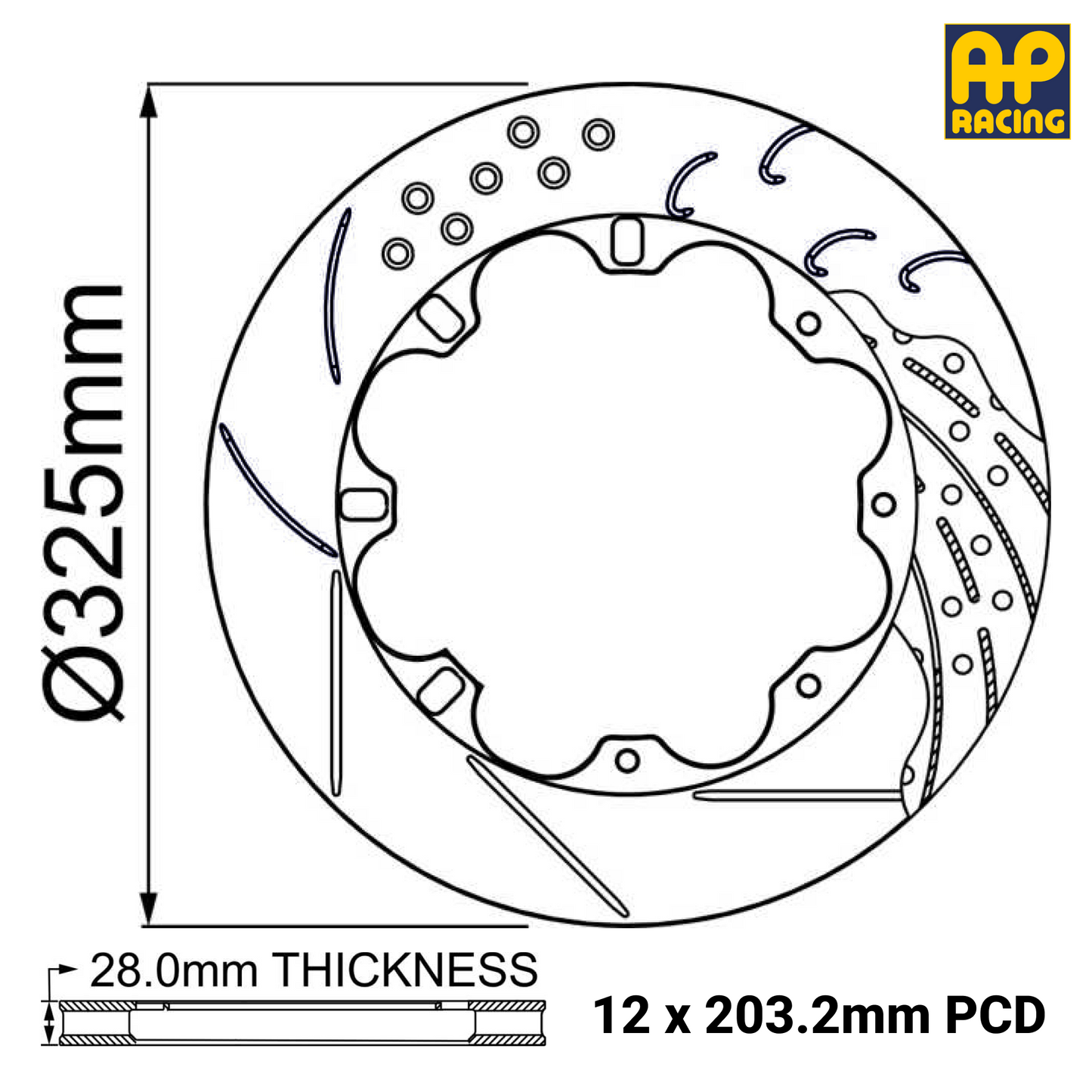

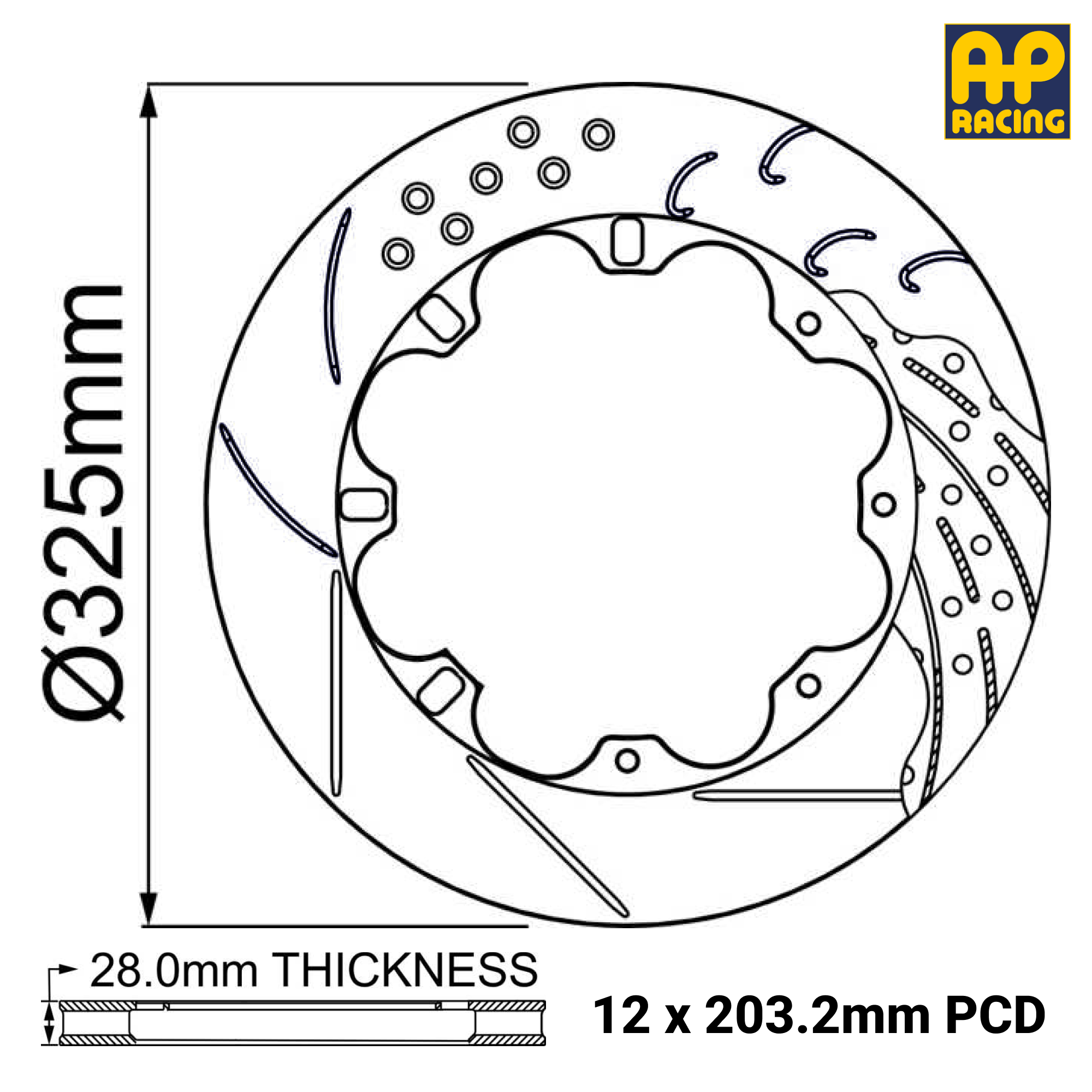

Ø325mm x 28.0mm Ventilated Brake Disc - 12 x 203.2mm PCD - Floating

Ø325mm x 28.0mm Ventilated Brake Disc - 12 x 203.2mm PCD - Floating

SKU:CP3580-294G4

Regular price €411.39 €506.01
Sale Sold out
Brake Disc Dimensions
Outside Diameter 325mm
Thickness 28
Mounting P.C.D 187.0mm
Mounting Type Floating - 10 Bobbins
Eye Diameter 222.0mm
Inside Flange Diameter 187.0mm
Mounting Flange Thickness 6.6mm
Max Pad Depth 51.0mm
No. of Vanes 48
Air Gap 14.0mm
View full details

325mm x 28 Brake Disc Dimensions

Outside Diameter 325mm
Thickness 28
Mounting P.C.D 187.0mm
Mounting Type Floating - 10 Bobbins
Eye Diameter 222.0mm
Inside Flange Diameter 187.0mm
Mounting Flange Thickness 6.6mm
Max Pad Depth 51.0mm
No. of Vanes 48
Air Gap 14.0mm
Face Types Available G4 - Grooved (Straight Forward)
G8 - Grooved (Straight Forward)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode

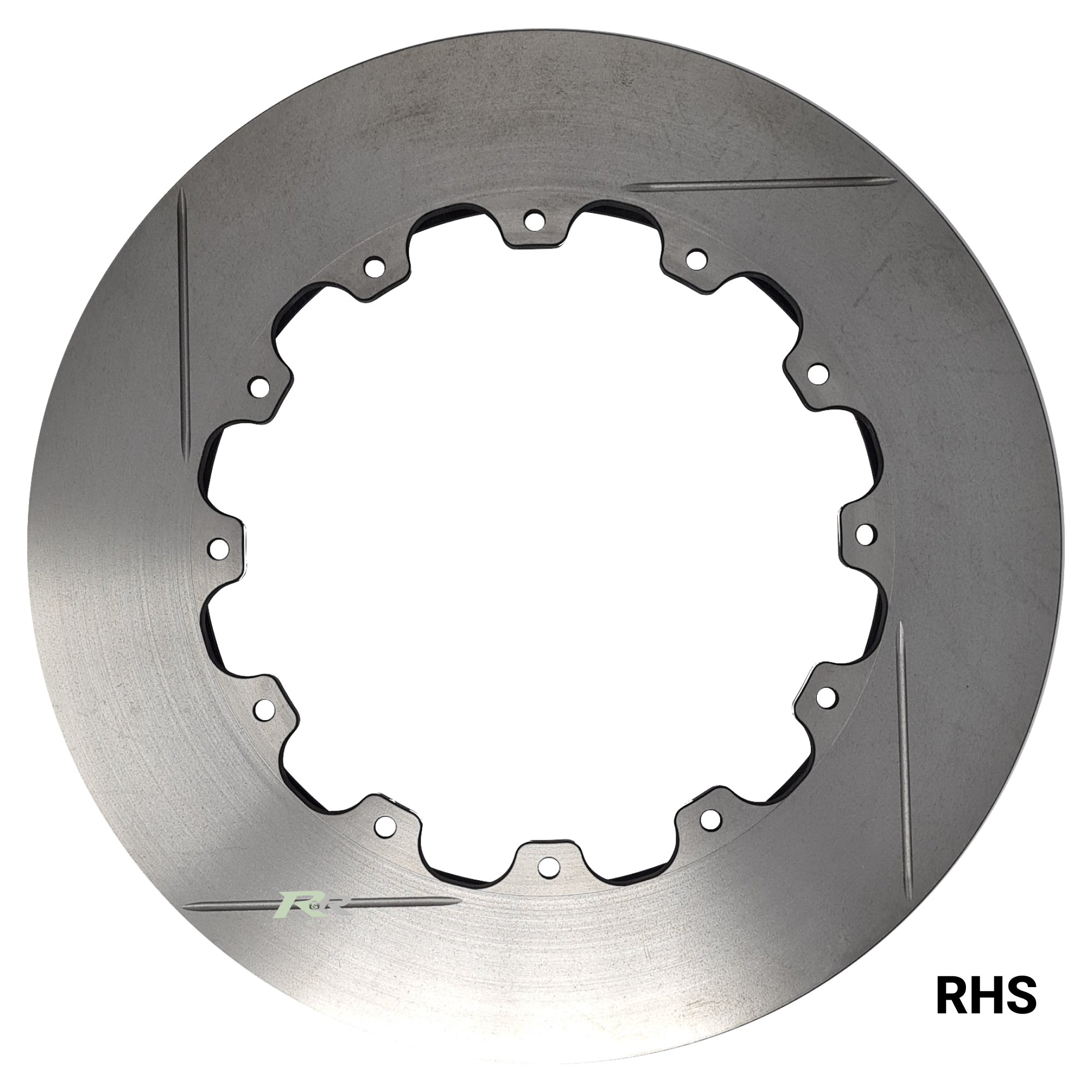

G4 - Grooved (Straight Forward) / Right-Hand Side CP3580-294G4

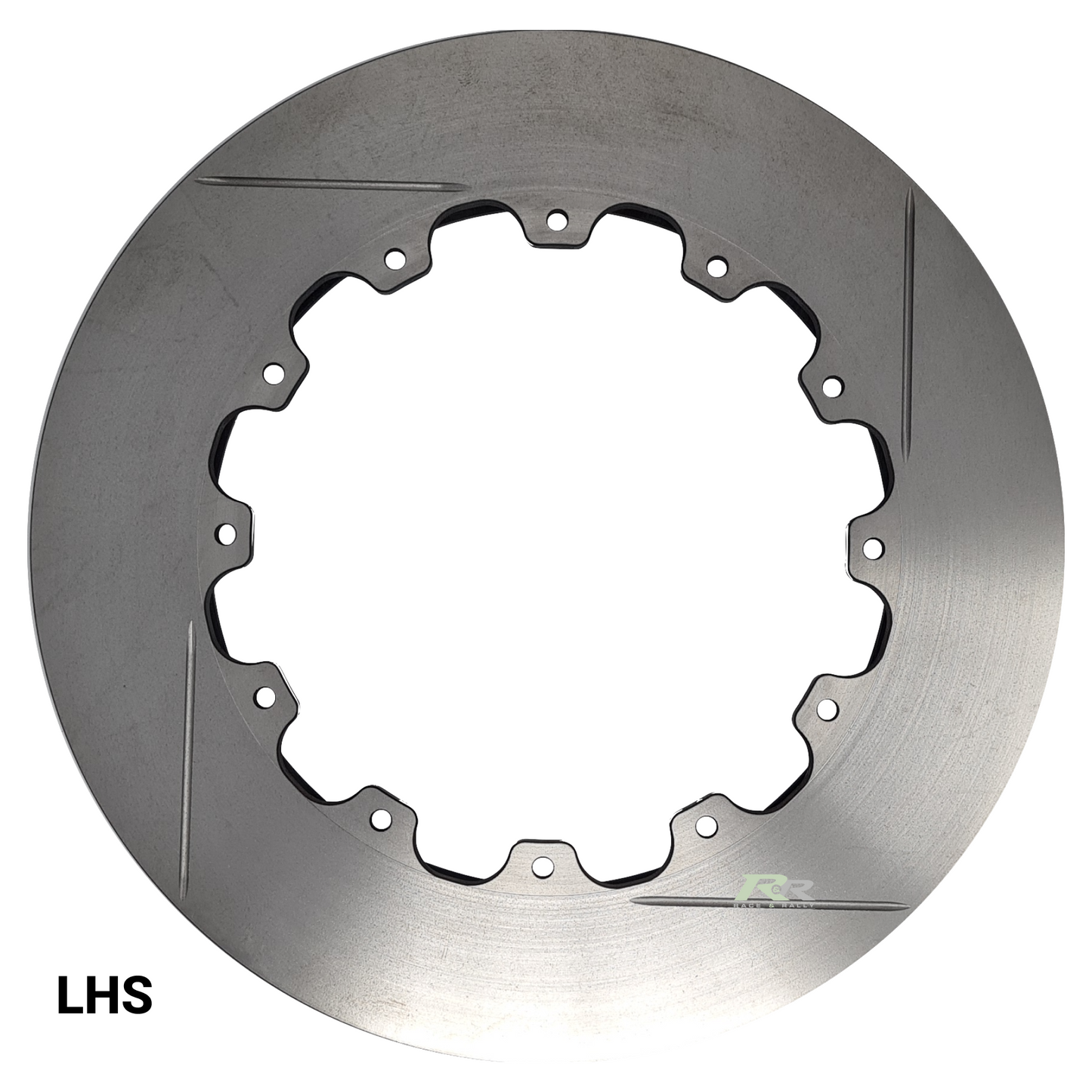

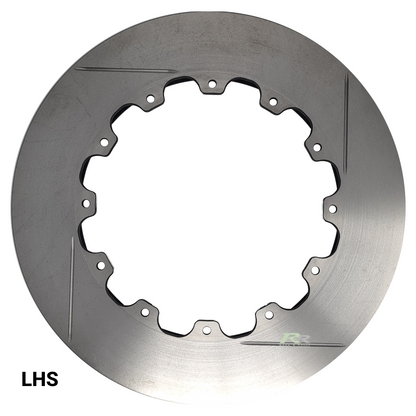

G4 - Grooved (Straight Forward) / Left-Hand Side CP3580-295G4
G8 - Grooved (Straight Forward) / Right-Hand Side CP3580-294G8
G8 - Grooved (Straight Forward) / Left-Hand Side CP3580-295G8

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
