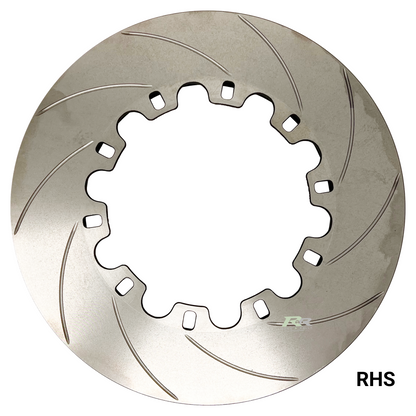

• Ø330mm x 27.0mm Ventilated Brake Disc - 12 x 196.0mm PCD - Floating - RHS - Race and Rally

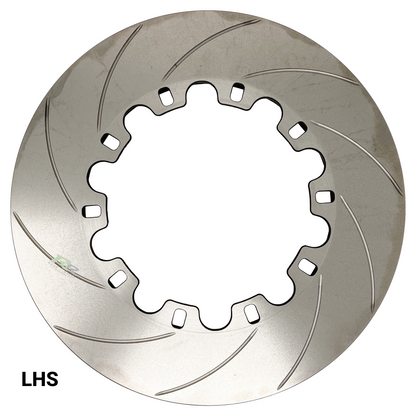

  • Ø330mm x 27.0mm Ventilated Brake Disc - 12 x 196.0mm PCD - Floating - Race and Rally
1 3

Ø330mm x 27.0mm Ventilated Brake Disc - 12 x 196.0mm PCD - Floating

Ø330mm x 27.0mm Ventilated Brake Disc - 12 x 196.0mm PCD - Floating

CP3580-2932CG10

€304.55 €374.60
Sale Sold out
▶ Brake Disc Dimensions
'A' - Outside Diameter 330mm
'B' - Thickness 27.0mm
'M' - Mounting P.C.D 196.00mm
Mounting Type Floating - 10 Bobbins
'C' - Eye Diameter 215.0mm
'D' - Inside Flange Diameter 170.5mm
'H' - Mounting Flange Thickness 5.65mm
Max Pad Depth 56.0mm
No. of Vanes 48
Air Gap 14.0mm
Weight 5.96kg

In stock
View full details

330mm x 27.0mm Brake Disc Dimensions

'A' - Outside Diameter 330mm
'B' - Thickness 27.0mm
'M' - Mounting P.C.D 196.00mm
Mounting Type Floating - 10 Bobbins
'C' - Eye Diameter 215.0mm
'H' - Inside Flange Diameter 170.5mm
Mounting Flange Thickness 5.65mm
Max Pad Depth 56.0mm
No. of Vanes 48
Air Gap 14.0mm
Weight 5.96kg
Face Types Available CG10 - Curved Grooves (Backward Facing)
Disc Handing Right-Hand Side
Left-Hand Side
Notes Ford Fiesta Rally4 / Rally4 Front Disc
RHS: PX18010008A
LHS: PX18010007A

Brand AP Racing
Option SKU Barcode
CG10 - Curved Grooves (Backward Facing) / Right-Hand Side CP3580-2932CG10
CG10 - Curved Grooves (Backward Facing) / Left-Hand Side CP3580-2933CG10


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
