Ø355mm x 32.0mm Ventilated Brake Disc - 12 x 237.5mm PCD - Floating

Ø355mm x 32.0mm Ventilated Brake Disc - 12 x 237.5mm PCD - Floating

CP6565-166CG8

€448.10 €551.16
Sale Sold out

Brake Disc Dimensions

  • Outside Diameter - 355mm
  • Thickness - 32.0mm
  • Mounting P.C.D. - 237.50mm
  • Mounting Type - Floating - 12 Bobbins
  • Spigot Diameter - mm
  • Eye Diameter: - 255.7mm
  • Inside Flange Diameter - 212.2mm
  • Mounting Flange Thickness - 5.95mm
  • Mounting Offset - mm
  • Max Pad Depth - D48.0
  • No. of Vanes - 48
  • Air Gap - 13.5mm
  • Weight - 7.07Kg
View full details
355mm x 32.0mm Brake Disc Dimensions

Outside Diameter
 355mm
Thickness
32.0mm
Mounting P.C.D.
237.50mm
Mounting Type
Floating - 12 Bobbins
Eye Diameter
255.7mm
Spigot Diameter
mm
Inside Flange Diameter
212.2mm
Mounting Flange Thickness
5.95mm
Mounting Offset
mm
Max Pad Depth
D48.0
No. of Vanes
48
Air Gap
13.5
Weight
7.07Kg
Face Types Available
CG8 - Curved Grooves (Backward Facing)
CG8 - Curved Grooves (Backward Facing)
Disc Handing

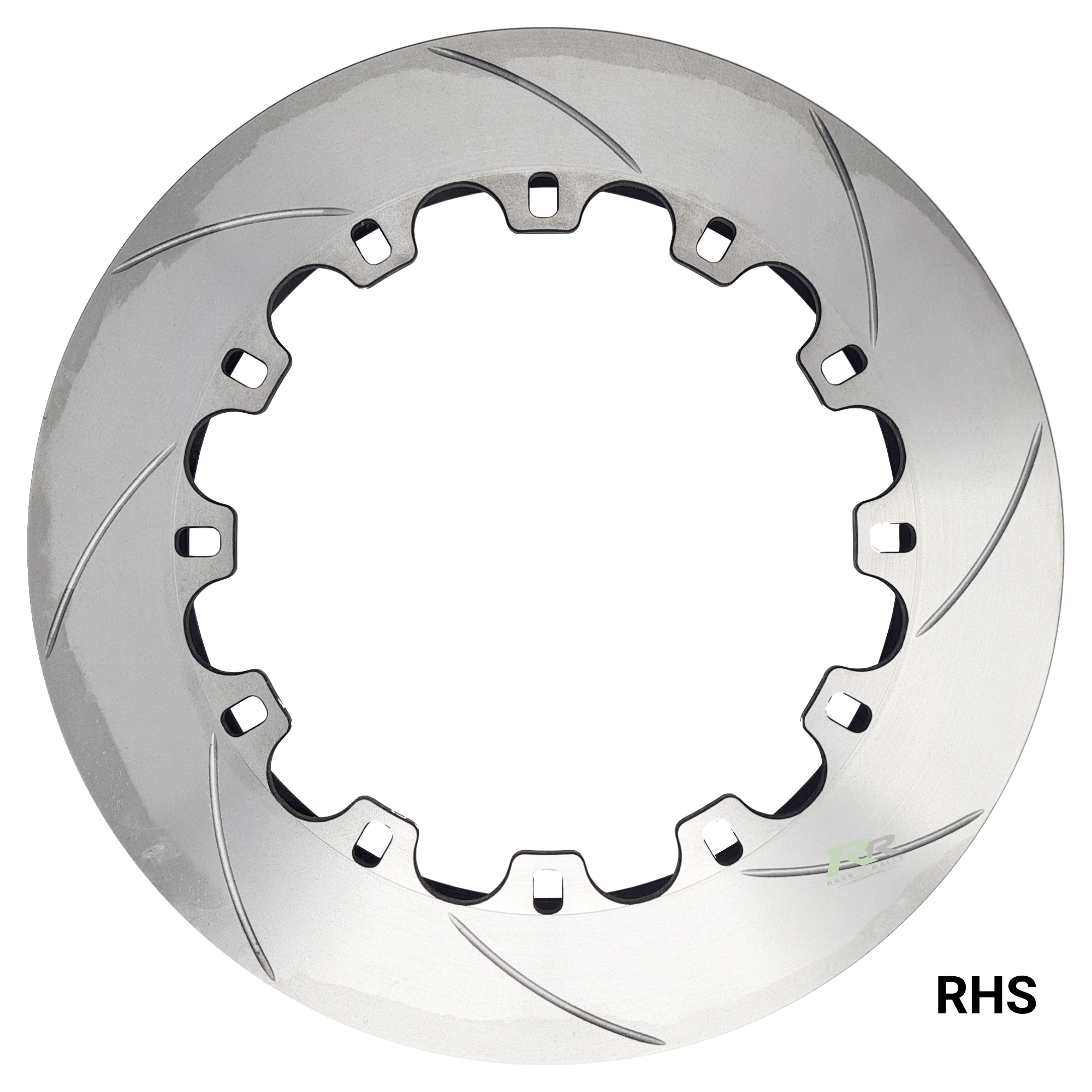

Right-Hand Side

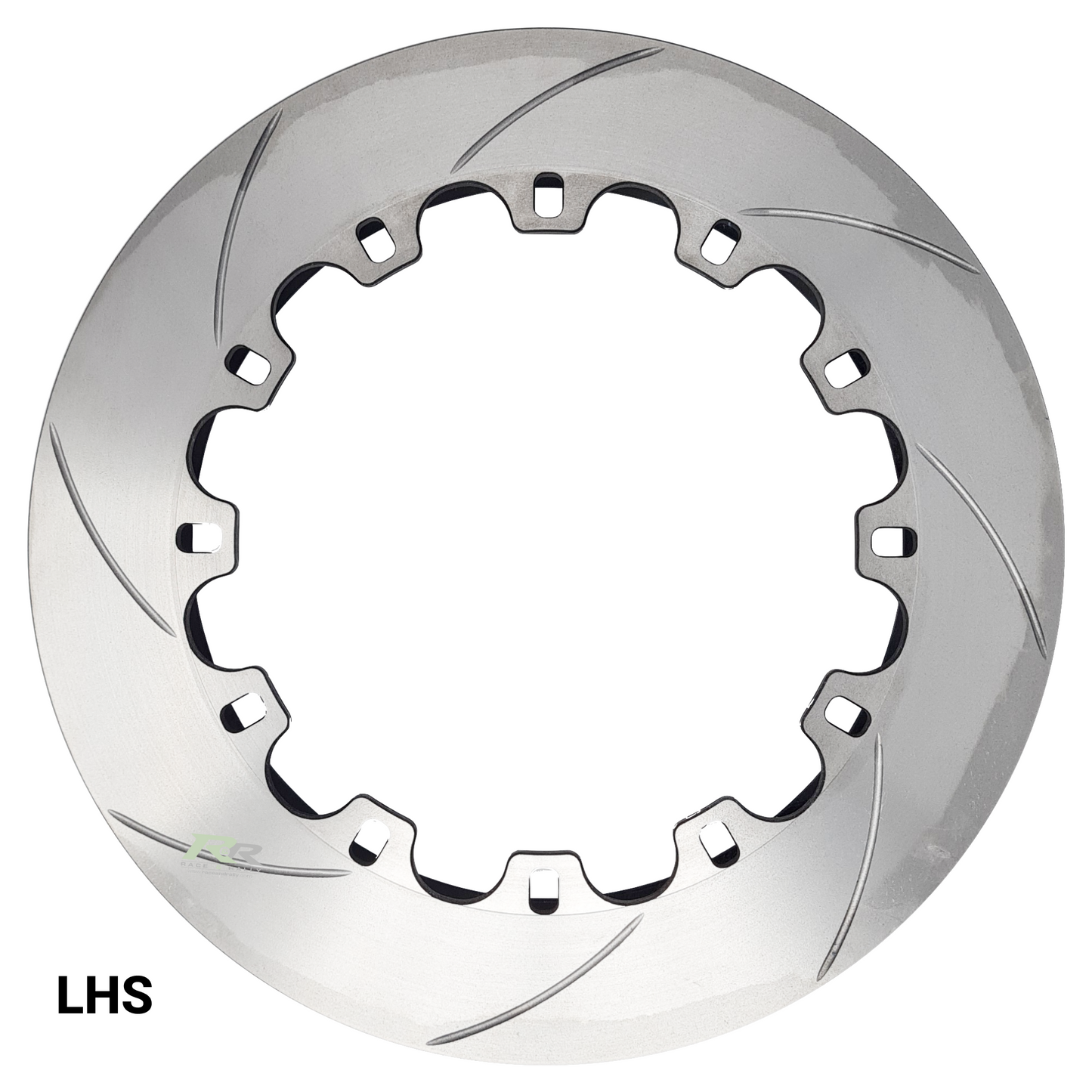

Left-Hand Side
Notes
Ford Fiesta R5 MKI EVO Front Tarmac Discs

Brand:

AP Racing

Manufacturer Part Number:

CP6565-166CG8, CP6565-167CG8
