• Ø356mm x 28.0mm Ventilated Brake Disc - 12 x 240.0mm PCD - Bolted - Race and Rally
1 1

Ø356mm x 28.0mm Ventilated Brake Disc - 12 x 240.0mm PCD - Bolted

Ø356mm x 28.0mm Ventilated Brake Disc - 12 x 240.0mm PCD - Bolted

CP3781-2142CG8

€530.32 €652.29
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 356mm
Thickness 28.0mm
Mounting P.C.D 240.0mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 252.6mm
Inside Flange Diameter 220.0mm
Mounting Flange Thickness 5.0mm
Max Pad Depth 51.0mm
No. of Vanes 48
Air Gap 16.5mm

🐣 Easter Special Offer

Use code at checkout: EASTER2026

Save 15% (€79,54) on this item

Valid 3rd–12th April 2026. Enter code at checkout to redeem.

View full details

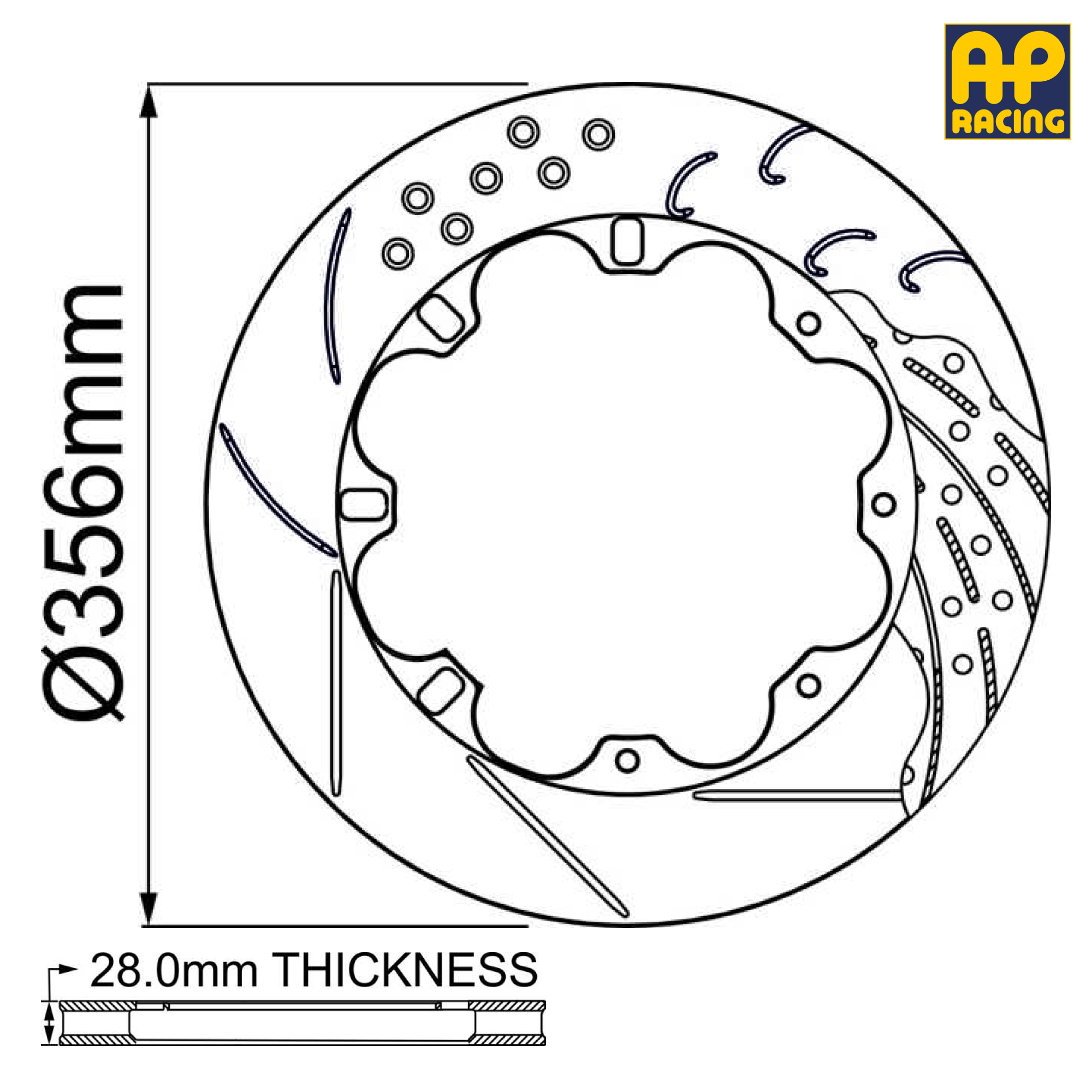

356mm x 28.0mm Brake Disc Dimensions

Outside Diameter 356mm
Thickness 28.0mm
Mounting P.C.D 240.0mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 252.6mm
Inside Flange Diameter 220.0mm
Mounting Flange Thickness 5.0mm
Max Pad Depth 51.0mm
No. of Vanes 48
Air Gap 16.5mm
Face Types Available CG8 - Curved Grooves (Backward Facing)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
CG8 - Curved Grooves (Backward Facing) / Right-Hand Side CP3781-2142CG8
CG8 - Curved Grooves (Backward Facing) / Left-Hand Side CP3781-2143CG8

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
