• Ø356mm x 32.0mm Ventilated Brake Disc - 12 x 228.6mm PCD - Bolted - 72 Vanes - Race and Rally

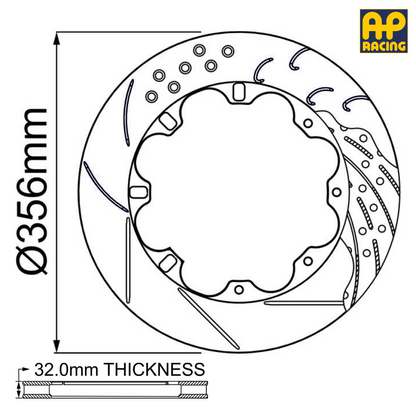

  • Ø356mm x 32.0mm Ventilated Brake Disc - 12 x 240.0mm PCD - Floating - 36 Vanes - 261.6mm Eye Diameter - Race and Rally
1 2

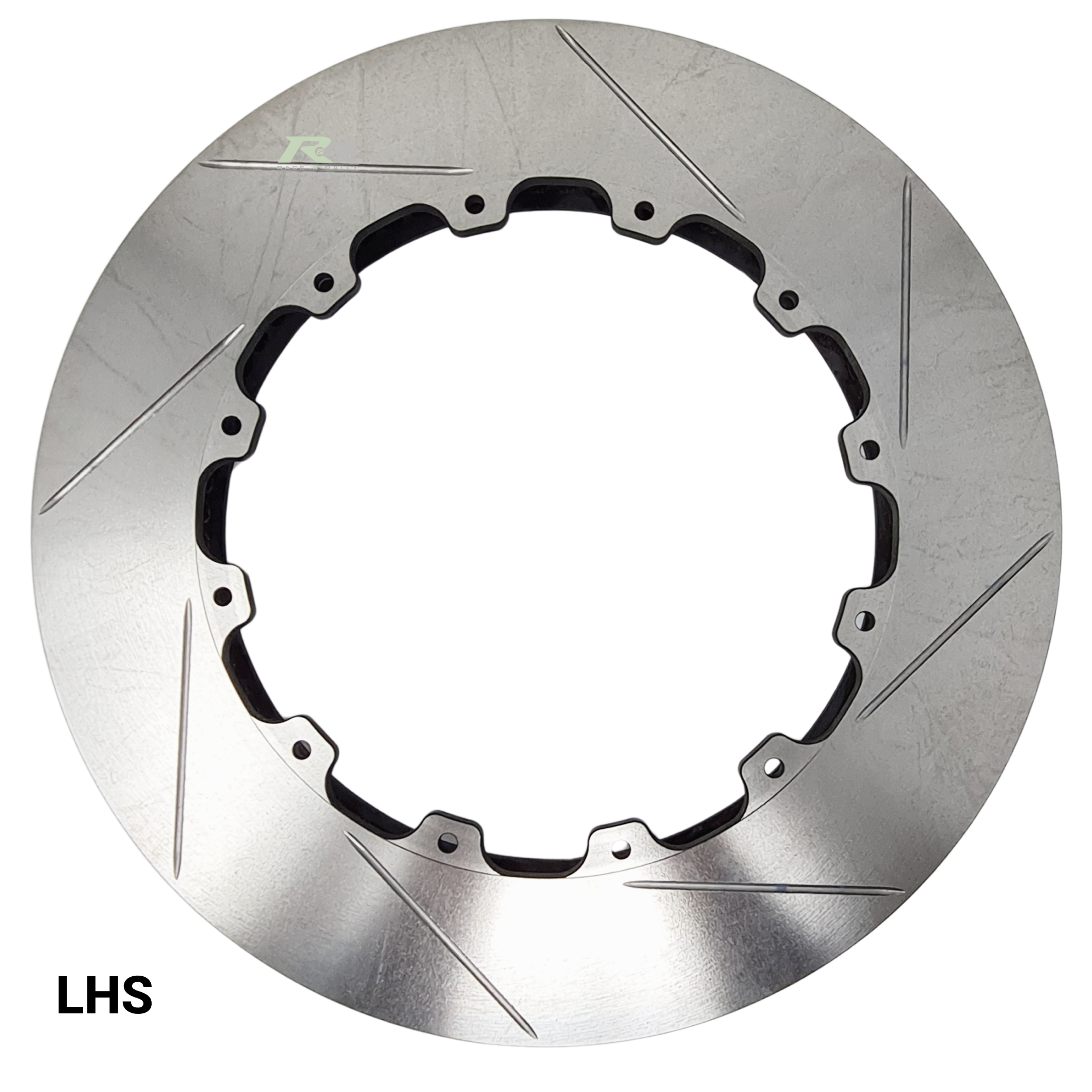

Ø356mm x 32.0mm Ventilated Brake Disc - 12 x 228.6mm PCD - Bolted - 72 Vanes

Ø356mm x 32.0mm Ventilated Brake Disc - 12 x 228.6mm PCD - Bolted - 72 Vanes

CP7177-110G8

€388.67 €478.06
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 356mm
Thickness 32.0mm
Mounting P.C.D 228.6mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 244.8mm
Inside Flange Diameter 211.5mm
Mounting Flange Thickness 6.5mm
Max Pad Depth 51.0mm
No. of Vanes 72
Air Gap 17.0mm
View full details

356mm x 32.0mm Brake Disc Dimensions

Outside Diameter 356mm
Thickness 32.0mm
Mounting P.C.D 228.6mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 244.8mm
Inside Flange Diameter 211.5mm
Mounting Flange Thickness 6.5mm
Max Pad Depth 51.0mm
No. of Vanes 72
Air Gap 17.0mm
Face Types Available G8 - Grooved (Straight Forward)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
G8 - Grooved (Straight Forward) / Right-Hand Side CP7177-110G8
G8 - Grooved (Straight Forward) / Left-Hand Side CP7177-111G8

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
