Ø362mm x 32.0mm Ventilated Brake Disc - 12 x 215.9mm PCD - Bolted - D54

Ø362mm x 32.0mm Ventilated Brake Disc - 12 x 215.9mm PCD - Bolted - D54

CP4542-112CG12

€358.09 €440.45
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 362mm
Thickness 32.0mm
Mounting P.C.D 215.9mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 251.0mm
Inside Flange Diameter 195.0mm
Mounting Flange Thickness 6.43mm
Max Pad Depth 54.0mm
No. of Vanes 48
Air Gap 17.5mm
View full details

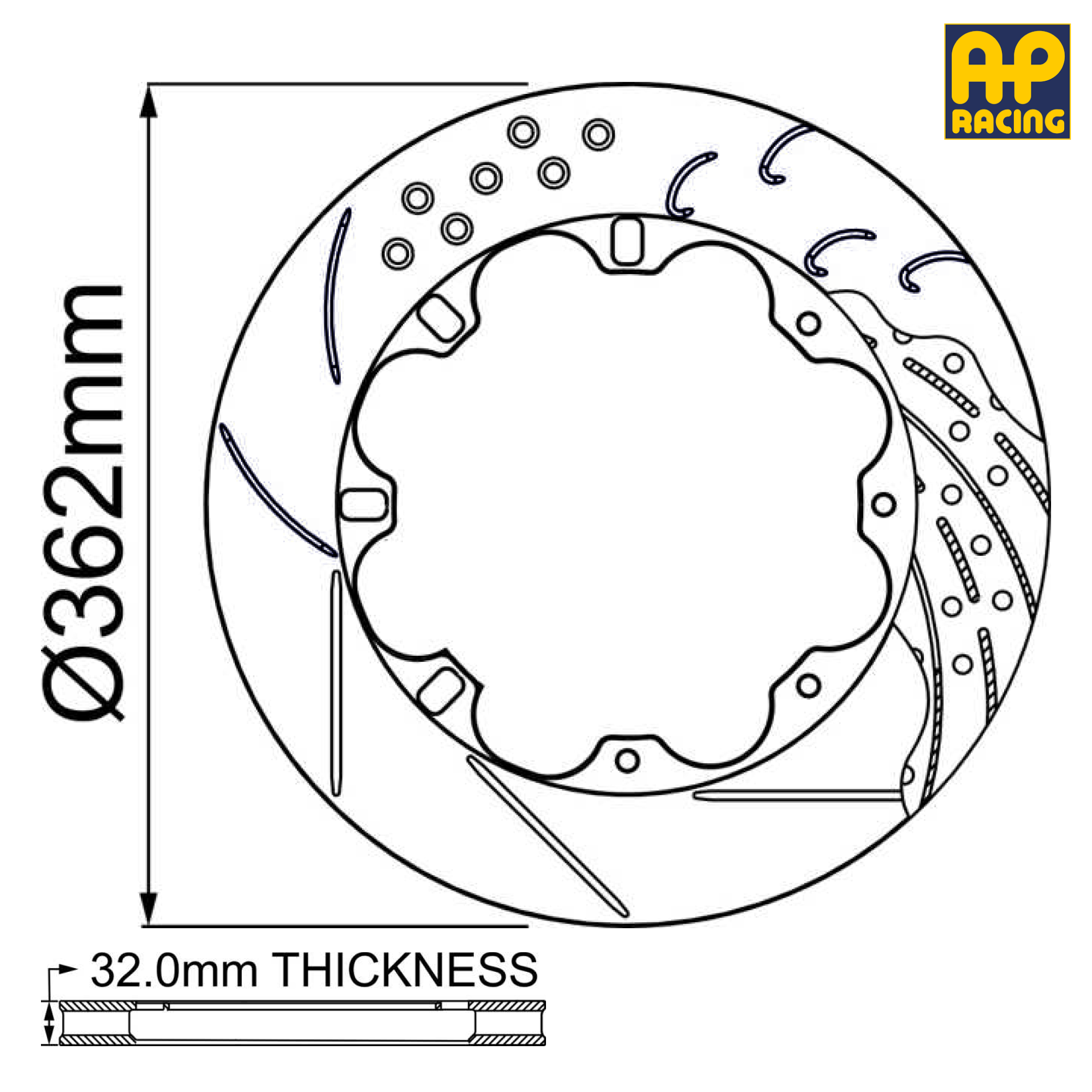

362mm x 32.0mm Brake Disc Dimensions

Outside Diameter 362mm
Thickness 32.0mm
Mounting P.C.D 215.9mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 251.0mm
Inside Flange Diameter 195.0mm
Mounting Flange Thickness 6.43mm
Max Pad Depth 54.0mm
No. of Vanes 48
Air Gap 17.5mm
Face Types Available CG12 - Curved Grooves (Backward Facing)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
CG12 - Curved Grooves (Backward Facing) / Right-Hand Side CP4542-112CG12
CG12 - Curved Grooves (Backward Facing) / Left-Hand Side CP4542-113CG12

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
