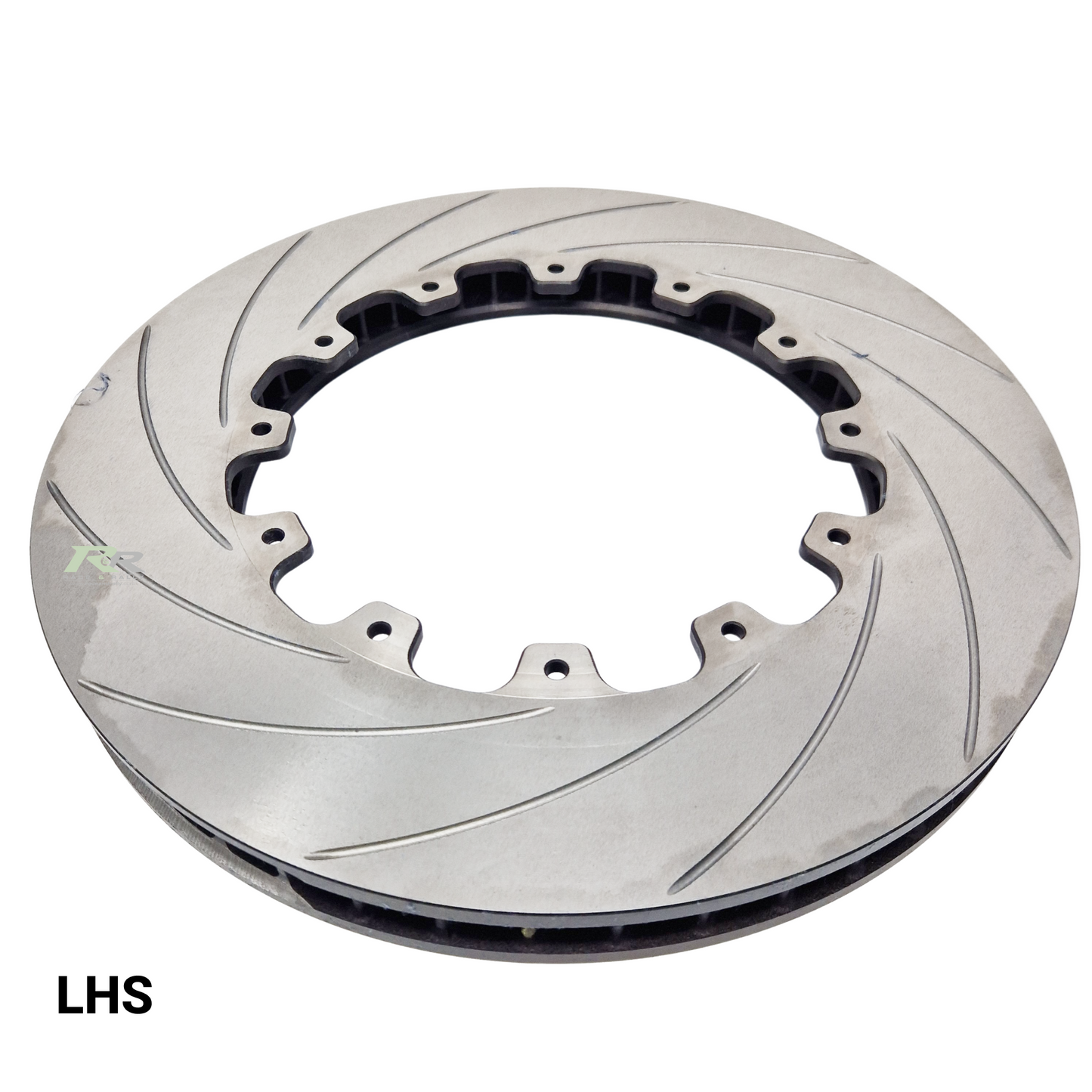

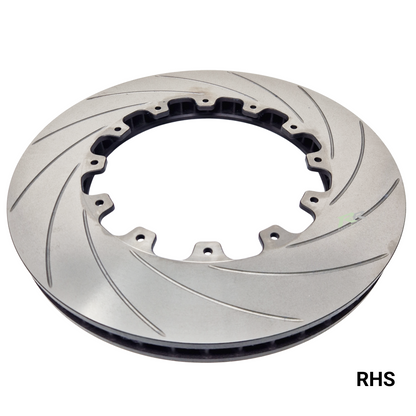

Ø362mm x 32.0mm Ventilated Brake Disc - 12 x 215.9mm PCD - Bolted - D61

Ø362mm x 32.0mm Ventilated Brake Disc - 12 x 215.9mm PCD - Bolted - D61

CP4542-142G8

€358.09 €440.45
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 362mm
Thickness 32.0mm
Mounting P.C.D 215.9mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 238.0mm
Inside Flange Diameter 195.0mm
Mounting Flange Thickness 6.42mm
Max Pad Depth 61.0mm
No. of Vanes 48
Air Gap 17.5mm
View full details

362mm x 32.0mm Brake Disc Dimensions

Outside Diameter 362mm
Thickness 32.0mm
Mounting P.C.D 215.9mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 238.0mm
Inside Flange Diameter 195.0mm
Mounting Flange Thickness 6.42mm
Max Pad Depth 61.0mm
No. of Vanes 48
Air Gap 17.5mm
Face Types Available G8 - Grooved (Straight Forward)
CG12 - Curved Grooves (Backward Facing)
SD - Cross Drilled
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
G8 - Grooved (Straight Forward) / Right-Hand Side CP4542-142G8
G8 - Grooved (Straight Forward) / Left-Hand Side CP4542-143G8
CG12 - Curved Grooves (Backward Facing) / Right-Hand Side CP4542-142CG12
CG12 - Curved Grooves (Backward Facing) / Left-Hand Side CP4542-143CG12
SD - Cross Drilled / Right-Hand Side CP4542-142SD
SD - Cross Drilled / Left-Hand Side CP4542-143SD

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
