Ø362mm x 32.0mm Ventilated Brake Disc - 12 x 228.6mm PCD - Bolted - D54

Ø362mm x 32.0mm Ventilated Brake Disc - 12 x 228.6mm PCD - Bolted - D54

CP3718-1068G8

€547.87 €673.88
Sale Sold out
▶ Brake Disc Dimensions
'A' - Outside Diameter 362mm
'B' - Thickness 32.0mm
'M' - Mounting P.C.D 228.6mm
Mounting Type Bolted - 12 Bolt
'C' - Eye Diameter 251.4mm
'D' - Inside Flange Diameter 208.0mm
'H' - Mounting Flange Thickness 6.5mm
Max Pad Depth 54.0mm
No. of Vanes 48
Air Gap 17.5mm

Low stock
View full details

362mm x 32.0mm Brake Disc Dimensions

'A' - Outside Diameter 362mm
'B' - Thickness 32.0mm
'M' - Mounting P.C.D 228.6mm
Mounting Type Bolted - 12 Bolt
'C' - Eye Diameter 251.4mm
'H' - Inside Flange Diameter 208.0mm
Mounting Flange Thickness 6.5mm
Max Pad Depth 54.0mm
No. of Vanes 48
Air Gap 17.5mm
Face Types Available G8 - Grooved (Straight Forward)
RD - Radiused Drilled

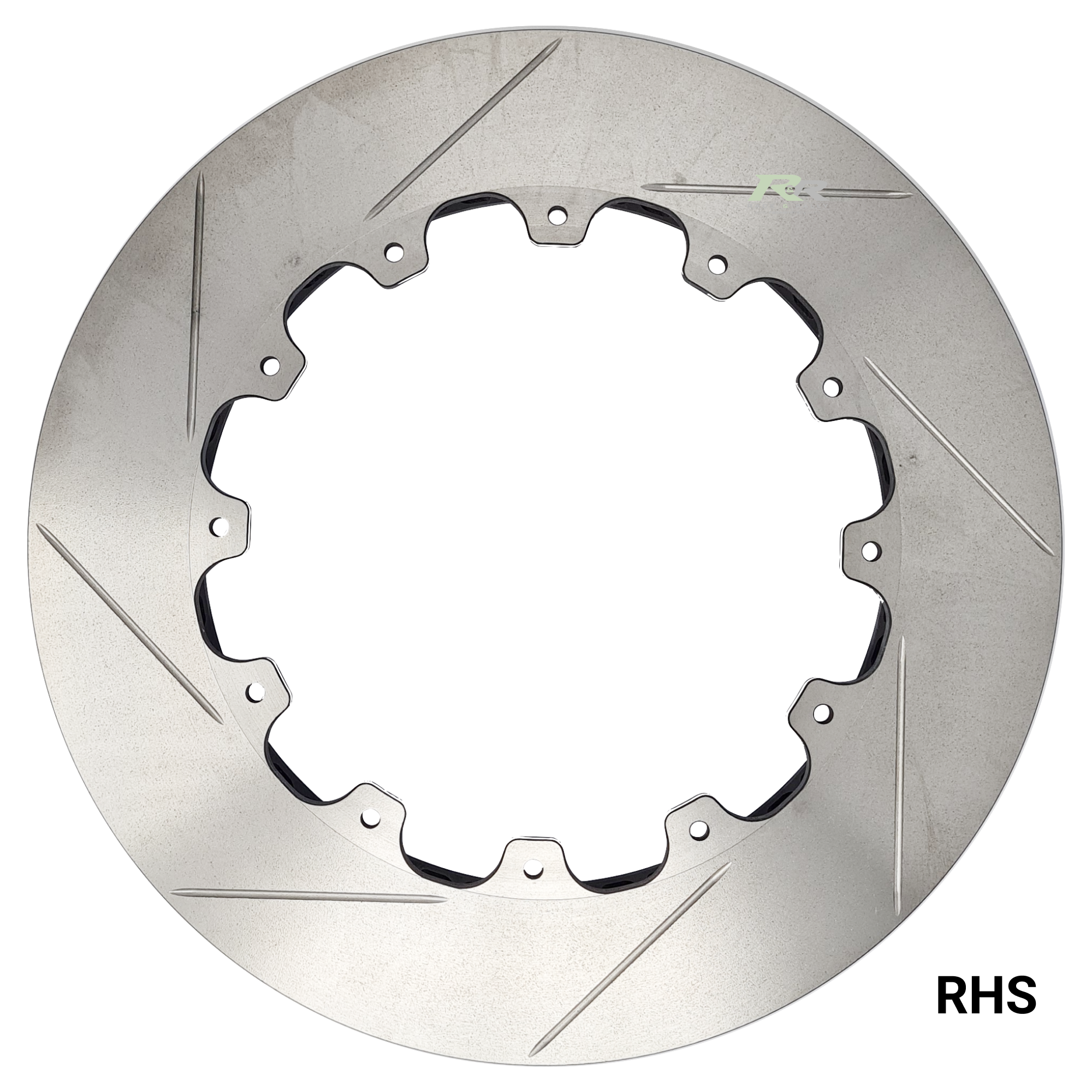

Disc Handing Right-Hand Side

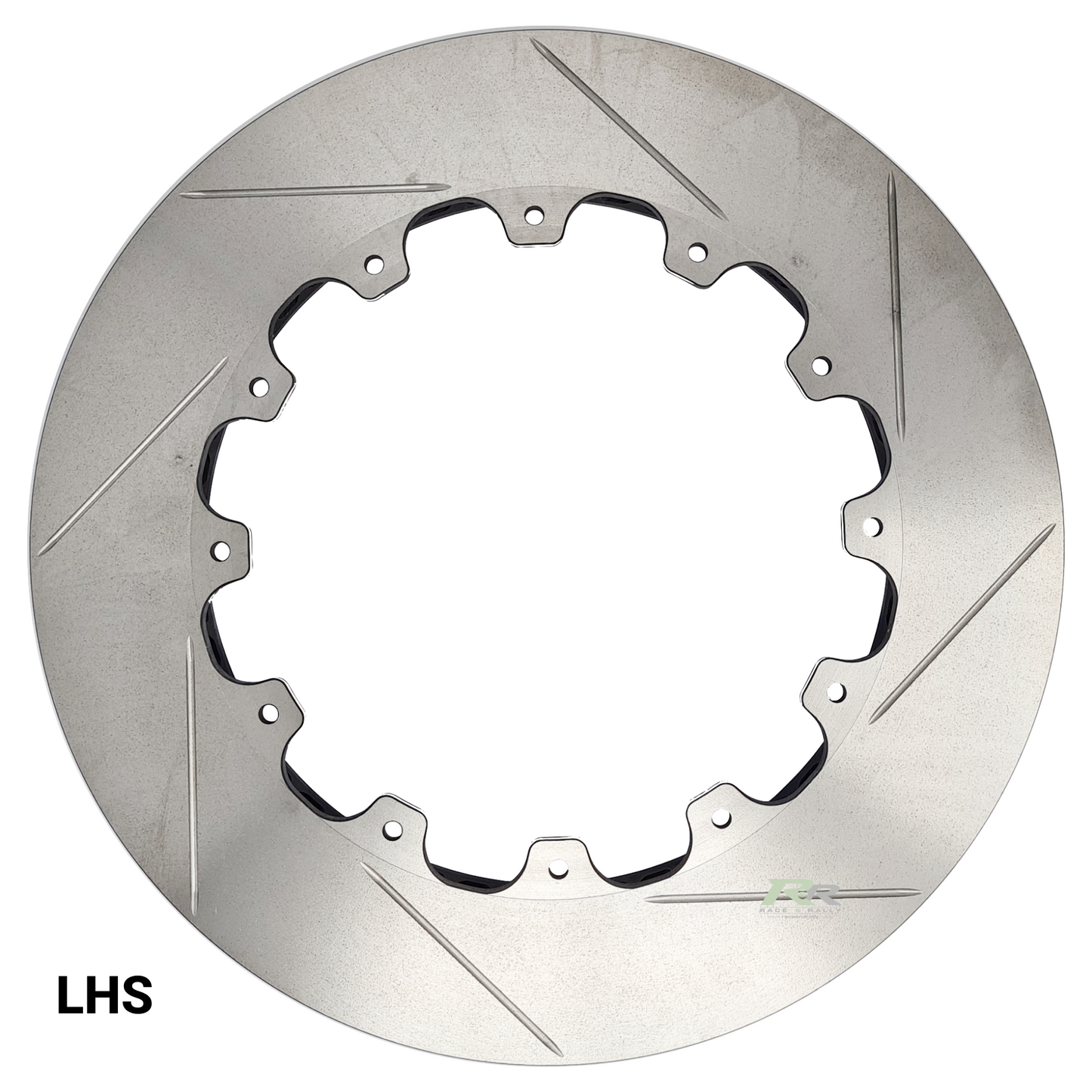

Left-Hand Side

Brand AP Racing
Option SKU Barcode
G8 - Grooved (Straight Forward) / Right-Hand Side CP3718-1068G8
G8 - Grooved (Straight Forward) / Left-Hand Side CP3718-1069G8
RD - Radiused Drilled / Right-Hand Side CP3718-1068RD
RD - Radiused Drilled / Left-Hand Side CP3718-1069RD


AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
