• Ø362mm x 32.0mm Ventilated Brake Disc - 12 x 228.6mm PCD - Bolted - D54 - Race and Rally
1 1

Ø362mm x 32.0mm Ventilated Brake Disc - 12 x 228.6mm PCD - Bolted - D55

Ø362mm x 32.0mm Ventilated Brake Disc - 12 x 228.6mm PCD - Bolted - D55

CP5772-168GA

€577.48 €710.30
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 362mm
Thickness 32.0mm
Mounting P.C.D 228.6mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 247.2mm
Inside Flange Diameter 208.0mm
Mounting Flange Thickness 5.95mm
Max Pad Depth 55.0mm
No. of Vanes 72
Air Gap 19.5mm
View full details

362mm x 32.0mm Brake Disc Dimensions

Outside Diameter 362mm
Thickness 32.0mm
Mounting P.C.D 228.6mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 247.2mm
Inside Flange Diameter 208.0mm
Mounting Flange Thickness 5.95mm
Max Pad Depth 55.0mm
No. of Vanes 72
Air Gap 19.5mm
Face Types Available GA - 'J' Hook Design
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode

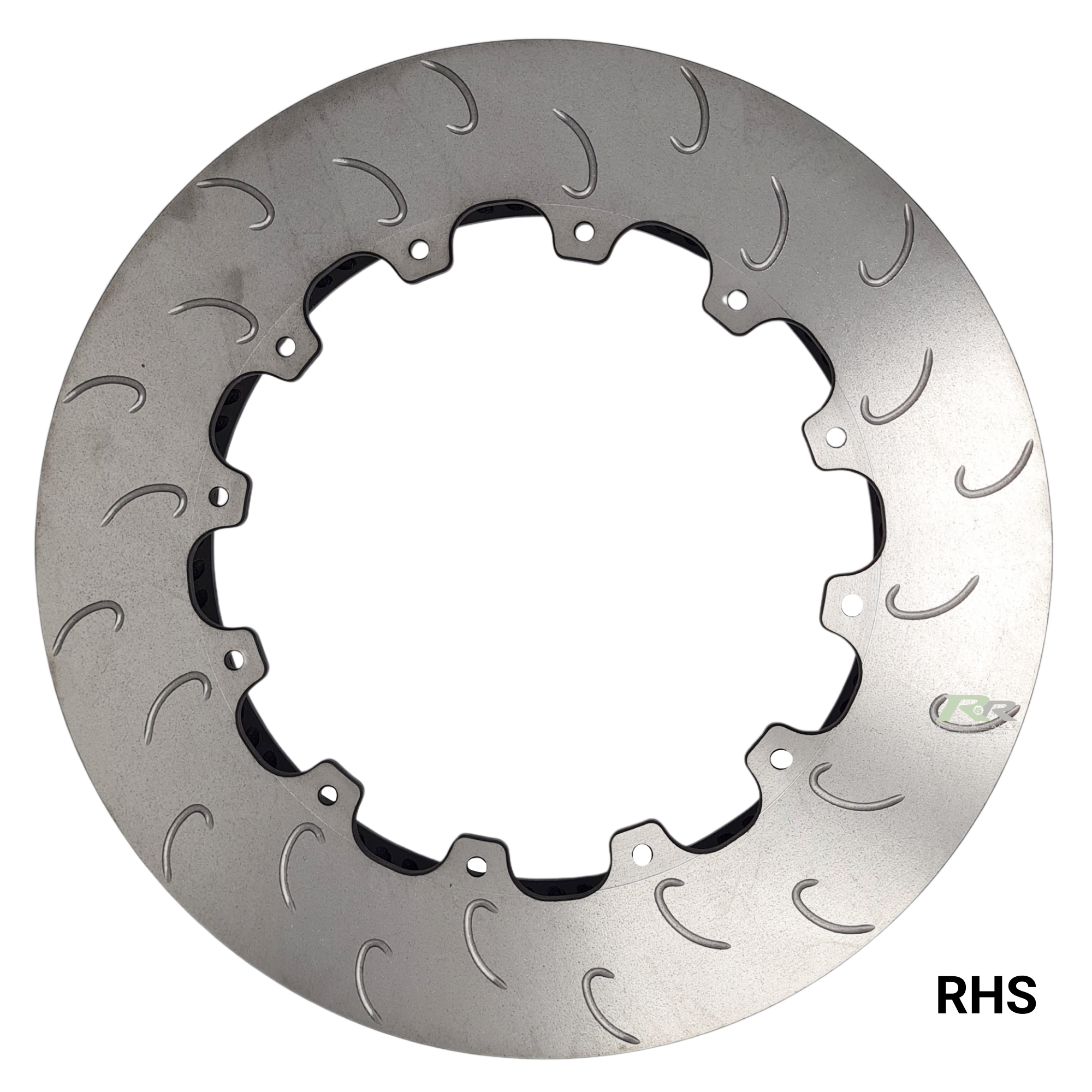

GA - 'J' Hook Design / Right-Hand Side CP5772-168GA

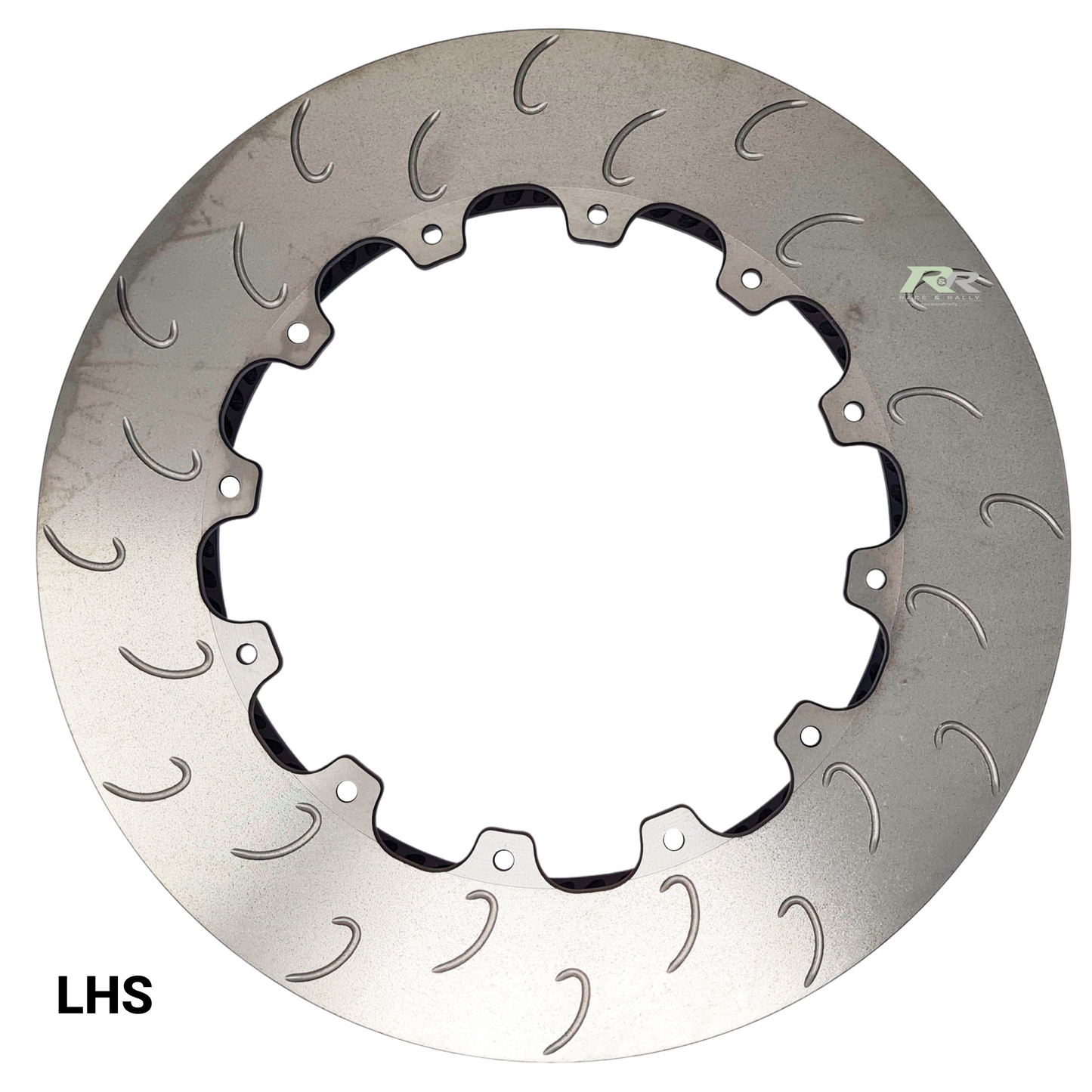

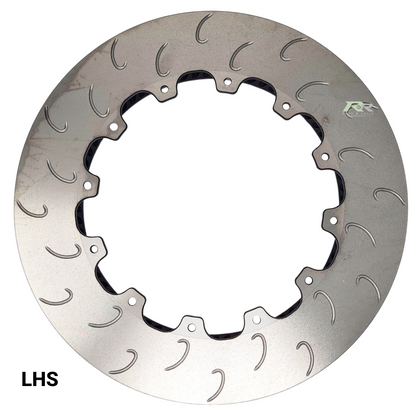

GA - 'J' Hook Design / Left-Hand Side CP5772-169GA

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
