• Ø366mm x 32.0mm Ventilated Brake Disc - 12 x 240.0mm PCD - Bolted - Race and Rally
1 1

Ø366mm x 32.0mm Ventilated Brake Disc - 12 x 240.0mm PCD - Bolted

Ø366mm x 32.0mm Ventilated Brake Disc - 12 x 240.0mm PCD - Bolted

CP3718-1088GA

€614.26 €755.54
Sale Sold out
▶ Brake Disc Dimensions
Outside Diameter 366mm
Thickness 32.0mm
Mounting P.C.D 240.0mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 268.0mm
Inside Flange Diameter 224.0mm
Mounting Flange Thickness 6.4mm
Max Pad Depth 48.0mm
No. of Vanes 48
Air Gap 17.5mm
View full details

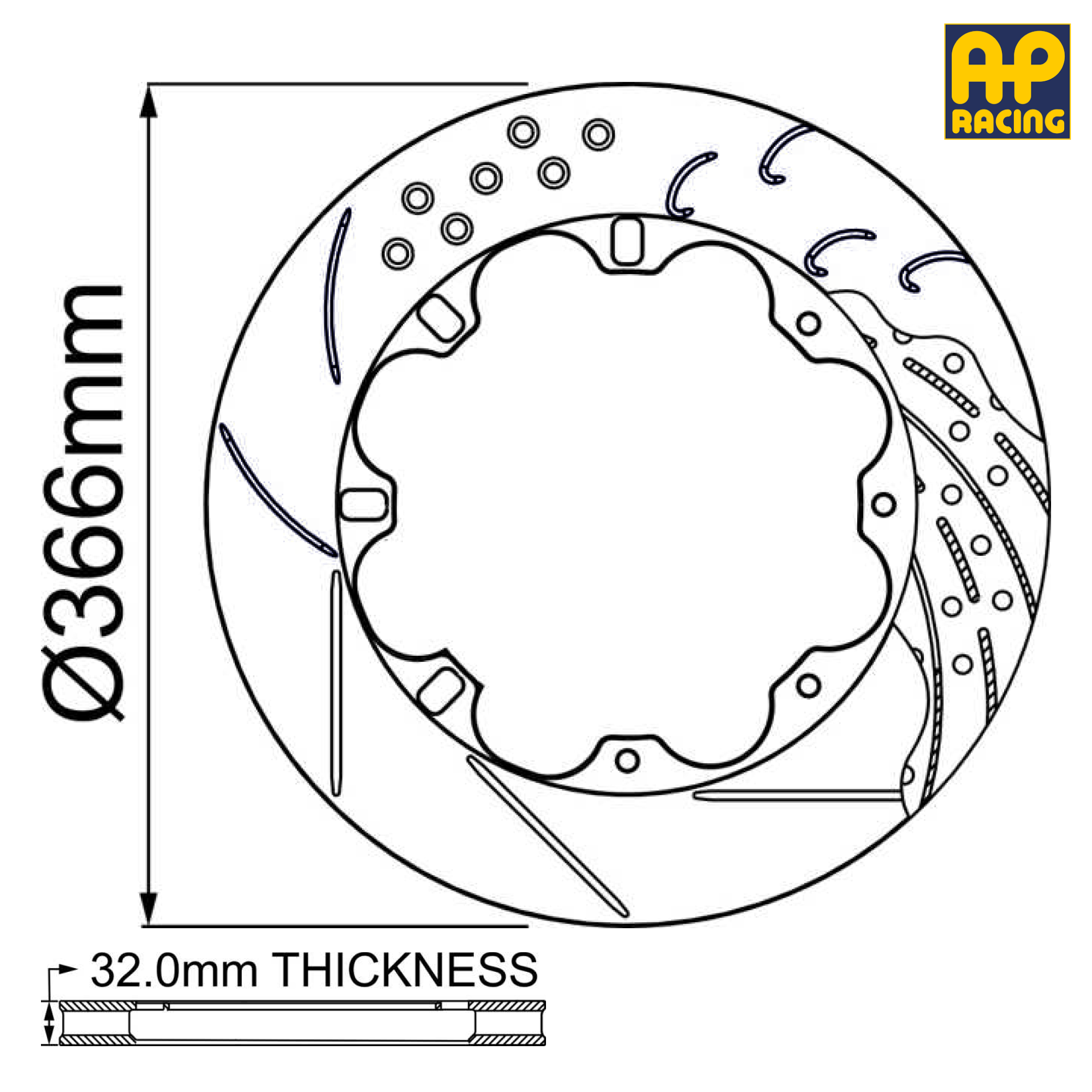

366mm x 32.0mm Brake Disc Dimensions

Outside Diameter 366mm
Thickness 32.0mm
Mounting P.C.D 240.0mm
Mounting Type Bolted - 12 Bolt
Eye Diameter 268.0mm
Inside Flange Diameter 224.0mm
Mounting Flange Thickness 6.4mm
Max Pad Depth 48.0mm
No. of Vanes 48
Air Gap 17.5mm

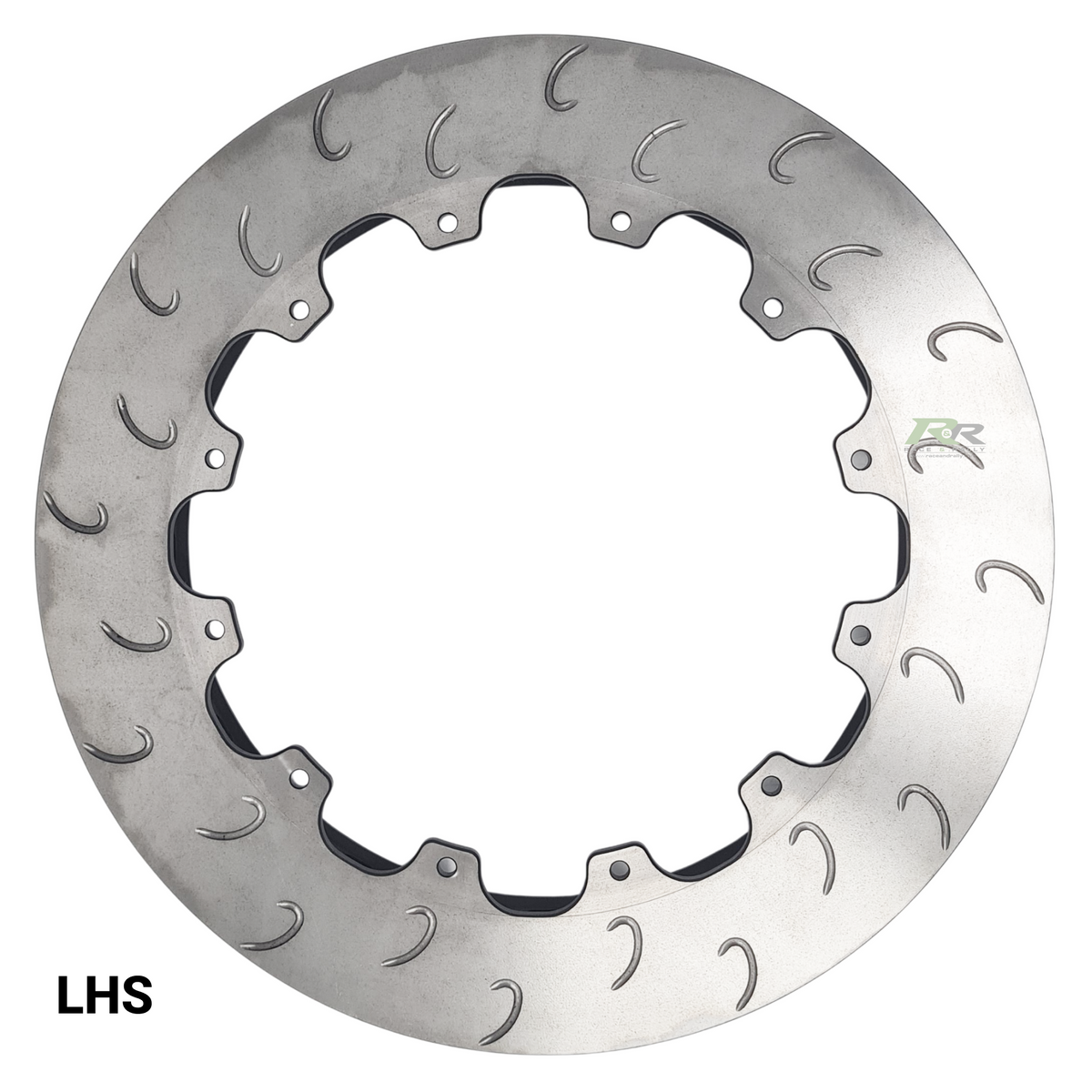

Face Types Available GA - 'J' Hook Design
G8 - Grooved (Straight Forward)
Disc Handing Right-Hand Side
Left-Hand Side

Brand AP Racing
Option SKU Barcode
GA - 'J' Hook Design / Right-Hand Side CP3718-1088GA
GA - 'J' Hook Design / Left-Hand Side CP3718-1089GA
G8 - Grooved (Straight Forward) / Right-Hand Side CP3718-1088G8
G8 - Grooved (Straight Forward) / Left-Hand Side CP3718-1089G8

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland
