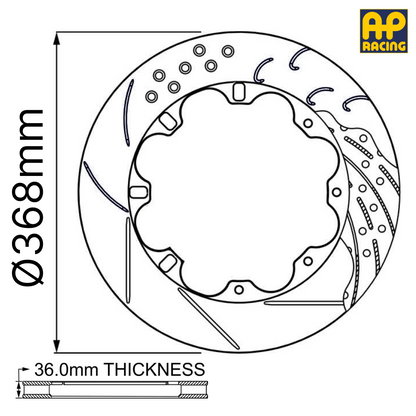

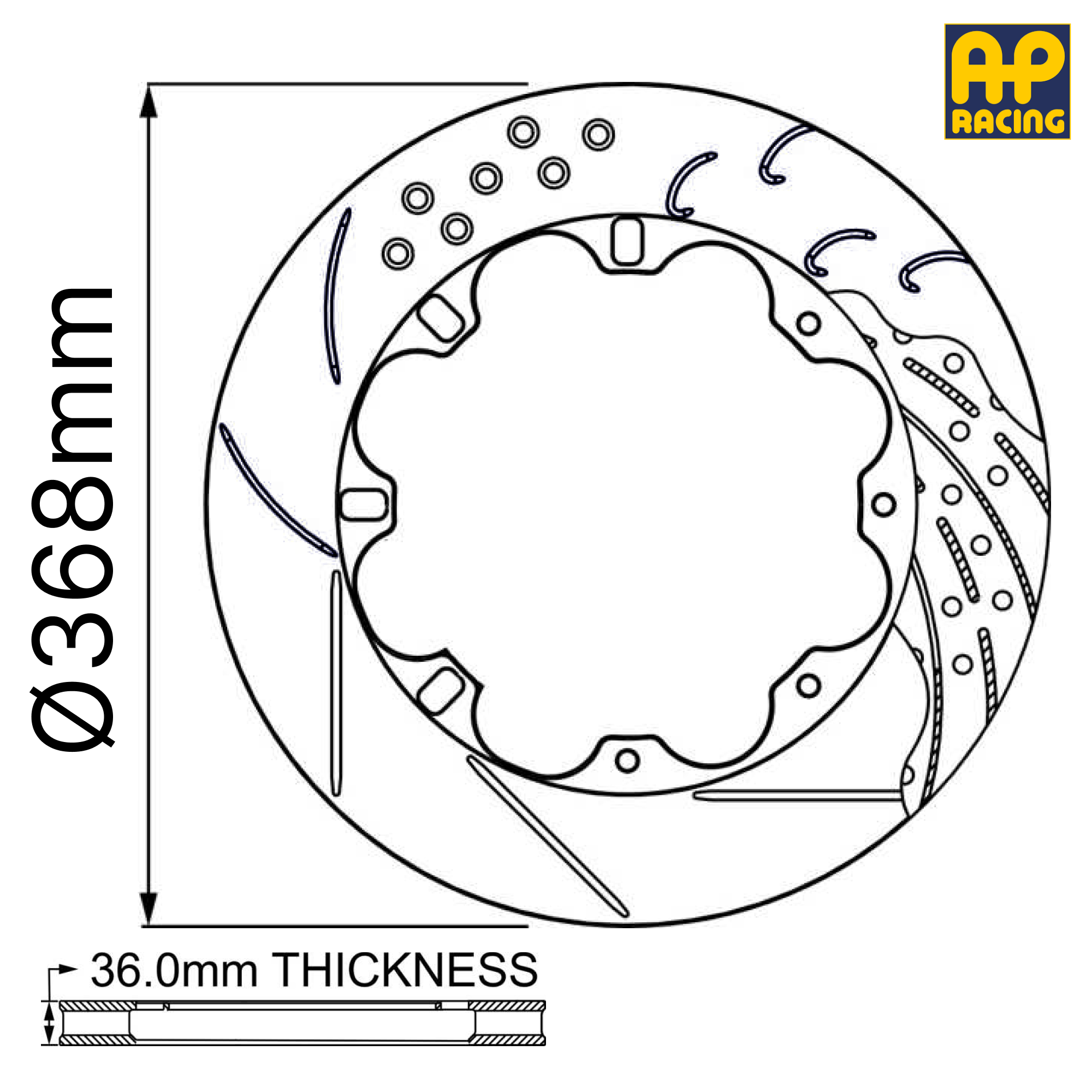

Ø368mm x 36.0mm Ventilated Brake Disc - 12 x 230.0mm PCD - Floating

SKU:CP5772-164G8

€561.21 €690.29

Sale Sold out

▶ Brake Disc Dimensions

Outside Diameter	368mm
Thickness	36.0mm
Mounting P.C.D	230.00mm
Mounting Type	Floating - 12 Bobbins
Eye Diameter	200.0mm
Inside Flange Diameter	256.93mm
Mounting Flange Thickness	8.0mm
Max Pad Depth	54.0mm
No. of Vanes	72
Air Gap	19.5mm
Weight	8.67kg

Quantity

Out of stock, contact for leadtime

View full details

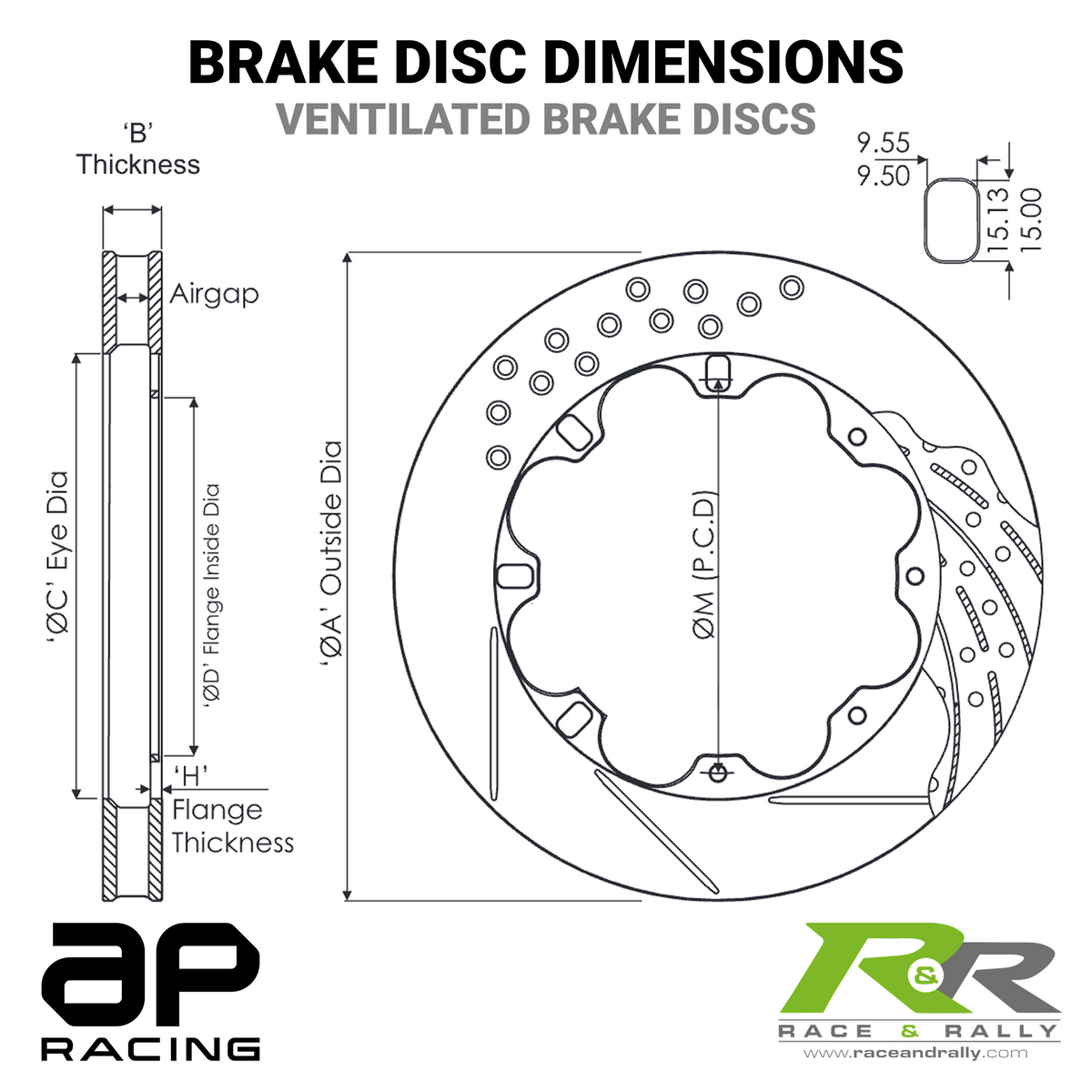

368mm x 36.0mm Brake Disc Dimensions

Outside Diameter 368mm

Thickness 36.0mm

Mounting P.C.D 230.00mm

Mounting Type Floating - 12 Bobbins

Eye Diameter 200.0mm

Inside Flange Diameter 256.93mm

Mounting Flange Thickness 8.0mm

Max Pad Depth 54.0mm

No. of Vanes 72

Air Gap 19.5mm

Weight 8.67kg

Face Types Available G8 - 8 Straight Grooves

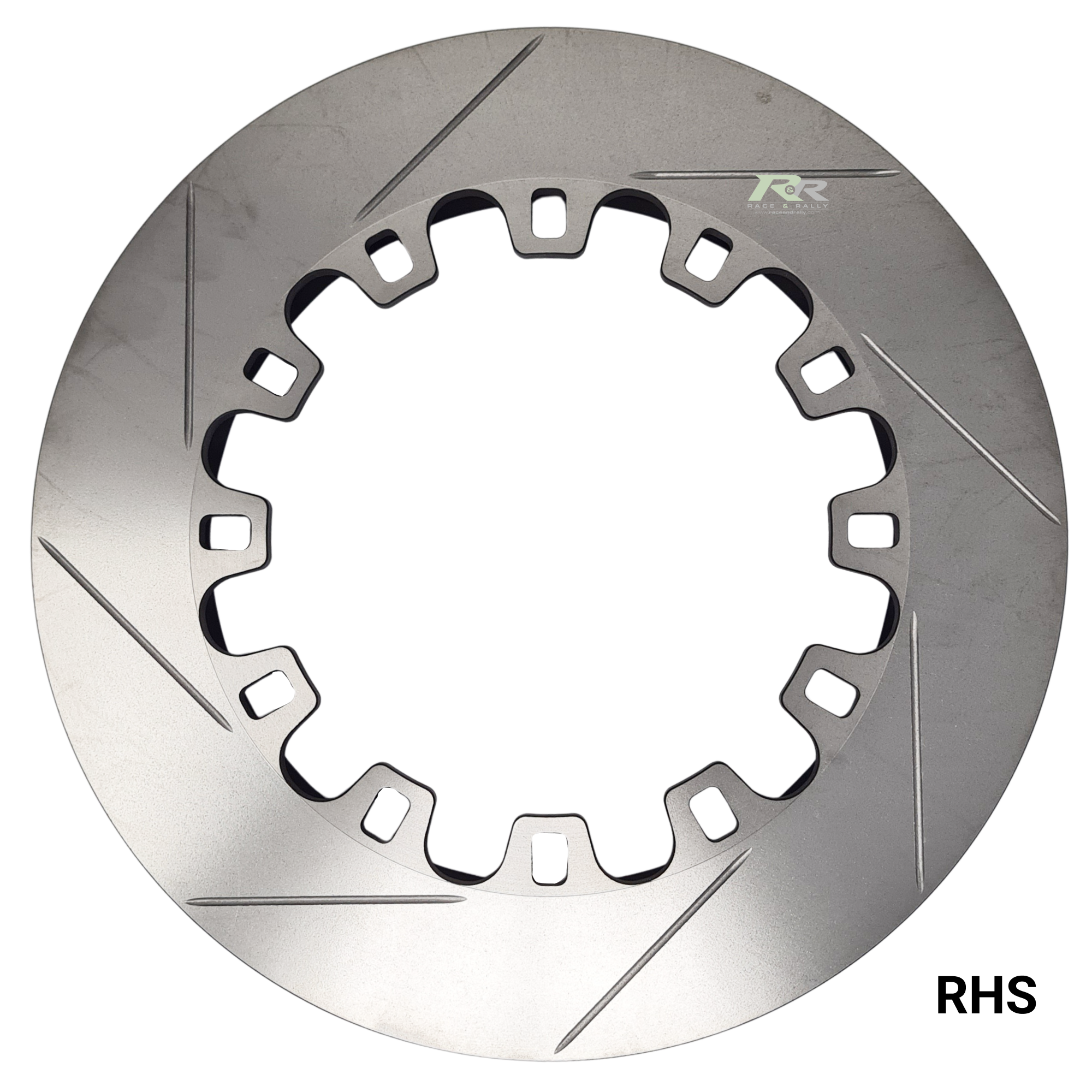

Disc Handing Right-Hand Side

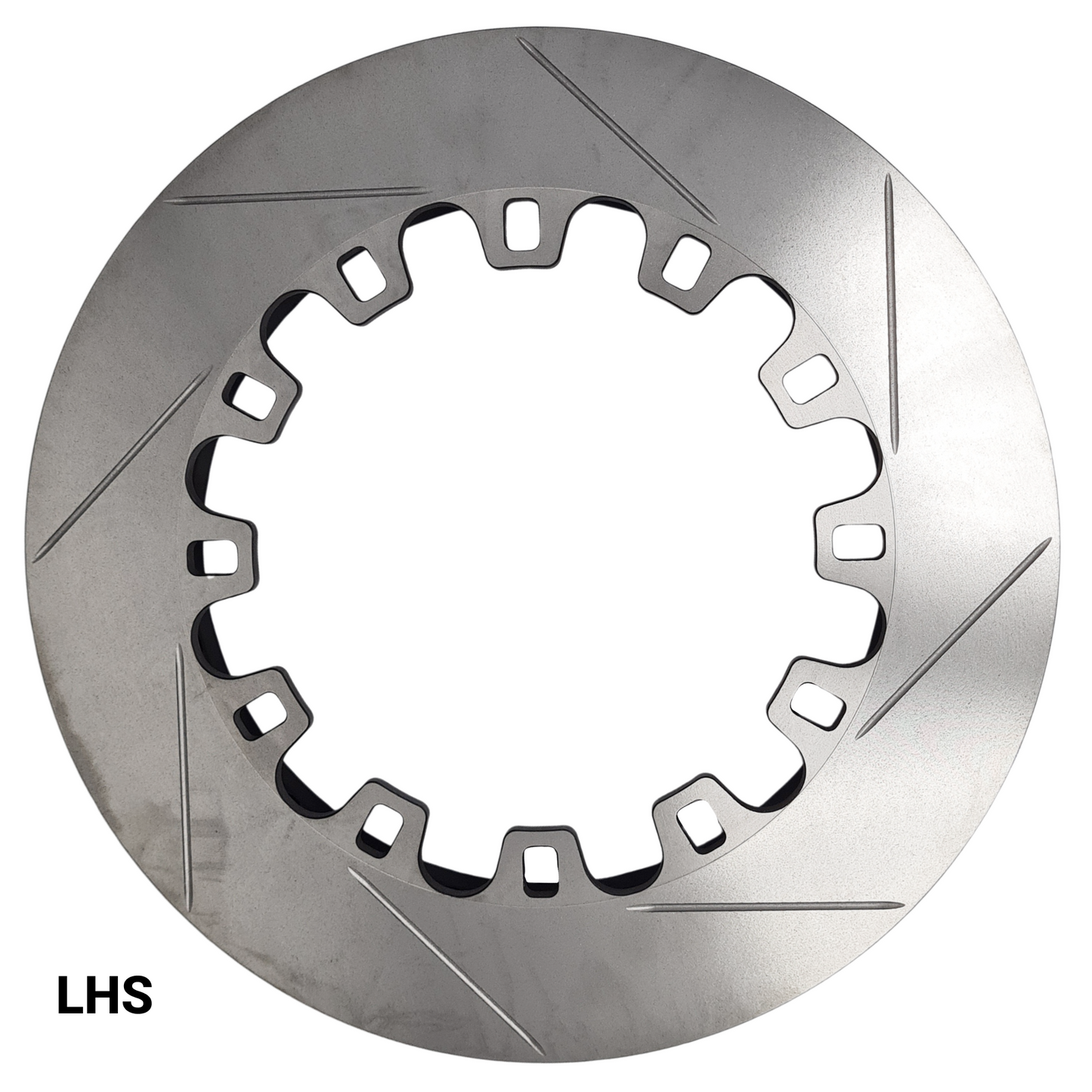

Left-Hand Side

CP5772-164 165 Customer Drawing.pdf

Option	SKU	Barcode
Brand	AP Racing
G8 - 8 Straight Grooves / Right-Hand Side	CP5772-164G8
G8 - 8 Straight Grooves / Left-Hand Side	CP5772-165G8

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
