Ø378mm x 34.0mm Ventilated Brake Disc - 12 x 247.65mm PCD - Floating

Ø378mm x 34.0mm Ventilated Brake Disc - 12 x 247.65mm PCD - Floating

CP7177-144CG8

€400.64 €492.79
Sale Sold out

Brake Disc Dimensions

  • Outside Diameter - 378mm
  • Thickness - 34.0mm
  • Mounting P.C.D. - 247.65mm
  • Mounting Type - Floating - 12 Bobbins
  • Spigot Diameter - mm
  • Eye Diameter: - 266.85mm
  • Inside Flange Diameter - 221.0mm
  • Mounting Flange Thickness - mm
  • Mounting Offset - mm
  • Max Pad Depth - D54.0
  • No. of Vanes - 72
  • Air Gap - 17.0mm
  • Weight - 8.63Kg
View full details
378mm x 34.0mm Brake Disc Dimensions

Outside Diameter
 378mm
Thickness
34.0mm
Mounting P.C.D.
247.65mm
Mounting Type
Floating - 12 Bobbins
Eye Diameter
266.85mm
Spigot Diameter
mm
Inside Flange Diameter
221.0mm
Mounting Flange Thickness
mm
Mounting Offset
mm
Max Pad Depth
D54.0
No. of Vanes
72
Air Gap
17.0
Weight
8.63Kg
Face Types Available
CG8 - Curved Grooves (Backward Facing)
CG8 - Curved Grooves (Backward Facing)
Disc Handing

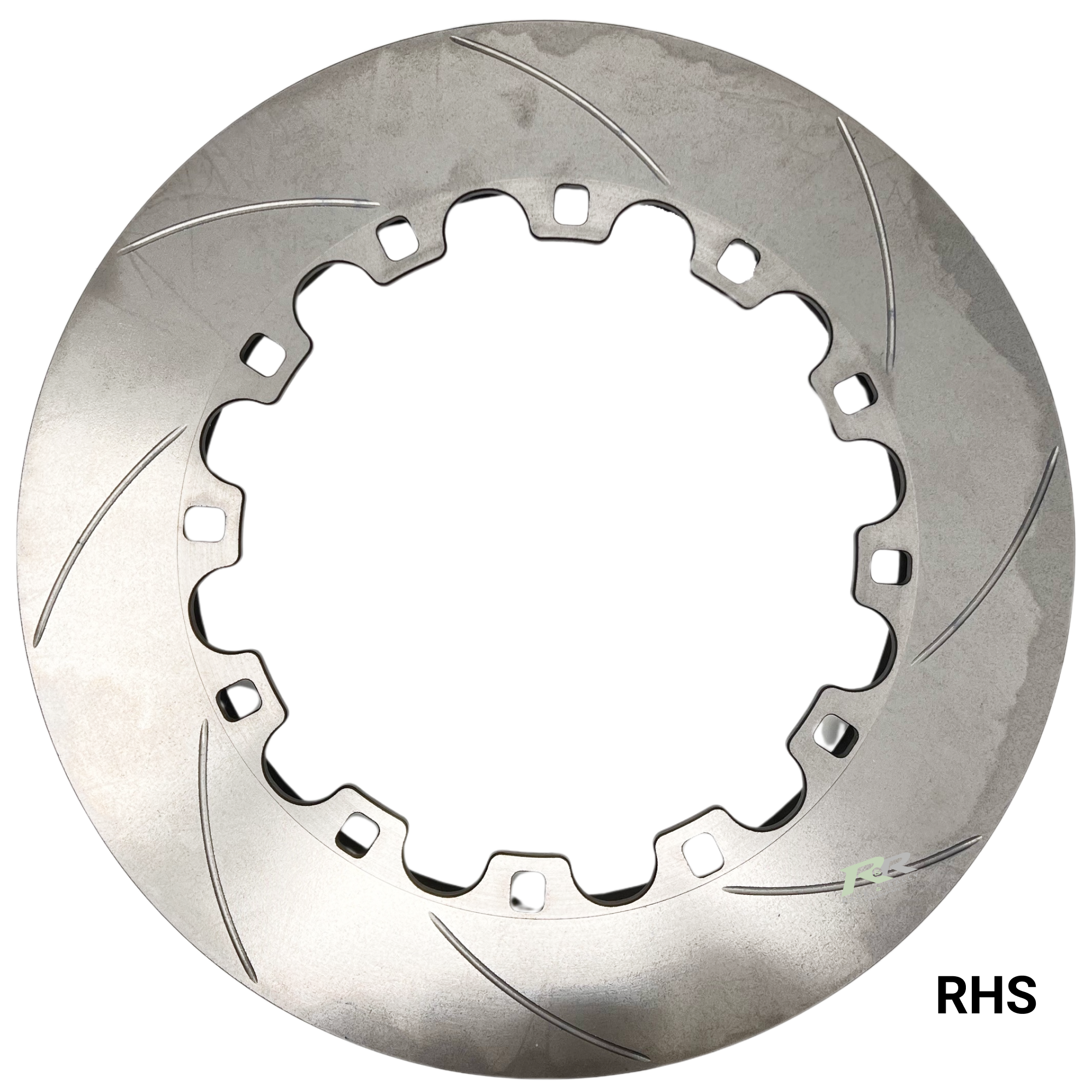

Right-Hand Side

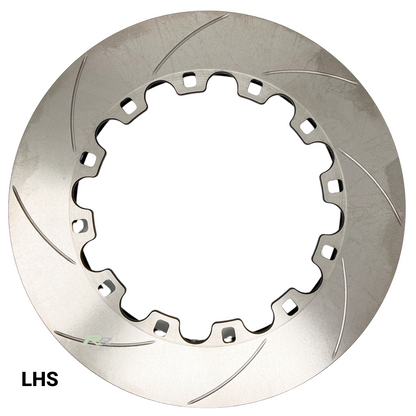

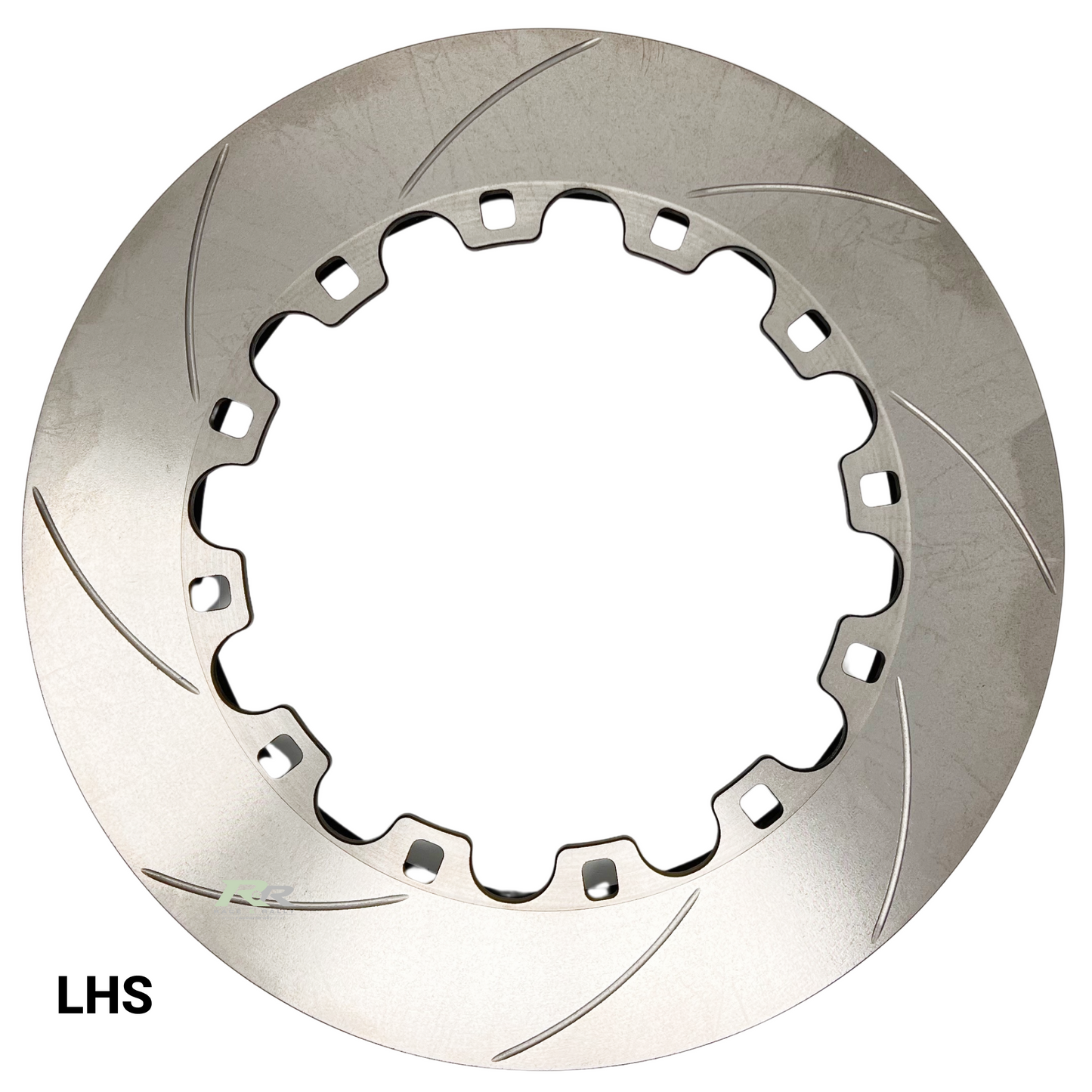

Left-Hand Side
Notes
For standard 0.40mm Float, use Bobbin CP4135-107FR

Brand:

AP Racing

Manufacturer Part Number:

CP7177-144CG8, CP7177-145CG8
